AFE69-A 730E-8 S/N A40002 HAILE GOLD MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF5470	SCREW, FLAT HEAD	2
?	BF5471	WEIGHT, OUTER	2
?	BF5473	RING, RETAINING	2
?	BF5474	CRANKROD	1
?	BF5511	RING, RETAINING	2
?	BF5475	CRANK, ECCENTRIC	1
?	BF5476	BEARING, BALL	1
?	BF5477	PIN, OUTLET	1
?		O-RING (1)	1
?	BF5478	UPPER BUSHING AND PLUNGER	1
?	58F-90-00050	SCREW, PIVOT	2
?	58F-90-00130	BUSHING, PIN	2
?	58F-90-00140	ANCHOR, WRIST PIN	1
?		WASHER, BACKUP (1)	1
?		SEAL, CUP (1)	1
?	58F-90-00080	PLUNGER, ROD	1
?	BF5483	SPRING	1
?	LA0906	BALL, STEEL	1
?	58F-90-00150	PLUNGER, PUMP	1
?	58F-90-00060	TUBE, RECIPRICATING	1
?		SEAL, CUP (1)	1
?		O-RING (1)	1
?	BF5486	CYLINDER	1
?	58F-90-00160	CAGE, BALL	1
?	BF3823	BALL, STEEL	1
?		O-RING (1)	1
?	BF5488	SEAT, CHECK	1
?	BF5489	SCREW, SELF-TAPPING	6
?	PC3292	COVER, HOUSING	1
?	PC3293	GASKET, COVER	1
?		GASKET (1)	6
?	BF5492	SCREW, SOCKET HEAD	4
?	PC2436	SWITCH, OVERRIDE (2)	1
?	XA4127	SEAL KIT	1
?	C5769	PLUG, PIPE - 1/4"	1
?	PC1769	VALVE, FLOW CONTROL	1
?	BF5509	SEAL KIT	1
?	BF5510	FITTING, ORIFICE	1
?	XA2018	MANIFOLD	1
?	58D-98-00040	VALVE, PRESSURE REDUCING (3)	1
?	BF5508	SEAL KIT	1
?	BF5501	HOUSING, PUMP	1
?	BF5500	PLUG, PIPE	1
?		GASKET (1)	1
?	BF5498	MOTOR, HYDRAULIC (INCLUDES REF. NOS. 40 & 41)	1
?	XA2147	WASHER	2
?	BF5499	SCREW, SOCKET HEAD	2
?		O-RING (1)	2
?	BF5502	NUT	2
?		RING, BACKUP (1)	2
?		O-RING (1)	2
?		O-RING (1)	2
?	XA2148	STRAINER, INLET	1
?	BF5503	BEARING, BRONZE	1
?		O-RING (1)	1
?		WASHER, BACKUP (1)	1
?		O-RING (1)	1
?	58F-90-00070	TUBE, HOUSING	1
?	BF5505	PLUG, SHOVEL	1
?	BF5506	RING, RETAINING	1
?	PC3290	DIPSTICK	1
?	PC3291	O-RING	1
?	58F-90-00120	NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN	-1
?		58F-90-00120 SEAL KIT.	-1
?		(2) SOLENOID NOT SERVICED SEPARATELY.	-1
?		(3) REPLACES PC1770 PRESSURE REDUCING VALVE	-1
?		SHIPPED WITH LUBE PUMP ASSEMBLY.	-1

Komatsu AFE69-A 730E-8 S/N A40002 HAILE GOLD MINE parts catalog PDF

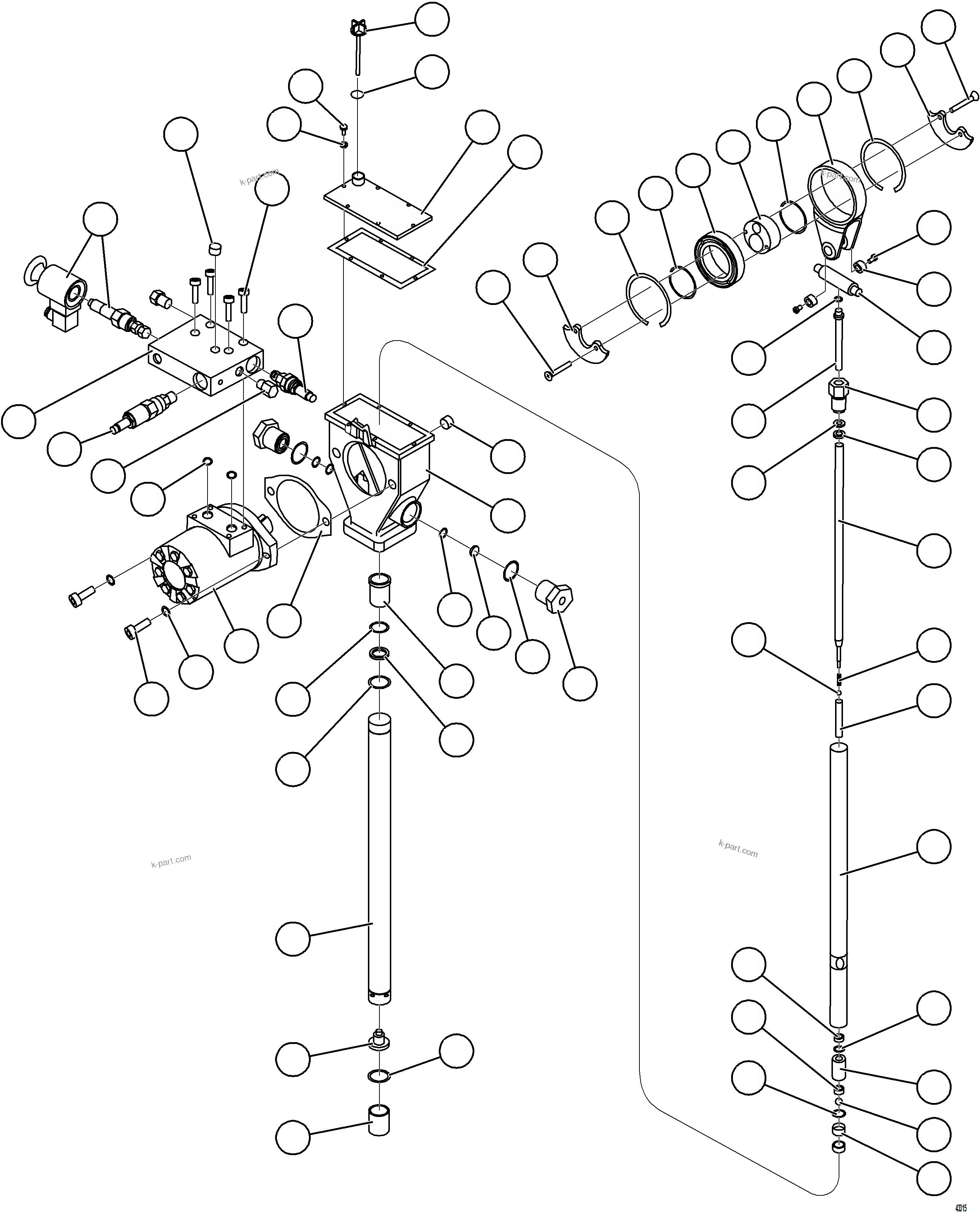

LUBE PUMP ASSEMBLY (SERIES B) XA4126 (43315) in AFE69-A 730E-8 S/N A40002 HAILE GOLD MINE. Diagram image and parts list.
