AFE69-A 730E-8 S/N A40002 HAILE GOLD MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58E-98-10120	CUSHION, SEAT	1
?	58E-98-10130	CUSHION, BACKREST	1
?	58E-98-10540	HEADREST	1
?	XA4061	KIT, HEADREST GUIDE	1
?	58E-98-10240	BRACKET, HEADREST GUIDE	1
?	XA5119	RIVET	4
?	58E-98-10300	SCREW - #12	2
?	58E-98-10110	KIT, HIGHBACK SEAT	1
?	EM4054	SLIDE ASSEMBLY	1
?	58E-98-10350	CAPSCREW - M8 X 1.25 X 30	2
?	58E-98-10340	FLAT WASHER	6
?	58E-98-10250	SPACER	4
?	XA4455	NUT, CENTERLOCK - M8 X 1.25	4
?	EM4066	BLOCK, SLIDER (ADJUSTABLE)	2
?	EM4068	SCREW, ALLEN HEAD - 1/4" - 20NC X 1/2"	2
?	XA5816	SEAT SUSPENSION ASSEMBLY (SEE INDEX)	1	42738
?	EM4056	RISER	1
?	EM4078	CAPSCREW - M8 X 1.25 X 25	6
?	EM4059	BLOCK, SLIDER (NON-ADJUSTABLE)	2
?	58E-98-10280	BOLT, CARRIAGE - 5/16" - 18NC	2
?	58E-98-10330	LOCKNUT - 5/16" - 18NC	2
?	58E-98-10390	CAPSCREW - 5/16" - 18NC X 1 1/2"	2
?	58E-98-10200	SPACER	1
?	EM4072	NUT, CENTERLOCK - 5/16" - 18NC	2
?	58E-98-10232	BRACKET, RECLINE STOP	1

Komatsu AFE69-A 730E-8 S/N A40002 HAILE GOLD MINE parts catalog PDF

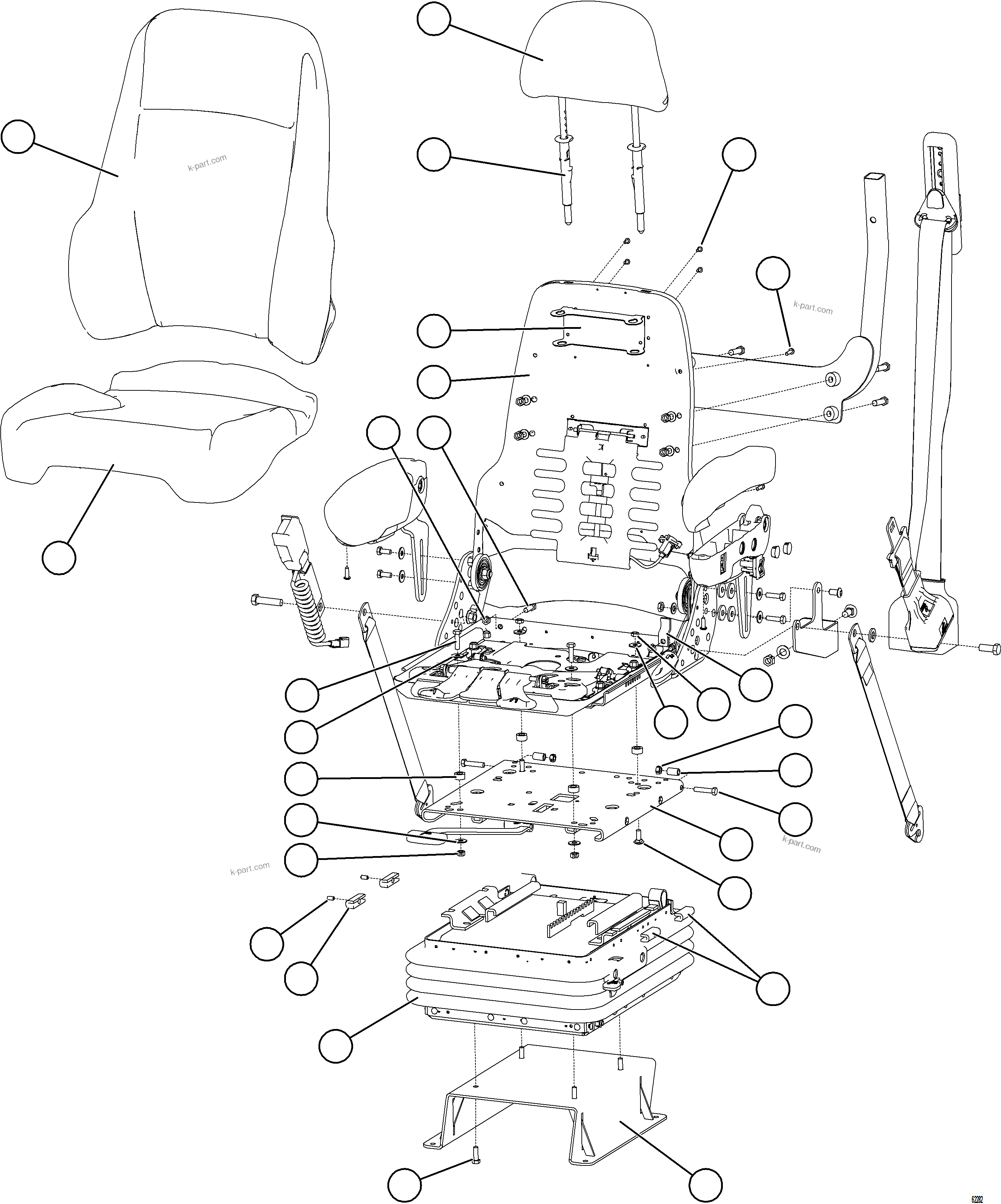

SEAT ASSEMBLY 1/2 58E-57-00501 (62282) in AFE69-A 730E-8 S/N A40002 HAILE GOLD MINE. Diagram image and parts list.
