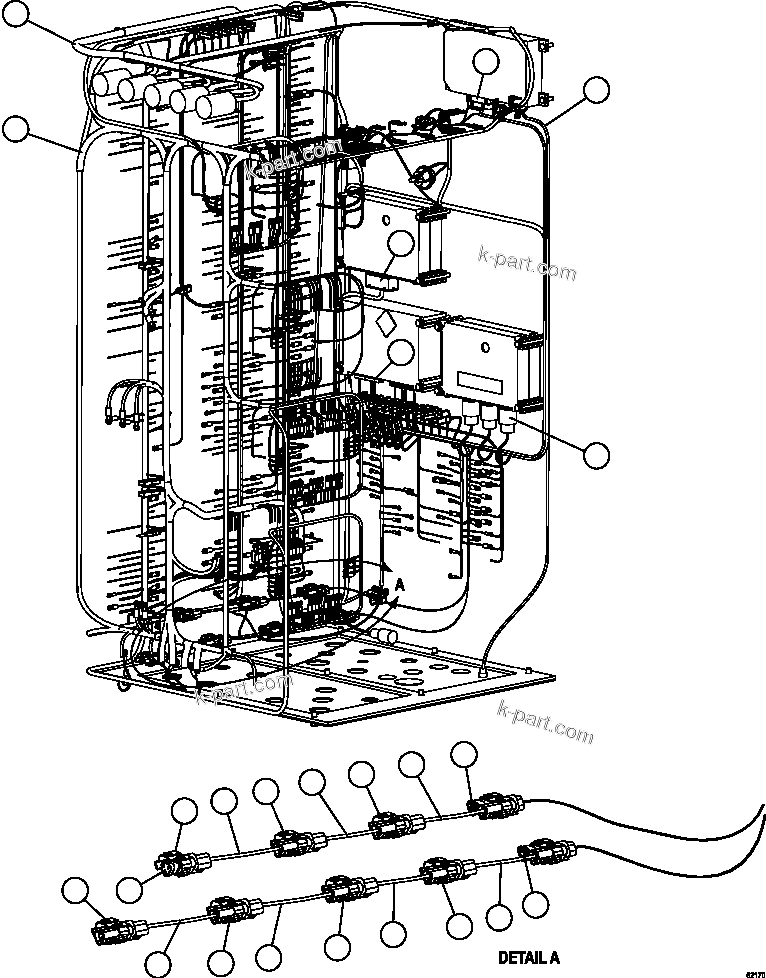

EM5415
|
HARNESS, ORBCOMM |
1 |
|
|
|
|
? |
PC1962
|
HARNESS, ORBCOMM (COAX) |
1 |
|
|
|
|
? |
EM6538
|
HARNESS, PLM III/AUX BOX |
1 |
|
|
|
|
? |
EM9301
|
HARNESS, VHMS |
1 |
|
|
|
|
? |
EK5337
|
CONNECTOR ASSEMBLY - CN1-6 |
1 |
|
|
|
|
? |
EJ6371
|
CONNECTOR ASSEMBLY - CN2B |
1 |
|
|
|
|
? |
EM5644
|
HARNESS, INTERFACE MODULE CONNECTOR |
1 |
|
|
|
|
? |
421-06-11970
|
DIODE - 3 AMP (D13, D27, D56, D57, D58, D61, D62, D67, D74, D81, D82) |
11 |
|
|
|
|
? |
58B-06-00120
|
RESISTOR - 2,000 OHM, 2W |
2 |
|
|
|
|
? |
EK9233
|
VARISTOR (R17, R18, R45) |
3 |
|
|
|
|
? |
EK4129
|
RESISTOR - 750 OHM |
1 |
|
|
|
|
? |
EL5430
|
RESISTOR - 560 OHM, 3W (R11) |
1 |
|
|
|
|
? |
EM8008
|
HARNESS, GE/AUX BOX INTERFACE |
1 |
|
|
|
|
? |
XB8835
|
HARNESS, AUXILIARY CONTROL CABINET INTERNAL |
1 |
|
|
|
|
? |
421-06-11970
|
DIODE - 3 AMP (D11, D51, D52, D53, D54, D55, D69, D70, D71, D80, D84, D85) |
12 |
|
|
|
|
? |
EK9233
|
VARISTOR (R68) |
1 |
|
|
|
|
? |
EF6927
|
RESISTOR - 22,100 OHM (R7, R8) |
2 |
|
|
|
|
? |
58B-06-00120
|
RESISTOR - 2,000 OHM, 2W (R1, R2, R3, R4, R5, R10, R21, R69) |
8 |
|
|
|
|
? |
PC2399
|
FUSE - 1 AMP |
4 |
|
|
|
|
? |
PC0616
|
RECEPTACLE, TEE |
7 |
|
|
|
|
? |
EM8017
|
HARNESS, MODULAR MINING SYSTEM |
3 |
|
|
|
|
? |
XB8658
|
HARNESS, THIRD PARTY CAN DATA |
4 |
|
|
|
|
? |
PC0618
|
PLUG, TERMINATING |
3 |
|
|
|
|
? |
EK5341
|
HARNESS, 1939 JUMPER |
2 |
|
|
|
|
? |
EK5340
|
HARNESS, 1939 JUMPER |
2 |
|
|
|
|
? |
EK5339
|
HARNESS, 1939 JUMPER |
1 |
|
|
|
|
? |
|
NOTE: NS = NOT SHOWN |
-1 |
|
|
|
|
? |
58E-06-00010
|
KIT, WIRING HARNESS RESISTOR (SHUTDOWN) (2) |
1 |
|
|
|
|
? |
58E-06-00200
|
WIRING HARNESS |
1 |
|
|
|
|
? |
58E-06-00130
|
RESISTOR |
1 |
|
|
|
|
? |
58B-06-11000
|
WIRE, JUMPER - CIRCUIT 712 POWER (1) |
1 |
|
|
|
|
? |
|
NOTE: (1) TOP CORNER OF LEFT SIDE WALL. |
-1 |
|
|
|
|
? |
|
(2) TERMINAL BOARD LOCATION TB36: 2113L & GROUND |
-1 |
|
|
