AFE63-B 960E-1K S/N A50009 - A50010 ANGLO SISHEN

33 25 24 23 22 23 24 25 33 27 26 19 25 28 33 24 23 22 31 22 23 24 22 23 24 20 33 24 23 22 22 22 23 24 34 18 21 20 19 22 23 24 18 36 37 38 9 8 6 7 4 5 35 14 13 17 16 15 3 1 2 10 12 11 39 32 23 22 24 23 22 18 29 30 40 36

#	Part Number	Partname	Quantity
0	EJ7313	SERVICE CENTER SUB-ASSEMBLY	1
1	EJ6559	MOUNT	1
2	EK7400	DECAL, SERVICE CENTER	1
3	C5771	PLUG, PIPE - 1/2"	1
4	PB9212	RECEIVER ASSEMBLY (ENGINE OIL)	1
5	WB0947	LOCKNUT, BULKHEAD - 1 5/8" - 12NC	1
6	PB9211	RECEIVER ASSEMBLY (COOLANT)	1
7	WB0945	LOCKNUT, BULKHEAD - 1 3/16" - 12NC	1
8	PB9213	RECEIVER ASSEMBLY (HYDRAULIC OIL)	1
9	WB0948	LOCKNUT, BULKHEAD - 1 7/8" - 12NC	1
10	WB0292	FITTING (1)	1
11	WB0594	FITTING, STRAIGHT	1
12	WB0585	FITTING, STRAIGHT	1
13	WB0600	FITTING, STRAIGHT	1
14	WB0364	FITTING, ADAPTER	1
15	MM0620	CAPSCREW - M12 X 1.75 X 40	4
16	MM0714	FLAT WASHER - M12 (HARDENED)	8
17	MM0179	NUT - M12 X 1.75	4
18	HA8278	HOSE (TO HYDRAULIC TANK)	1
19	HA8280	HOSE (TO RADIATOR)	1
20	HA2873	HOSE (TO ENGINE OIL RESERVE TANK)	1
21	HA8300	HOSE (TO AUTO LUBE PUMP)	1
22	WB3096	CLAMP, CUSHION - 1 1/4"	31
23	MM0461	FLAT WASHER - M10	28
24	MM0178	NUT - M10 X 1.50	33
25	WB3092	CLAMP, CUSHION - 7/8"	6
26	WB0265	FITTING, ELBOW - 90 DEG	1
27	ED9901	RING, SEAL	1
28	KC1255	CLAMP	1
29	TC8757	BUSHING, PIPE - 2" X 1"	1
30	WB0273	FITTING, ELBOW - 90 DEG	1
31	WB0468	FITTING, STRAIGHT	1
32	426-06-11570	BRACKET	3
33	EK9883	SPACER	10
34	TY8375	SPACER	2
35	SG3146	GROMMET	1
36	MM0605	CAPSCREW - M10 X 1.50 X 25	6
37	TR9441	CLAMP, VINYL - 1 1/4"	3
38	TC6058	CLAMP, VINYL - 1 1/2"	2
39	MM0604	CAPSCREW - M10 X 1.50 X 20	3
40	WB1055	CLAMP, VINYL - 3 1/2"	1
NS\|42		NOTE: (1) REPLACE WITH WB0466 STRAIGHT FITTING DURING	-1
NS\|43		INSTALLATION OF SUB-ASSEMBLY.	-1

Komatsu AFE63-B 960E-1K S/N A50009 - A50010 ANGLO SISHEN parts catalog PDF

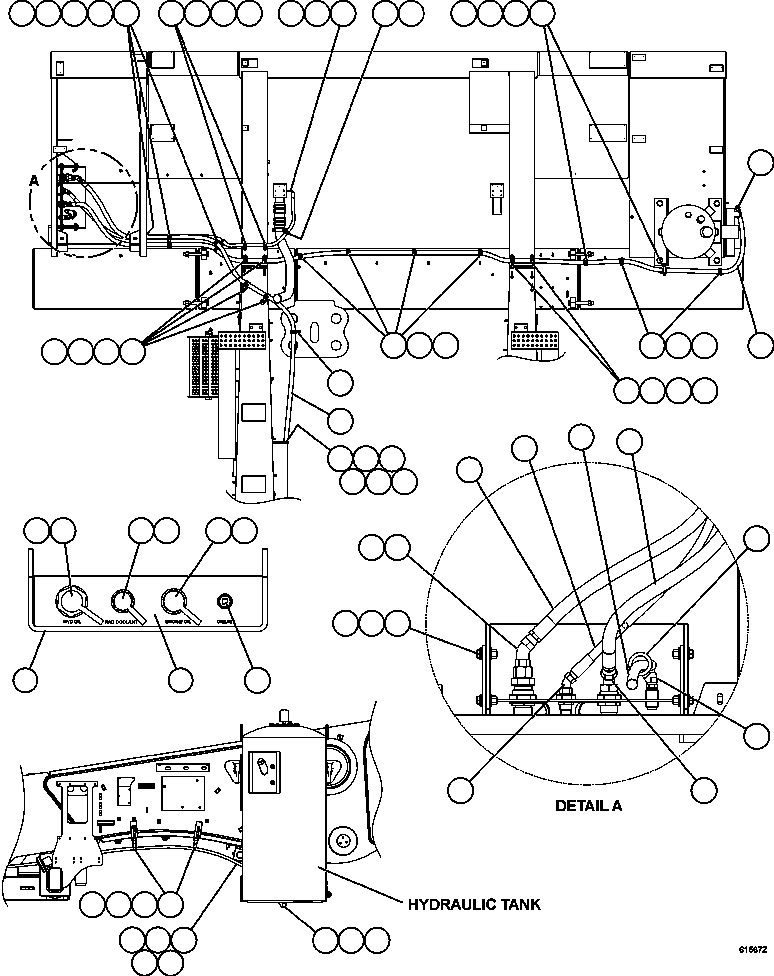

SERVICE CENTER - L.H. (61567) in AFE63-B 960E-1K S/N A50009 - A50010 ANGLO SISHEN. Diagram image and parts list.
