AFE63-B 960E-1K S/N A50009 - A50010 ANGLO SISHEN

26 29 28 16 9 3 12 25 13 5 6 1 2 17 30 8 7 10 7 8 4 14 18 15 31 32 9 3 22 33 23 34 24 11 35 21 38 37 36 20 19 3 27

#	Part Number	Partname	Quantity
0	XB3930	FRONT SUSPENSION ASSEMBLY	1
0	XB3931	FRONT SUSPENSION ASSEMBLY - COLD WEATHER	1
1	EM1565	HOUSING	1
2	EK5290	CAP, SUSPENSION	1
3	WA0363	FLAT WASHER - 7/8"	60
4	EH6536	KEY	1
5	PB2194	CHARGING VALVE ASSEMBLY (1)/(2)	1
5	TR9993	CAP, VALVE	1
5	TD7179	CORE, VALVE	1
5	TF1144	O-RING, HOUSING	1
5	WA0052	O-RING, VALVE STEM	1
6	VD5076	GASKET, FLAT (1)/(2)	1
7	WA2522	SEAL, O-RING (1)	4
8	PC1392	RING, BACKUP (1)	4
9	VN9105	CAPSCREW - 7/8" - 9NC X 3"	36
10	VC2629	LOCKPIN	1
11	PC2582	BEARING, UPPER	1
12	TZ8637	PLUG, SENSOR	1
13	H2981	BALL, STEEL (1)	2
14	EH6529	STOP, PISTON	1
15	VW4451	NUT	1
16	EM9996	COVER, PROTECTOR	1
17	TY8879	PLUG, VENT	1
18	PC2583	BEARING, LOWER	1
19	VN9152	CAPSCREW - 7/8" - 9NC X 4 1/2"	24
20	EM3205	RETAINER, UPPER BEARING	1
21	EL4841	RETAINER, LOWER BEARING	1
22	PC1818	SEAL, BUFFER (1)	1
23	PC1322	SEAL, DOUBLE LIP (1)	1
24	PC1819	SEAL, WIPER (1)	1
25	WA2892	PLATE, DANGER	2
25	WA3417	PLATE, DANGER (SPANISH)	2
26	R1073	DRIVE SCREW - #6 X .187	8
27	EL0974	PLATE, WIPER RETAINER	1
28	C1602	CAPSCREW - 3/8" - 16NC X 1"	2
29	DF3042	FLAT WASHER - 3/8"	2
30	XB3934	PISTON ASSEMBLY	1
30	58B-50-00010	PISTON	1
31	WA0443	O-RING	1
32	WA1443	RING, BACKUP	1
33	EM3159	PLUG, PISTON	1
34	EM1585	RING, RETAINER	3
35	EM1600	PLATE, RETAINER	1
36	VN9032	CAPSCREW - 1/2" - 13NC X 1"	1
37	WA0360	FLAT WASHER - 1/2"	1
38	VM0314	PLUG, O-RING	1
NS\|47		NOTE: NS = NOT SHOWN	-1
NS\|48	AK4063	SUSPENSION OIL W/ FRICTION MODIFIER (5 GALLON CAN)	-1
NS\|49	AK4064	SUSPENSION OIL W/ FRICTION MODIFIER (55 GALLON CAN)	-1
NS\|50	AK4065	SUSPENSION OIL W/ FRICTION MODIFIER (5 GALLON CAN) - CW	-1
NS\|51	AK4066	SUSPENSION OIL W/ FRICTION MODIFIER (55 GALLON CAN) - CW	-1
NS\|52	AK5238	NOTE: (1) INCLUDED IN AK5238 SEAL KIT.	-1
NS\|53	RK1887	(2) INCLUDED IN RK1887 CHARGING VALVE KIT.	-1
NS\|54		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1

Komatsu AFE63-B 960E-1K S/N A50009 - A50010 ANGLO SISHEN parts catalog PDF

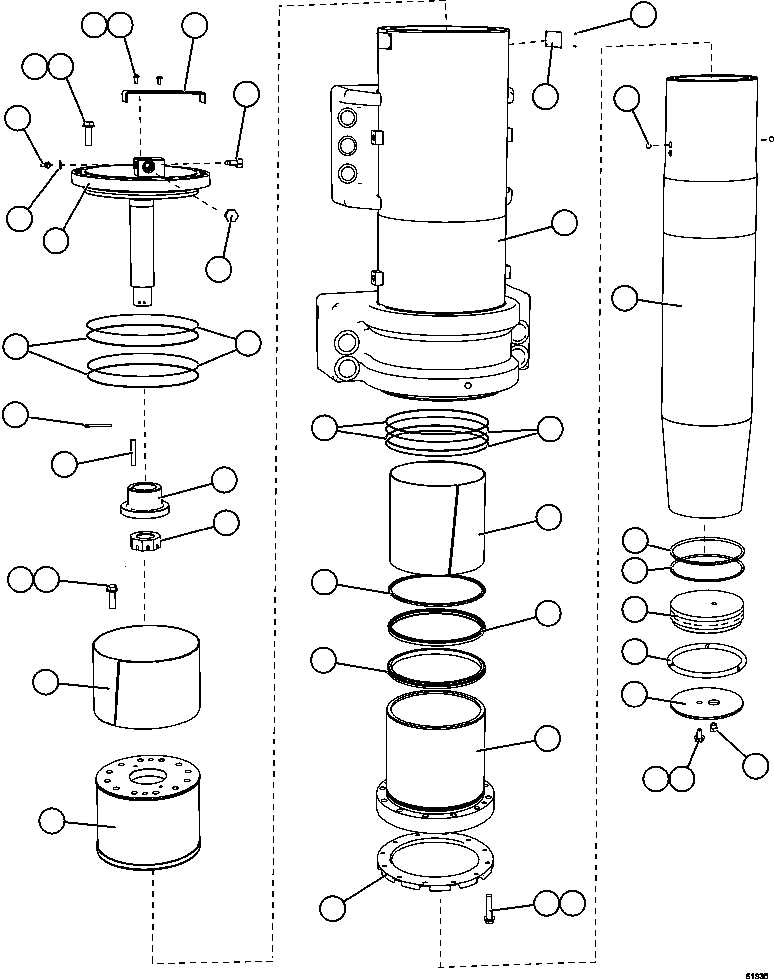

FRONT SUSPENSION ASSEMBLY (61935) in AFE63-B 960E-1K S/N A50009 - A50010 ANGLO SISHEN. Diagram image and parts list.
