AFE59-HF 930E-4 S/N A32095 & A32101 MOGALAKWENA

12 17 18 31 32 33 30 21 23 35 20 29 28 27 16 7 26 37 38 2 13 14 15 1 21 22 23 25 26 44 20 21 22 23 24 20 28 29 27 35 23 21 20 35 23 21 20 39 40 42 43 36 10 11 8 9 6 5 21 20 23 22 20 21 22 23 19 39 41 42 43 36 27 28 34 3 4

#	Part Number	Partname	Quantity
1	XA3594	BUS BAR	1
2	GE1400	BUS BAR	1
3	XA4250	BUS BAR	1
4	XA4249	BUS BAR	1
5	GE1401	BUS BAR	1
6	GE1402	BUS BAR	1
7	GE0756	LINK SENSOR, AC-DC	1
8	GE1394	BUS BAR, INSULATED	1
9	GE1396	BUS BAR	1
10	VE4600	FLAT WASHER - #10	-1
11	XA4249	BUS BAR	1
12	GE1404	BUS BAR, INSULATED	1
13	GE1392	BUS BAR	2
14	GE1403	BUS BAR	1
15	XA3596	BUS BAR	1
16	XA3597	BUS BAR	1
17	58B-43-00660	BUS BAR - CAPACITOR	5
18	GE1412	BUS BAR, VERTICAL	1
19	58D-98-00400	CAPSCREW - 1/2" - 13NC X 2 1/4"	1
20	VE4699	LOCKWASHER - 1/2"	-1
21	VE4698	NUT - 1/2" - 13NC	-1
22	VE4519	FLAT WASHER - 1/2"	-1
23	VE3030	FLAT WASHER - 1 1/4" OD	-1
24	VE5062	CAPSCREW - 1/2" - 13NC X 2 3/4"	4
25	GE0581	STUD	2
26	PB3348	INSULATOR	26
26	VE8185	CEMENT	-1
27	VE4343	FLAT WASHER - 5/16"	-1
28	VE4696	LOCKWASHER - 5/16"	-1
29	TR4731	CAPSCREW - 5/16" - 18NC X 1"	2
30	XA3599	BASE ASSEMBLY	1
31	58D-98-02180	FLAT WASHER - 1/4"	-1
32	XA5003	LOCKWASHER - 1/4"	-1
33	XA5287	CAPSCREW - 1/4" - 20NC X 7/8"	6
34	VE5013	NUT - 5/16" - 18NC	2
35	VE5061	CAPSCREW - 1/2" - 13NC X 2 1/2"	6
36	VE4687	LOCKWASHER - 3/8"	-1
37	GE1415	BRACKET	4
38	GE0579	STUD	12
39	WA0720	FLAT WASHER, HARDENED - 3/8"	-1
40	XA4255	CAPSCREW - 3/8" - 16NC X 2"	13
41	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	-1
42	VE3918	FLAT WASHER - 3/8"	-1
43	VE4700	NUT - 3/8" - 16NC	-1
44	58F-43-00420	CHANNEL ASSEMBLY	2

Komatsu AFE59-HF 930E-4 S/N A32095 & A32101 MOGALAKWENA parts catalog PDF

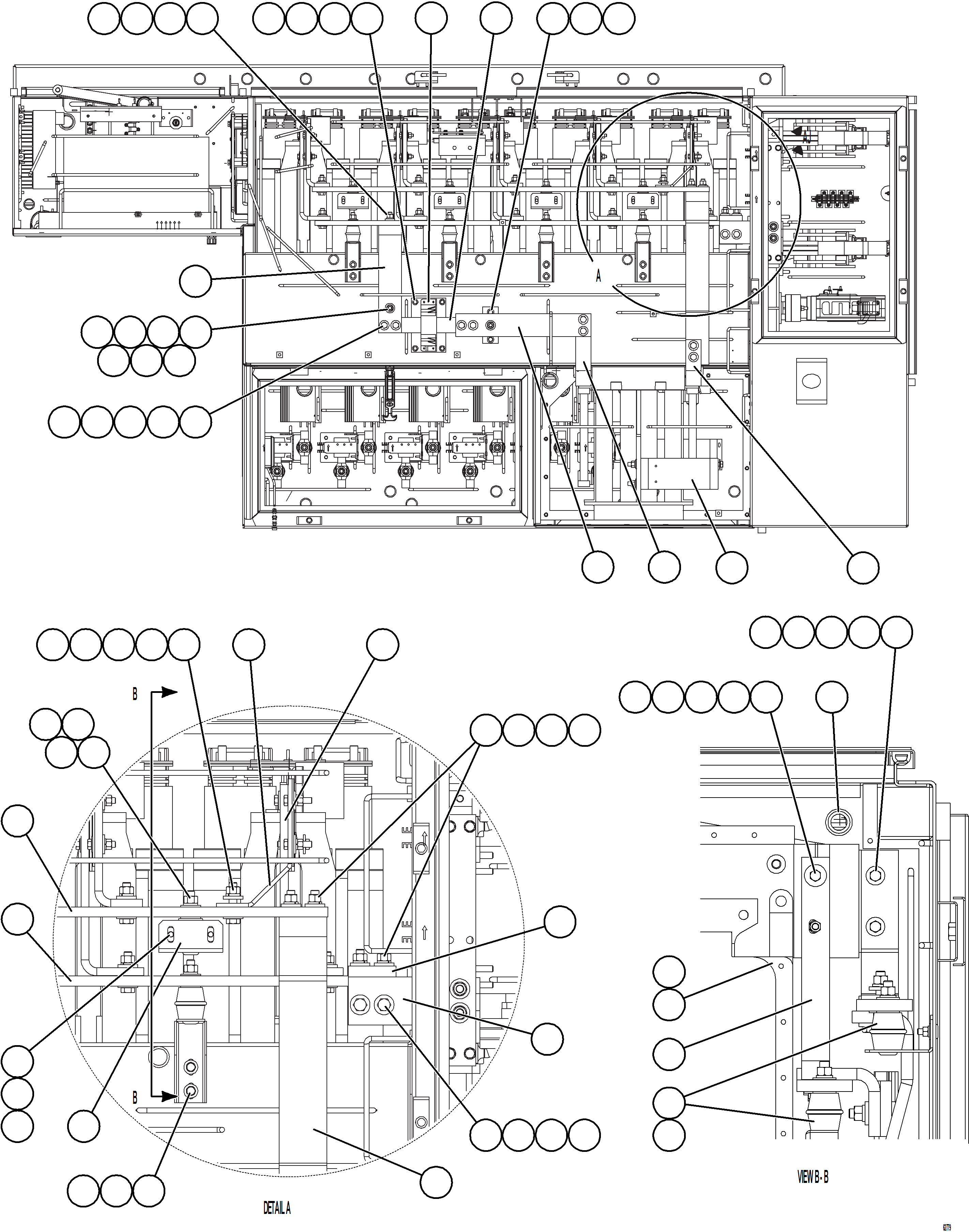

CONTROL CABINET - TOP VIEW 1/2 58F-43-00033 (62779) in AFE59-HF 930E-4 S/N A32095 & A32101 MOGALAKWENA. Diagram image and parts list.
