AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA2272	SHAFT & BRACKET	1
?	XA2279	PIN, DOWEL - REAR (3)	1
?	VE1297	FITTING, ORIFICE	1
?	VE8126	RETAINER/SEAL ASSEMBLY (2)/(3)	1
?	BF0136	SLEEVE, WEAR (1)/(2)/(3)	1
?	BF0142	NAME PLATE (1)/(2)/(3)	1
?	BF0143	TUBE (1)/(2)/(3)	2
?	XA3505	CAPSCREW	16
?	BF2651	FLAT WASHER	16
?	BF0883	SEAL, OIL (2)/(3)	1
?	XA3504	RETAINER, BEARING	1
?	XA2277	SPACER, BEARING	1
?	BF0144	O-RING (1)/(2)/(3)	2
?	XA2273	BEARING, MAIN REAR (3)	1
?	BF0849	SNAP RING (3)	1
?	VE8122	SNAP RING, EXTERNAL (3)	1
?	BF0138	RING, SEAL (1)/(2)/(3)	2
?	XA2336	CAPSCREW	8
?	BF5366	LOCKWASHER	8
?	XA2334	PULLEY, FAN	1
?	XA3506	ADAPTER, PULLEY	1
?	BF0139	RING, SEAL (1)/(2)/(3)	1
?	BF4032	PISTON	1
?	BF0140	RING, SEAL (1)/(2)/(3)	1
?	BF0146	WASHER, SPRING (1)/(2)/(3)	1
?	BF0147	SHIM (1)/(2)/(3)	1
?	VE8128	SNAP RING, EXTERNAL (3)	1
?	VE8125	SNAP RING, EXTERNAL (3)	1
?	BF0885	HUB, SPLINED	1
?	VE1304	PLATE, CLUTCH (FACING) (3)	8
?	BF0887	PLATE, CLUTCH (1)/(3)	8
?	VE8127	SNAP RING, INTERNAL (3)	1
?	XA2275	BEARING, MAIN FRONT (3)	1
?	XA3507	RETAINER, BEARING	1
?	BF0883	SEAL, OIL (2)/(3)	1
?	XA2274	HUB, FAN MOUNTING	1
?	BF0141	SLEEVE, WEAR (1)/(2)/(3)	1
?	VE8126	RETAINER/SEAL ASSEMBLY (2)/(3)	1
?	VE8123	BEARING, SLEEVE (3)	1
?	XA2278	PIN, DOWEL - FRONT (3)	1
?	VE8524	BEARING, SLEEVE (3)	1
?	BF4043	CAP, END	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	XA2271	(2) INCLUDED IN XA2271 SEAL KIT.	-1
?	EK2970	(3) INCLUDED IN EK2970 OVERHAUL KIT.	-1
?		(TO ORDER FAN CLUTCH ASSM LESS PULLEY, ORDER XA3503.)	-1

Komatsu AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN parts catalog PDF

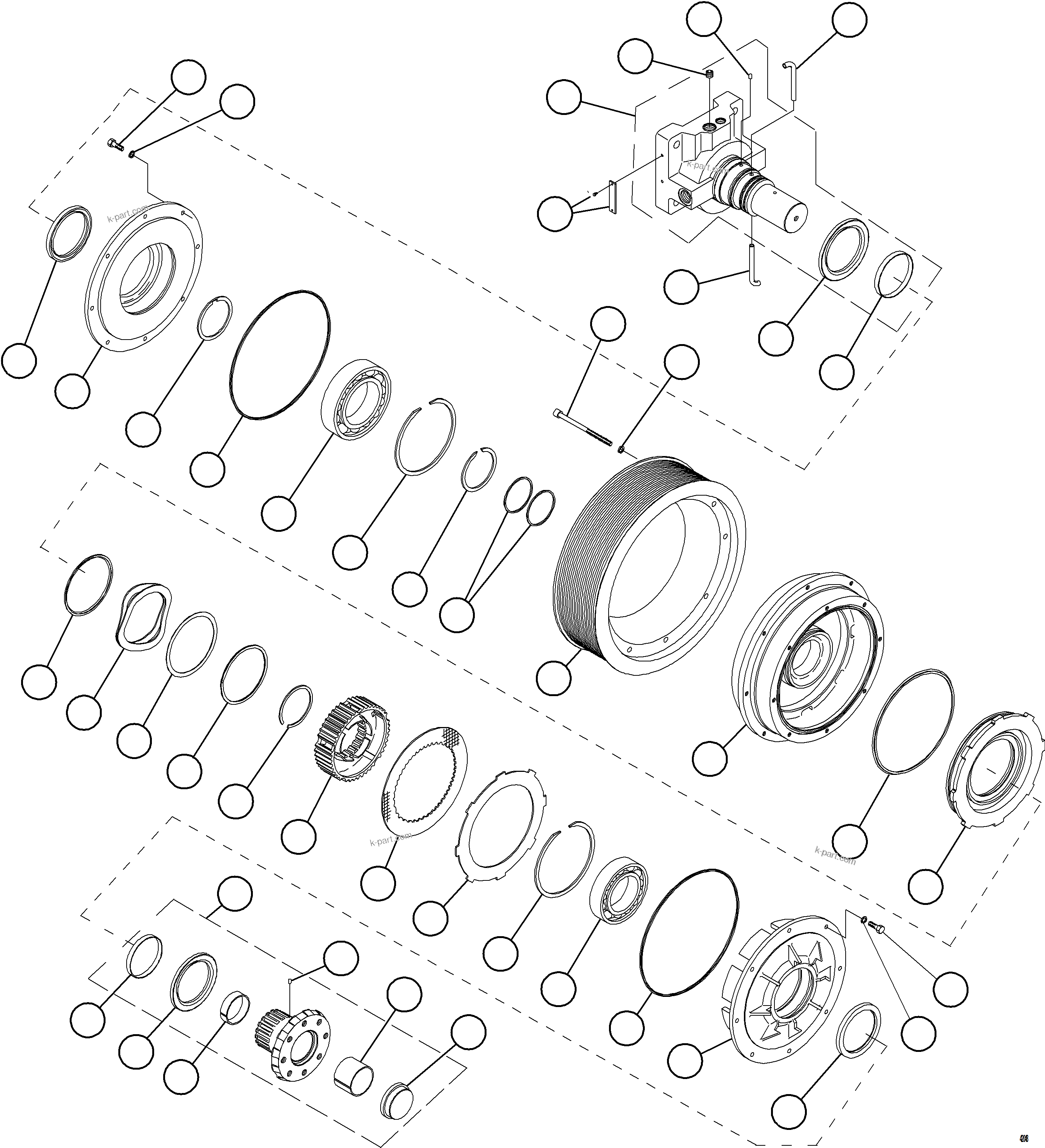

FAN CLUTCH ASSEMBLY 58F-03-00500 (42048) in AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN. Diagram image and parts list.
