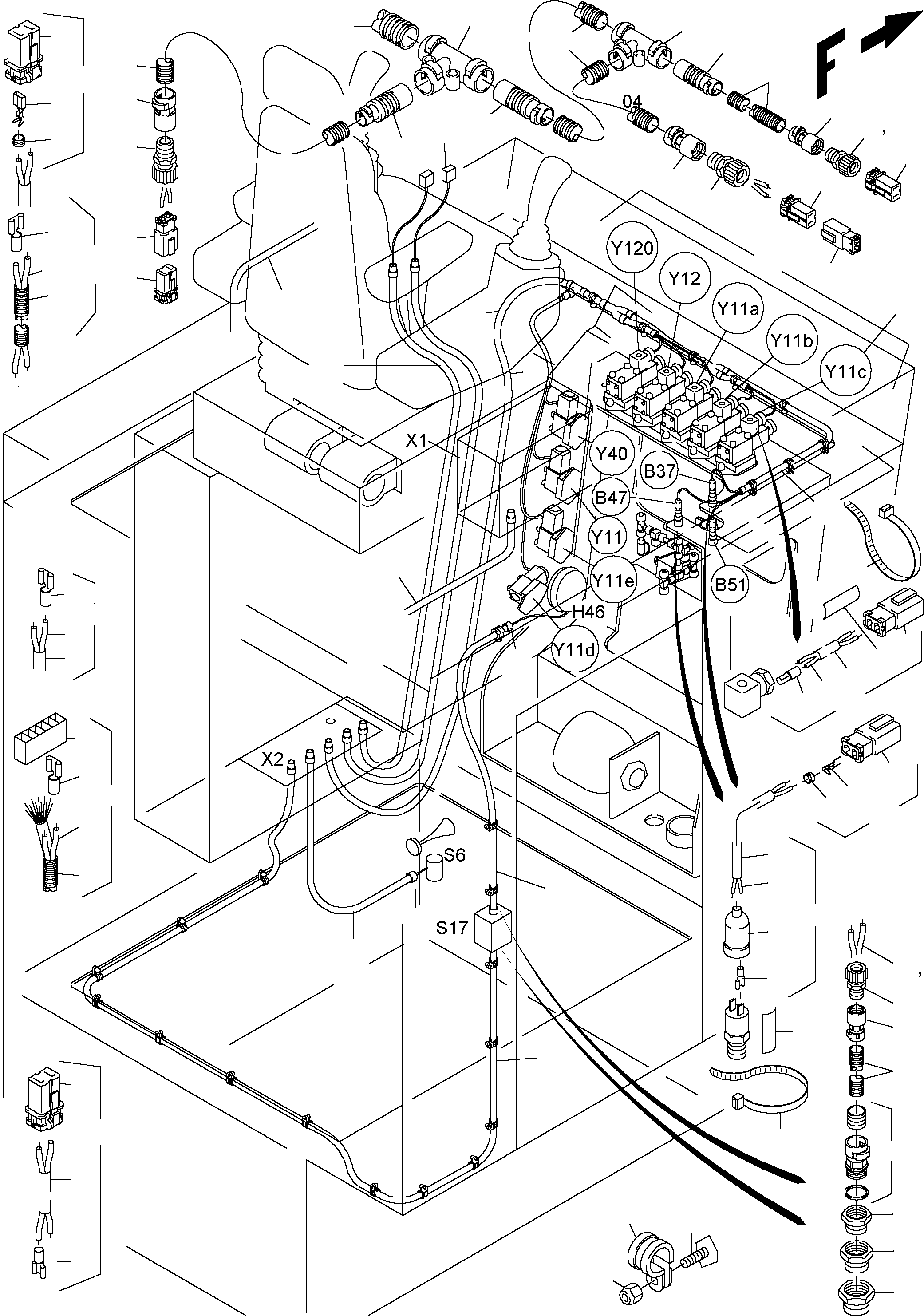

01 |
903 341 40
|
Harness - control frame -
cab support |
1 |
|
|
|
|
02 |
655 649 40
|
Protecting hose DN 10
Bulk ware, state length
required |
-2 |
|
|
|
|
04 |
655 651 40
|
Protecting hose DN 17
Bulk ware, state length
required |
-2 |
|
|
|
|
05 |
655 629 40
|
T-Distributor DN 17 |
1 |
|
|
|
|
06 |
655 632 40
|
Pipe adapter DN 17/10 |
1 |
|
|
|
|
07 |
515 189 40
|
Cable 1 qmm BL
Bulk ware, state length
required |
-2 |
|
|
|
|
08 |
655 805 40
|
Fitting PG 9 |
3 |
|
|
|
|
09 |
655 808 40
|
Fitting PG 16 |
2 |
|
|
|
|
10 |
655 798 40
|
Cable union PG 9 |
3 |
|
|
|
|
11 |
655 804 40
|
Cable union PG 16 |
2 |
|
|
|
|
12 |
891 031 40
|
Plug with bushing assy. |
12 |
|
|
|
|
13 |
006 302 98
|
Clamp |
10 |
|
|
|
|
14 |
510 363 98
|
Clamp |
10 |
|
|
|
|
15 |
323 946 40
|
Thread pin |
20 |
|
|
|
|
16 |
507 025 98
|
Nut |
20 |
|
|
|
|
17 |
006 339 79
|
Plug |
1 |
|
|
|
|
18 |
006 345 79
|
Rear holder 2-poles |
1 |
|
|
|
|
19 |
006 350 79
|
Bushing |
2 |
|
|
|
|
20 |
006 352 79
|
Spout |
2 |
|
|
|
|
21 |
891 060 40
|
Plug for pressure switch |
2 |
|
|
|
|
22 |
490 554 40
|
Protection cap |
2 |
|
|
|
|
23 |
323 961 40
|
Sleeve 6,3x0,8 |
4 |
|
|
|
|
24 |
455 756 99
|
Insulating tube B 6x0,6
Bulk ware, state length
required |
-2 |
|
|
|
|
25 |
515 189 40
|
Cable 1 qmm BL
Bulk ware, state length
required |
-2 |
|
|
|
|
26 |
891 039 40
|
Plug with pins assy. |
7 |
|
|
|
|
27 |
006 338 79
|
Plug |
1 |
|
|
|
|
28 |
006 348 79
|
Pin |
2 |
|
|
|
|
29 |
600 790 99
|
Reducing 11-9 |
2 |
|
|
|
|
30 |
600 812 99
|
Reducing 13,5-11 |
2 |
|
|
|
|
31 |
600 813 99
|
Reducing 16-13,5 |
2 |
|
|
|
|
32 |
655 621 40
|
Cable union DN 10, straight |
2 |
|
|
|
|
33 |
055 130 40
|
Tab 0,5 - 1,5 |
-2 |
|
|
|
|
34 |
455 757 99
|
Insulating tube B 7x0,7
Bulk ware, state length
required |
-2 |
|
|
|
|
35 |
655 834 40
|
Protecting hose DN 36
Bulk ware, state length
required |
-2 |
|
|
|
|
36 |
894 594 40
|
Connection cable |
1 |
|
|
|
|
38 |
635 043 40
|
Name plate |
-2 |
|
|
|
|
39 |
056 292 40
|
Cable strap |
-2 |
|
|
|
|
40 |
891 187 40
|
Harness X1 - horn |
1 |
|
|
|
|
41 |
891 052 40
|
Harness X1 - X2 |
1 |
|
|
|
|
42 |
057 296 40
|
Connector |
1 |
|
|
|
|
43 |
515 194 40
|
Cable 2,5 BL
Bulk ware, state length
required |
-2 |
|
|
|
|
44 |
655 630 40
|
T-Distributor DN 29/23 |
1 |
|
|
|
|
45 |
655 635 40
|
Pipe adapter DN 29/17 |
1 |
|
|
|
|
46 |
891 084 40
|
Plug 2-pole assy. |
1 |
|
|
|
|
47 |
655 652 40
|
Cable protection hose DN 23
Bulk ware, state length
required |
-2 |
|
|
|
|
48 |
655 634 40
|
Pipe adapter DN 23/17 |
1 |
|
|
|
|
49 |
896 520 40
|
Plug pin |
1 |
|
|
|
|
50 |
056 071 40
|
Cable sleeve 2,5 |
26 |
|
|
|
|
55 |
891 179 40
|
Cable control panel - seat |
1 |
|
|
|
|
56 |
891 188 40
|
Cable control panel - dumper
counter |
1 |
|
|
|
|
57 |
903 364 40
|
Harness assy. V24 |
1 |
|
|
|
|
58 |
056 070 40
|
Cable sleeve 1,0 - 1,5 |
1 |
|
|
|
|
59 |
891 066 40
|
Plug valve |
7 |
|
|
