PC3000-1 S/N 06194

01 01 01 01 02 03 04 05 06 07 08 09 10 11 11 12 13 14 15 16 17 18 19 20 20 20 20 20 20 20 20 20 20 21 21 21 22 22 23 23 23 24 24 25 26 26 27 28 29 30 30 30 31 31 32 33 34 35 35 35 35 35 36 36 36 36 37 38 39 39 39 39 39 40 40 40 41 42 43 44 44 44 44 44 45 46 47 47 48 48 48 48 49 49 49 49 49 49 49 49 50 50 51 51 51 52 52 52 53 53 53 54 54 55 55 56 57 58 59 60 61 62 63 63 63 63 64 65 65 66 66 67 68 69 70 71 72 73 74 75 76 77 78 78 79 80 80 81 81 82 83 83 84 84 85 86 87 88 89 90

#	Part Number	Partname	Quantity
01	891 184 40	Harness - hydraulic tank	1
02	440 382 40	Sensor	3
03	269 870 40	Cover tube	3
04	654 913 40	Level probe	2
05	604 732 40	Pressure switch	1
06	621 338 40	Pressure switch	1
07	654 652 40	Maintenance switch	1
08	431 168 40	Temperature transmitter	1
09	891 061 40	Plug for sensor assy.	3
10	891 062 40	Plug for temperature transmitter assy.	1
11	891 060 40	Plug for pressure switch assy.	2
12	006 339 98	Clamp	-2
13	514 344 98	Clamp	-2
14	510 363 98	Clamp	-2
15	006 302 98	Clamp	-2
16	323 946 40	Thread pin	-2
17	323 947 40	Thread pin	-2
18	507 025 98	Nut	-2
19	334 599 99	Nut	-2
20	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
21	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
22	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
23	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2
24	655 634 40	Pipe adapter DN 23/17	2
25	655 633 40	Pipe adapter DN 17/12	1
26	655 630 40	T-Distributor DN 29/23	2
27	655 625 40	Connector distributor DN 12/10	1
28	655 629 40	T-Distributor DN 17	1
29	655 632 40	Pipe adapter DN 17/10	1
30	655 628 40	T-Distributor	3
31	515 189 40	Cable 1 qmm Bulk ware, state length required	-2
32	515 194 40	Cable 2,5 qmm Bulk ware, state length required	-2
33	896 558 40	Pipe adapter DN 29/23	1
34	655 808 40	Fitting PG 16	1
35	655 805 40	Fitting PG 9	6
36	655 798 40	Cable union PG 9	6
37	891 083 40	Plug	1
38	891 030 40	Plug with bushings assy.	1
39	891 031 40	Plug with bushings assy.	6
40	891 032 40	Plug with bushings assy.	3
41	891 064 40	Plug - level probe assy.	2
42	515 908 40	Coupling 90 ?	2
43	455 757 99	Insulating tube B 7x0,7 Bulk ware, state length required	-2
44	515 189 40	Cable 1 qmm Bulk ware, state length required	-2
45	891 040 40	Plug with pins assy.	2
46	006 340 79	Plug	2
47	006 346 79	Rear holder 2-poles	2
48	006 348 79	Pin	4
49	006 352 79	Spout	4
50	490 554 40	Protection cap	2
51	323 961 40	Sleeve 6,3x0,8	4
52	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
53	891 039 40	Plug with pins assy.	3
54	006 338 79	Plug	1
55	006 345 79	Rear holder 2-poles	1
56	505 117 98	Cable union PG 7	1
57	502 921 98	Reducing 9-7	1
58	600 790 98	Reducing 11-9	1
59	455 890 99	Insulating tube B 3x0,4 Bulk ware, state length required	-2
60	891 038 40	Plug with pins assy.	1
61	006 336 79	Plug	1
62	006 337 79	Plug	1
63	006 350 79	Bushing	1
64	006 341 79	Plug	1
65	006 339 79	Plug	1
66	006 345 79	Rear holder 2-poles	1
67	655 804 40	Cable union PG 16	1
68	635 043 40	Name plate BS 5	20
69	056 292 40	Cable strap	20
70	891 194 40	Plug	1
71	651 461 40	Housing assy.	1
72	655 547 40	Housing	1
73	655 548 40	Contact seal	2
74	655 549 40	Single seal	2
75	655 550 40	Rubber grommet	1
76	655 809 40	Pipe adapter DN 29/10	1
77	655 621 40	Cable union DN 10	1
78	056 070 40	Cable sleeve 1,0-1,5	23
79	056 071 40	Cable sleeve 2,5	3
80	896 520 40	Plug pin	12
81	917 333 40	Harness X2-Y101,B50	1
82	906 420 40	T-Distributor DN 12	1
83	655 806 40	Fitting PG 11	2
84	655 803 40	Cable union PG 13,5	2
85	891 085 40	Plug	1
86	891 084 40	Plug	1
87	898 111 40	Floatswitch (Backhoe equipment)	1
88	898 110 40	Floatswitch (Bull clam equipment)	1
89	320 817 99	Bolt	4
90	343 852 40	Washer	4

Komatsu PC3000-1 S/N 06194 parts catalog PDF

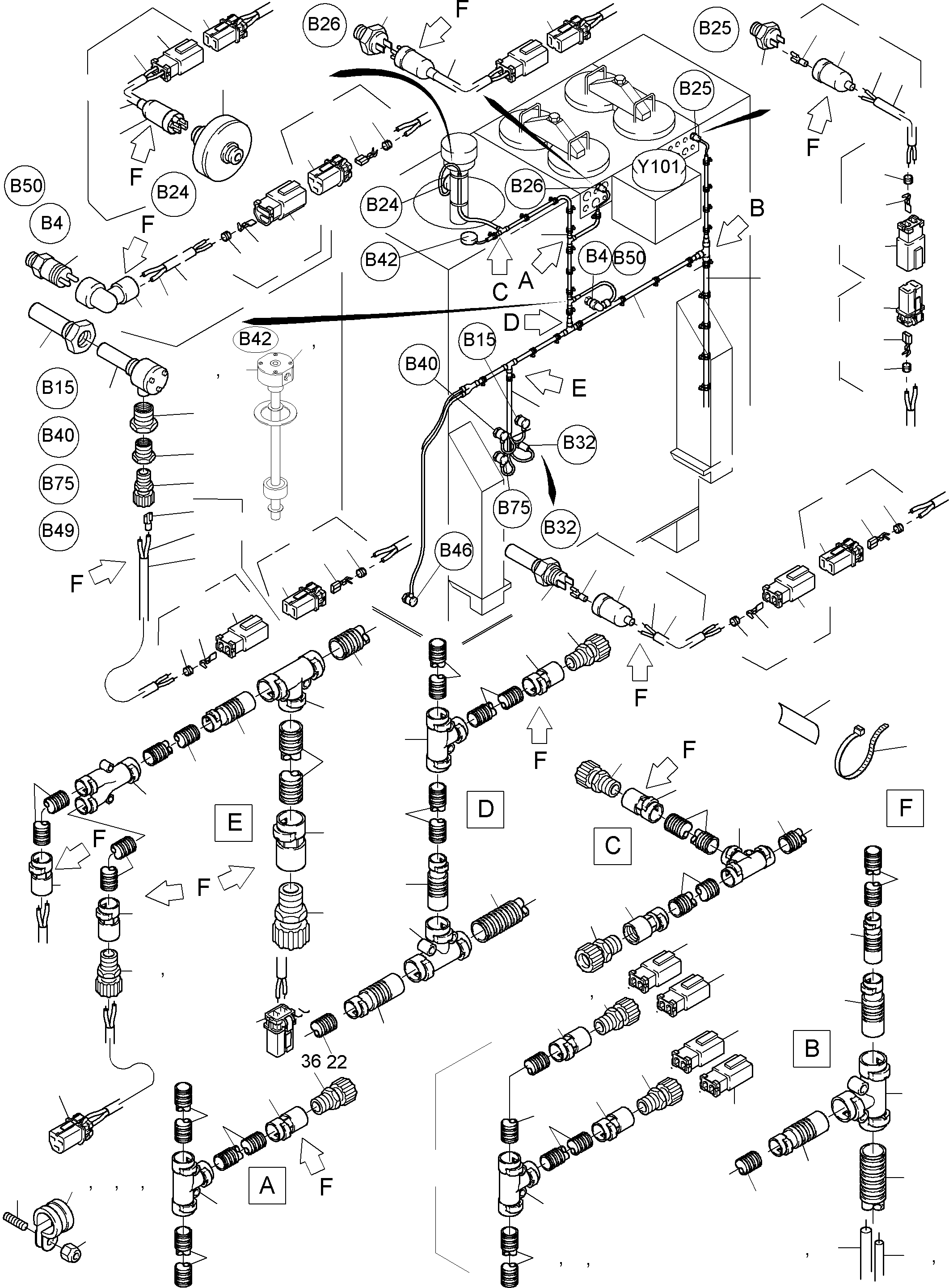

CABLES - OIL TANK ANDSWITCH (485-2137e) in PC3000-1 S/N 06194. Diagram image and parts list.
