#	Part Number	Partname	Quantity
01	894 000 40	Harness - engine, front	1
02	894 001 40	Harness - engine, rear 1	1
03	894 002 40	Harness - engine, rear 2	1
04	440 382 40	Sensor	1
05	269 870 40	Cover tube	1
06	906 753 40	Pressure switch - engine-oil pressure	1
07	906 754 40	Pressure switch - engine-oil pressure	1
08	431 169 40	Temperture transmitter	1
09	515 562 40	Pressure transmitter 10 bar	1
10	414 899 40	Rpm-sensor	2
11	655 427 40	Pressure switch - crankcase pressure	1
12	766 379 73	Rpm-sensor	1
13	659 892 40	Starter relay assy.	2
14	765 579 73	Time lag relay	1
15	635 965 40	Relay	1
16	655 642 40	Circular bearing	4
17	332 080 99	Nut	8
18	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
19	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
20	906 755 40	Pressure switch (cooling wate NL)	1
21	891 083 40	Plug assy.	1
22	891 085 40	Plug assy.	1
23	655 805 40	Fitting PG 9	7
24	655 625 40	Connector distributor DN 12/10	1
25	655 798 40	Cable union PG 9	4
26	655 799 40	Cable union PG 9	1
27	655 627 40	Connector distributor DN 23/17	1
28	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2
29	515 213 40	Cable 1,0 qmm Bulk ware, state length required	-2
30	515 214 40	Cable 2,5 qmm Bulk ware, state length required	-2
31	592 600 40	Cable 2x0,75 qmm Bulk ware, state length required	-2
32	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
33	655 628 40	T-distributor	1
34	655 629 40	T-distributor	3
35	655 626 40	Connector distributor DN 17/12	1
36	655 632 40	Pipe adapter DN 17/10	2
37	621 547 40	Plug	1
38	621 548 40	Socket	1
39	621 698 40	Contact plug 1-2 qmm	9
40	621 699 40	Female contact 1-2 qmm	9
41	634 404 40	Strain relief	2
42	006 339 98	Clamp	-2
43	514 344 98	Clamp	-2
44	006 302 98	Clamp	-2
45	551 474 40	Rail Bulk ware, state length required	-2
46	358 273 40	Series clamping	-2
47	358 274 40	Series clamping	-2
48	655 633 40	Pipe adapter DN 17/12	2
49	655 806 40	Fitting PG 11	3
50	655 801 40	Cable union PG 11	1
51	655 800 40	Cable union PG 11	1
52	655 802 40	Cable union PG 11	1
53	891 084 40	Plug assy.	2
54	891 030 40	Plug with bushings assy.	3
55	891 050 40	Plug with bushings assy.	1
56	891 031 40	Plug with bushings assy.	8
57	655 631 40	Pipe adapter DN 12/10	1
58	896 489 40	Cable union DN 16	1
59	655 808 40	Fitting DN 16	1
60	006 337 79	Plug	1
61	006 350 79	Bushing	1
62	006 352 79	Spout	1
63	006 351 79	Bushing	1
64	006 353 79	Spout	1
65	006 339 79	Plug	1
66	006 345 79	Rear holder 2-poles	1
67	006 354 79	Plug	1
68	006 341 79	Plug	1
69	006 346 79	Rear holder 2-poles	1
70	891 186 40	Plug - sensor assy.	1
71	891 065 40	Plug - temperature transmitter assy.	1
72	891 068 40	Plug Y1 and B34 assy.	2
73	891 069 40	Plug - rpm-sensor assy.	2
74	891 070 40	Plug - pressure switch B36 assy.	1
75	891 185 40	Plug - pressure switch B41 and B56, B1 and B30	4
76	323 961 40	Sleeve 6,3x0,8	2
77	505 117 98	Cable union PG 7	1
78	502 921 98	Reducing 9-7	1
79	600 790 99	Reducing 11-9	1
80	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
81	515 213 40	Cable 1 qmm Bulk ware, state length required	-2
82	891 039 40	Plug with pins assy.	1
83	006 338 79	Plug	1
84	006 348 79	Pin	2
85	256 721 40	Protection cap	1
86	455 890 99	Insulating tube B 3x0,4 Bulk ware, state length required	-2
87	891 038 40	Plug with pins assy.	1
88	006 336 79	Plug	1
89	255 745 40	Rubber capsule	1
90	055 104 40	Cable lug 1,5	1
91	256 722 40	Grommet	2
92	490 554 40	Protection cap	1
93	891 140 40	Plate	1
94	635 043 40	Name plate BS 5	-2
95	056 292 40	Cable strap	-2
96	899 381 40	Harness starter D 30	1
97	055 108 40	Cable lug 2,5	3
98	600 259 99	Cable lug 12-16	1
99	891 032 40	Plug assy. 3-pole	1
100	906 756 40	Pressure switch (cooling wate HL)	1
101	516 668 98	Union	1

Komatsu PC3000-1 S/N 06191 parts catalog PDF

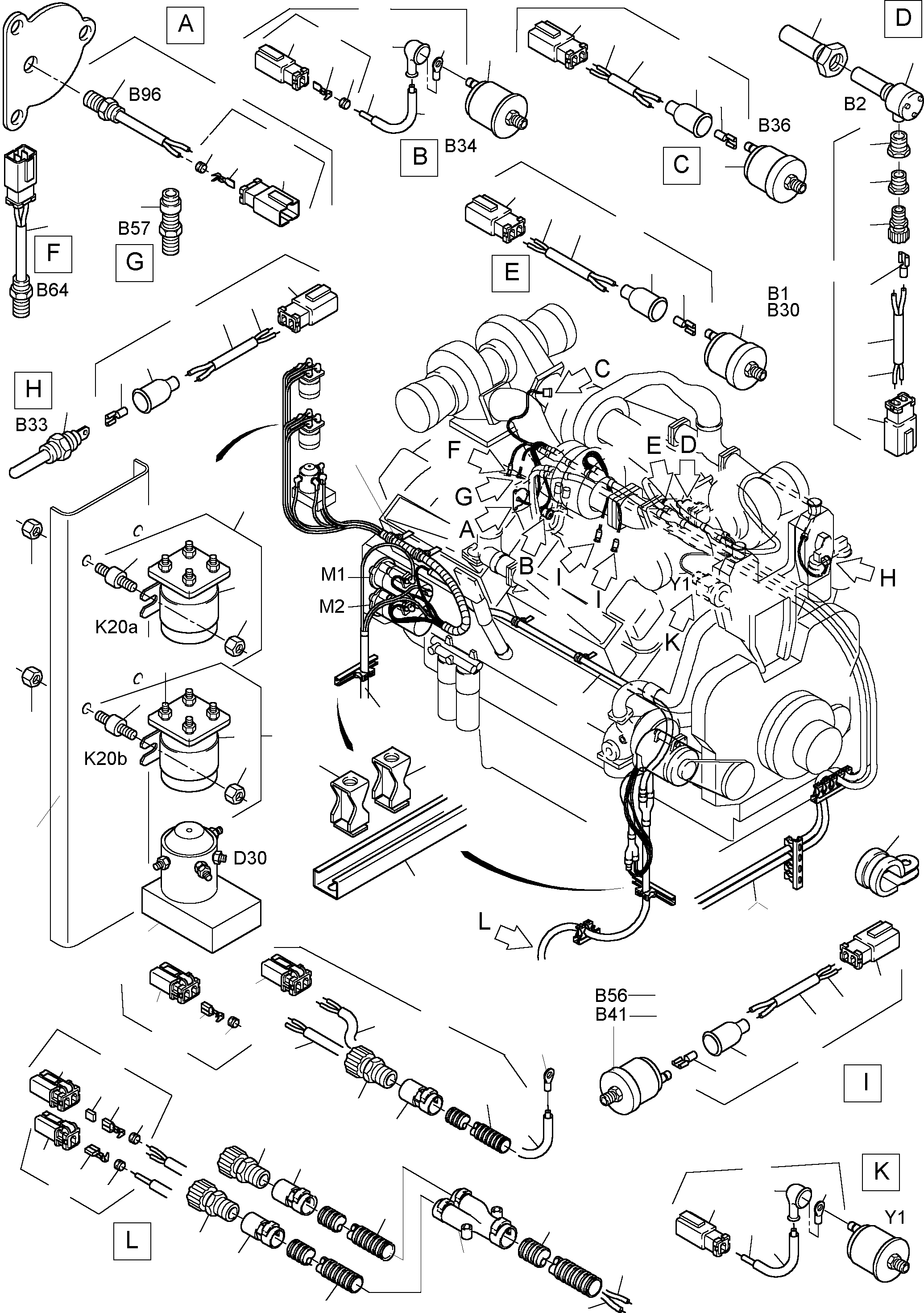

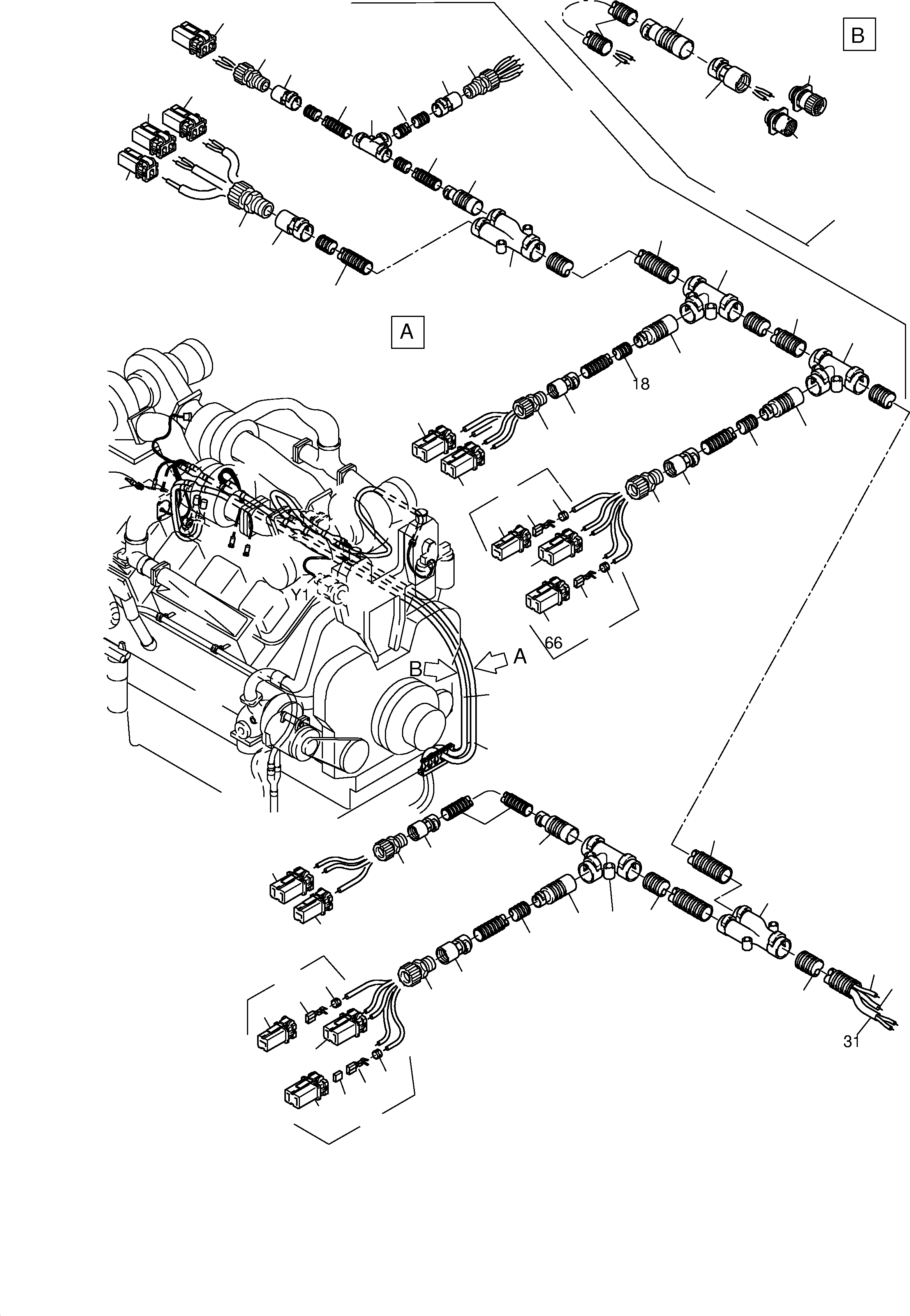

CABLES - ENGINE AND TRANSMITTER (485-2184e) in PC3000-1 S/N 06191. Diagram image and parts list.
