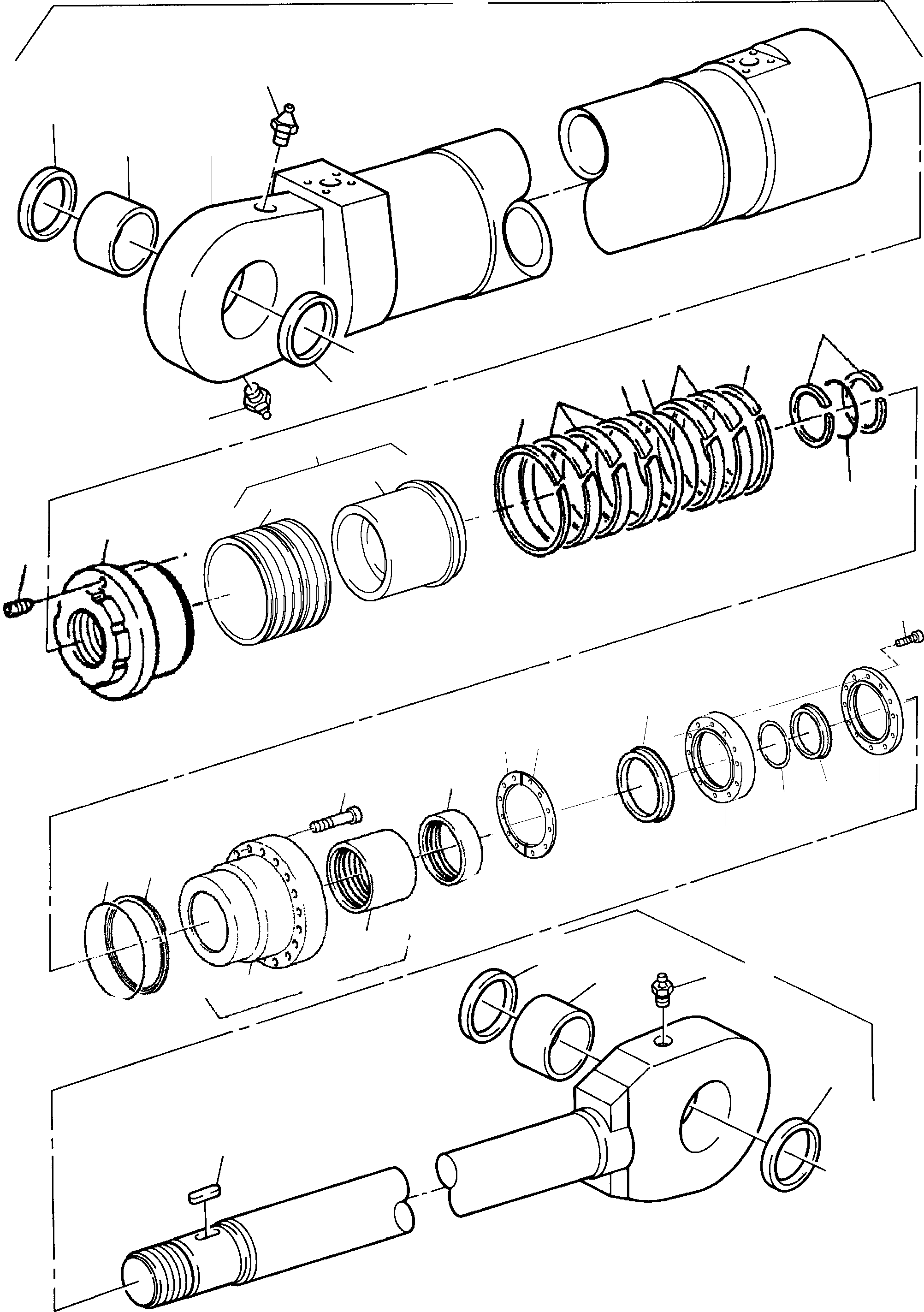

HYDRAULIC CYLINDER | PC3000-1 S/N 06191 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01	917 870 40	Hydraulic cylinder (Standard)	1
01	917 875 40	Hydraulic cylinder (Cold weather design)	1
03		Cylinder barrel These parts are not sold separately	1
04	627 572 40	Freeze-in bushing	2
05	907 022 40	Gasket	4
06	004 860 98	Grease nipple	3
07	347 449 99	Threaded pin	1
08	659 099 40	Groove nut	1
09	430 964 40	Piston consist. of fig no. 35,36	1
10	269 785 40	Piston guide strap	2
11	256 245 40	Piston guide ring	5
12	256 248 40	O-ring	1
13	896 587 40	Sealing element	1
14	896 400 40	Support ring	2
15	269 217 40	O-ring	1
16	500 990 98	O-ring	1
17	256 561 40	Support ring	1
18	906 588 40	Support ring	1
19	430 963 40	Sealing flange consist. of fig-no: 20, 21	1
20	430 979 40	Bearing bush (No field repair item)	1
21		Flanged bush These parts are not sold separately	1
22	514 626 98	Bolt (Standard)	18
22	514 625 98	Bolt (Cold weather design)	18
23	461 287 40	Gasket	1
24	906 539 40	Scraper	1
25	501 352 98	Feather key	1
26	792 111 73	Piston rod incl. fig-nos: 04-06, 27	1
27		Piston rod These parts are not sold separately	1
28	909 513 40	Cover	1
29	909 514 40	Cover ring	1
30	319 289 99	Bolt (Standard)	12
30	501 084 98	Bolt (Cold weather design)	12
31	430 969 40	Half shim 0,8mm	12
32	906 727 40	Support ring	1
35		Piston These parts are not sold separately	1
36	445 393 40	Piston bush (No field repair item)	1
\|$$37	768 261 73	Seal kit - piston consist. of fig-nos: 10-15	1
\|$$38	792 113 73	Seal kit - piston rod consist. of fig-nos: 16,17,23 24, 32	1
