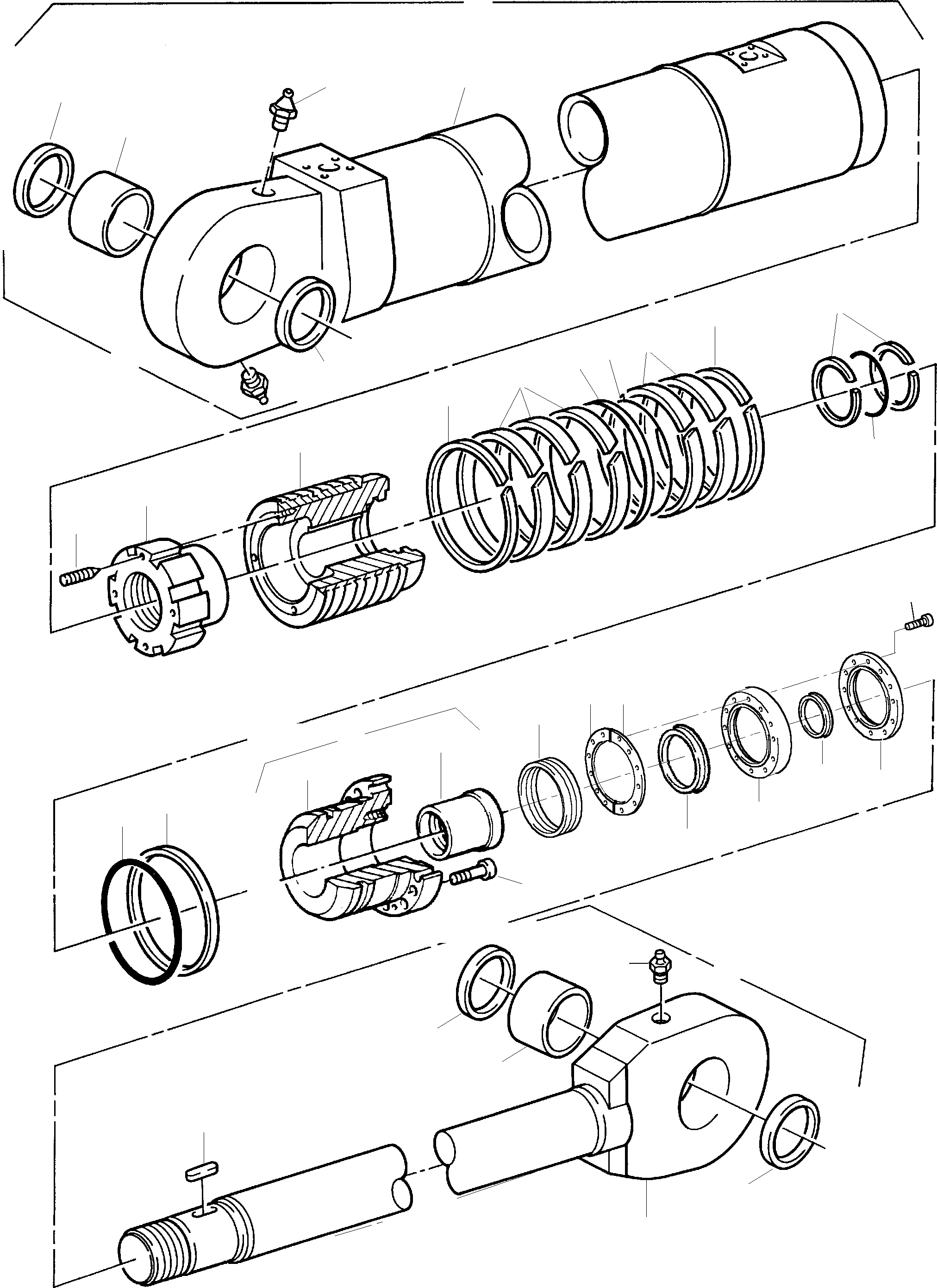

01 |
909 355 40
|
Hydraulic cylinder assy.
(Standard)
fig-nos. 02-32 |
1 |
|
|
|
|
01 |
909 365 40
|
Hydraulic cylinder assy.
(Cold weather design)
fig-nos. 02-32 |
1 |
|
|
|
|
02 |
767 957 73
|
Cylinder barrel assy.
consist. of fig-nos: 03-05, 29 |
1 |
|
|
|
|
03 |
|
Cylinder barrel
These parts are not sold
separately |
1 |
|
|
|
|
04 |
636 501 40
|
Freeze-in bushing |
2 |
|
|
|
|
05 |
004 860 98
|
Grease nipple |
3 |
|
|
|
|
06 |
501 025 98
|
Threaded pin |
1 |
|
|
|
|
07 |
290 798 40
|
Groove nut |
1 |
|
|
|
|
08 |
430 846 40
|
Piston |
1 |
|
|
|
|
09 |
304 103 40
|
Piston guide strap 853 lg |
2 |
|
|
|
|
10 |
324 478 40
|
Piston guide ring |
4 |
|
|
|
|
11 |
502 112 98
|
O-ring |
1 |
|
|
|
|
12 |
256 911 40
|
Sealing element |
1 |
|
|
|
|
13 |
270 355 40
|
Support ring |
2 |
|
|
|
|
14 |
501 900 98
|
O-ring |
1 |
|
|
|
|
15 |
502 119 98
|
O-ring |
1 |
|
|
|
|
16 |
270 357 40
|
Support ring |
1 |
|
|
|
|
17 |
905 927 40
|
Sealing flange
incl. fig. nos. 18 + 19
(finish work after bush is
installed) |
1 |
|
|
|
|
18 |
|
Flanged bush
These parts are not sold
separately |
1 |
|
|
|
|
19 |
430 845 40
|
Bearing bush
( No fild repair item ) |
1 |
|
|
|
|
20 |
906 585 40
|
Support ring |
1 |
|
|
|
|
21 |
514 626 98
|
Bolt
(Standard) |
18 |
|
|
|
|
21 |
514 625 98
|
Bolt
(Cold weather design) |
18 |
|
|
|
|
22 |
354 389 99
|
Feather key |
1 |
|
|
|
|
23 |
905 511 40
|
Cover |
1 |
|
|
|
|
24 |
319 289 99
|
Bolt
(Standard) |
12 |
|
|
|
|
24 |
501 084 98
|
Bolt
(Cold weather design) |
12 |
|
|
|
|
25 |
502 120 98
|
Seal kit |
1 |
|
|
|
|
26 |
906 537 40
|
Scraper |
1 |
|
|
|
|
27 |
767 958 73
|
Piston rod assy.
fig-nos: 04,05,28,29 |
1 |
|
|
|
|
28 |
|
Piston rod
These parts are not sold
separately |
1 |
|
|
|
|
29 |
575 786 40
|
Seal ring |
4 |
|
|
|
|
30 |
430 922 40
|
Half shim |
8 |
|
|
|
|
31 |
909 512 40
|
Cover ring |
1 |
|
|
|
|
|$$35 |
780 446 73
|
Seal kit - piston
fig-nos: 09-14 |
1 |
|
|
|
|
|$$36 |
768 694 73
|
Seal kit - sealing flange
fig-nos: 15,16,25,26 |
1 |
|
|
