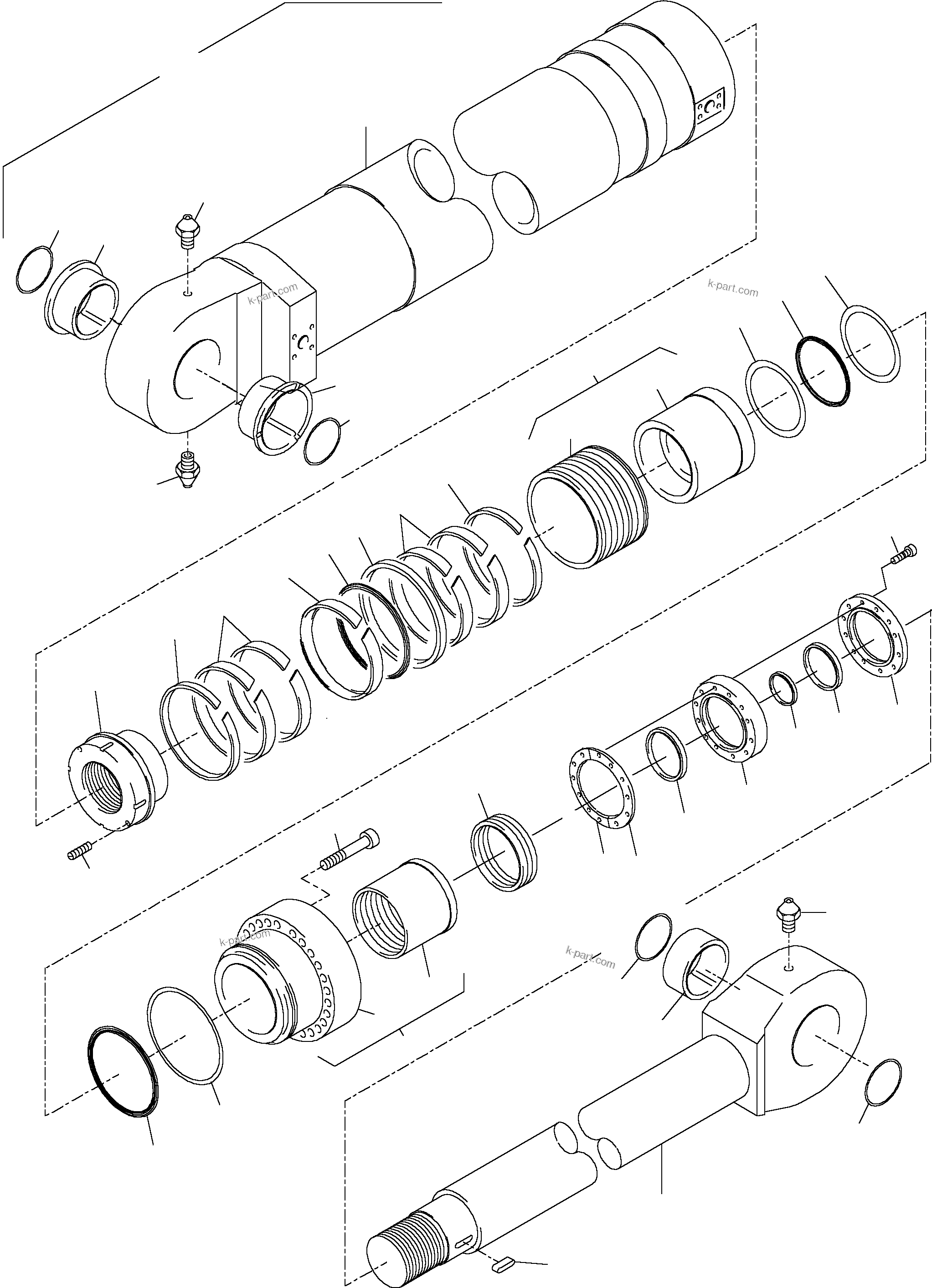

HYDR.-CYLINDER | PC3000-1 S/N 06190 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-1 S/N 06190

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	909 360 40	Hydraulic cylinder	1
?		Cylinder barrel These parts are not sold separately	1
?	882 141 40	Flanged bush	2
?	907 022 40	Seal ring	4
?	004 860 98	Grease nipple	3
?	792 139 73	Piston rod assy. incl. fig-nos. 05,06,08,09	1
?		Piston rod These parts are not sold separately	1
?	627 572 40	Freeze-in bushing	1
?	909 309 40	Sealing flange incl. fig-nos. 11+12	1
?		Flanged bush These parts are not sold separately	1
?	909 311 40	Bearing bush (no field repair item)	1
?	659 097 40	Piston assy. incl. fig-nos. 14+15	1
?		Piston These parts are not sold separately	1
?	445 393 40	Liner (no field repair item)	1
?	659 099 40	Groove nut	1
?	909 389 40	Cover	1
?	906 587 40	Support ring	1
?	269 475 40	Sealing element	1
?	256 248 40	O-ring	1
?	256 245 40	Piston guide ring	5
?	269 785 40	Piston guide strap	2
?	440 675 40	O-ring	1
?	655 589 40	Support ring	2
?	906 531 40	Scraper	1
?	500 990 98	O-ring	1
?	256 561 40	Support ring	1
?	226 421 40	Seal kit	1
?	318 798 99	Bolt	18
?	319 493 99	Bolt	12
?	354 389 99	Feather key	1
?	347 449 99	Threaded pin	1
?	906 726 40	Support ring	1
?	891 822 40	Half shim 0,8mm	12
?	909 388 40	Cover ring	1
?	767 498 73	Seal kit piston consist. of fig nos: 19-24	1
?	792 140 73	Seal kit piston rod consist. of fig.-nos: 25-28, 33	1
