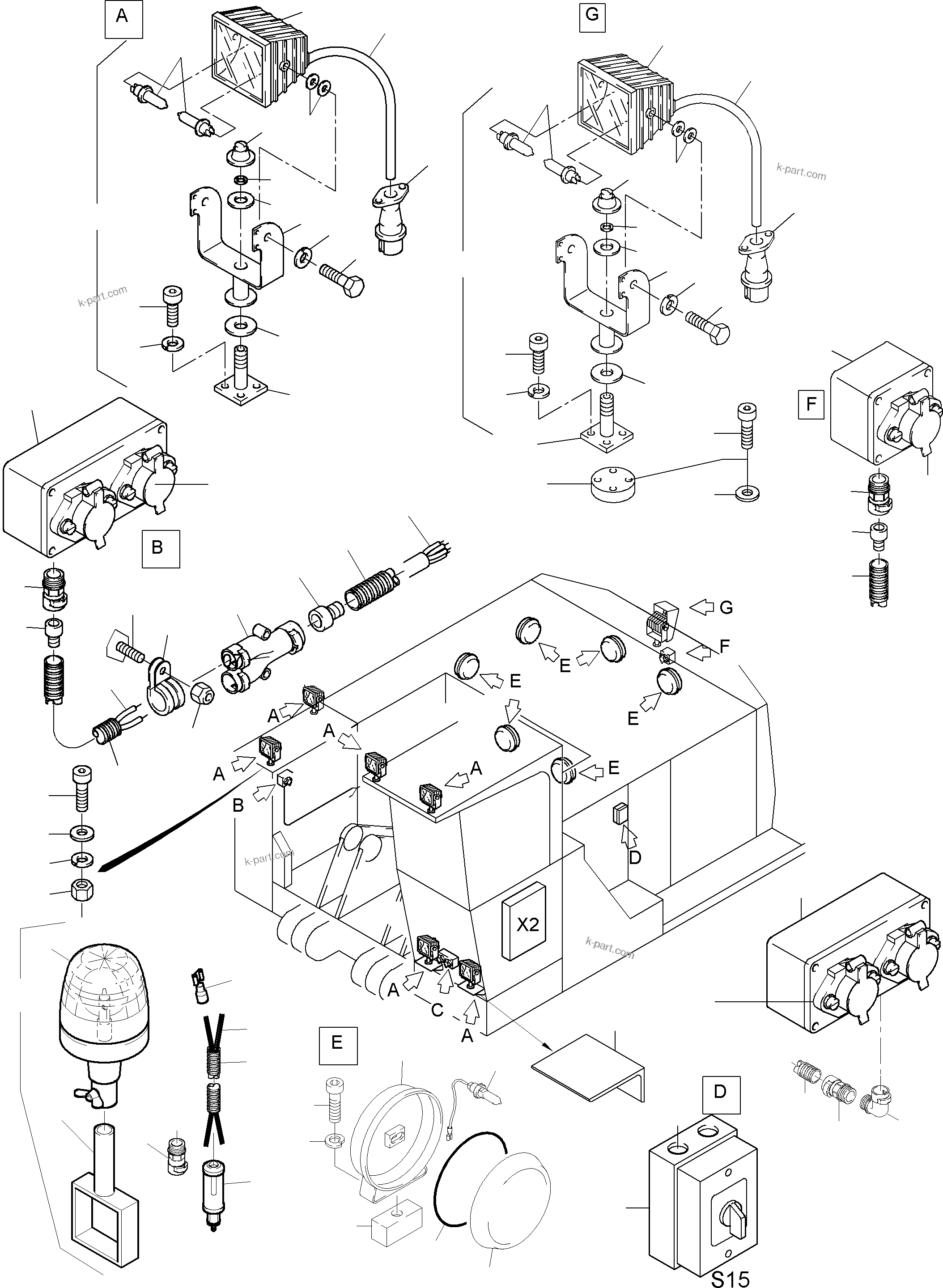

LIGHTING EQUIPMENT | PC3000-1 S/N 06209 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-1 S/N 06209

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	887 966 40	Head light fig-nos. 09-17	7
?	256 297 40	Head light	7
?	269 021 40	Bulb	14
?	320 346 99	Bolt	36
?	346 500 99	Lock washer	28
?	340 465 99	Washer	16
?	507 037 98	Nut	8
?	320 343 99	Bolt	8
?	329 002 40	Retainer	1
?	329 003 40	Support	1
?	329 004 40	Elastic washer	1
?	329 005 40	Elastic washer	1
?	342 096 40	Tension washer	1
?	340 410 99	Washer	3
?	340 467 99	Washer	4
?	343 112 99	Lock washer	2
?	307 802 99	Bolt	2
?	634 009 40	Head light	6
?	507 383 99	Lamp	6
?	440 373 40	Camswitch	1
?	255 309 40	Housing, empty	2
?	057 295 40	Socket	5
?	320 977 99	Screw	10
?	346 508 99	Lock washer	10
?	471 915 99	Cable 4x1,5 Bulk ware, state length required	-2
?	057 245 40	Plug	5
?	323 946 40	Thread pin	-2
?	323 945 40	Thread pin	-2
?	006 302 98	Clamp	-2
?	332 110 99	Nut	-2
?	655 621 40	Fitting, straight PG 9	-2
?	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
?	655 625 40	Fitting - distributor DN 12/10	-2
?	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
?	896 435 40	Cable union DN 10-90 DN 10	-2
?	604 176 40	Cap	-2
?	592 600 40	Cable 2x0,75 Bulk ware, state length required	-2
?	515 189 40	Cable 1,0 Bulk ware, state length required	-2
?	515 194 40	Cable 2,5 Bulk ware, state length required	-2
?	898 629 40	Rotaflare light yellow assy.	1
?	898 612 40	Retainer	1
?	896 497 40	Rotaflare light 24 yellow	1
?	515 214 40	Cable 2,5 light blue	-2
?	180 322 40	Plug	1
?	323 960 40	Tab	2
?	255 034 40	Housing, empty	1
?	894 201 40	Console	2
?	886 957 40	Thread plate	1
?	769 155 73	Seal	6
?	769 156 73	Pane,white	6
?	317 319 40	Threaded block	6
?	319 143 99	Bolt	6
?	343 108 99	Lock washer	6
