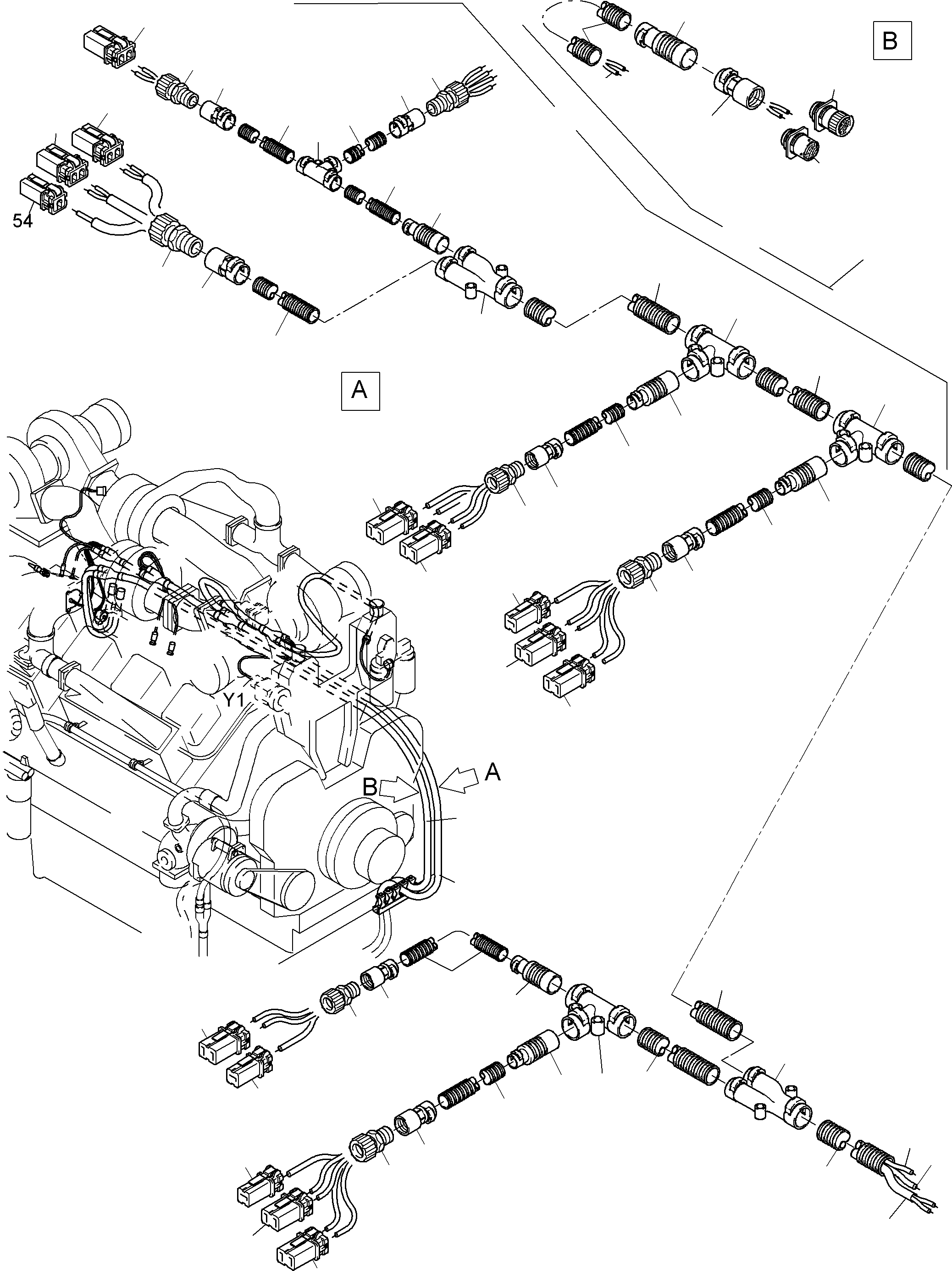

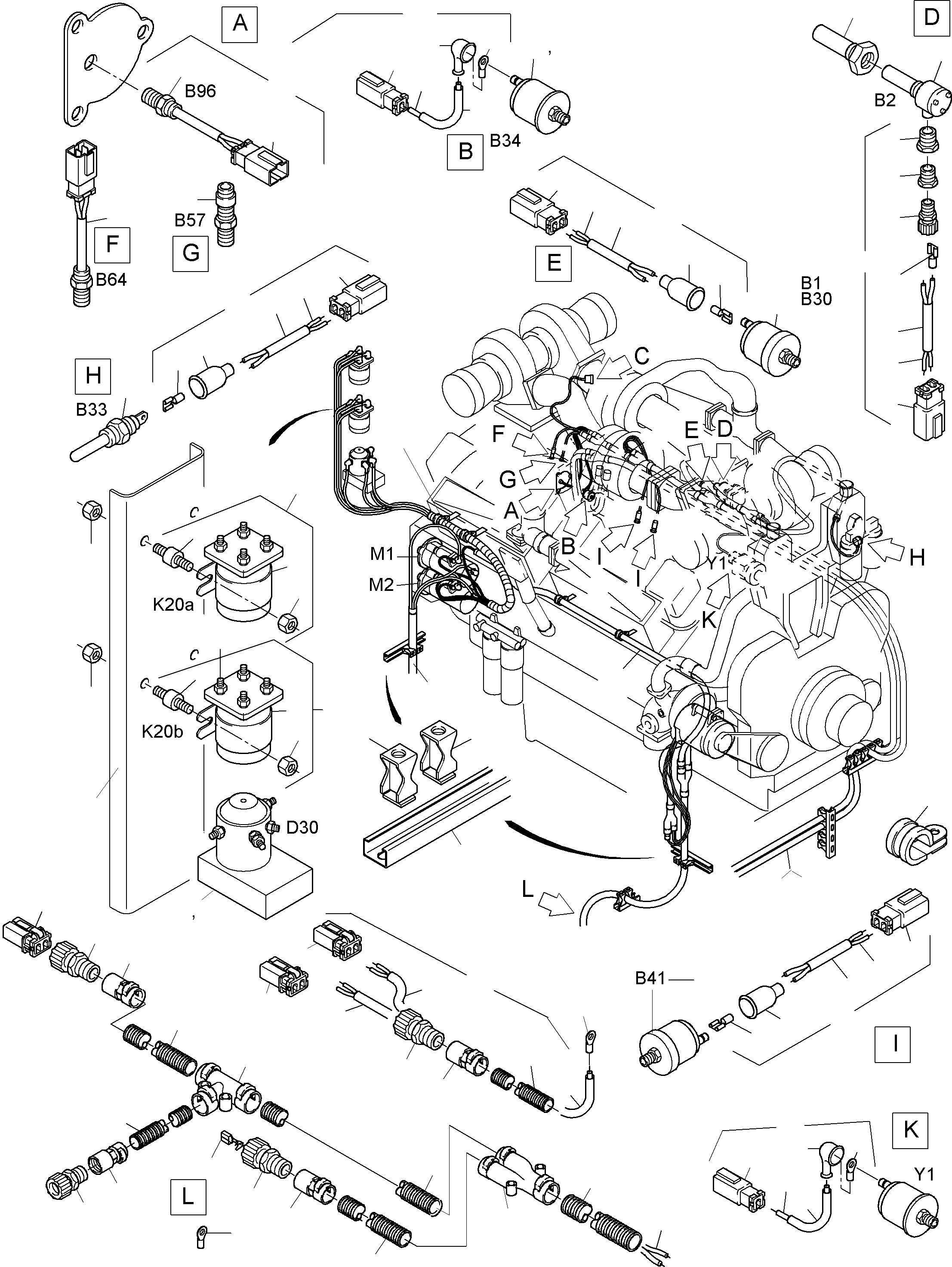

Diagram image 1 of 2

PC3000-1 S/N 06209

01 04 05 06 07 08 09 10 100 102 103 11 12 13 13 14 15 15 16 16 17 17 17 17 18 18 18 18 19 19 21 22 23 23 23 24 25 26 26 29 29 29 30 30 30 30 30 30 31 31 33 42 43 44 45 46 47 49 52 55 56 60 60 61 70 71 72 72 73 73 75 75 76 76 76 76 76 77 78 79 80 80 80 81 81 81 81 81 81 82 82 82 82 85 86 86 86 87 87 87 89 89 90 90 91 92 93 94 95 96 96 97 98 99

PC3000-1 S/N 06209

02 02 03 03 104 105 18 18 18 18 18 19 19 19 23 23 23 23 25 25 25 25 27 28 29 29 30 31 32 32 32 32 32 33 34 34 34 35 36 36 37 38 39 40 41 41 48 48 49 49 49 50 51 52 53 53 53 54 55 55 56 56 56 56 56 56 56 57 58 59

#	Part Number	Partname	Quantity
01	919 433 40	Harness - engine, front	1
02	894 001 40	Harness - engine, rear 1	1
03	894 002 40	Harness - engine, rear 2	1
04	440 382 40	Sensor	1
05	269 870 40	Cover tube	1
06	906 753 40	Pressure switch - engine-oil pressure	1
07	906 754 40	Pressure switch - engine-oil pressure	1
08	431 169 40	Temperture transmitter	1
09	906 078 40	Pressure transmitter 10 bar	1
10	414 899 40	Rpm-sensor	2
11	793 258 73	Fuse with cablee	1
12	766 379 73	Rpm-sensor	1
13	659 892 40	Starter relay assy.	2
14	765 579 73	Time lag relay	1
15	635 965 40	Relay	1
16	655 642 40	Circular bearing	4
17	332 080 99	Nut	8
18	655 649 40	Protecting hose DN 10	-2
19	655 650 40	Protecting hose DN 12	-2
21	907 132 40	Cable lug 2.5	1
22	896 521 40	End pin	2
23	655 805 40	Fitting PG 9	7
24	655 625 40	Connector distributor DN 12/10	1
25	655 798 40	Cable union PG 9	4
26	655 799 40	Cable union PG 9	2
27	655 627 40	Connector distributor DN 23/17	1
28	655 652 40	Protecting hose DN 23	-2
29	515 213 40	Cable 1,0 qmm	-2
30	515 214 40	Cable 2,5 qmm	-2
31	592 600 40	Cable 2x0,75 qmm	-2
32	655 651 40	Protecting hose DN 17	-2
33	655 628 40	T-distributor	2
34	655 629 40	T-distributor	3
35	655 626 40	Connector distributor DN 17/12	1
36	655 632 40	Pipe adapter DN 17/10	2
37	621 547 40	Plug	1
38	621 548 40	Socket	1
39	621 698 40	Contact plug 1-2 qmm	9
40	621 699 40	Female contact 1-2 qmm	9
41	634 404 40	Strain relief	2
42	006 339 98	Clamp	-2
43	514 344 98	Clamp	-2
44	006 302 98	Clamp	-2
45	551 474 40	Rail	-2
46	358 273 40	Series clamping	-2
47	358 274 40	Series clamping	-2
48	655 633 40	Pipe adapter DN 17/12	2
49	655 806 40	Fitting PG 11	3
50	655 801 40	Cable union PG 11	1
51	655 800 40	Cable union PG 11	1
52	655 802 40	Cable union PG 11	1
53	891 084 40	Plug assy.	2
54	891 030 40	Plug with bushings assy.	3
55	891 050 40	Plug with bushings assy.	2
56	891 031 40	Plug with bushings assy.	8
57	655 631 40	Pipe adapter DN 12/10	1
58	896 489 40	Cable union DN 16	1
59	655 808 40	Fitting DN 16	1
60	515 460 40	Bonded seal	3
61	927 029 40	Reducing socket	1
70	891 186 40	Plug - sensor assy.	1
71	891 065 40	Plug - temperature transmitter assy.	1
72	891 068 40	Plug Y1 and B34 assy.	2
73	891 069 40	Plug - rpm-sensor assy.	2
75	891 185 40	Plug - pressure switch B41 and B56, B1 and B30	4
76	323 961 40	Sleeve 6,3x0,8	4
77	505 117 98	Cable union PG 7	1
78	502 921 98	Reducing 9-7	1
79	600 790 99	Reducing 11-9	1
80	455 756 99	Insulating tube B 6x0,6	-2
81	515 213 40	Cable 1 qmm	-2
82	891 039 40	Plug with pins assy.	1
85	256 721 40	Protection cap	1
86	455 890 99	Insulating tube B 3x0,4	-2
87	891 038 40	Plug with pins assy.	1
89	255 745 40	Rubber capsule	1
90	055 104 40	Cable lug 1,5	1
91	256 722 40	Grommet	4
92	906 922 40	Protection cap	1
93	919 451 40	Plate	1
94	635 043 40	Name plate BS 5	-2
95	056 292 40	Cable strap	-2
96	899 381 40	Harness starter D 30	1
97	055 108 40	Cable lug 2,5	4
98	600 259 99	Cable lug 12-16	1
99	891 032 40	Plug assy. 3-pole	1
100	906 756 40	Pressure switch (cooling wate HL)	1
102	056 070 40	Cable sleeve 1.0-1.5	27
103	056 071 40	Cable sleeve 2.5	4
104	896 520 40	End pin	1
105	500 090 98	Wire end ferrule 0.75-6	4

Komatsu PC3000-1 S/N 06209 parts catalog PDF

CABLES - ENGINE AND TRANSMITTER (485-2184i) in PC3000-1 S/N 06209. Diagram image and parts list.
