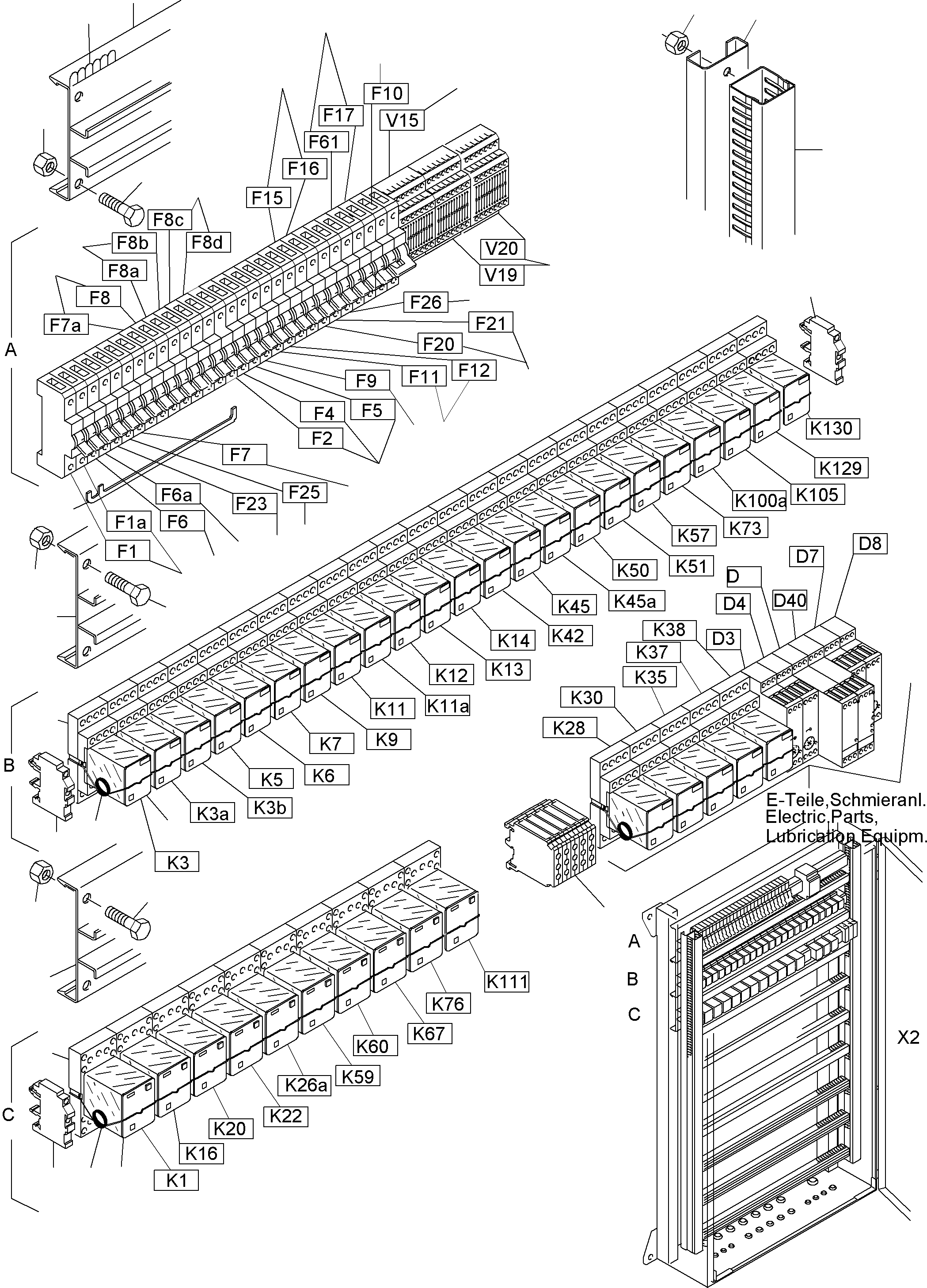

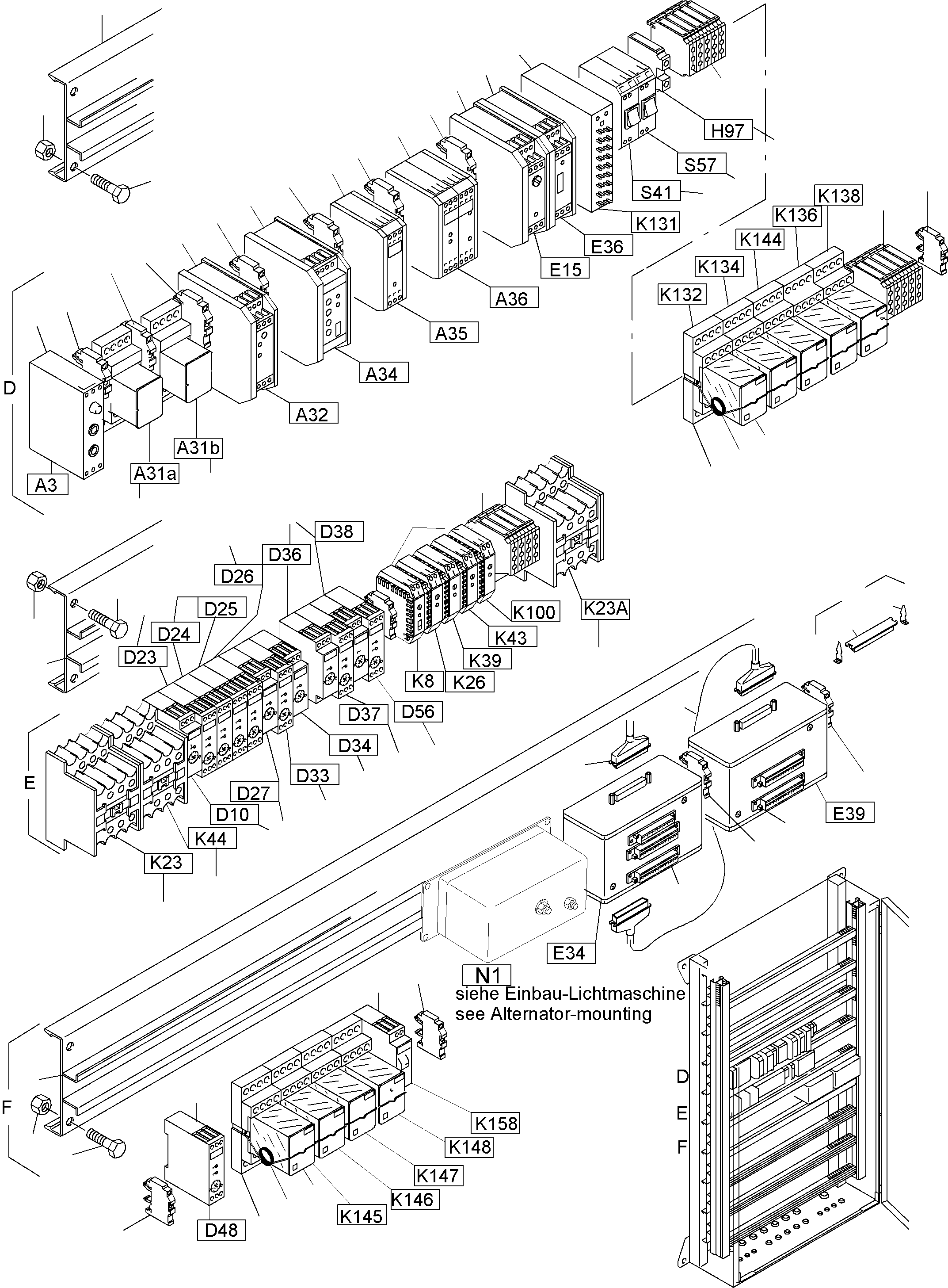

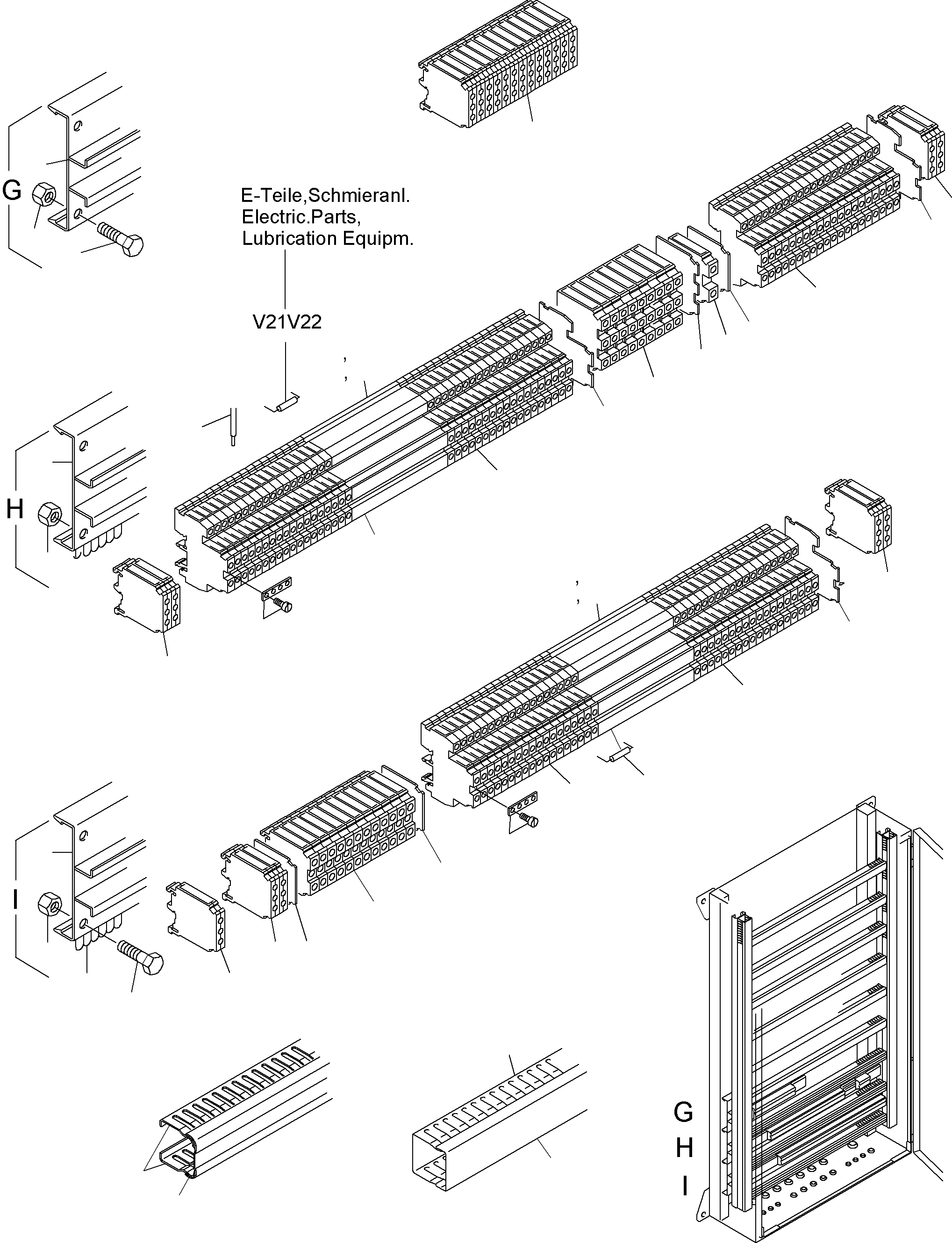

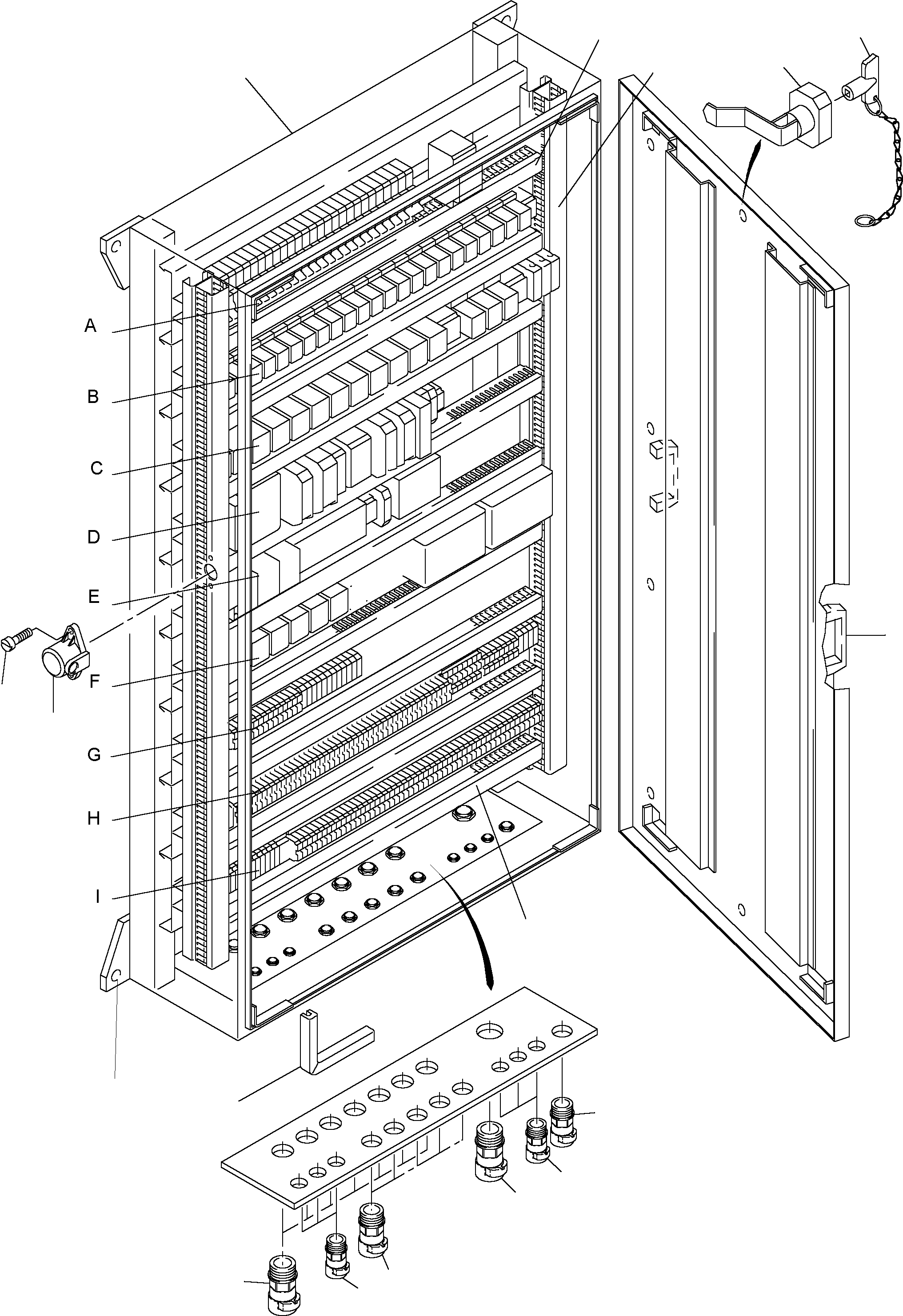

Diagram image 1 of 4

PC3000-1 S/N 06206

01 02 03 04 05 06 07 18 41 42 42 43 44 78 79 80 81 82 89 94 95

PC3000-1 S/N 06206

08 08 10 11 11 11 12 13 13 13 14 14 14 14 15 16 17 17 17 18 19 19 20 20 20 20 20 20 20 20 21 21 21 21 22 23 26 27 28 29 30 31 34 39 42

PC3000-1 S/N 06206

09 11 11 11 13 13 13 14 14 14 17 17 17 17 17 17 17 17 17 17 17 17 24 25 29 29 30 30 31 31 32 32 32 33 34 34 34 35 36 37 38 39 40 45 46 47 48 49 50 51 52 53 53 53 53 54 54 54 55 55 77 83 84 84 91 93 96

PC3000-1 S/N 06206

11 11 11 11 11 11 11 11 12 13 13 14 14 14 34 34 34 34 34 41 42 43 44 56 56 56 57 57 57 58 59 60 60 60 61 62 62 63 63 64 64 65 65 66 66 67 67 68 69 70 71 72 73 74 75 76 85 86 87 88 88 90 92

#	Part Number	Partname	Quantity
01	899 399 40	Switch cabinet w/o. electr. parts	1
02	764 789 73	Key	2
03	764 947 73	Locking bar	10
04	764 949 73	Seal	1
05	765 892 73	Handle	2
06	057 278 40	Socket	1
07	320 975 99	Screw	2
08	322 378 40	Diode array	3
09	891 034 40	Protection cap assy.	2
10	490 929 40	Assembly rail	2
11	655 412 40	Sectional plate	10
12	323 237 40	Wiring terminal	8
13	500 106 98	Bolt	44
14	334 599 99	Nut	48
15	654 253 40	Breaker 1 A	1
16	655 500 40	Rail collector Bulk ware, state length required	-2
17	356 265 40	Clamp	-2
18	270 288 40	Cable channel ca. 1400 lg. Bulk ware, state length required	2
19	654 856 40	Breaker 25 A	2
20	654 298 40	Breaker 16 A	14
21	654 854 40	Breaker 6 A	6
22	655 184 40	Breaker 50 A	2
23	654 855 40	Breaker 10 A	2
24	655 486 40	Pickup module unit	1
25	655 487 40	Pickup module unit	1
26	356 184 40	Relay	10
27	323 910 40	Relay socket	10
28	323 911 40	Retainer	10
29	399 773 40	Relay	28
30	592 338 40	Relay socket	28
31	414 369 40	Spring retainer	28
32	896 581 40	Power breaker	3
33	323 590 40	Switch modul	1
34	490 372 40	Protective wire clip	-2
35	494 086 40	Line divider EFD	1
36	414 649 40	Fuel indication EFM	1
37	899 301 40	Converter	5
38	323 346 40	Touch contact	1
39	635 318 40	Connection cable to fig-nos. 24,25	1
40	894 594 40	Cable V 24	1
41	323 233 40	Wiring profile ca. 700mm Bulk ware, state length required	12
42	323 234 40	Cover 25 BN Bulk ware, state length required	-2
43	655 518 40	Cable channel ca. 800mm Bulk ware, state length required	1
44	655 517 40	Cover 40 BN Bulk ware, state length required	-2
45	490 889 40	Series terminal	1
46	891 073 40	Measuring transducer	1
47	621 735 40	Capacitor	1
48	621 506 40	Module	1
49	494 014 40	Amplifier	1
50	907 585 40	Transformer	1
51	894 012 40	PID-governor	1
52	603 383 40	Engine RPM transmitter	1
53	907 481 40	Time lag relay	4
54	896 546 40	Time lag relay	5
55	907 482 40	Wiper relay	2
56	356 264 40	Twin terminal	-2
57	356 266 40	Cover plate	-2
58	461 321 40	Terminal	-2
59	461 322 40	Cover plate	-2
60	356 272 40	Cover plate	-2
61	356 274 40	Clamp	-2
62	356 276 40	Separator	-2
63	323 943 40	Sleeve marker	50
64	323 942 40	Sleeve marker	50
65	270 318 40	Sleeve marker	50
66	323 944 40	Sleeve marker	50
67	997 892 73	Marking strip set	1
68	515 189 40	Cable 1mm2 Bulk ware, state length required	-2
69	471 731 99	Cable 6mm2 Bulk ware, state length required	-2
70	356 267 40	Cross connection QV 2	10
71	356 268 40	Cross connection QV 3	10
72	356 269 40	Cross connection QV 4	10
73	356 270 40	Cross connection QV 10	10
74	356 273 40	Cross connection QV 10	10
75	356 279 40	Cross connection QV 4	10
76	356 280 40	Cross connection QV 10	10
77	907 586 40	Transformer	1
78	655 621 40	Cable union DN 10	4
79	655 622 40	Cable union DN 12	2
80	655 623 40	Cable union DN 17	3
81	655 624 40	Cable union DN 23	6
82	655 835 40	Cable union DN 36	1
83	655 685 40	Dust cap	1
84	551 867 40	Clasp	2
85	576 005 40	Clamp M35/16	-2
86	356 277 40	Clamp M16/12	-2
87	356 278 40	Cover plate	-2
88	515 218 40	Cable 16mm2 Bulk ware, state length required	-2
89	655 697 40	Cable union DN 29	1
90	490 542 40	Cross connection	-2
91	903 364 40	Harness assy. V24	1
92	058 190 40	Diode	4
93	906 007 40	Pulse relay	1
94	308 436 99	Bolt	4
95	510 741 98	Resilient sleeve	4
96	655 896 40	Wiper relay	1

Komatsu PC3000-1 S/N 06206 parts catalog PDF

MAIN SWITCH BOX IN CAB SUPPORT (485-2165m) in PC3000-1 S/N 06206. Diagram image and parts list.
