Diagram image 1 of 2

PC3000-1 S/N 06206

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06206

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	919 433 40	Harness - engine, front	1
?	894 001 40	Harness - engine, rear 1	1
?	894 002 40	Harness - engine, rear 2	1
?	440 382 40	Sensor	1
?	269 870 40	Cover tube	1
?	906 753 40	Pressure switch - engine-oil pressure	1
?	906 754 40	Pressure switch - engine-oil pressure	1
?	431 169 40	Temperture transmitter	1
?	515 562 40	Pressure transmitter 10 bar	1
?	414 899 40	Rpm-sensor	2
?	793 258 73	Fuse with cablee	1
?	766 379 73	Rpm-sensor	1
?	659 892 40	Starter relay assy.	2
?	765 579 73	Time lag relay	1
?	635 965 40	Relay	1
?	655 642 40	Circular bearing	4
?	332 080 99	Nut	8
?	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
?	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
?	907 132 40	Cable lug 2.5	1
?	896 521 40	End pin	2
?	655 805 40	Fitting PG 9	7
?	655 625 40	Connector distributor DN 12/10	1
?	655 798 40	Cable union PG 9	4
?	655 799 40	Cable union PG 9	2
?	655 627 40	Connector distributor DN 23/17	1
?	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2
?	515 213 40	Cable 1,0 qmm Bulk ware, state length required	-2
?	515 214 40	Cable 2,5 qmm Bulk ware, state length required	-2
?	592 600 40	Cable 2x0,75 qmm Bulk ware, state length required	-2
?	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
?	655 628 40	T-distributor	2
?	655 629 40	T-distributor	3
?	655 626 40	Connector distributor DN 17/12	1
?	655 632 40	Pipe adapter DN 17/10	2
?	621 547 40	Plug	1
?	621 548 40	Socket	1
?	621 698 40	Contact plug 1-2 qmm	9
?	621 699 40	Female contact 1-2 qmm	9
?	634 404 40	Strain relief	2
?	006 339 98	Clamp	-2
?	514 344 98	Clamp	-2
?	006 302 98	Clamp	-2
?	551 474 40	Rail Bulk ware, state length required	-2
?	358 273 40	Series clamping	-2
?	358 274 40	Series clamping	-2
?	655 633 40	Pipe adapter DN 17/12	2
?	655 806 40	Fitting PG 11	3
?	655 801 40	Cable union PG 11	1
?	655 800 40	Cable union PG 11	1
?	655 802 40	Cable union PG 11	1
?	891 084 40	Plug assy.	2
?	891 030 40	Plug with bushings assy.	3
?	891 050 40	Plug with bushings assy.	2
?	891 031 40	Plug with bushings assy.	8
?	655 631 40	Pipe adapter DN 12/10	1
?	896 489 40	Cable union DN 16	1
?	655 808 40	Fitting DN 16	1
?	006 337 79	Plug	1
?	006 350 79	Bushing	1
?	006 352 79	Spout	1
?	006 351 79	Bushing	1
?	006 353 79	Spout	1
?	006 339 79	Plug	1
?	006 345 79	Rear holder 2-poles	1
?	006 354 79	Plug	1
?	006 341 79	Plug	1
?	006 346 79	Rear holder 2-poles	1
?	891 186 40	Plug - sensor assy.	1
?	891 065 40	Plug - temperature transmitter assy.	1
?	891 068 40	Plug Y1 and B34 assy.	2
?	891 069 40	Plug - rpm-sensor assy.	2
?	891 185 40	Plug - pressure switch B41 and B56, B1 and B30	4
?	323 961 40	Sleeve 6,3x0,8	4
?	505 117 98	Cable union PG 7	1
?	502 921 98	Reducing 9-7	1
?	600 790 99	Reducing 11-9	1
?	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
?	515 213 40	Cable 1 qmm Bulk ware, state length required	-2
?	891 039 40	Plug with pins assy.	1
?	006 338 79	Plug	1
?	006 348 79	Pin	2
?	256 721 40	Protection cap	1
?	455 890 99	Insulating tube B 3x0,4 Bulk ware, state length required	-2
?	891 038 40	Plug with pins assy.	1
?	006 336 79	Plug	1
?	255 745 40	Rubber capsule	1
?	055 104 40	Cable lug 1,5	1
?	256 722 40	Grommet	4
?	906 922 40	Protection cap	1
?	919 451 40	Plate	1
?	635 043 40	Name plate BS 5	-2
?	056 292 40	Cable strap	-2
?	899 381 40	Harness starter D 30	1
?	055 108 40	Cable lug 2,5	4
?	600 259 99	Cable lug 12-16	1
?	891 032 40	Plug assy. 3-pole	1
?	906 756 40	Pressure switch (cooling wate HL)	1
?	056 070 40	Cable sleeve 1.0-1.5	27
?	056 071 40	Cable sleeve 2.5	4
?	896 520 40	End pin	1
?	500 090 98	Wire end ferrule 0.75-6	4

Komatsu PC3000-1 S/N 06206 parts catalog PDF

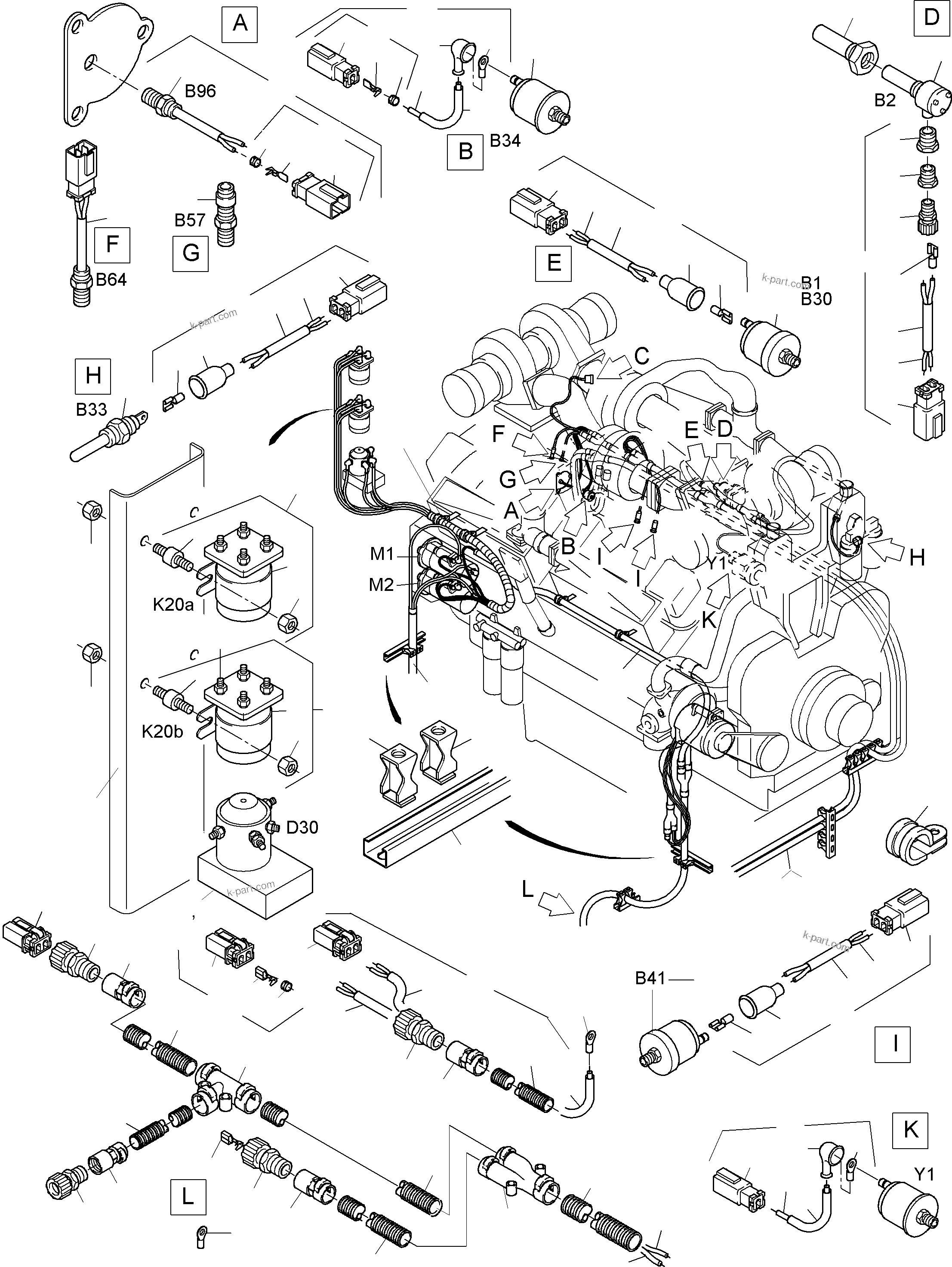

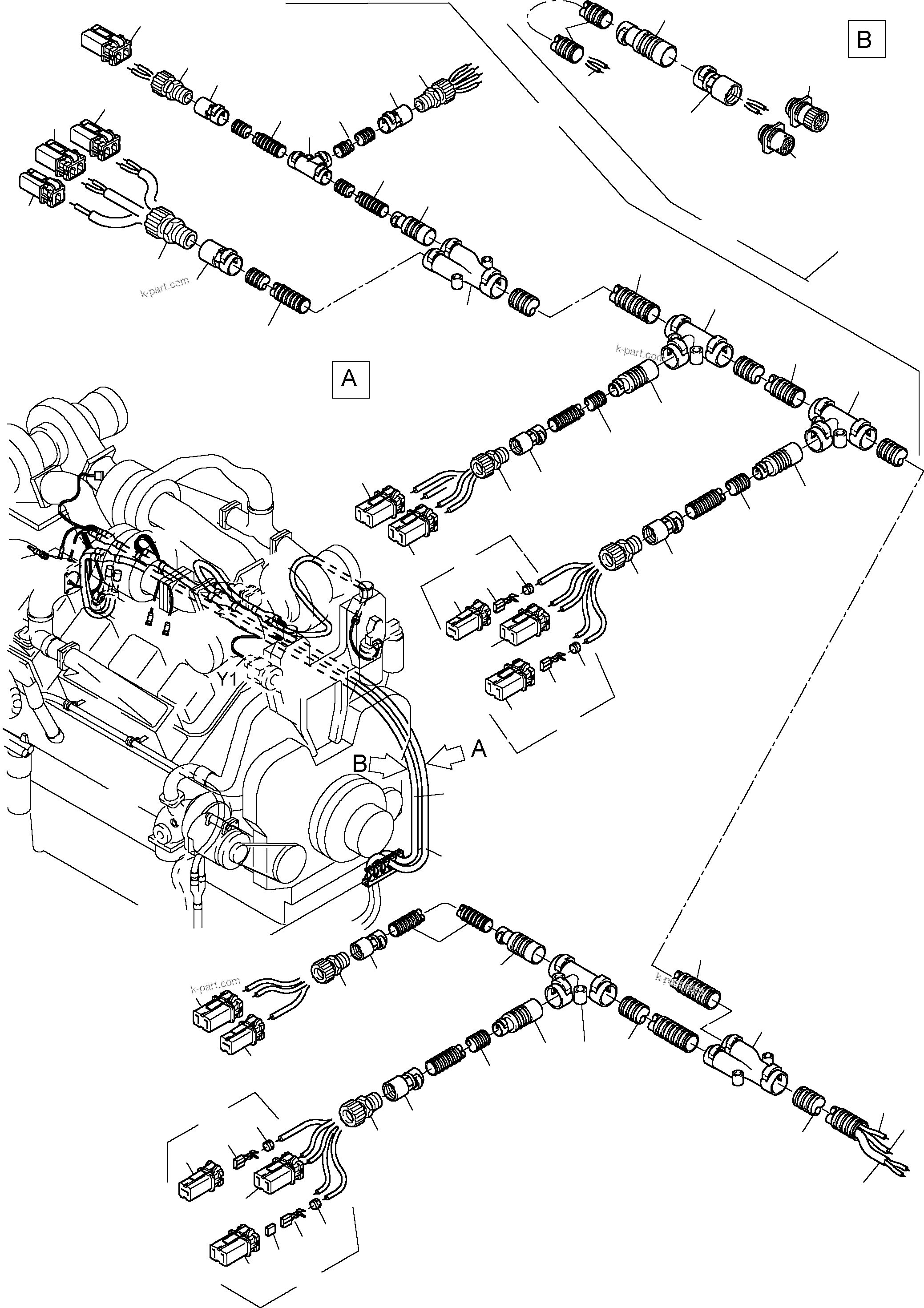

CABLES - ENGINE AND TRANSMITTER (485-2184h) in PC3000-1 S/N 06206. Diagram image and parts list.
