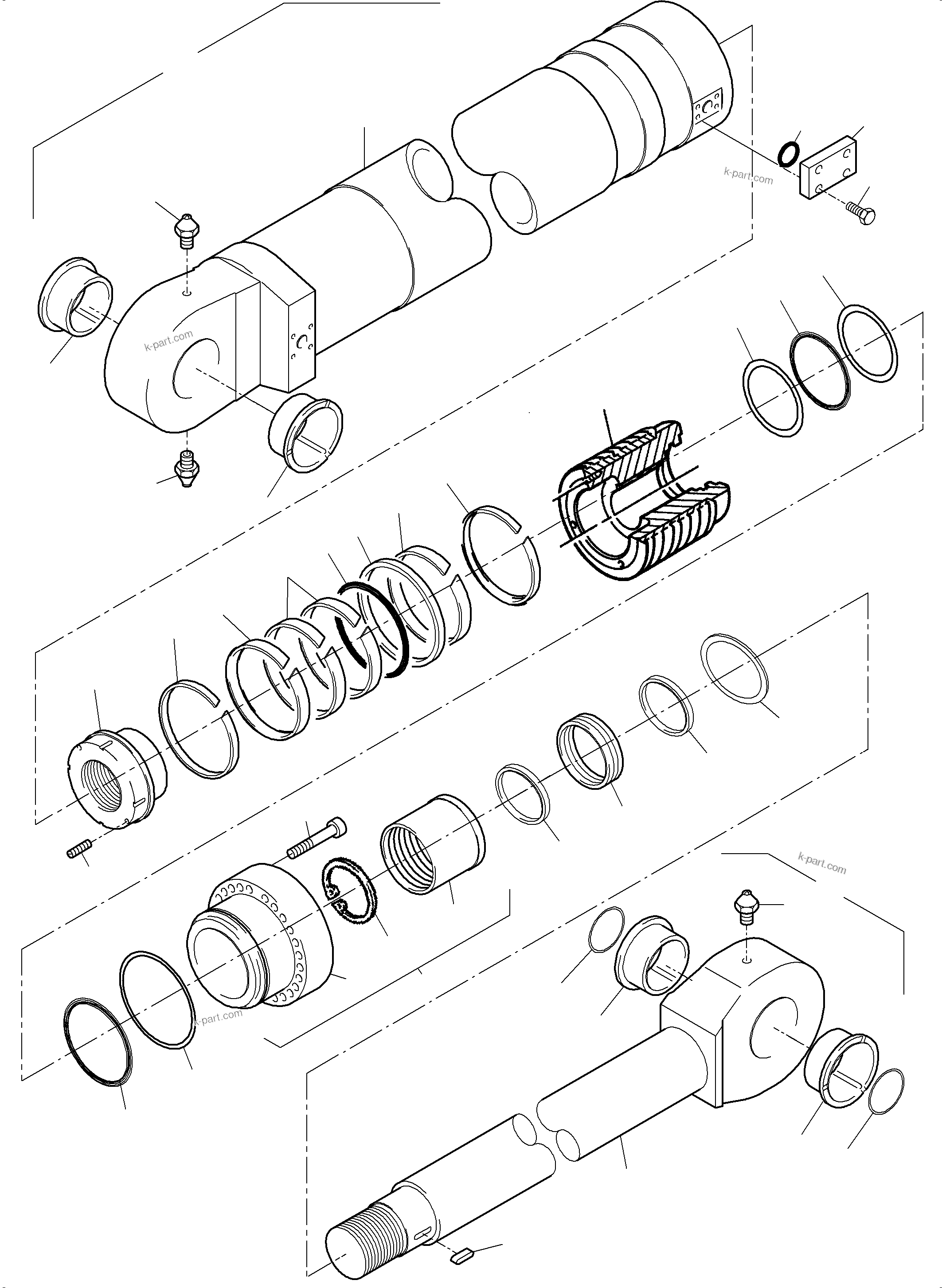

HYDR.-CYLINDER | PC3000-6 S/N 06271 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06271

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	924 910 40	Hydraulic cylinder (standard)	1
?	934 625 40	Hydraulic cylinder (cold weather design)	1
?	792 136 73	Cylinder barrel assy.	1
?	430 867 40	Flanged bush	2
?	907 019 40	Seal ring	2
?	004 860 98	Grease nipple	4
?	792 143 73	Piston rod assy. incl. fig-nos. 04,05,07,08	1
?		Piston rod	1
?	882 157 40	Flanged bush	2
?	924 983 40	Sealing flange assy. incl. fig-nos. 10-12 (finish work after bush is installed)	1
?		Flanged bush	1
?	929 237 40	Bearing bush	1
?	342 688 99	Circlip	1
?	460 338 40	Piston	1
?	947 199 40	Groove nut	1
?	202 702 40	Seal ring	1
?	202 703 40	O-ring (standard)	1
?	516 342 98	O-ring (cold weather design)	1
?	255 760 40	Piston guide ring	4
?	324 952 40	Piston guide strap	2
?	7075117030	Rod seal	1
?	7075117730	Rod seal (cold weather design)	1
?	7075617510	Dust seal	1
?	007 632 98	O-ring (standard)	1
?	932 669 40	O-ring (cold weather design)	1
?	226 431 40	Support ring	1
?	000 219 98	O-ring (standard)	1
?	510 481 98	O-ring (cold weather design)	1
?	256 724 40	Spiral backring	2
?	354 389 99	Feather key	1
?	319 354 99	Bolt	20
?	512 890 98	Screw (cold weather design)	20
?	319 288 99	Bolt	8
?	947 184 40	Threaded pin	1
?	506 581 98	Plug	1
?	356 209 40	Flange seal	1
?	517 456 98	Circlip	1
?	7075117810	Buffer ring	1
?	697 677 73	Seal kit - piston consist. of fig-nos: 17-20,25,26 (standard)	1
?	793 482 73	Seal kit - piston rod consist. of fig-nos: 21-24, 35 (standard)	1
?	794 977 73	Seal kit - piston consist. of fig-nos: 17-20,25,26 (cold weather design)	1
?	794 978 73	Seal kit - piston rod consist. of fig-nos: 21-24, 35 (cold weather design)	1
