PC3000-6E S/N 06262

01 01 02 02 03 03 04 05 06 06 07 07 08 09 09 10 11 12 13 14 15 17 18 18 19 20 21 22 23 24 24 25 26 26 26 27 27 28 28 29 29 29 30 31 32 33 33 34 34 35 35 35 36 37 38 39 40 41 42 43 44 45 45 45 46 46 47 48 49 51 51 52 52 52 53 54 55 56 57 57 59 59 60 61 62 63 64 65 65 65 65 67 68 69 70 70 70 70 71 71 71 72 72 73 73 73 73 73 74 74 74 74 75 75 75 75 80 81 82

#	Part Number	Partname	Quantity	Options	Reference
01		Metering valve	4	InternBDB: 269 881 40 \| InternKon: 927 950 40 / 7	991-0323a
02		Metering valve	2	InternBDB: 269 880 40 \| InternKon: 927 950 40 / 1	991-0091
03	374 443 99	Union	2	InternBDB: S-S 25 ISO08434 \| InternKon: 927 950 40 / 57
04	927 957 40	Pipe assy. Ш 25	1	InternKon: 927 950 40 / 71
05	517 255 98	Union	1	InternBDB: T-S 16 ISO08434 \| InternKon: 927 950 40 / 49
06	655 124 40	Union	2	InternBDB: Red 25/16-PS /OMD \| InternKon: 927 950 40 / 47
07	502 303 98	Socket	4	InternBDB: EVGE 16-S/ 1/2 NPT WN01157699 \| InternKon: 927 950 40 / 44
08	517 560 98	Union	4	InternBDB: GE6-L1/4 NPT /OMD WN65593340 \| InternKon: 927 950 40 / 61
09	517 291 98	Union	12	InternBDB: 6-SR /OMD WN65593440 \| InternKon: 927 950 40 / 59
10	634 775 40	Clamp	8	InternBDB: DM 50,8 M12 Stauffenberg \| InternKon: 927 950 40 / 9
11	308 611 99	Bolt	16	InternBDB: M12x90 DIN00931 \| InternKon: 927 950 40 / 11
12	341 754 40	Ultimate pressure control	1	InternBDB: Delaval Typ X1T-5145 \| InternKon: 927 950 40 / 13
13	308 555 99	Screw	4	InternBDB: M8x45 DIN00931 \| InternKon: 927 950 40 / 4
14	511 773 98	Thread pin	4	InternBDB: PM 10x70 /32500 \| InternKon: 927 950 40 / 15
15	652 383 40	Shackle	2	InternKon: 927 950 40 / 14
17	510 130 98	Thread pin	8	InternBDB: PM10x30/32500 \| InternKon: 927 950 40 / 29
18	927 956 40	Pipe Ш 25	1	InternKon: 927 950 40 / 70
19	516 183 98	Socket	1	InternBDB: L 10-G /3945 \| InternKon: 927 950 40 / 55
20	551 615 40	Union	1	InternBDB: Red 10/6-PL /OMD \| InternKon: 927 950 40 / 53
21	371 861 99	Breech block	1	InternBDB: 6-L \| InternKon: 927 950 40 / 56
22	913 792 40	Pipe assy. Ш 25	1	InternKon: 927 950 40 / 69
23	927 958 40	Pipe assy. Ш 25	1	InternKon: 927 950 40 / 72
24	906 967 40	Union	2	InternBDB: TR 25/12/25 PS /OMD \| InternKon: 927 950 40 / 43
25	170 427 40	Cable strap	20	InternBDB: TY 27 M \| InternKon: 927 950 40 / 35
26	516 741 98	Union	4	InternBDB: SWE-S 12 ISO08434 \| InternKon: 927 950 40 / 42
27	428 861 40	Pipe assy. Ш 16	2	InternKon: 927 950 40 / 48
28	516 961 98	Union	2	InternBDB: SWRT-S 16 ISO08434 \| InternKon: 927 950 40 / 46
29	576 160 40	Hose	-2	InternBDB: 504-36033-3 \| InternKon: 927 950 40 / 31
30	517 607 98	Hose assy.	1	InternBDB: 350 DOS 25 /DOS 25-45 DN20x3600 \| InternKon: 927 950 40 / 68
31	517 597 98	Union	1	InternBDB: E-S 16 ISO08434 \| InternKon: 927 950 40 / 45
32	913 793 40	Plate	4	InternBDB: 30x215 RST37-2 \| InternKon: 927 950 40 / 28
33	534 000 99	Pair of clamp	7	InternBDB: S-2-R-25 DIN03015 \| InternKon: 927 950 40 / 17
34	534 001 99	Cover plate	7	InternBDB: S-DP-A-2 DIN03015 \| InternKon: 927 950 40 / 18
35	323 945 40	Thread pin	26	InternBDB: M6x15 DIN032501 \| InternKon: 927 950 40 / 25
36	634 546 40	Union	1	InternBDB: Red 16 PS /15-PL /OMD \| InternKon: 927 950 40 / 50
37	334 600 99	Nut	4	InternBDB: M12 DIN00985 \| InternKon: 927 950 40 / 12
38	515 029 40	Hose connection 90	14	InternBDB: 532-30739-1 \| InternKon: 927 950 40 / 33
39	515 027 40	Hose connection	10	InternBDB: 432-23030-1 \| InternKon: 927 950 40 / 32
40	515 883 98	Socket	1	InternBDB: GZR 15/10-PL \| InternKon: 927 950 40 / 51
41	634 774 40	Cover plate	8	InternBDB: DP III /Stauffenberg \| InternKon: 927 950 40 / 10
42	906 981 40	Union	8	InternBDB: GE 6 L /1/8 NPT /OMD WN65593340 \| InternKon: 927 950 40 / 60
43	324 672 40	Plug	2	InternBDB: 3/8 NPT Linco \| InternKon: 927 950 40 / 6
44	307 789 99	Bolt	6	InternBDB: M10x80 DIN00933 \| InternKon: 927 950 40 / 22
45	515 028 40	Collet	24	InternBDB: 432-23031-1 \| InternKon: 927 950 40 / 34
46	516 156 98	Socket	2	InternBDB: L 10 DIN03942 \| InternKon: 927 950 40 / 54
47	006 302 98	Clamp	12	InternBDB: RSGU 1100/15/15 \| InternKon: 927 950 40 / 24
48	534 092 98	Clamp	14	InternBDB: RSGU 1100 8/15 \| InternKon: 927 950 40 / 23
49	517 598 98	Union	1	InternBDB: K-S 25 ISO08434 \| InternKon: 927 950 40 / 58
51	507 025 98	Nut	26	InternBDB: 6 DIN00985 \| InternKon: 927 950 40 / 26
52	507 037 98	Nut	18	InternBDB: M10 DIN00985 \| InternKon: 927 950 40 / 16
53	653 129 40	Hose protection	4	InternKon: 927 950 40 / 27
54	374 471 99	Union	1	InternBDB: T-L 10 ISO08434 \| InternKon: 927 950 40 / 52
55	517 121 98	Washer	4	InternBDB: 8 WN65593840 \| InternKon: 927 950 40 / 5
56	534 002 99	Weld-on plate	4	InternBDB: S-AP-A-2 DIN03015 \| InternKon: 927 950 40 / 19
57	512 273 98	Socket	2	InternBDB: EVGE 12-S /3/8 NPT \| InternKon: 927 950 40 / 41
59	654 130 40	Protection cap with o-ring	8	InternBDB: 83272 Linco \| InternKon: 927 950 40 / 2
60	651 255 40	Clamp	2	InternKon: 927 950 40 / 65
61	654 496 40	Protection cap	4	InternBDB: 83730 \| InternKon: 927 950 40 / 8
62	634 978 40	Cover plate	4	InternBDB: DPAL 4-S \| InternKon: 927 950 40 / 66
63	512 055 98	Thread pin	4	InternBDB: PM 12x80 /32500 \| InternKon: 927 950 40 / 67
64	371 867 99	Breech block	2	InternBDB: 25-S WN01163899 \| InternKon: 927 950 40 / 36
65	906 868 40	Olive	8	InternBDB: ES-4 S25 WN65593940 \| InternKon: 927 950 40 / 37
67	308 579 99	Bolt	8	InternBDB: M10x60 DIN00931 \| InternKon: 927 950 40 / 20
68	509 308 98	Locking plate	4	InternBDB: SI 4 \| InternKon: 927 950 40 / 21
69	340 465 99	Washer	8	InternBDB: 10,5 DIN00125 \| InternKon: 927 950 40 / 30
70	371 264 99	Union nut	8	InternBDB: N-S 25 ISO08434 \| InternKon: 927 950 40 / 38
71	371 271 99	Union nut	13	InternBDB: N-L 6 ISO08434 \| InternKon: 927 950 40 / 39
72	371 257 99	Union nut	12	InternBDB: N-S 6 ISO08434 \| InternKon: 927 950 40 / 40
73	907 080 40	Olive	25	InternBDB: ES-4 S6 WN65563940 \| InternKon: 927 950 40 / 62
74	907 151 40	Olive	4	InternBDB: ES-4 S16 WN65563940 \| InternKon: 927 950 40 / 63
75	371 263 99	Union nut	4	InternBDB: N-S 16 ISO08434 \| InternKon: 927 950 40 / 64
80	942 832 40	Thread plate	4	InternBDB: 30x215 \| InternKon: 927 950 40 / 75
81	936 979 40	Thread plate	2	InternBDB: 40x145 \| InternKon: 927 950 40 / 76
82	517 118 98	Washer	16	InternBDB: 12 WN65593840 \| InternKon: 927 950 40 / 77

Komatsu PC3000-6E S/N 06262 parts catalog PDF

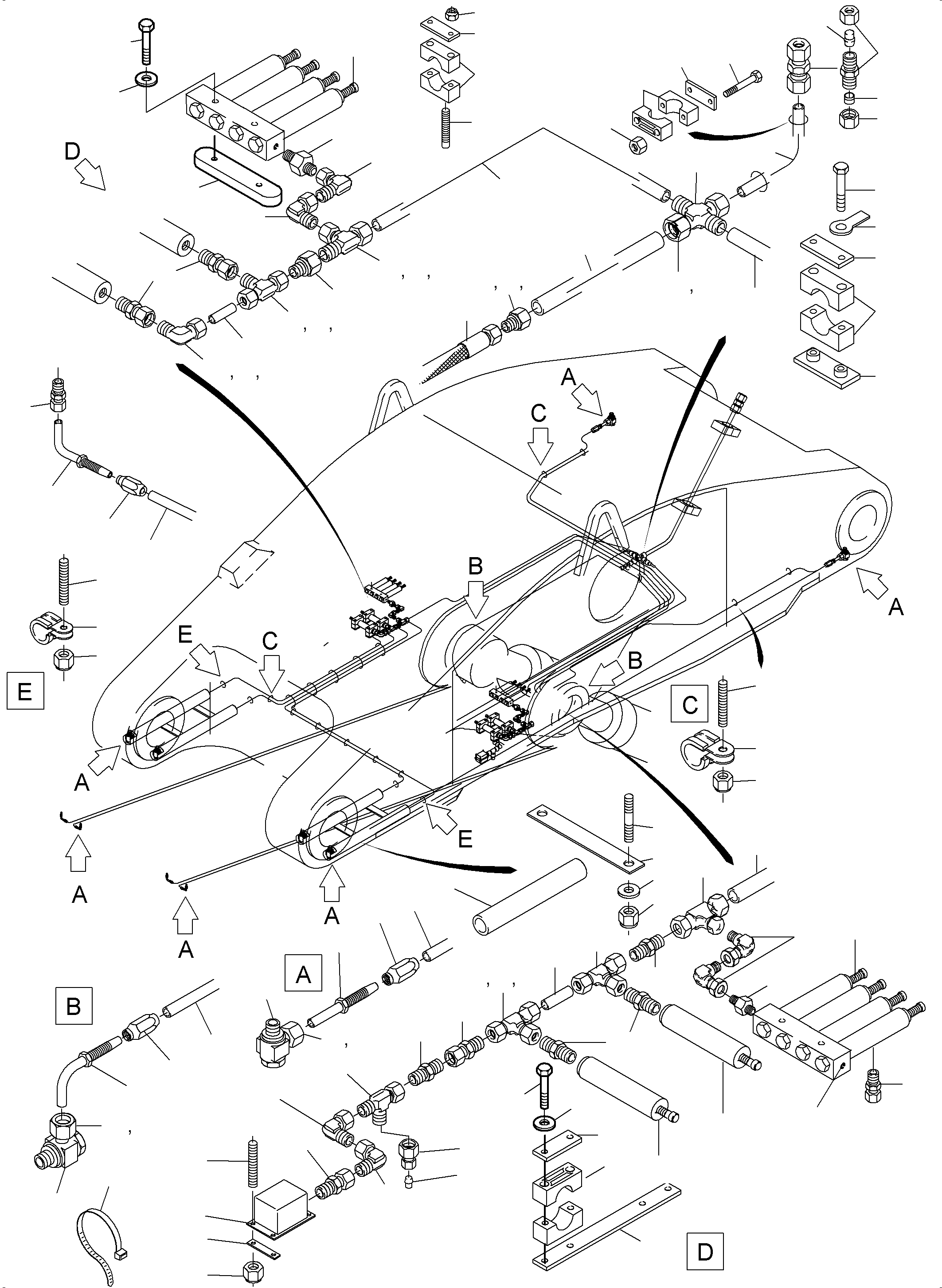

STICK 4,3 M - CENTRAL LUBRICATION (485-2355e) in PC3000-6E S/N 06262. Diagram image and parts list.
