PC3000-6E S/N 06262

02 03 04 05 06 07 08 09 10 11 13 14 18 19 19 20 20 21 22 22 22 22 23 23 23 23 24 25 25 26 27 28 29 29 30 31 32 33 34 35 36 37 38 39 40 41 41 42 43 44 45 46 47 51 54 54 55 55 56 57 58 65 66 67 68 69 70 71 72 78 78 79 80 80 81 82 83

#	Part Number	Partname	Quantity	Options
02	947 434 40	Rail	1	InternBDB: GELAENDER PC 3000- 6E \| InternKon: 946 537 40 / 2
03	930 038 40	Rail	1	InternBDB: GELAENDER KPL KAB-US PC 3000- 6 \| InternKon: 946 537 40 / 3
04	946 370 40	Rail	1	InternBDB: HANDLAUF PC 3000- 6E \| InternKon: 946 537 40 / 4
05	927 628 40	Rail	1	InternBDB: GELAENDER KRAFTSTOFF- PC 3000- 6 \| InternKon: 946 537 40 / 5
06	927 600 40	Emergency ladder	1	InternBDB: NOTAUSSTIEG PC 3000- 6 \| InternKon: 946 537 40 / 6
07	927 637 40	Rail	1	InternBDB: GELAENDER KRAFTSTOFF- PC 3000- 6 \| InternKon: 946 537 40 / 7
08	927 634 40	Hand rail	1	InternBDB: HANDLAUF PC 3000- 6 \| InternKon: 946 537 40 / 8
09	937 953 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 9
10	935 145 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 10
11	935 148 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 11
13	946 365 40	Rail	1	InternBDB: GELAENDER PC 3000- 6E \| InternKon: 946 537 40 / 13
14	946 368 40	Rail	1	InternBDB: GELAENDER PC 3000- 6E \| InternKon: 946 537 40 / 14
18	927 624 40	Base board	1	InternBDB: FUSSLEISTE RST37-2 \| InternKon: 946 537 40 / 18
19	504 004 98	Pair of clamps	113	InternBDB: KLEMMHPAAR S-4-R-38 AL DIN 03015 \| InternKon: 946 537 40 / 19
20	534 008 99	Cover plate	113	InternBDB: D-PLATTE S-DP-A-4 W1 DIN 03015 \| InternKon: 946 537 40 / 20
21	308 615 99	Bolt	102	InternBDB: 6KTSHR M12X 130 8.8 DIN 00931 \| InternKon: 946 537 40 / 21
22	512 545 98	Washer	118	InternBDB: SHB A 13,0 140HV DIN 00125 \| InternKon: 946 537 40 / 22
23	334 600 99	Nut	114	InternBDB: 6KTMU M12 8 DIN 00985 \| InternKon: 946 537 40 / 23
24	308 434 99	Bolt	108	InternBDB: 6KTSHR M12X 115 8.8 DIN 00931 \| InternKon: 946 537 40 / 24
25	509 310 98	Locking plate	54	InternBDB: SG-BL S 4 UST1203 WN 01183999 \| InternKon: 946 537 40 / 25
26	308 605 99	Bolt	14	InternBDB: 6KTSHR M12X 55 8.8 DIN 00931 \| InternKon: 946 537 40 / 26
27	510 744 98	Resilient sleeve	14	InternBDB: DEHNHUELSE 13 /25X 32 42CRMO4-TQ+T WN 34194840 \| InternKon: 946 537 40 / 27
28	307 339 99	Bolt	4	InternBDB: 6KTSHR M12 X 16 8.8 DIN 00933 \| InternKon: 946 537 40 / 28
29	517 118 98	Lock washer	6	InternBDB: SG-SHB 12 STZN WN 65593840 \| InternKon: 946 537 40 / 29
30	927 337 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 30
31	946 367 40	Rail	1	InternBDB: GELAENDER PC 3000- 6E \| InternKon: 946 537 40 / 31
32	915 304 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 32
33	937 961 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 130
34	504 200 98	Pair of clamps	8	InternBDB: KLEMMHPAAR S-3-R-30 AL DIN 03015 \| InternKon: 946 537 40 / 34
35	534 004 99	Cover plate	8	InternBDB: D-PLATTE S-DP-A-3 W1 DIN 03015 \| InternKon: 946 537 40 / 35
36	308 583 99	Bolt	16	InternBDB: 6KTSHR M10X 80 8.8 DIN 00931 \| InternKon: 946 537 40 / 36
37	343 005 99	Washer	16	InternBDB: SHB 10,5 ST1203 DIN 00093 \| InternKon: 946 537 40 / 37
38	946 373 40	Plate	1	InternBDB: BLECH RST37-2 \| InternKon: 946 537 40 / 38
39	925 263 40	Rail	1	InternBDB: GELAENDER \| InternKon: 946 537 40 / 100
40	937 955 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 129
41	915 320 40	Plate	2	InternBDB: BLECH ST52-3N \| InternKon: 946 537 40 / 90
42	925 231 40	Plate	1	InternBDB: KANTBLECH KPL PC 3000- 6 \| InternKon: 946 537 40 / 91
43	915 318 40	Plate	1	InternBDB: BLECH ST52-3N \| InternKon: 946 537 40 / 92
44	506 728 98	Bolt	16	InternBDB: 6KTSHR M12X 135 8.8 DIN 00931 \| InternKon: 946 537 40 / 93
45	307 805 99	Bolt	24	InternBDB: 6KTSHR M12 X 35 8.8 DIN 00933 \| InternKon: 946 537 40 / 94
46	915 305 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 95
47	937 958 40	Rail	1	InternBDB: GELAENDER PC 3000- 6 \| InternKon: 946 537 40 / 131
51	907 219 40	Ladder	1	InternKon: 935 255 40 / 1
54	081 474 40	Hood fastener	2	InternKon: 935 255 40 / 4
55	922 589 40	Retainer	4	InternKon: 935 255 40 / 5
56	308 284 99	Bolt	4	InternBDB: M5x35 8.8 / DIN 931 \| InternKon: 935 255 40 / 6
57	507 036 98	Nut	4	InternBDB: M5 / DIN 985 \| InternKon: 935 255 40 / 7
58	340 461 99	Washer	4	InternBDB: B 5,3 / DIN 125 \| InternKon: 935 255 40 / 8
65	925 759 40	Rail	1	InternKon: 925 760 40 / 1
66	925 700 40	Rail	1	InternKon: 925 760 40 / 2
67	925 702 40	Rail	1	InternKon: 925 760 40 / 3
68	925 701 40	Angle	1	InternKon: 925 760 40 / 4
69	925 704 40	Angle	1	InternKon: 925 760 40 / 5
70	925 705 40	Angle	1	InternKon: 925 760 40 / 6
71	925 706 40	Angle	1	InternKon: 925 760 40 / 7
72	925 707 40	Angle	1	InternKon: 925 760 40 / 8
78	929 110 40	Plate	2	InternBDB: 10x144x180 \| InternKon: 925 760 40 / 14
79	929 111 40	Plate	1	InternBDB: 10x144x330 \| InternKon: 925 760 40 / 15
80	929 112 40	Plate	2	InternBDB: 10x144x220 \| InternKon: 925 760 40 / 16
81	929 113 40	Plate	1	InternBDB: 10x144x298 \| InternKon: 925 760 40 / 17
82	506 728 98	Bolt	12	InternBDB: M 12x135 \| InternKon: 925 760 40 / 18
83	307 806 99	Bolt	4	InternBDB: M 12x40 \| InternKon: 925 760 40 / 19
\|$$63			-2
\|$$64			-2
\|$$65			-2
\|$$66			-2
\|$$67			-2
\|$$68			-2
\|$$69			-2
\|$$70			-2
\|$$71			-2
\|$$72			-2
\|$$73			-2
\|$$74			-2
\|$$75			-2
\|$$76			-2
\|$$77			-2
\|$$78			-2
\|$$79			-2
\|$$80			-2
\|$$81			-2
\|$$82			-2
\|$$83			-2
\|$$84			-2
\|$$85			-2

Komatsu PC3000-6E S/N 06262 parts catalog PDF

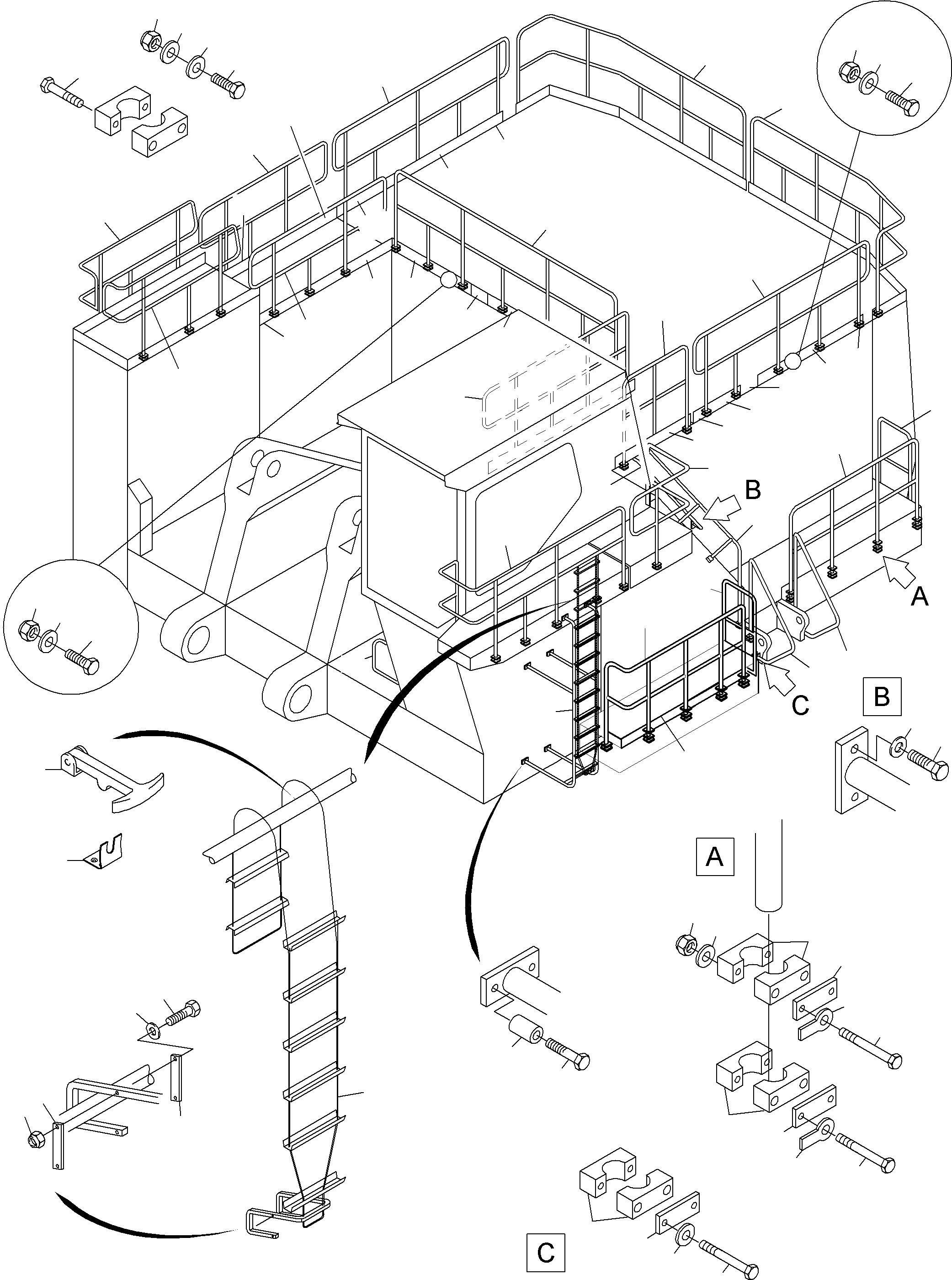

LADDERS AND RAILS (255-1022) in PC3000-6E S/N 06262. Diagram image and parts list.
