Diagram image 1 of 4

PC3000-6E S/N 06262

02 02 02 02 07 07 12 12 15 15 15 18 21 28 28 29 30 64 64 65 65 67 67 70 75 76 76 78 80 84 84 86 86 94

PC3000-6E S/N 06262

04 15 15 18 18 22 26 26 27 27 28 28 28 28 28 28 29 29 29 30 30 30 30 30 53 61 63 64 64 65 65 69 71 73 74 76 76 76 76 77 78 78 78 79 80 80 80 84 85 85 85 86 86 86 86 91 95

PC3000-6E S/N 06262

09 09 10 11 11 11 13 13 13 16 16 161 161 162 162 163 163 17 20 20 20 33 34 41 41 41 54 54 55 55 81 82 87 88 89 90 92 93 96

PC3000-6E S/N 06262

142 142 142 172 173 174 175 176 177 178 180 181 182 184 184 185 185 186 186 187 188 189 190 190 191 192 193 194 22

#	Part Number	Partname	Quantity	Options
02	517 747 98	Hose assy. DN 40x1370	2	InternBDB: SHL025 40X 1370 DOL 42 DOL 42 WN 34195140 \| InternKon: 930 843 40 / 2
04	517 778 98	Hose assy. DN 40x3780	1	InternBDB: SHL025 40X 3780 DOL 42 CEL 42 WN 34195140 \| InternKon: 930 843 40 / 4
07	930 836 40	Pipe	2	InternBDB: 42x2x1480 ROHR ST37.4 NBK C \| InternKon: 930 843 40 / 7
09	576 375 40	Hose assy. DN 20x420	1	InternBDB: SHL120 20X 420 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 930 843 40 / 9
10	517 772 98	Hose assy. DN 20x3000	1	InternBDB: SHL120 20X 3000 DOL 22 DOL 22 WN 34195140 \| InternKon: 930 843 40 / 10
11	514 361 98	Hose assy. DN 20x3000	1	InternBDB: SHL120 20X 3000 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 930 843 40 / 11
12	517 779 98	Hose assy. DN 40x1430	1	InternBDB: SHL025 40X 1430 CEL 42 DOL 42 90 WN 34195140 \| InternKon: 930 843 40 / 12
13	514 114 98	Hose assy. DN 20x1700	1	InternBDB: SHL120 20X 1700 DOL 22 D0L 22 90 WN 34195140 \| InternKon: 930 843 40 / 13
15	907 045 40	Union	6	InternBDB: VERSHR 42 LM/OMD ST ZN WN 65593440 \| InternKon: 930 843 40 / 15
16	906 925 40	Union	4	InternBDB: VERSHR 22 LM/OMD ST ZN WN 65593440 \| InternKon: 930 843 40 / 16
17	516 281 98	Socket	1	InternBDB: SWRT-L 22 ST-NBR ISO 08434-4 \| InternKon: 930 843 40 / 17
18	940 450 40	Orifice	2	InternBDB: BLENDE VS-M02048-F02048-01 \| InternKon: 930 843 40 / 18
20	374 409 99	Union	3	InternBDB: SDS-L22XM26x1,5- TYPE E ST A3C ISO 08434 \| InternKon: 930 843 40 / 20
21	512 087 98	Socket	2	InternBDB: E-L 42 ST A3C ISO 08434 \| InternKon: 930 843 40 / 21
22	374 415 99	Socket	2	InternBDB: SDS-L42XM48x2 - TYPE E ST A3C ISO 08434 \| InternKon: 930 843 40 / 22
26	506 371 98	Pair of clamps	3	InternBDB: S-4-E PA DIN 03015 \| InternKon: 930 843 40 / 26
27	502 626 98	Grommet	6	InternBDB: S-4-56,4 GUMMI DIN 03015 \| InternKon: 930 843 40 / 27
28	534 008 99	Cover plate	11	InternBDB: D-PLATTE S-DP-A-4 W1 DIN 03015 \| InternKon: 930 843 40 / 28
29	308 459 99	Bolt	12	InternBDB: 6KTSHR M12X 100 10.9 DIN 00931 \| InternKon: 930 843 40 / 29
30	509 310 98	Locking Plate	5	InternBDB: SI 6 / WN 011 839 99 \| InternKon: 930 843 40 / 30
33	517 731 98	Hose assy. DN 25x2100	1	InternBDB: 120 DOL 28 / DOL 28 \| InternKon: 943 618 40 / 26
34	517 732 98	Hose assy. DN 25x4100	1	InternBDB: 120 DOL 28 / DOL 28 \| InternKon: 943 618 40 / 28
41	374 431 99	Socket	3	InternBDB: L 28 / ISO 8434 \| InternKon: 930 843 40 / 41
53	517 776 98	Hose assy. DN 40x1400	1	InternBDB: 025 DOL 42 / CEL 42 \| InternKon: 930 843 40 / 53
54	517 742 98	Hose assy. DN 25x1200	1	InternBDB: 120 DOL 28 / DOL 28 \| InternKon: 930 843 40 / 54
55	643 817 40	Hose assy. DN 25x1100	1	InternBDB: 120 DOL 28 / DOL 28 45 \| InternKon: 930 843 40 / 55
61	929 142 40	Pipe	1	InternBDB: 25x3x2363 \| InternKon: 930 843 40 / 61
63	929 144 40	Pipe	1	InternBDB: 25x3x2645 \| InternKon: 930 843 40 / 63
64	371 280 99	Union nut	8	InternBDB: N-L 42 ISO 8434 \| InternKon: 930 843 40 / 64
65	906 480 40	Olive	8	InternBDB: ES-4 L 42 \| InternKon: 930 843 40 / 65
67	517 780 98	Hose assy. DN 40x1530	1	InternBDB: 025 DOL 42 / CEL 42 \| InternKon: 930 843 40 / 67
69	915 476 40	Angle	2	InternKon: 930 843 40 / 69
70	929 141 40	Console	1	InternKon: 930 843 40 / 70
71	930 840 40	Angle	1	InternKon: 930 843 40 / 71
73	915 498 40	Console	1	InternKon: 930 843 40 / 73
74	929 134 40	Angle	1	InternBDB: 60x60x6x316 \| InternKon: 930 843 40 / 74
75	915 493 40	Sheet metal	1	InternBDB: 6x162,5x247 \| InternKon: 930 843 40 / 75
76	500 345 98	Pair of clamps	8	InternBDB: S-4-R-42 / DIN 3015 \| InternKon: 930 843 40 / 76
77	308 613 99	Bolt	6	InternBDB: M12x110 / DIN 931 \| InternKon: 930 843 40 / 77
78	334 600 99	Nut	16	InternBDB: M12 / DIN 985 \| InternKon: 930 843 40 / 78
79	509 996 98	Bolt	2	InternBDB: M12x110 / DIN 931 \| InternKon: 930 843 40 / 79
80	340 467 99	Washer	12	InternBDB: B 13 / DIN 125 \| InternKon: 930 843 40 / 80
81	915 494 40	Block	1	InternBDB: 70x155 \| InternKon: 930 843 40 / 81
82	319 161 99	Bolt	2	InternBDB: M12x65 / DIN 912 \| InternKon: 930 843 40 / 82
84	500 814 98	Bolt	10	InternBDB: M12x60 / DIN 931 \| InternKon: 930 843 40 / 84
85	308 608 99	Bolt	6	InternBDB: M12x70 / DIN 931 \| InternKon: 930 843 40 / 85
86	510 745 98	Resilient sleeve 13/25x40	16	InternBDB: WN 341 948 40 \| InternKon: 930 843 40 / 86
87	514 921 98	Nut	8	InternBDB: M10 / 8 A2E / DIN 985 \| InternKon: 930 843 40 / 87
88	340 467 99	Washer	7	InternBDB: B 13,0 140HV / DIN 125 \| InternKon: 930 843 40 / 88
89	0443452711	Clip	4	InternBDB: KES 04434 KLTD X200 \| InternKon: 930 843 40 / 89
90	907 753 40	Hose protection	-2	InternBDB: 60032 / 14 m \| InternKon: 930 843 40 / 90
91	907 804 40	Hose protection	-2	InternBDB: 60075 / 12 m \| InternKon: 930 843 40 / 91
92	0443453411	Clip	2	InternKon: 930 843 40 / 92
93	307 775 99	Bolt	1	InternBDB: M10x20 / DIN 933 \| InternKon: 930 843 40 / 93
94	308 614 99	Bolt	4	InternBDB: M12x120 / DIN 931 \| InternKon: 930 843 40 / 94
95	173 495 40	Plug	2	InternBDB: VSTI M48x2,0 ED \| InternKon: 930 843 40 / 95
96	360 873 40	Plug	1	InternBDB: VSTI M26x1,5 ED \| InternKon: 930 843 40 / 96
142	517 582 98	O-Ring	4	InternBDB: 136,12x3,53B / WN01174599 \| InternKon: 943 618 40 / 65
161	371 278 99	Union nut	10	InternBDB: N-L 28 / ISO 8434 \| InternKon: 943 618 40 / 161
162	906 350 40	Olive	10	InternBDB: ES-4 L28 \| InternKon: 943 618 40 / 162
163	516 750 98	Socket	10	InternBDB: S-L 28 / ISO 8434 \| InternKon: 943 618 40 / 163
172	307 826 99	Bolt	4	InternBDB: 6KTSHR M16 X 50 8.8 DIN 00933 \| InternKon: 943 618 40 / 217
173	941 293 40	Hose assy.	1	InternBDB: SHL DN 75 X 790 FSL5/GFL5 * \| InternKon: 943 618 40 / 173
174	915 469 40	Pipe	1	InternKon: 943 618 40 / 174
175	915 316 40	Header	1	InternKon: 943 618 40 / 175
176	940 895 40	Strainer	1	InternBDB: NW 120 03016902 Hydac \| InternKon: 943 618 40 / 176
177	898 129 40	Pulsation shock absorber	1	InternBDB: Hydac \| InternKon: 943 618 40 / 177
178	907 725 40	Differential pressure switch	1	InternBDB: Argo DG 021-16 \| InternKon: 943 618 40 / 178
180	307 824 99	Bolt	4	InternBDB: M16x40 / DIN 933 \| InternKon: 943 618 40 / 180
181	517 192 98	Lock washer	4	InternBDB: S 16 WN 655 937 40 \| InternKon: 943 618 40 / 181
182	308 631 99	Bolt	4	InternBDB: 6KTSHR M16X 55 8.8 DIN 00931 \| InternKon: 943 618 40 / 182
184	374 428 99	Union	2	InternBDB: SDS-S 6X G1/4A ISO 8434 \| InternKon: 943 618 40 / 184
185	907 080 40	Olive	2	InternBDB: ES-4 S 6 \| InternKon: 943 618 40 / 185
186	371 257 99	Union nut	2	InternBDB: N-S 6 ISO 8434 \| InternKon: 943 618 40 / 186
187	576 160 40	Hose assy. NW 4	-2	InternKon: 943 618 40 / 187
188	515 027 40	Hose connection	1	InternBDB: 432-23030-1 \| InternKon: 943 618 40 / 188
189	515 029 40	Hose connection 90°	1	InternBDB: 532-30739-1 \| InternKon: 943 618 40 / 189
190	515 028 40	Protector	2	InternBDB: 432-23031-1 \| InternKon: 943 618 40 / 190
191	319 409 99	Bolt	4	InternBDB: M4x30 / 912 \| InternKon: 943 618 40 / 191
192	308 610 99	Bolt	4	InternBDB: M12x80 / DIN 931 \| InternKon: 943 618 40 / 192
193	510 748 98	Resilient sleeve 13/25x20	4	InternBDB: WN 341 948 40 \| InternKon: 943 618 40 / 216
194	502 687 98	Washer	4	InternBDB: 13 / DIN 7349 \| InternKon: 943 618 40 / 194

Komatsu PC3000-6E S/N 06262 parts catalog PDF

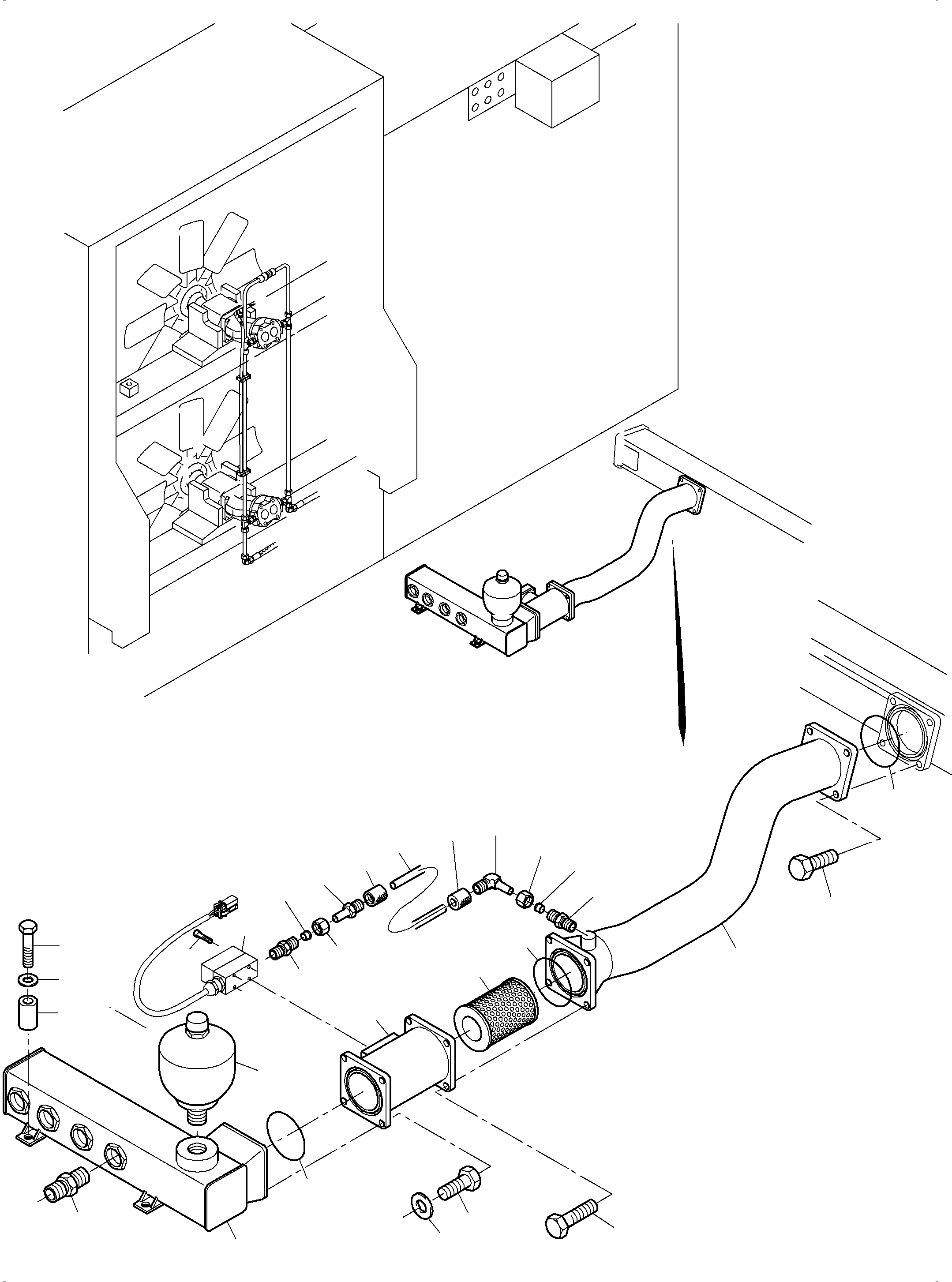

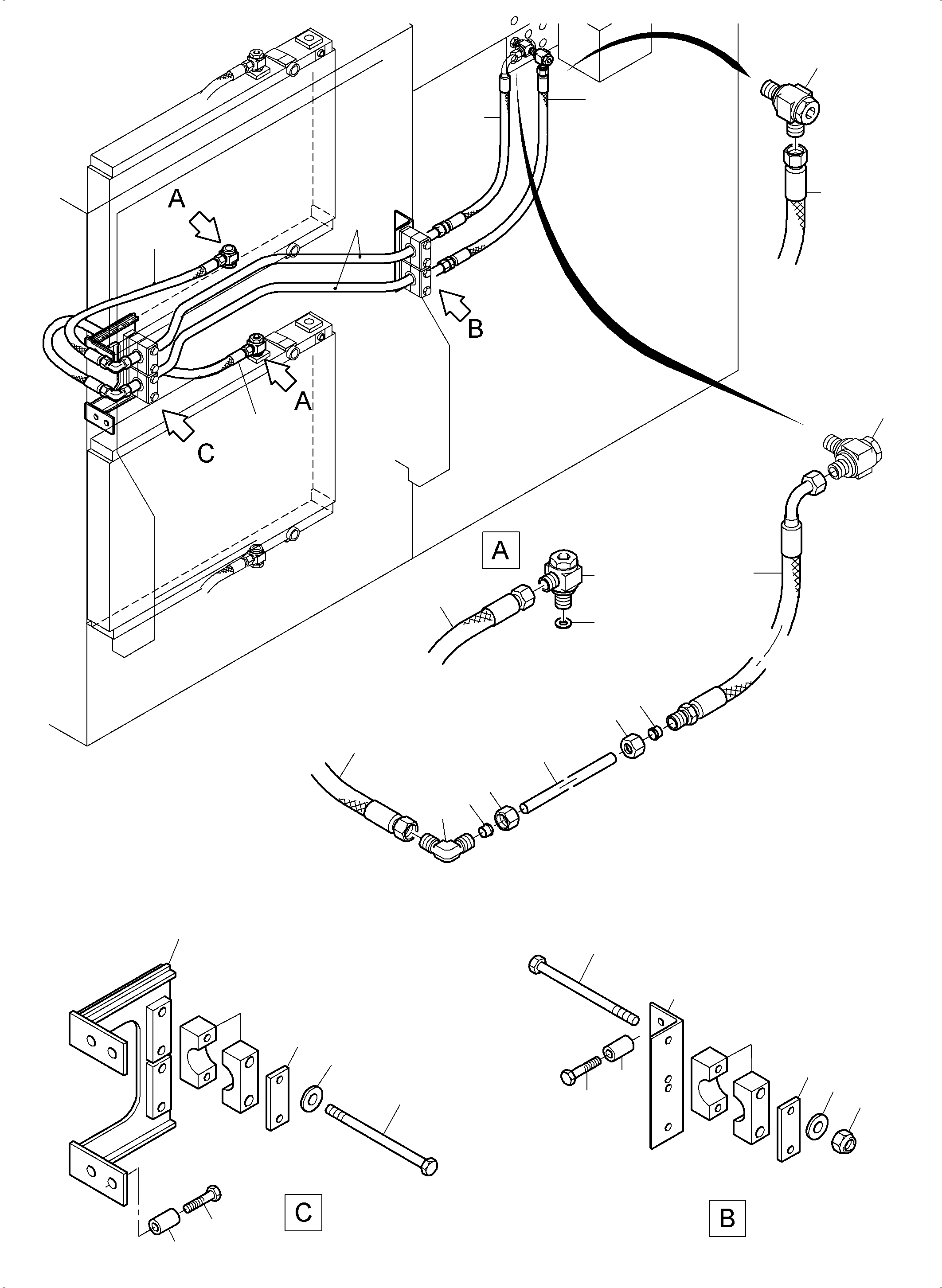

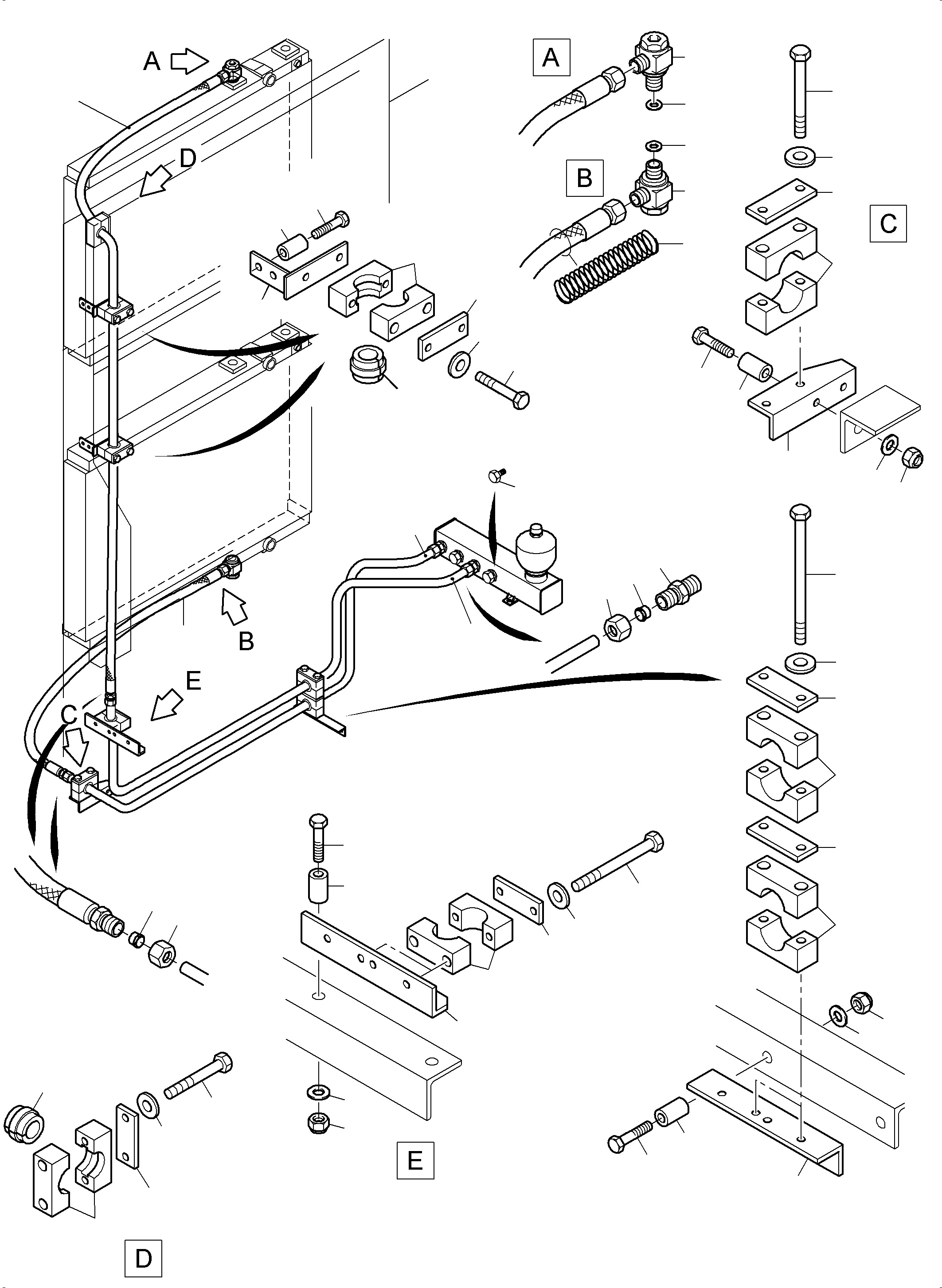

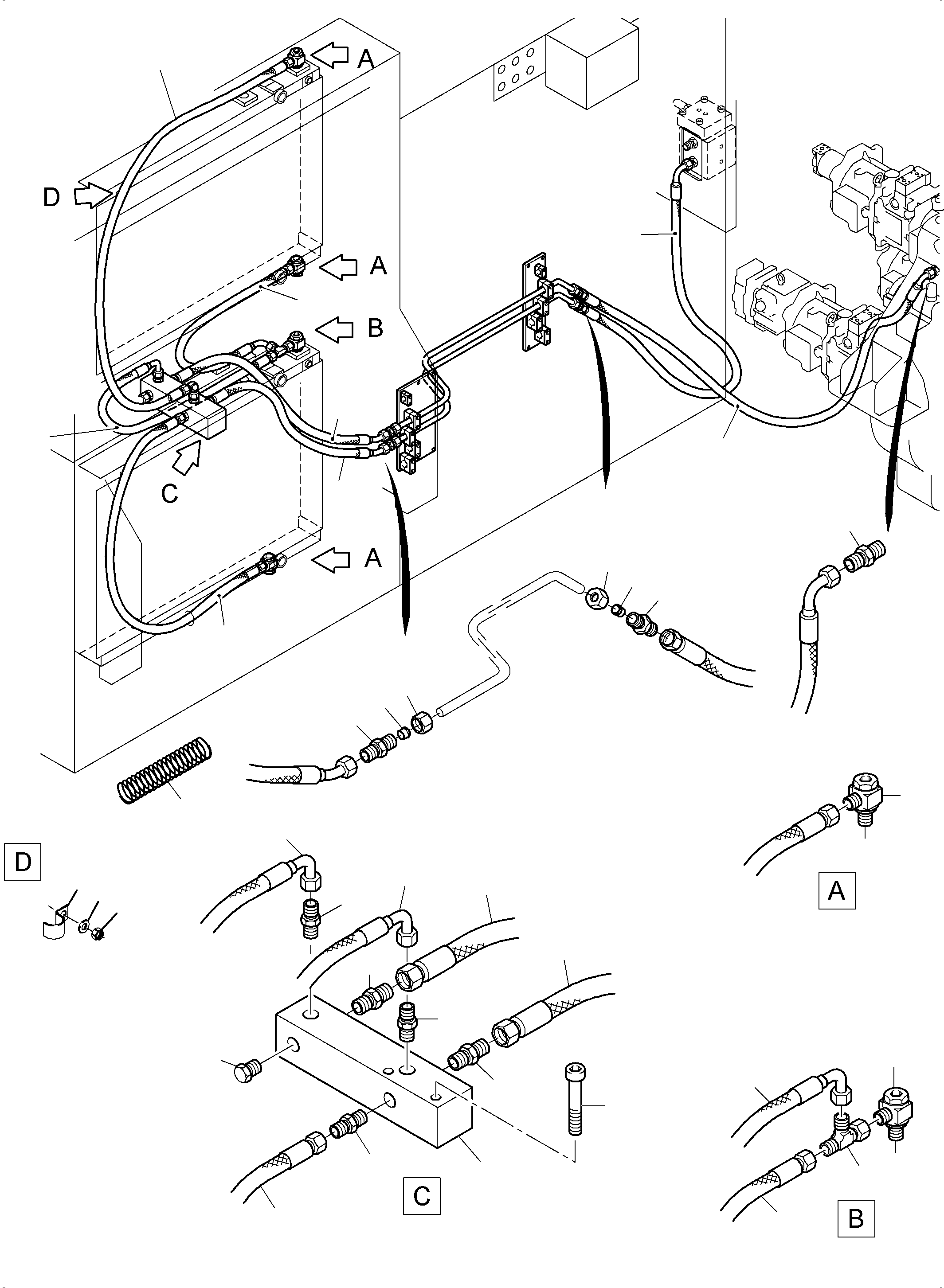

OIL COOLER - HOSES ASSY. (255-1816) in PC3000-6E S/N 06262. Diagram image and parts list.
