CAB SUPPORT | PC3000-6E S/N 06262 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

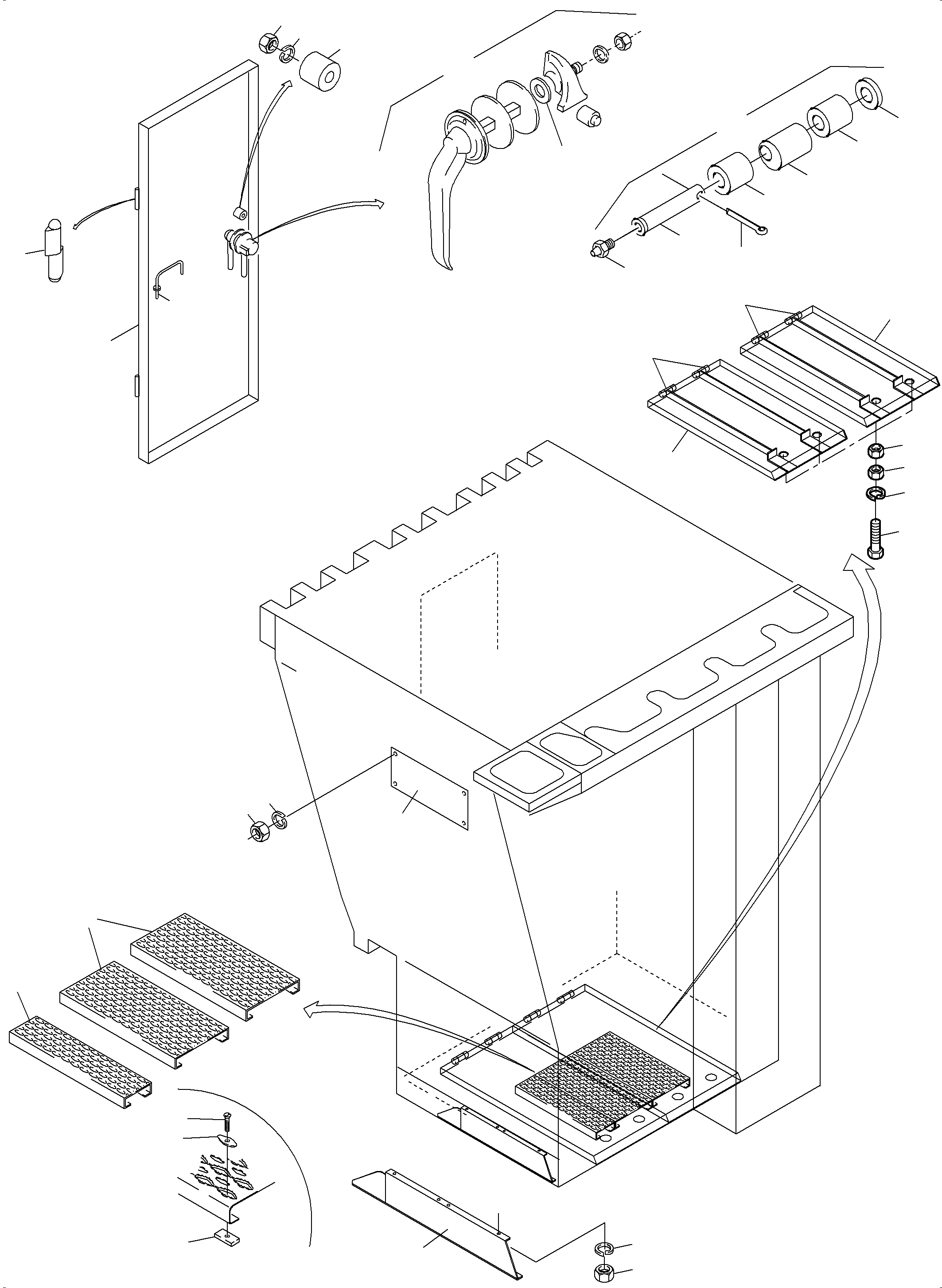

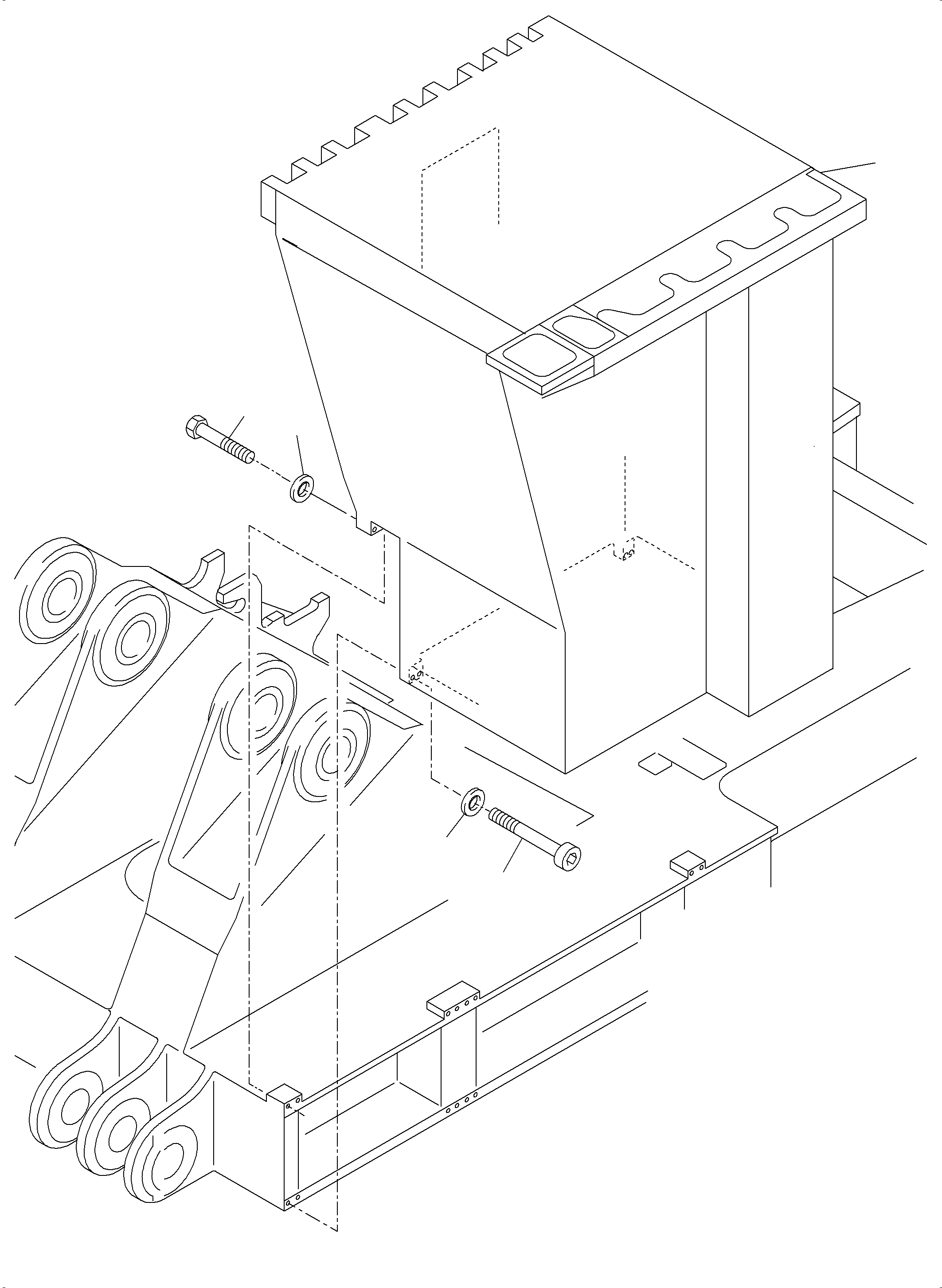

Diagram image 1 of 2

PC3000-6E S/N 06262

01 30 31 32 32

PC3000-6E S/N 06262

02 03 04 05 06 07 08 09 10 11 12 15 19 20 21 22 23 24 25 26 27 28 35 35 36 36 36 37 38 39 39 42 43 43 44 45 46 47

#	Part Number	Partname	Quantity	Options
01	944 560 40	Cab support	1	InternKon: 944 567 40 / 1
02	323 315 40	Grating	2	InternKon: 944 567 40 / 13
03	930 919 40	Grating	1	InternKon: 944 567 40 / 14
04	922 856 40	Cover	1	InternKon: 944 567 40 / 2
05	340 465 99	Washer	4	InternKon: 944 567 40 / 29
06	507 037 98	Nut	4	InternKon: 944 567 40 / 30
07	317 319 40	Threaded block	4	InternKon: 944 567 40 / 21
08	317 318 40	Wing nut, plastic	4	InternKon: 944 567 40 / 24
09	502 354 98	Bolt	4	InternBDB: M8x40 / DIN 963 \| InternKon: 944 567 40 / 28
10	946 028 40	Cover	1	InternKon: 944 567 40 / 5
11	334 599 99	Nut	8	InternBDB: M 8 \| InternKon: 944 567 40 / 26
12	340 507 99	Washer	8	InternBDB: 8,4 \| InternKon: 944 567 40 / 27
\|$$13	167 693 40	Flex. header	-2	InternBDB: Happich
15	390 199 40	Hinge, incl. fig-nos: 42-47	2	InternKon: 944 562 40 / 12
19	946 195 40	Door, incl. fig-nos: 20-28	1	InternKon: 944 562 40 / 3
20	946 196 40	Door	1	InternKon: 946 195 40 / 1
21	940 907 40	Fastener	1	InternKon: 946 195 40 / 2
22	081 282 40	Silent block	1	InternBDB: GHE 4700056 \| InternKon: 946 195 40 / 3
23	340 461 99	Washer	1	InternBDB: B 5,3 140HV DIN 00125 \| InternKon: 946 195 40 / 4
24	507 036 98	Nut	1	InternBDB: M 5 8 DIN 00985 \| InternKon: 946 195 40 / 5
25	340 469 99	Washer	1	InternBDB: B 17,0 140HV DIN 00125 \| InternKon: 946 195 40 / 6
26	513 252 98	Screw	1	InternBDB: M 5 X 40 10.9 DIN 00912 \| InternKon: 946 195 40 / 7
27	946 184 40	Yoke	1	InternKon: 946 195 40 / 8
28	342 057 99	Split pin	1	InternBDB: 4 X 20 DIN 00094 \| InternKon: 946 195 40 / 9
30	308 354 99	Bolt (standard)	4	InternBDB: M 36 x 160 / DIN 931 \| InternKon: 944 551 40 / 13
30	501 128 98	Bolt (cold weather design)	4	InternBDB: M36X 160 10.9 KALTZ DIN 00931 \| InternKon: 944 551 40 / 13
31	501 688 98	Bolt (standard)	4	InternBDB: M 36 x 210 / DIN 931 \| InternKon: 944 551 40 / 19
31	515 291 98	Bolt (cold weather design)	4	InternBDB: M36X 210 10.9 KALTZ DIN 00931 \| InternKon: 944 551 40 / 19
32	255 056 40	Washer	8	InternBDB: Ш 37 / DIN 6916 \| InternKon: 944 551 40 / 6
35	930 075 40	Flap	2	InternKon: 944 567 40 / 35
36	390 199 40	Hinge, incl. fig-nos: 42-47	4	InternKon: 944 567 40 / 36
37	307 810 99	Bolt	4	InternBDB: M12 X 60 8.8 DIN 00933 \| InternKon: 944 567 40 / 37
38	346 498 99	Lock washer	4	InternBDB: A 12 FST DIN 00128 \| InternKon: 944 567 40 / 38
39	332 353 99	Nut	8	InternBDB: M 12 10 DIN 00934 \| InternKon: 944 567 40 / 39
42	621 108 40	Pin	1	InternKon: 390 199 40 / 1
43	390 600 40	Bushing	2	InternKon: 390 199 40 / 2
44	390 601 40	Bushing	1	InternKon: 390 199 40 / 3
45	340 612 99	Washer	1	InternBDB: 16 ST DIN 01440 \| InternKon: 390 199 40 / 4
46	342 061 99	Cotter pin	1	InternBDB: 4 X 32 ST33 DIN 00094 \| InternKon: 390 199 40 / 5
47	350 562 99	Grease nipple	1	InternBDB: AM10X1 5.8 A2E DIN 71412 \| InternKon: 390 199 40 / 6
