PC3000-6E S/N 06262

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	518 468 98	Hose assy. DN20x8950	1	InternBDB: 120 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 946 022 40 / 1
?	514 745 98	Hose assy. DN20x8850	1	InternBDB: 120 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 946 022 40 / 2
?	515 017 98	Hose assy. DN20x6100	1	InternBDB: 120 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 946 022 40 / 3
?	518 123 98	Hose assy. DN20x3100	1	InternBDB: 120 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 946 022 40 / 4
?	374 409 99	Socket	3	InternBDB: SDS-L22XM26x1,5- TYPE E ST A3C ISO 08434 \| InternKon: 946 022 40 / 5
?	341 710 40	Filler neck	1	InternBDB: OSP2 59.28 \| InternKon: 946 022 40 / 6
?	341 711 40	Filler neck	1	InternBDB: 6000 B 12 263.25 \| InternKon: 946 022 40 / 7
?	360 856 40	Cap	1	InternBDB: 6009 12 \| InternKon: 946 022 40 / 8
?	270 861 40	Filler, hydr.-oil	1	InternBDB: 6005 A 12 \| InternKon: 946 022 40 / 9
?	270 862 40	Cap	1	InternBDB: 6008-12 \| InternKon: 946 022 40 / 10
?	515 879 98	Graphical symbol (pinion greasing)	1	InternBDB: ZAHNKRANZSCHM AL FOLIE SELBSTKLEBEND WN 65591640 \| InternKon: 946 022 40 / 11
?	515 878 98	Graphical symbol (greasing)	1	InternBDB: ZENTRALSCHM AL FOLIE SELBSTKLEBEND WN 65591640 \| InternKon: 946 022 40 / 12
?	515 877 98	Graphical symbol (hydraulic oil)	1	InternBDB: HYDRAULIKOEL AL FOLIE SELBSTKLEBEND WN 65591640 \| InternKon: 946 022 40 / 13
?	516 235 98	Socket	1	InternBDB: SWSDS-L22XM26x1,5- TYPE E ST-NBR ISO 08434-4 \| InternKon: 946 022 40 / 14
?	906 930 40	Union	1	InternBDB: 28 LM/OMD ST ZN WN 65593440 \| InternKon: 946 022 40 / 15
?	551 345 40	Union	1	InternBDB: RED 28/22-PL/OMD ST A3C \| InternKon: 946 022 40 / 16
?	516 160 98	Socket	1	InternBDB: SWE-L 22 ST-NBR ISO 08434-4 \| InternKon: 946 022 40 / 17
?	654 458 40	Valve	2	InternBDB: RHD 22-PL/OMD 0,2B ST A3C WN 65592840 \| InternKon: 946 022 40 / 18
?	516 281 98	Socket	1	InternBDB: SWRT-L 22 ST-NBR ISO 08434-4 \| InternKon: 946 022 40 / 19
?	515 882 98	Union	1	InternBDB: GV 22-LR STZN WN 65590640 \| InternKon: 946 022 40 / 20
?	0443452711	Clip NW 27	4	InternBDB: 77 KES 04434 \| InternKon: 946 022 40 / 21
?	509 310 98	Locking plate	3	InternBDB: S4 WN 011 839 99 \| InternKon: 946 022 40 / 26
?	507 037 98	Nut	5	InternBDB: M10 8 DIN 00985 \| InternKon: 946 022 40 / 22
?	340 465 99	Washer	5	InternBDB: B 10,5 140HV DIN 00125 \| InternKon: 946 022 40 / 23
?	307 779 99	Bolt	1	InternBDB: M10 X 30 8.8 DIN 00933 \| InternKon: 946 022 40 / 24
?	308 599 99	Bolt l= 105	2	InternBDB: M12X 105 8.8 DIN 00931 \| InternKon: 946 022 40 / 25
?	014 365 79	Clip	2	InternKon: 946 022 40 / 32
?	952 898 40	Rubber plate	3	InternBDB: 3x120x315 \| InternKon: 946 022 40 / 27
?	170 427 40	Cable strap	6	InternBDB: TY 27 M 300X7,8 MM TEILE-NR 5326 \| InternKon: 946 022 40 / 28
?	505 058 98	Pair of clamps	3	InternBDB: S-4-G-70 PP DIN 03015 \| InternKon: 946 022 40 / 29
?	534 008 99	Cover plate	3	InternBDB: S-DP-A-4 W1 DIN 03015 \| InternKon: 946 022 40 / 30
?	504 682 98	Bolt l= 200	4	InternBDB: M12 X 200 8.8 DIN 00931 \| InternKon: 946 022 40 / 33
?	510 733 98	Resilient sleeve	4	InternBDB: 17 /30X 50 42CRMO4-TQ+T WN 34194840 \| InternKon: 946 343 40 / 63
?	308 635 99	Bolt	4	InternBDB: M16X 75 8.8 DIN 00931 \| InternKon: 946 343 40 / 64
?	946 348 40	Retainer refueling	1	InternKon: 946 343 40 / 65
?	946 346 40	Retainer refueling	1	InternKon: 946 343 40 / 66
?			-2

Komatsu PC3000-6E S/N 06262 parts catalog PDF

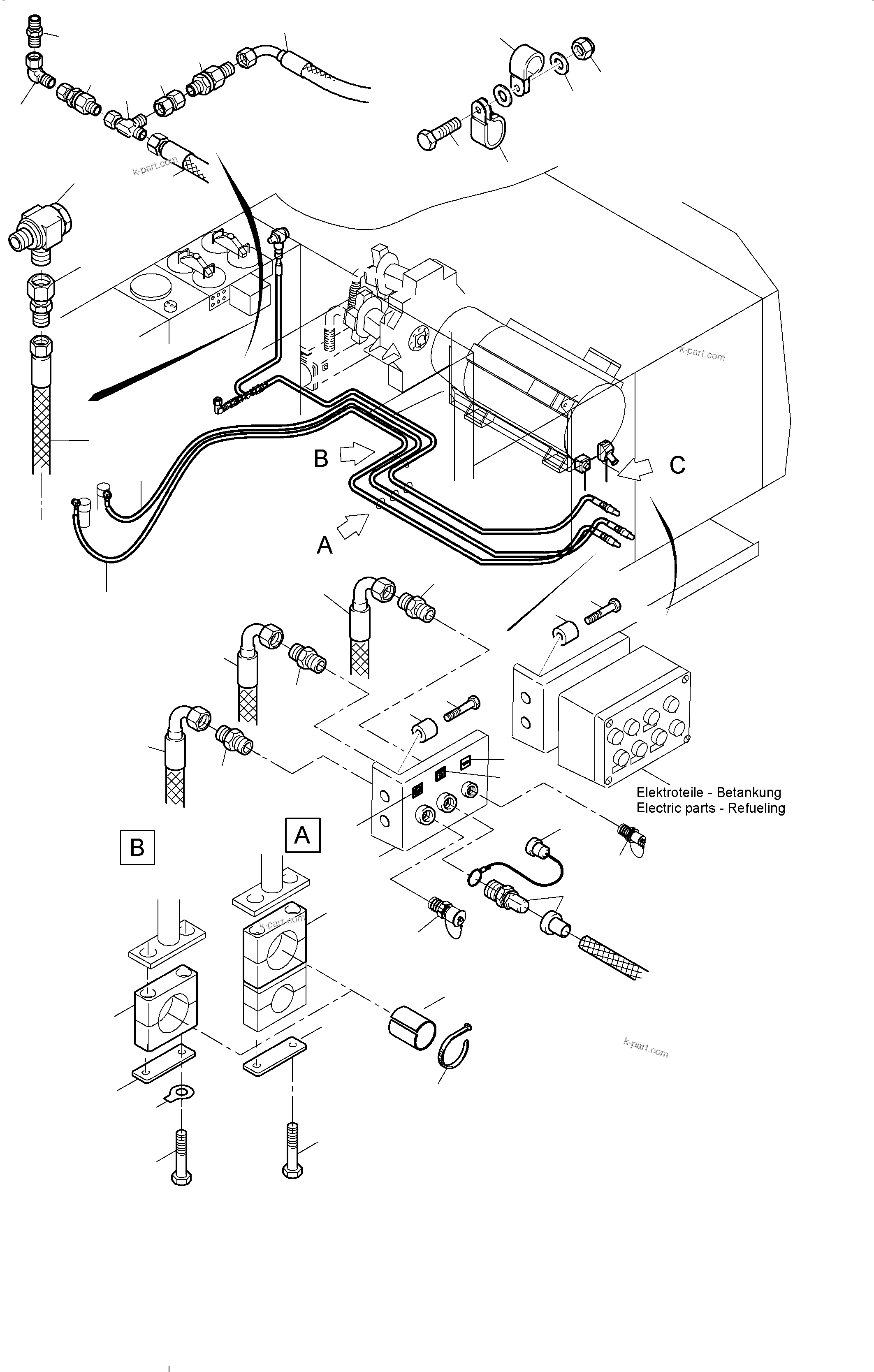

REFUELING SYSTEM (255-2301b) in PC3000-6E S/N 06262. Diagram image and parts list.
