#	Part Number	Partname	Quantity	Options	Reference
?	906 425 40	Immersion heater	5	InternBDB: KIM 2 KW SO 10AL33-020E P-0433.0633 \| InternKon: 946 274 40 / 5
?	257 965 40	Thermostat	4	InternBDB: KIM ALS 68 EP 3/4 NPT \| InternKon: 946 274 40 / 7
?	906 423 40	Immersion heater	2	InternBDB: KIM OE 1 NPT 500W 240V(10) 93832140 Pos.11 \| InternKon: 946 274 40 / 4
?	539 282 40	Reducer	5	InternKon: 946 274 40 / 19
?	251 816 40	Flange	5	InternBDB: FLANSCH \| InternKon: 946 043 40 / 2
?	006 739 98	O-ring	5	InternBDB: O-RING 89,20X 5,70B NB70 WN 01174599 \| InternKon: 946 043 40 / 3
?	307 752 99	Bolt	30	InternBDB: 6KTSHR M 8 X 20 8.8 DIN 00933 \| InternKon: 946 043 40 / 5
?	517 121 98	Lock washer	30	InternBDB: SG-SHB 8 STZN WN 65593840 \| InternKon: 946 043 40 / 4
?	907 890 40	Cable 1,5	-2	InternBDB: KENPUR-LITZE 1,5MM2 SCHWARZ 090150SW \| InternKon: 946 274 40 / 10
?	655 873 40	Cable 1,5	-2	InternBDB: KENPUR-LITZE 1,5MM2 BLAU 090150BL \| InternKon: 946 274 40 / 9
?	655 079 40	Cable 1,5	-2	InternBDB: KENPUR-LITZE 1,5MM2 GRUEN/GELB 090150GG \| InternKon: 946 274 40 / 8
?	655 649 40	Cable protection hose DN 10	-2	InternBDB: VCST-10B
?	655 650 40	Cable protection hose DN 12	-2	InternBDB: VCST-12B
?	907 478 40	Cable union DN 17	10	InternBDB: VERSHR NW 17 GERADE BVNV-M207
?	907 477 40	Cable union DN 12	2	InternBDB: VERSHR NW 12 GERADE BVNV-M162
?	517 327 98	Reducing	1	InternBDB: M20x1,5-M16x1,5 DIN 50262
?	940 184 40	Cable union DN 12	2	InternBDB: VERSHR NW 12 GERADE BVNV-N02 12T
?	940 183 40	Cable union DN 12	1	InternBDB: VERSHR NW 12 GERADE BVNV-N04 12T
?	907 691 40	Cable union DN 36	1	InternBDB: VERSHR NW 36 GERADE BVNV-M406
?	270 282 40	Housing empty	1	InternBDB: TL / Bopla A 120 \| InternKon: 946 274 40 / 20
?	655 651 40	Cable protection hose DN 17	-2	InternBDB: VCST-17B
?	906 245 40	Heating element	2	InternBDB: OELHEIZSTAB 300W OE 430 200-00 \| InternKon: 946 274 40 / 6
?	906 422 40	Battery heating plate set	1	InternBDB: MODULAR BATTERY PAD SYSTE 300W 240V (4 PIECES) \| InternKon: 946 274 40 / 2
?		Switch box	1	InternBDB: 940 881 40 \| InternKon: 946 274 40 / 12	991-0875
?	515 217 40	Cable10mm2	-2	InternBDB: KENPUR-LITZE 10,0MM2 SCHWARZ 091000SW \| InternKon: 946 274 40 / 13
?	896 727 40	Cable 10mm2	-2	InternBDB: KENPUR-LITZE 10,0MM2 BLAU 091000BL \| InternKon: 946 274 40 / 14
?	906 344 40	Cable 10mm2	-2	InternBDB: KENPUR-LITZE 10,0MM2 GRUEN/GELB 091000GG \| InternKon: 946 274 40 / 15
?	906 465 40	Cable 4,0mm2	-2	InternBDB: KENPUR-LITZE 4,0MM2 GRUEN/GELB 090400GG \| InternKon: 946 274 40 / 18
?	906 022 40	Cable 4,0mm2	-2	InternBDB: KENPUR-LITZE 4,0MM2 BLAU 090400BL \| InternKon: 946 274 40 / 17
?	906 466 40	Cable 4,0mm2	-2	InternBDB: KENPUR-LITZE 4,0MM2 BRAUN 090400BR \| InternKon: 946 274 40 / 16
?	655 080 40	Cable 1,5	-2	InternBDB: KENPUR-LITZE 1,5MM2 rot KIW \| InternKon: 946 274 40 / 12
?	655 809 40	Pipe adapter DN 29/10	1	InternBDB: PMA BAVR-29G10T \| InternKon: 946 274 40 / 7
?	907 999 40	Pipe adapter DN 36/29	1	InternBDB: PMA BAVR-36G29G \| InternKon: 946 274 40 / 8
?	907 500 40	T-Distributor DN 36	1	InternBDB: PMA BVTR-363636 \| InternKon: 946 274 40 / 9
?	655 834 40	Cable protection hose DN 36	-2	InternBDB: VCST-36B \| InternKon: 946 274 40 / 1
?	635 042 40	Cable sleeve	10	InternBDB: D 1,5 203124-20 CE 015 U Entrelec \| InternKon: 946 274 40 / 5
?	655 629 40	T-Distributor DN 17	5	InternBDB: PMA BVTR-171717 \| InternKon: 946 274 40 / 3
?	655 633 40	Pipe adapter DN 17/12	7	InternBDB: PMA BAVR-17G12T \| InternKon: 946 274 40 / 4
?	907 692 40	Fitting M16/DN12	1	InternBDB: PMA BVIR-M162 \| InternKon: 946 274 40 / 4
?	907 703 40	Cable union	1	InternBDB: Pflitsch 21650YNPM 4x3 \| InternKon: 946 274 40 / 5
?	896 520 40	End pin	1	InternBDB: BO 3x25 \| InternKon: 946 274 40 / 6
?	795 134 73	Plug	1	InternBDB: 0819213920 KES 08192 \| InternKon: 946 274 40 / 3
?	635 043 40	Name Plate	1	InternKon: 946 274 40 / 7
?	056 292 40	Cable strap	1	InternKon: 946 274 40 / 8

Komatsu PC3000-6E S/N 06262 parts catalog PDF

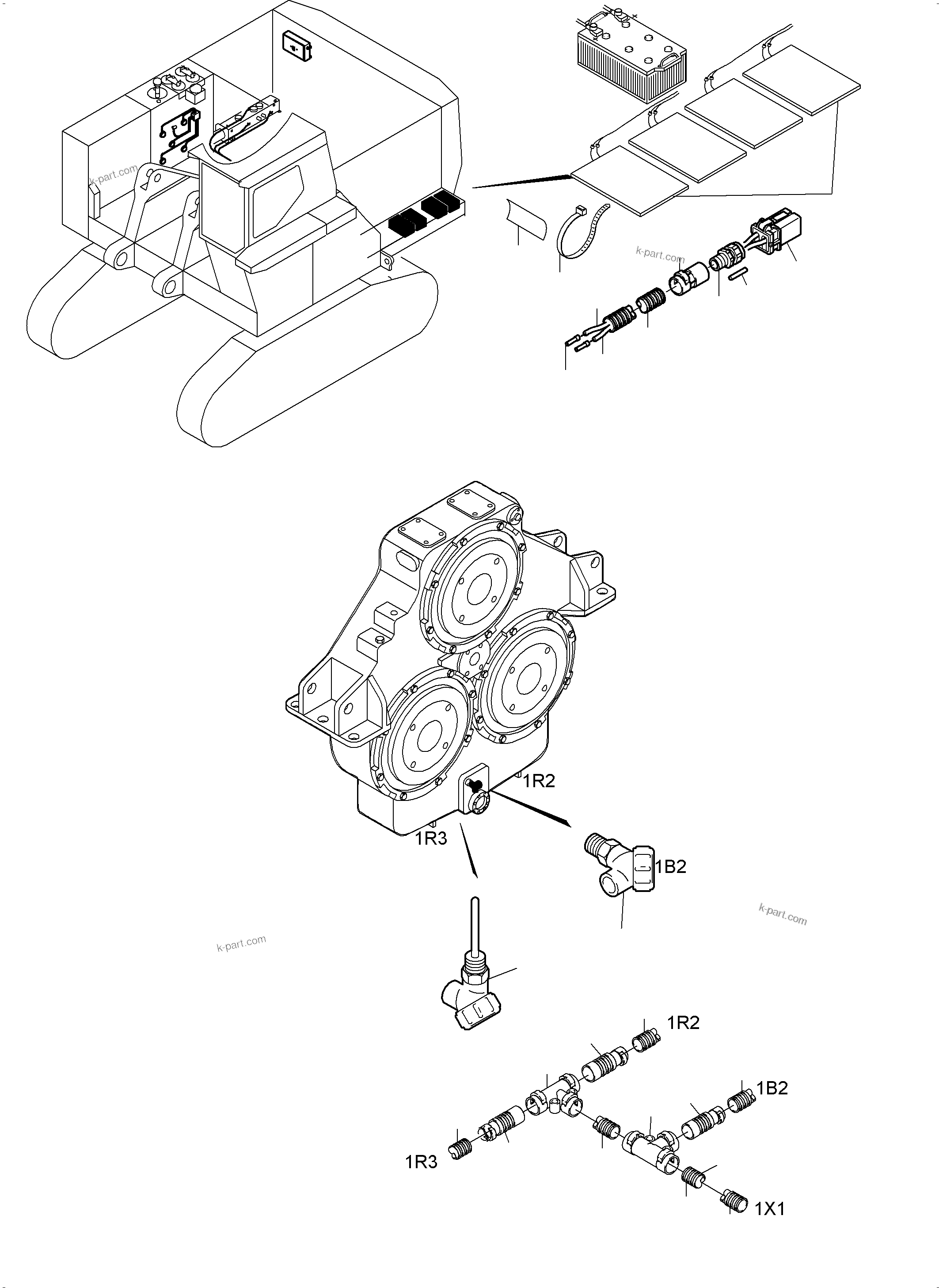

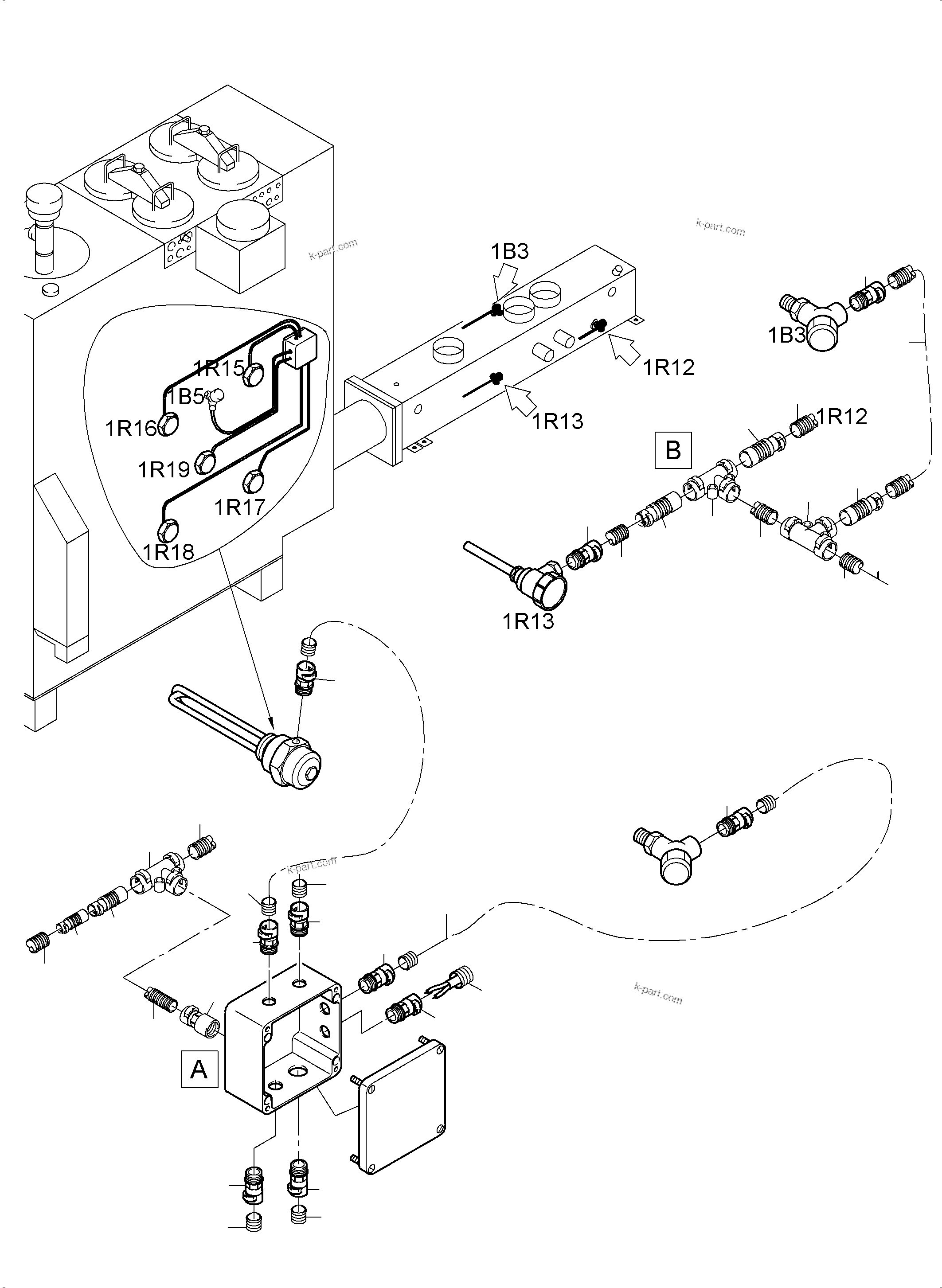

CABLES - TEMPERATURE CONDITIONING (255-2505b) in PC3000-6E S/N 06262. Diagram image and parts list.
