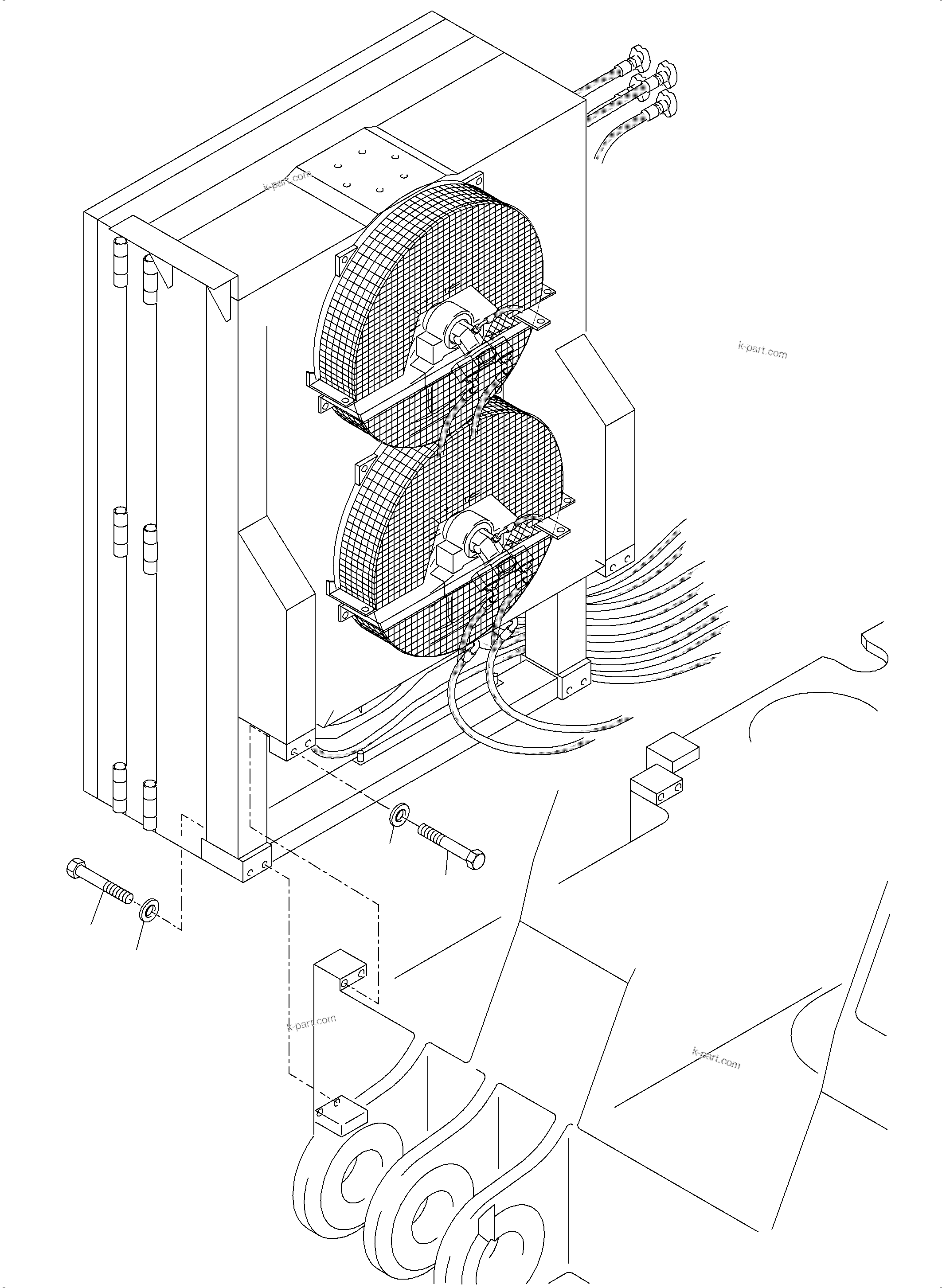

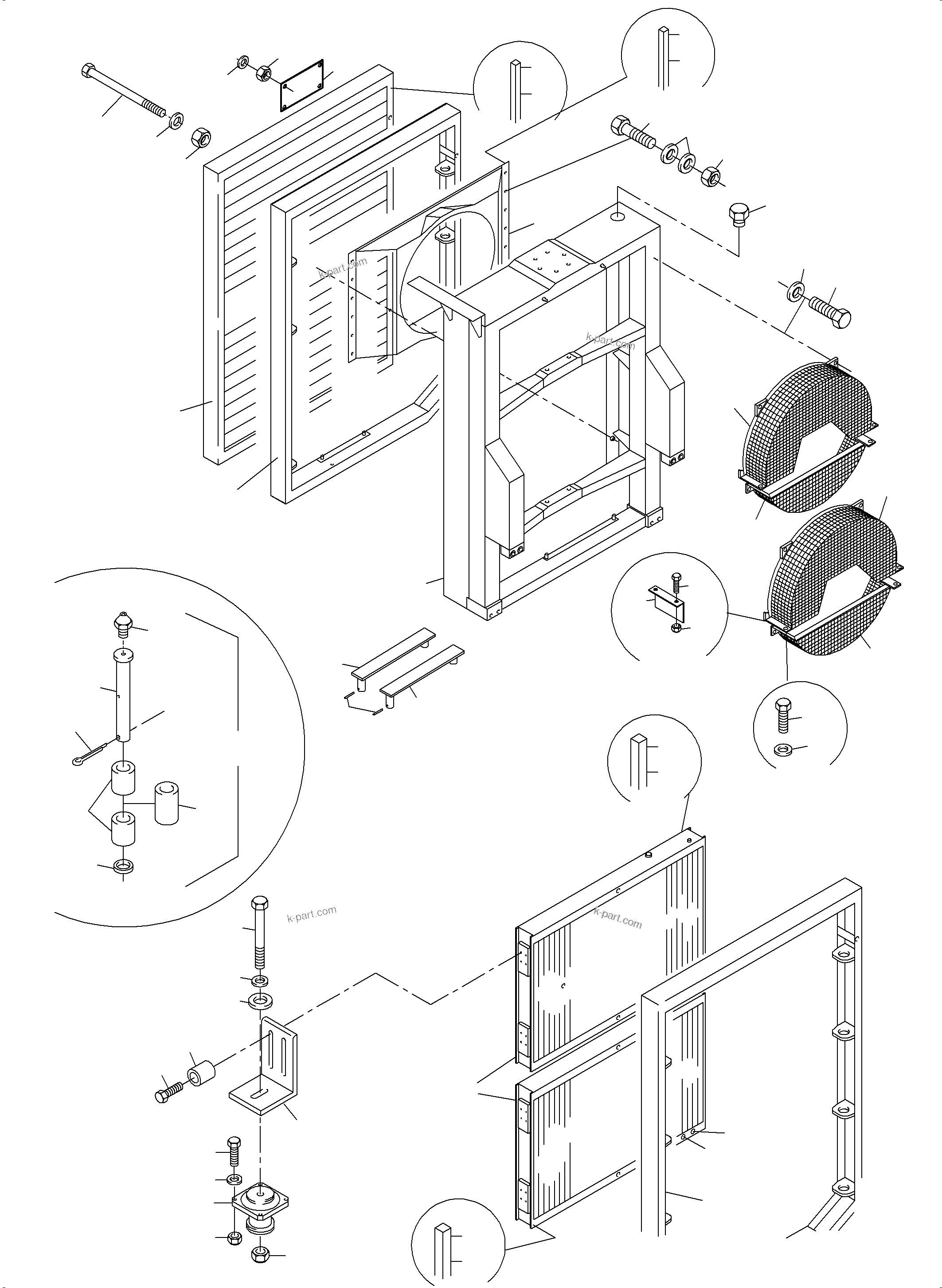

Diagram image 1 of 2

PC3000-6E S/N 06262

? ? ? ?

PC3000-6E S/N 06262

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	502 082 98	Bolt (Standard)	4	InternBDB: M30x250 /931 \| InternKon: 919 903 40 / 32
?	513 028 98	Bolt (Cold weather design)	4	InternBDB: M30X 250 10.9 KALTZ DIN 00931 \| InternKon: 919 903 40 / 32
?	255 057 40	Washer	8	InternBDB: Ш 31 / 6912 \| InternKon: 919 903 40 / 29
?	302 552 99	Bolt (Standard)	4	InternBDB: M 30x120 \| InternKon: 919 903 40 / 31
?	500 982 98	Bolt (Cold weather design)	4	InternBDB: M30X 120 10.9 KALTZ DIN 00931 \| InternKon: 919 903 40 / 31
?	943 664 40	Plate	2	InternBDB: 3x98x284 \| InternKon: 930 845 40 / 11
?	324 741 40	Plug	2	InternKon: 930 845 40 / 23
?	307 805 99	Bolt	24	InternBDB: M12x35 / DIN 933 \| InternKon: 930 845 40 / 29
?	341 337 99	Washer	64	InternBDB: 13,5 / DIN 436 \| InternKon: 930 845 40 / 36
?	334 600 99	Nut	24	InternBDB: M12 / DIN 985 \| InternKon: 930 845 40 / 33
?	937 946 40	Radiator mounting assy. fig.-nos: 38-52	1	InternKon: 930 845 40 / 2
?	507 037 98	Nut	8	InternBDB: M10 8 DIN00985 \| InternKon: 930 845 40 / 38
?	487 648 40	Profiled joint 30x1100	8	InternBDB: Manke 15x30x1100 \| InternKon: 930 845 40 / 20
?	340 465 99	Washer	8	InternBDB: B10,5 DIN00125 \| InternKon: 930 845 40 / 39
?	487 647 40	Profiled joint 30x1600	4	InternBDB: Manke 15x30x1600 \| InternKon: 930 845 40 / 19
?	515 433 40	Profiled joint 15x1600	4	InternBDB: Manke 15x15x1600 \| InternKon: 930 845 40 / 21
?	256 952 40	Glue	-2	InternKon: 930 845 40 / 22
?	937 852 40	Fan Cage Top	1	InternKon: 930 845 40 / 8
?	924 700 40	Fan Cage Bottom	2	InternKon: 930 845 40 / 9
?	937 869 40	Fan Cage Top	1	InternKon: 930 845 40 / 10
?	307 802 99	Bolt	24	InternBDB: M 12x35 / DIN 933 \| InternKon: 930 845 40 / 30
?	346 498 99	Lock washer	8	InternBDB: A12 \| InternKon: 930 845 40 / 37
?	350 757 99	Washer	2	InternBDB: 26 / DIN 440 \| InternKon: 930 845 40 / 35
?	504 860 98	Bolt	2	InternBDB: M24x420 / DIN 931 \| InternKon: 930 845 40 / 24
?	504 193 98	Nut	2	InternBDB: M 24 / DIN 985 / 10
?	390 641 40	Hinge assy. consist. of fig nos. 55-60	6	InternKon: 930 845 40 / 5
?	911 486 40	Fan cowl	2	InternKon: 930 845 40 / 7
?	923 934 40	Frame	1	InternKon: 930 845 40 / 1
?	930 846 40	Oil cooler door	1	InternKon: 930 845 40 / 4
?	904 322 40	Plate	4	InternBDB: 127x179 \| InternKon: 930 845 40 / 15
?	307 754 99	Bolt	8	InternBDB: M 8x25 / DIN 933 \| InternKon: 930 845 40 / 32
?	334 599 99	Nut	8	InternBDB: M 8 / DIN 985 \| InternKon: 930 845 40 / 34
?	925 166 40	Rod	2	InternKon: 928 810 40 / 1
?	344 635 99	Pin	2	InternBDB: 5x30 / DIN 1473 \| InternKon: 928 810 40 / 2
?	937 947 40	Radiator mounting w/o hinge	1	InternKon: 937 946 40 / 1
?	360 873 40	Plug	4	InternBDB: VSTI M26x1,5ED WN34191340 \| InternKon: 937 946 40 / 14
?	173 495 40	Plug	4	InternBDB: VSTI M 48x1,5 \| InternKon: 937 946 40 / 15
?	307 780 99	Bolt	32	InternBDB: M 10x35 / DIN 933 \| InternKon: 937 946 40 / 11
?	308 603 99	Bolt	16	InternBDB: M 12x45 / 931 8.8 \| InternKon: 937 946 40 / 6
?	334 601 99	Nut	8	InternBDB: M16 / DIN 985 \| InternKon: 937 946 40 / 10
?	507 037 98	Nut	32	InternBDB: M10 / DIN 985 \| InternKon: 937 946 40 / 13
?	340 469 99	Washer	8	InternBDB: 17 / DIN 125 \| InternKon: 937 946 40 / 9
?	510 748 98	Resilient sleeve	16	InternBDB: 13/25x20 \| InternKon: 937 946 40 / 7
?	340 465 99	Washer	32	InternBDB: B 10,5 / DIN 125 \| InternKon: 937 946 40 / 12
?	655 483 40	Oil cooler	2	InternBDB: AKG \| InternKon: 937 946 40 / 2
?	898 375 40	Angle	8	InternKon: 937 946 40 / 3
?	490 066 40	Buffer elements	8	InternKon: 937 946 40 / 4
?	341 333 99	Washer	8	InternBDB: 17,5 \| InternKon: 937 946 40 / 5
?	308 638 99	Bolt	8	InternBDB: M16x100 / DIN 931 \| InternKon: 937 946 40 / 8
?	621 107 40	Pin	1	InternKon: 390 641 40 / 1
?	390 642 40	Round bar steel	2	InternKon: 390 641 40 / 2
?	390 643 40	Round bar steel	1	InternKon: 390 641 40 / 3
?	340 619 99	Washer	1	InternBDB: 30 / 1440 \| InternKon: 390 641 40 / 4
?	342 121 99	Cotter pin	1	InternBDB: 8x50 \| InternKon: 390 641 40 / 5
?	350 562 99	Grease nipple	1	InternBDB: AM 10x1 \| InternKon: 390 641 40 / 6

Komatsu PC3000-6E S/N 06262 parts catalog PDF

OIL COOLER SYSTEM (485-1812f) in PC3000-6E S/N 06262. Diagram image and parts list.
