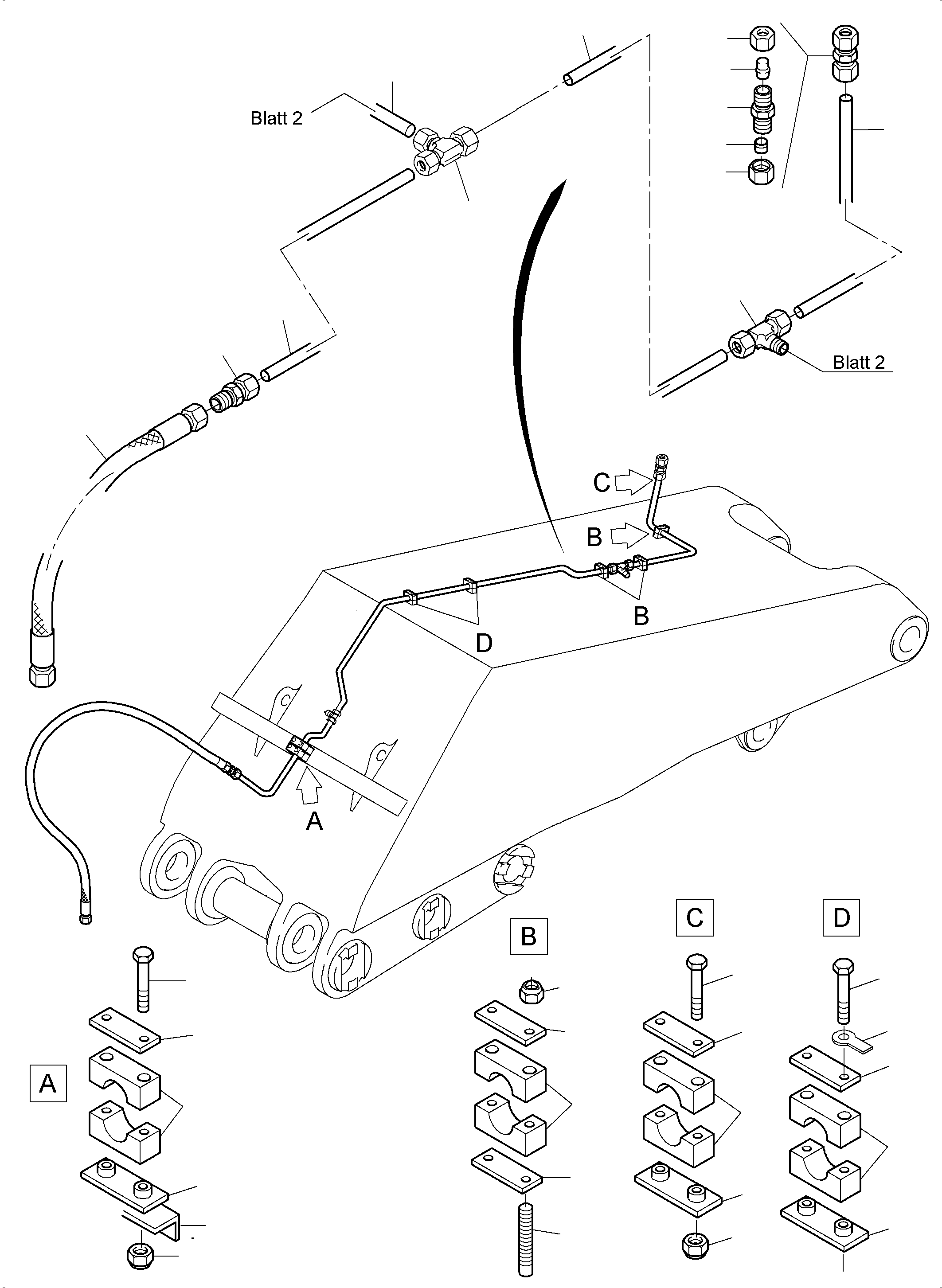

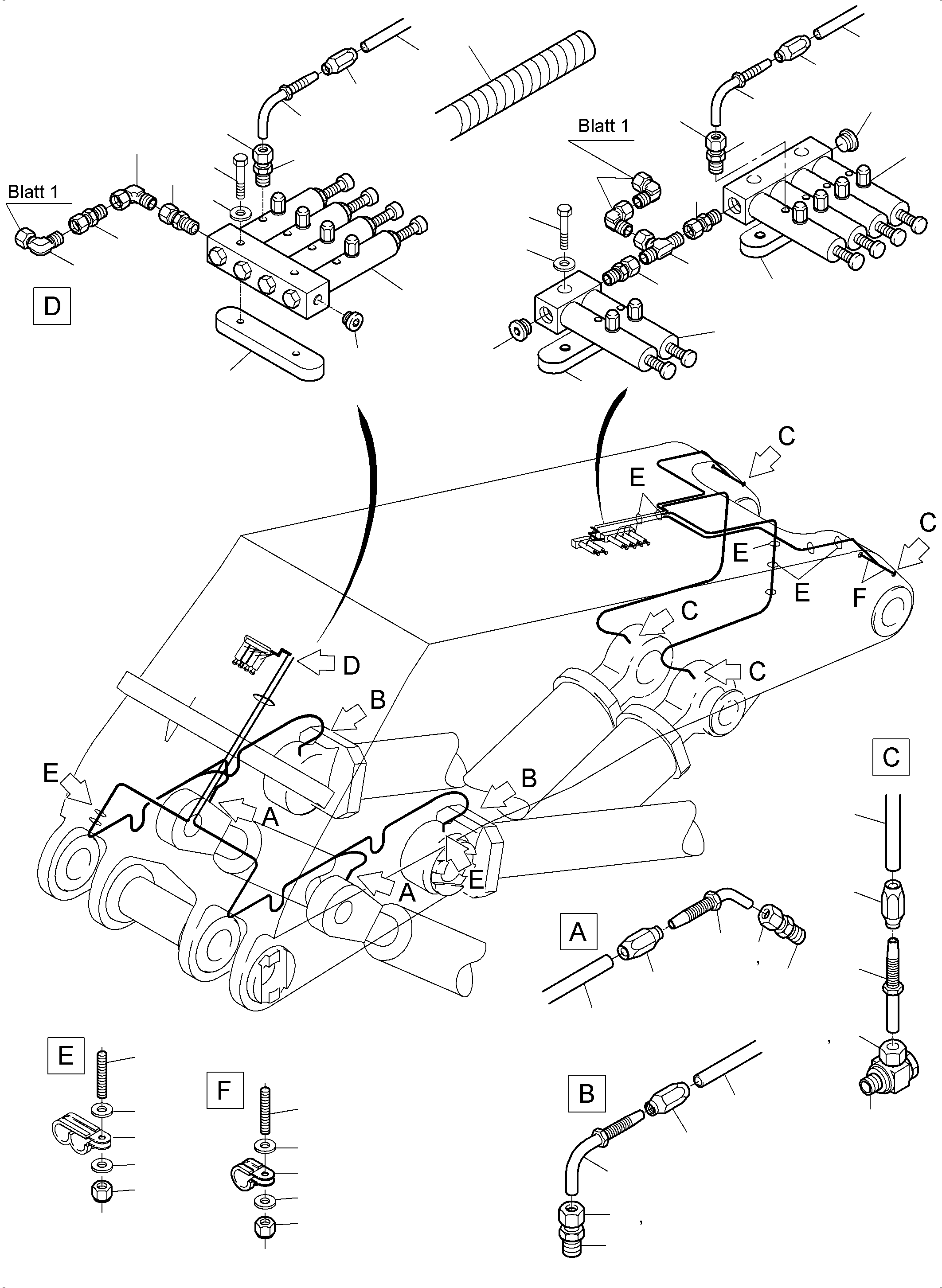

BOOM - CENTRAL LUBRICATION (BBE) | PC3000-6 S/N 06278

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
01		Metering valve	1	991-0091
02		Metering valve	2	991-0091
03	654 130 40	Protection cap with o-ring	10
04	936 978 40	Plate	1
05	308 555 99	Bolt	5
06	517 121 98	Washer	5
07	324 672 40	Plug	3
08	929 431 40	Clamp set	4
09	634 978 40	Cover plate	8
10	512 055 98	Thread pin	8
11	334 600 99	Nut	8
12	534 000 99	Clamp set	5
13	534 001 99	Cover plate	5
14	534 002 99	Weld on plate	5
15	308 579 99	Bolt	2
16	509 308 98	Locking plate	1
17	307 789 99	Bolt	8
18	507 037 98	Nut	58
19	918 209 40	Angle	1
20	516 837 98	Union	1
21	515 951 98	Union	1
22	516 741 98	Union	3
23	516 834 98	Union	2
24	576 160 40	Plastic hose	-2
25	655 649 40	Cable protection hose DN 10	-2
26	515 027 40	Hose connection, straight	6
27	515 029 40	Hose connection 90°	12
28	635 853 40	Hose connection 45°	2
29	515 028 40	Collet	20
30	0443451210	Clip NW 12	8
31	0443551210	Clip NW 12, double	45
33	340 111 99	Washer	50
34	907 854 40	Thread pin	50
35	340 465 99	Washer	50
36	371 257 99	Union nut	10
37	907 080 40	Olive	20
38	906 981 40	Union	10
39	517 291 98	Union	6
40	374 428 99	Union	4
41	374 443 99	Union	2
42	373 772 99	Union	1
44	516 839 98	Union	1
45	516 929 98	Hose assy. DN 20x2600 lg.	1
46	913 777 40	Pipe assy. Ш 25	1
47	927 948 40	Pipe assy. Ш 25	1
48	927 949 40	Pipe assy. Ш 25	1
49	918 217 40	Pipe assy. Ш 25	1
50	512 273 98	Socket	3
51	936 979 40	Plate	2
52	371 271 99	Union nut	10
54	371 264 99	Union nut	9
55	906 868 40	Olive	9
57	371 867 99	Breech block	2
