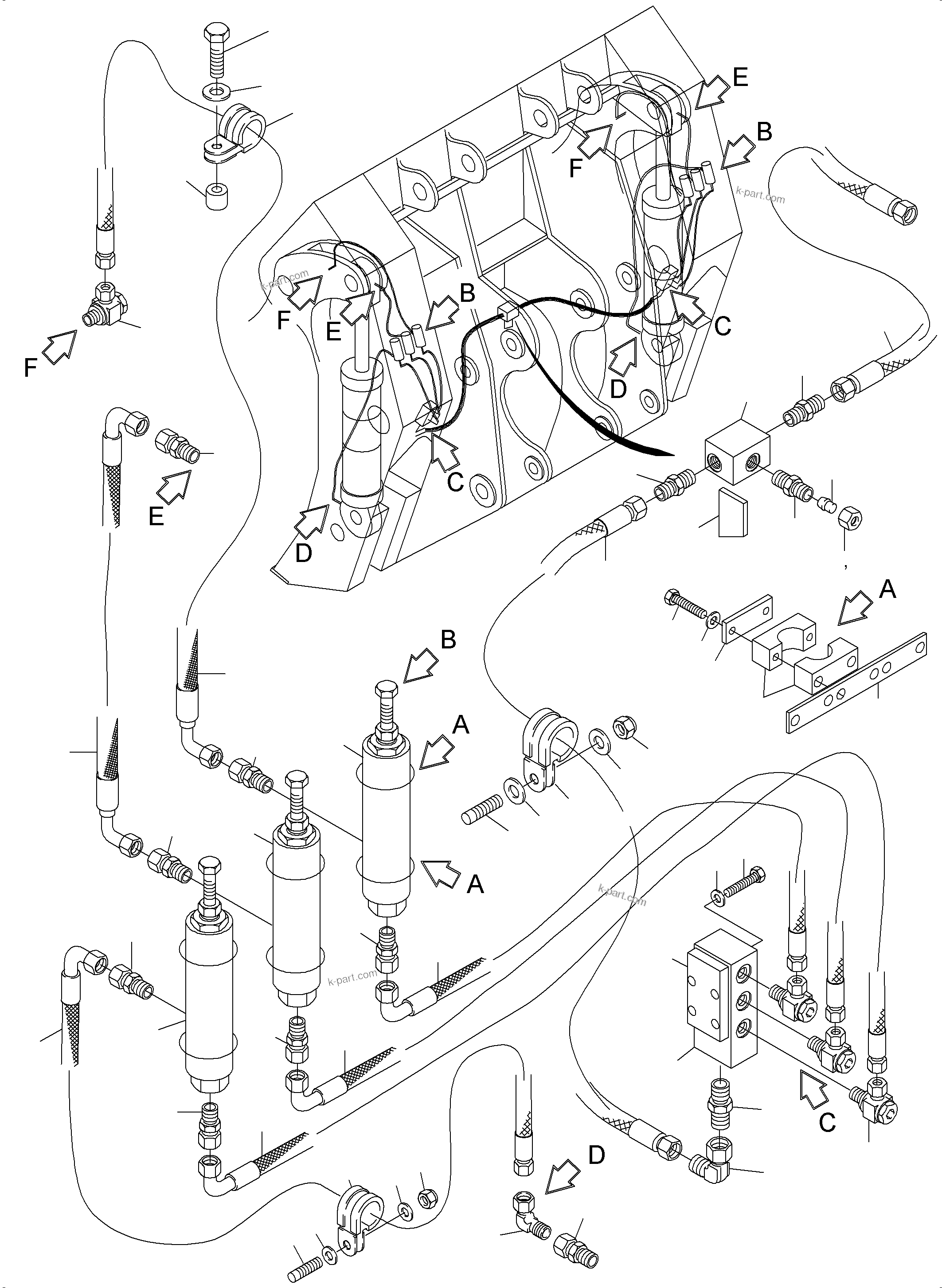

CENTRAL LUBRICATION - BULLCLAM, BR 3630 | PC3000-6 S/N 06278

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06278

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Metering valve	6	991-0323a
?	654 496 40	Protection cap	6
?	950 511 40	Half clamp	24
?	634 774 40	Cover plate	12
?	308 611 99	Bolt	24
?	943 317 40	Thread plate	4
?	918 206 40	Distribution block	2
?	308 608 99	Screw	16
?	517 118 98	Lock washer	40
?	923 648 40	T-Block	1
?	941 705 40	Hose assy. DN 08x1930	2
?	941 706 40	Hose assy. DN 08x1080	2
?	941 704 40	Hose assy. DN 08x2180	2
?	941 709 40	Hose assy. DN 08x 360	2
?	941 708 40	Hose assy. DN 08x 520	2
?	941 707 40	Hose assy. DN 08x 720	2
?	340 111 99	Washer	24
?	340 465 99	Washer	24
?	0443453411	Clip NW 34	2
?	0443451510	Clip NW 15	22
?	942 802 40	Thread plate	2
?	953 807 40	Thread plug	6
?	307 773 99	Bolt	6
?	517 122 98	Lock washer	6
?	907 152 40	Union	4
?	517 073 98	Union	2
?	654 153 40	Union	6
?	517 604 98	Union	6
?	517 605 98	Union	6
?	374 414 99	Socket	5
?	516 248 98	Union	2
?	371 867 99	Breech block	1
?	514 166 98	Hose assy. DN 20x1900	2
?	907 854 40	Thread pin	24
?	507 037 98	Nut	24
?	371 264 99	Union nut	1
?	906 868 40	Olive	1
?	927 962 40	Holding device	1
?	516 157 98	Union	1
