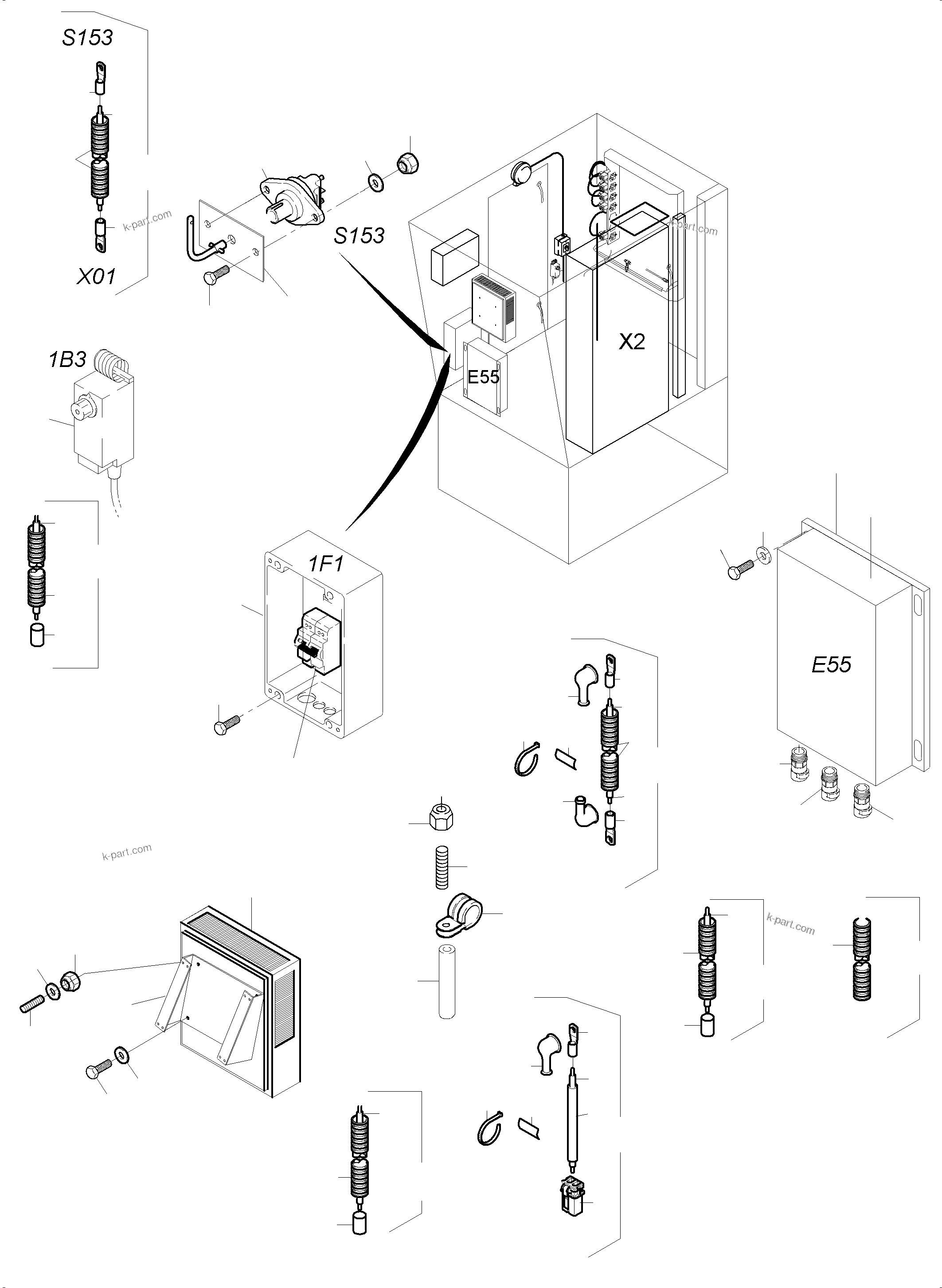

ELECTRIC PARTS TEMPERATURE CONDITIONING CAB SUPPORT | PC3000-6 S/N 06278

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06278

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	896 781 40	Battery charger	1
?	907 690 40	Cable union DN 23	6
?	255 032 40	Housing, empty	1
?	941 673 40	Breaker 100A	1
?	907 478 40	Cable union DN 17	1
?	655 651 40	Cable protection hose DN 17	-2
?	938 347 40	Plate	1
?	159 984 40	Battery switch	1
?	907 477 40	Cable union DN 12	1
?	517 323 98	Cable nut	2
?	517 322 98	Cable nut	1
?	517 321 98	Cable nut	1
?	937 925 40	Plate	2
?	307 730 99	Bolt	2
?	517 120 98	Lock washer	2
?	507 025 98	Nut	2
?	318 914 99	Screw	4
?	517 121 98	Lock washer	4
?	321 015 99	Screw	4
?	307 777 99	Bolt	4
?	945 623 40	Bracket	1
?	510 213 98	Thread pin	4
?	517 122 98	Lock washer	4
?	334 600 99	Nut	4
?		Space heater	1	991-0796
?	440 320 40	Ambient thermostat	1
?	952 422 40	Harness battery - battery charger	1
?	946 271 40	Harness batteryswitch - battery charger	1
?	938 337 40	Harness 1X1-battery charger	1
?	938 345 40	Harness Temperaturesensor	1
?	946 267 40	Harness Heater	1
?	946 268 40	Harness Thermostat	1
?	654 424 40	Cable lug 50	4
?	932 877 40	Cable 50	-2
?	907 180 40	Cable protection hose DN 23	-2
?	655 650 40	Cable protection hose DN 12	-2
?	056 071 40	Cable sleeve 2,5 sqmm	9
?	515 214 40	Cable 2,5 sqmm	-2
?	634 736 40	Cable 2,5 sqmm black	-2
?	655 082 40	Cable 2,5 sqmm green/yellow	-2
?	655 649 40	Cable protection hose DN 10	-2
?	635 042 40	Wire end ferrule 1,5 sqmm	2
?	655 080 40	Cable 1,5 sqmm red	-2
?	510 744 98	Resilent sleeve	11
?	907 855 40	Thread pin	11
?	0443452711	Clip	11
?	0443452110	Clip	9
?	0443451610	Clip	9
?	932 557 40	Heat Protection hose	-2
?	600 208 99	Cable shoe Ш 10 - 702	2
?	655 652 40	Cable protection hose DN 23	-2
?	907 891 40	cable	-2
?	902 412 40	Thread plate	4
?	340 111 99	Washer	4
?	952 044 40	Harness current charge control	-2
?	906 668 40	Cable sleeve	4
?	056 076 40	Protection cap	8
?	256 514 40	Plate	8
?	056 292 40	Cable strap	8
?	907 697 40	Temperature sensor with cable	1
?	000819212920	Plug, assy.	1
?	940 462 40	Insulating tube	-2
?	655 873 40	Cable 1,5, blue	1
?	055 112 40	Cable lug, yellow M10	1
