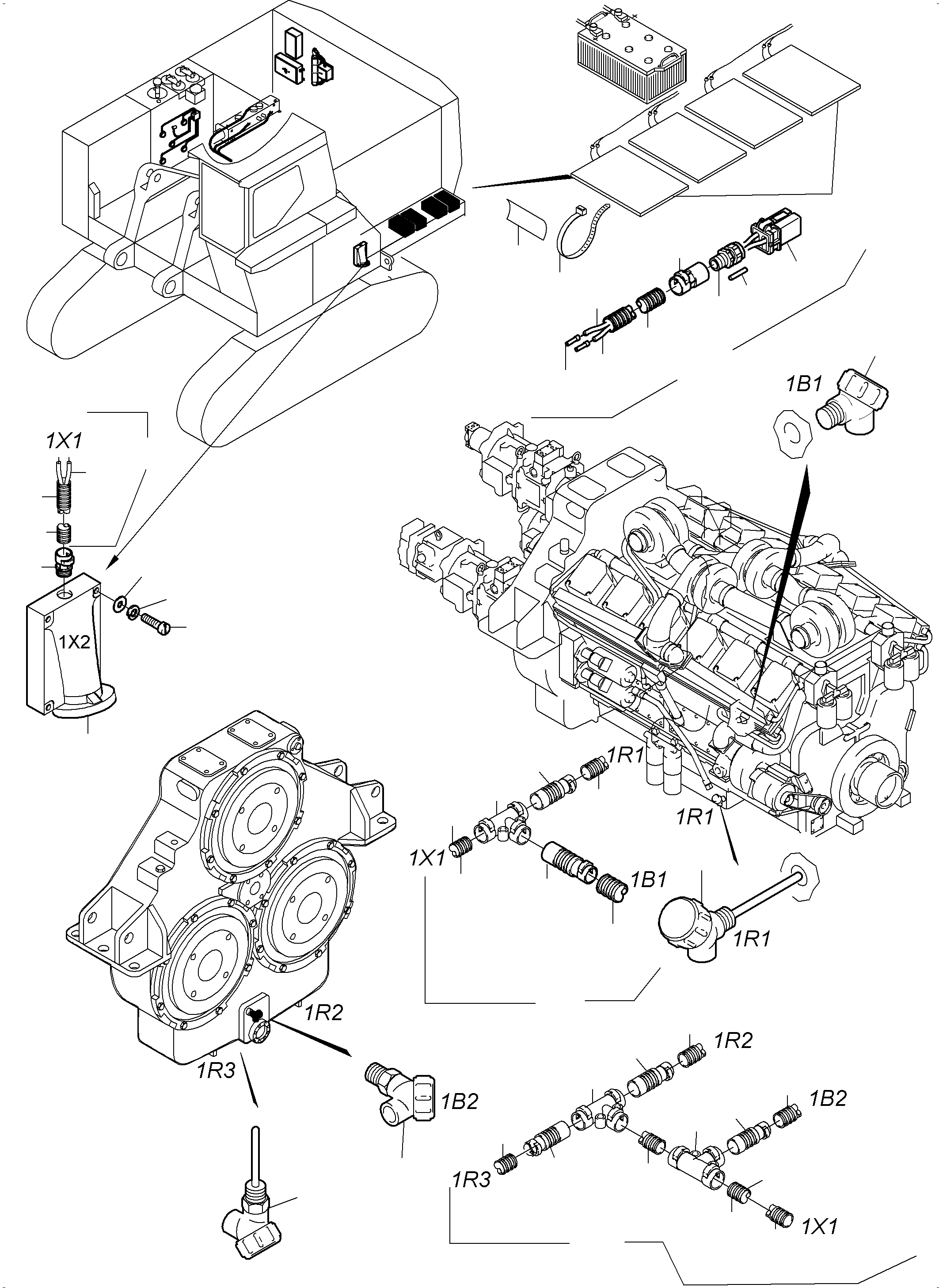

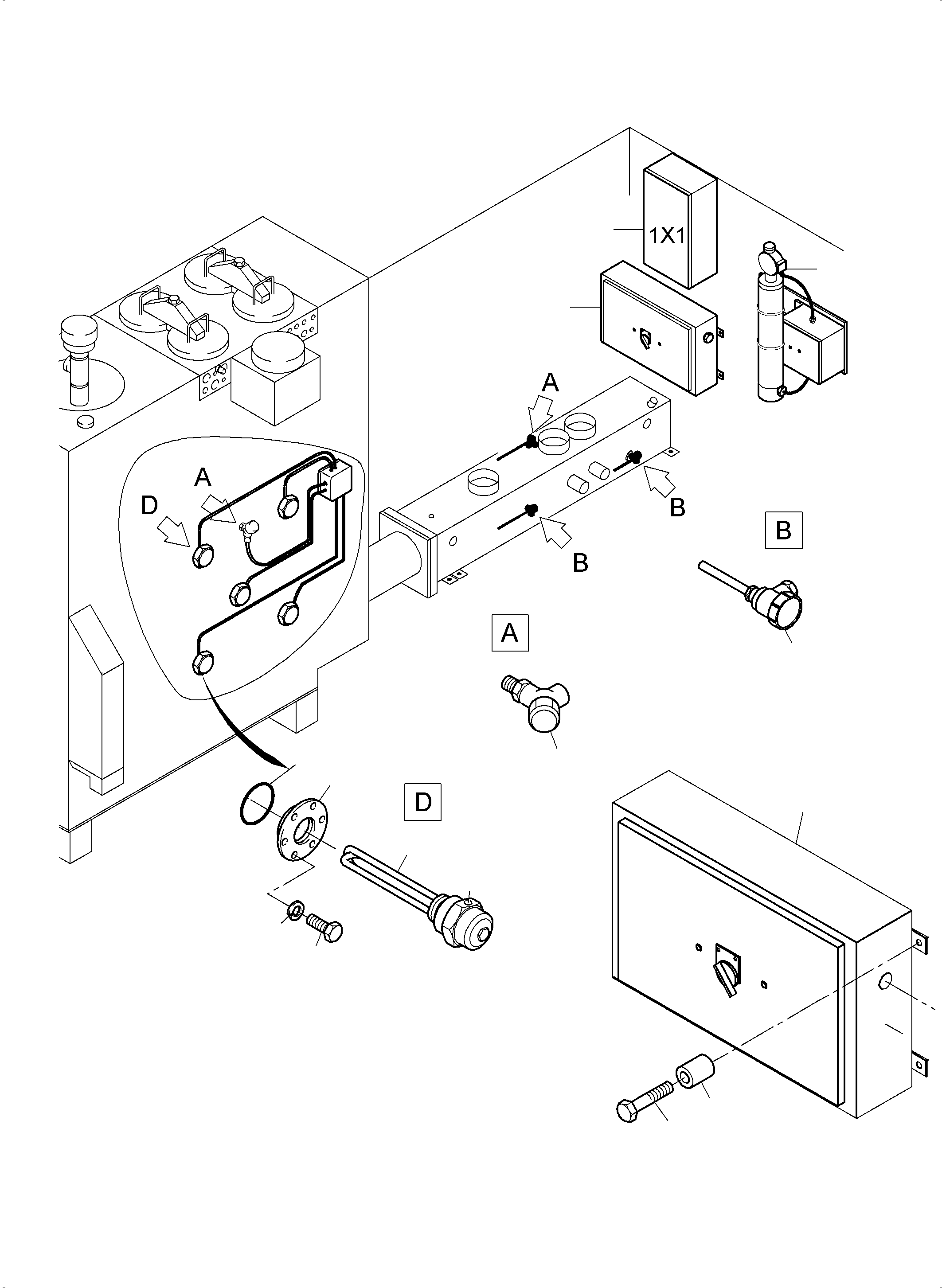

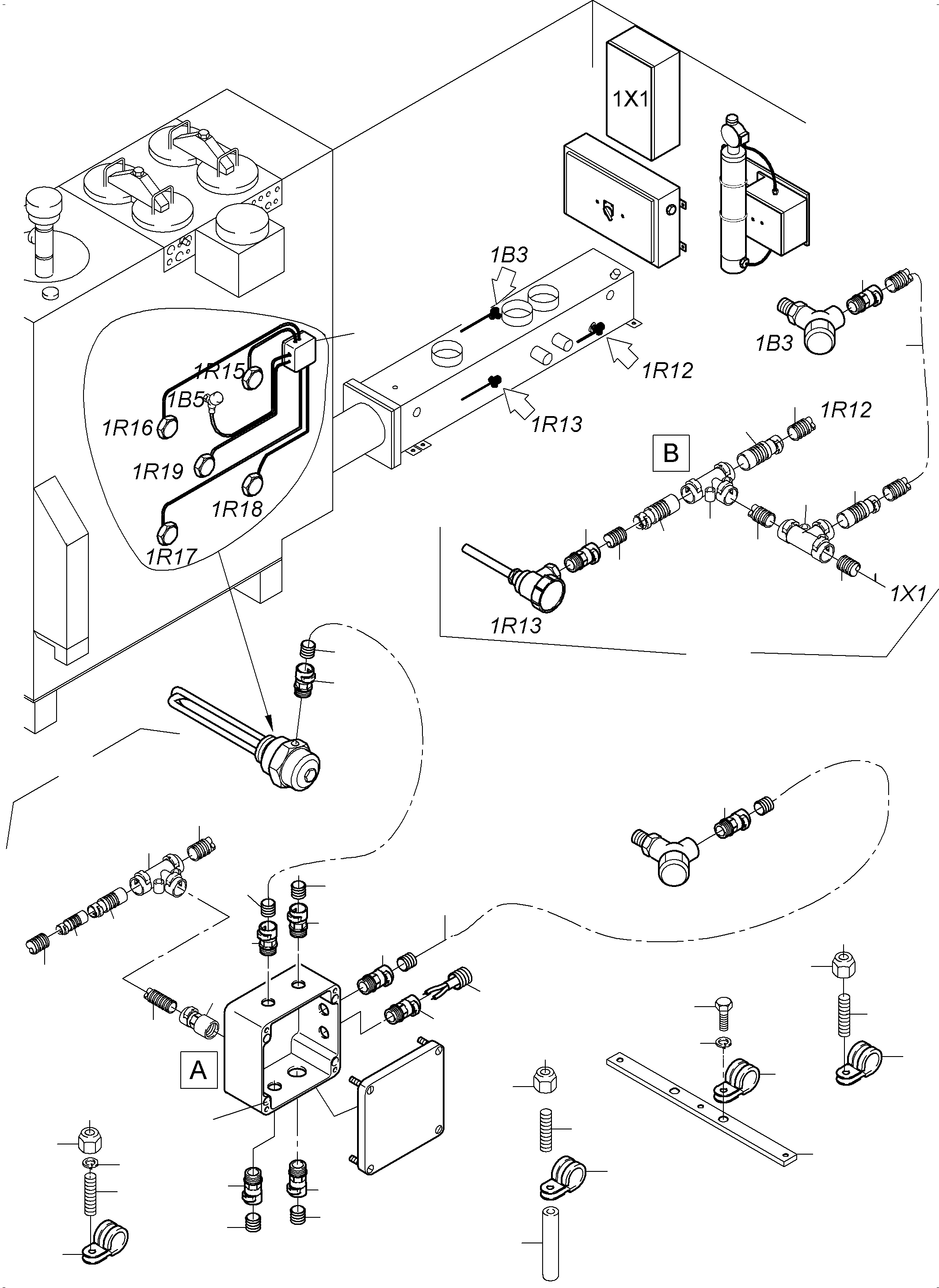

Diagram image 1 of 3

PC3000-6 S/N 06278

01 01 02 03 04 05 06 07 08 09 10 11 29

PC3000-6 S/N 06278

03 03 04 12 12 12 13 13 13 14 14 14 16 16 16 16 16 16 24 24 24 25 26 27 28 30 31 32 35 37 37 42 42 42 42 44 44 44 45 45 45 45 45 46 47 48 49 50 51 52 53 54 55 56 57 71

PC3000-6 S/N 06278

12 12 13 14 14 15 16 16 16 16 17 17 17 17 17 17 18 18 19 20 21 22 23 24 24 24 24 24 24 24 33 36 36 37 37 38 39 40 41 41 42 42 42 42 42 42 42 43 44 44 45 45 45 58 59 60 60 60 61 61 61 62 63 64 65 65 66 67 68 69 70

#	Part Number	Partname	Quantity	Reference
01		Switch box	1	991-0433a
02	906 425 40	Immersion heater	5
03	257 965 40	Thermostat	4
04	906 423 40	Immersion heater	3
05	516 143 98	Resilient sleeve	4
06	308 575 99	Bolt	4
07	251 816 40	Flange	5
08	006 739 98	O-ring	5
09	307 752 99	Bolt	30
10	517 121 98	Lock washer	30
11		Water heating	1	991-0948
12	907 890 40	Cable 1,5 black	-2
13	655 873 40	Cable 1,5 blue	-2
14	655 079 40	Cable 1,5 green yellow	-2
15	655 649 40	Cable protection hose DN 10	-2
16	655 650 40	Cable protection hose DN 12	-2
17	907 478 40	Cable union DN 17	10
18	907 477 40	Cable union DN 12	2
19	517 327 98	Reducing	1
20	940 184 40	Cable union DN 12	2
21	940 183 40	Cable union DN 12	1
22	907 691 40	Cable union DN 36	1
23	938 344 40	Housing empty	1
24	655 651 40	Cable protection hose DN 17	-2
25	907 479 40	Cable union DN 29	1
26	907 181 40	Cable protection hose DN 48	-2
27	906 245 40	Heating element	2
28	906 422 40	Battery heating plate set	1
29		Switch box	1	485-2515c
30	440 769 40	Socket with bush	1
31	907 501 40	Wire end ferrule 10 qmm	2
32	634 450 40	Cable AWG 16 SW	-2
33	539 282 40	Reducer	5
35	946 259 40	Harness 1X1-1X2	1
36	938 343 40	Harness heater hydr. Tank	1
37	655 080 40	Cable 1,5	-2
38	655 809 40	Pipe adapter DN 29/10	1
39	907 999 40	Pipe adapter DN 36/29	1
40	907 500 40	T-Distributor DN 36	1
41	907 214 40	Cable protection hose DN 36	-2
42	635 042 40	Cable sleeve	10
43	938 326 40	Harness suction Tank	1
44	655 629 40	T-Distributor DN 17	5
45	655 633 40	Pipe adapter DN 17/12	7
46	938 335 40	Harness heater PVG	1
47	938 334 40	Harness Engine oil	1
48	938 346 40	Harness battery heater	1
49	907 692 40	Fitting M16/DN12	1
50	907 703 40	Cable union	1
51	896 520 40	End pin	1
52	955 627 40	Plug assy.	1
53	256 514 40	Name Plate	1
54	056 292 40	Cable strap	1
55			-2
55	321 016 99	Bolt	4
56	340 506 99	Washer	4
57	346 499 99	Lock washer	4
58	510 741 98	Resilient sleeve	9
59	907 855 40	Thread pin	9
60	507 037 98	Nut	72
61	0443453211	Clip	17
62	512 743 98	Bolt	14
63	340 465 99	Washer	14
64	938 340 40	Plate	8
65	907 854 40	Thread pin	32
66	0443452110	Clip	26
67	0443451610	Clip	26
68	507 596 98	Washer	63
69	319 133 99	Bolt	4
70	507 025 98	Nut	4
71	490 574 40	Socket coupler	1
\|$72			-2
\|$73			-2
\|$74			-2
\|$75			-2
\|$76			-2
\|$77			-2
\|$78			-2
\|$79			-2

Komatsu PC3000-6 S/N 06278 parts catalog PDF

CABLES - TEMPERATURE CONDITIONING (485-2505c) in PC3000-6 S/N 06278. Diagram image and parts list.
