Diagram image 1 of 5

PC3000-6 S/N 06278

01 100 101 101 101 101 101 101 101 101 102 102 103 103 104 105 106 106 106 106 107 108 109 110 110 37 38 39 40 41 42 43 44 45 46 50 50 57 57 57 58 58

PC3000-6 S/N 06278

10 27 27 28 28 28 28 28 28 29 29 29 29 29 29 30 30 30 31 33 35 35 36 39 41 44 46 48 71 72 73 74 75 76 77 78 79 79 80 80 86 86 87 87 89 89 90 90

PC3000-6 S/N 06278

112 113 113 114 115 116 116 117 21 28 28 29 30 30 32 35 35 37 38 39 40 41 41 41 41 51 54 54 55 55 62 62 64 65 66 67 68 70 70 70 71 72 73 74 83 88 91 93 94

PC3000-6 S/N 06278

07 07 08 08 08 105 11 11 111 14 15 16 17 21 22 27 27 28 28 28 29 29 30 34 35 35 37 37 38 38 38 39 39 40 41 41 41 42 43 44 44 45 46 46 46 49 52 52 52 52 53 53 53 53 56 59 60 61 63 69 70 71 72 73 75 76 77 78 81 81 81 82 82 82 84 84 84 85 85 85 92 99

PC3000-6 S/N 06278

04 04 05 05 06 06 09 09 12 12 13 13 13 13 18 18 19 19 20 20 20 20 23 23 24 24 24 24 25 25 25 25 26 26 26 26 95 95 96 96 97 97 98 98

#	Part Number	Partname	Quantity
01	952 765 40	Boom assy.	1
04	908 649 40	Pin with plate (standard)	2
04	936 375 40	Pin with plate (cold weather design)	2
05	908 653 40	Pin with plate (standard)	2
05	936 379 40	Pin with plate (cold weather design)	2
06	908 657 40	Pin with plate (standard)	2
06	936 377 40	Pin with plate (cold weather design)	2
07	943 158 40	Guard plate	2
08	943 171 40	Guard plate	5
09	948 113 40	Freeze-in bushing	2
10	952 731 40	Double angle assy.	2
11	517 123 98	Lock washer	13
12	900 690 40	Freeze-in bushing	2
13	907 020 40	Seal ring	4
14	933 098 40	Console	1
15	308 640 99	Bolt	4
16	308 616 99	Bolt	22
17	922 168 40	Angle	1
18	307 845 99	Bolt	4
19	517 124 98	Washer	4
20	924 549 40	Plate	4
21	517 118 98	Lock washer	28
22	500 398 98	Cover plate	4
23	924 551 40	Plate	2
24	307 886 99	Bolt	8
25	517 346 98	Washer	8
26	907 022 40	Seal ring	4
27	504 445 98	Pair of clamps	6
28	534 008 99	Plate	42
29	510 151 98	Bolt	72
30	332 353 99	Nut	96
31	504 446 98	Pair of clamps	4
32	350 768 99	Washer	25
33	933 087 40	Manifold	1
34	922 167 40	Weld on plate	2
35	502 976 98	Pair of clamps	4
36	502 977 98	Pair of clamps	4
37	319 292 99	Bolt	48
38	332 355 99	Nut	54
39	500 127 98	Flange	20
40	500 203 98	Ring	10
41	356 209 40	Flange seal	37
42	319 313 99	Bolt	16
43	332 338 99	Nut	16
44	504 448 98	Flange	8
45	504 449 98	Ring	4
46	385 243 40	Flange seal	14
48	890 939 40	Angle	4
49	922 169 40	Plate	1
50	948 193 40	Clamp line	1
51	908 648 40	Angle	1
52	512 486 98	Hose assy. DN 40x1950	2
53	940 418 40	Hose assy. DN 50x1980	2
54	514 828 98	Hose assy. DN 40x2000	2
55	515 908 98	Hose assy. DN 40x2650	2
56	510 736 98	Resilient sleeve	4
57	940 323 40	Hose assy. DN 50x2600	2
58	515 843 98	Hose assy. DN 40x2600	4
59	502 390 98	Bolt	4
60	502 626 98	Insert	10
61	504 853 98	Pair of clamps	4
62	500 345 98	Pair of clamps	1
63	502 371 98	Pair of clamps	10
64	504 709 98	Pair of clamps	3
65	935 549 40	Guard plate	1
66	534 004 99	Cover plate	3
67	332 114 99	Nut	6
68	307 792 99	Bolt	6
69	319 305 99	Bolt	20
70	319 288 99	Bolt	60
71	319 209 99	Bolt	32
72	500 129 98	Flange	8
73	501 871 98	Ring	8
74	356 210 40	Seal	8
75	319 289 99	Bolt	40
76	501 898 98	Ring	10
77	319 323 99	Bolt	16
78	504 461 98	Ring	4
79	792 454 73	Pipe assy. Ш 65	1
80	792 455 73	Pipe assy. Ш 65	1
81	792 456 73	Pipe assy. Ш 65	1
82	792 457 73	Pipe assy. Ш 65	1
83	793 822 73	Pipe assy. Ш 50	1
84	792 458 73	Pipe assy. Ш 50	1
85	792 459 73	Pipe assy. Ш 50	1
86	792 460 73	Pipe assy. Ш 50	2
87	792 461 73	Pipe assy. Ш 50	2
88	793 823 73	Pipe assy. Ш 50	1
89	792 462 73	Pipe assy. Ш 38	1
90	792 463 73	Pipe assy. Ш 38	1
91	792 464 73	Pipe assy. Ш 38	1
92	768 138 73	Pipe assy. Ш 38	1
93	793 824 73	Pipe assy. Ш 50	1
94	793 825 73	Pipe assy. Ш 50	1
95	908 934 40	Pin with plate (Standard)	2
95	923 845 40	Pin with plate (cold weather design)	2
96	905 749 40	Schackle	2
97	307 886 99	Bolt	4
98	340 471 99	Washer	8
99	505 212 98	Insert	4
100	948 194 40	Rail	1
101	504 853 98	Pair of clamps	6
102	505 212 98	Insert	2
103	502 618 98	Pair of clamps	1
104	504 926 98	Insert	1
105	308 643 99	Bolt	18
106	334 601 99	Nut	12
107	534 004 99	Cover plate	1
108	308 584 99	Bolt	2
109	507 037 98	Nut	2
110	515 846 98	Insert	4
111	922 162 40	Retrainer	2
112	935 546 40	Guard plate	1
113	502 879 98	Bolt	6
114	502 961 98	Weld on plate	4
115	502 965 98	Cover plate	4
116	534 009 99	Weld on plate	3
117	905 279 40	Pipe	4

Komatsu PC3000-6 S/N 06278 parts catalog PDF

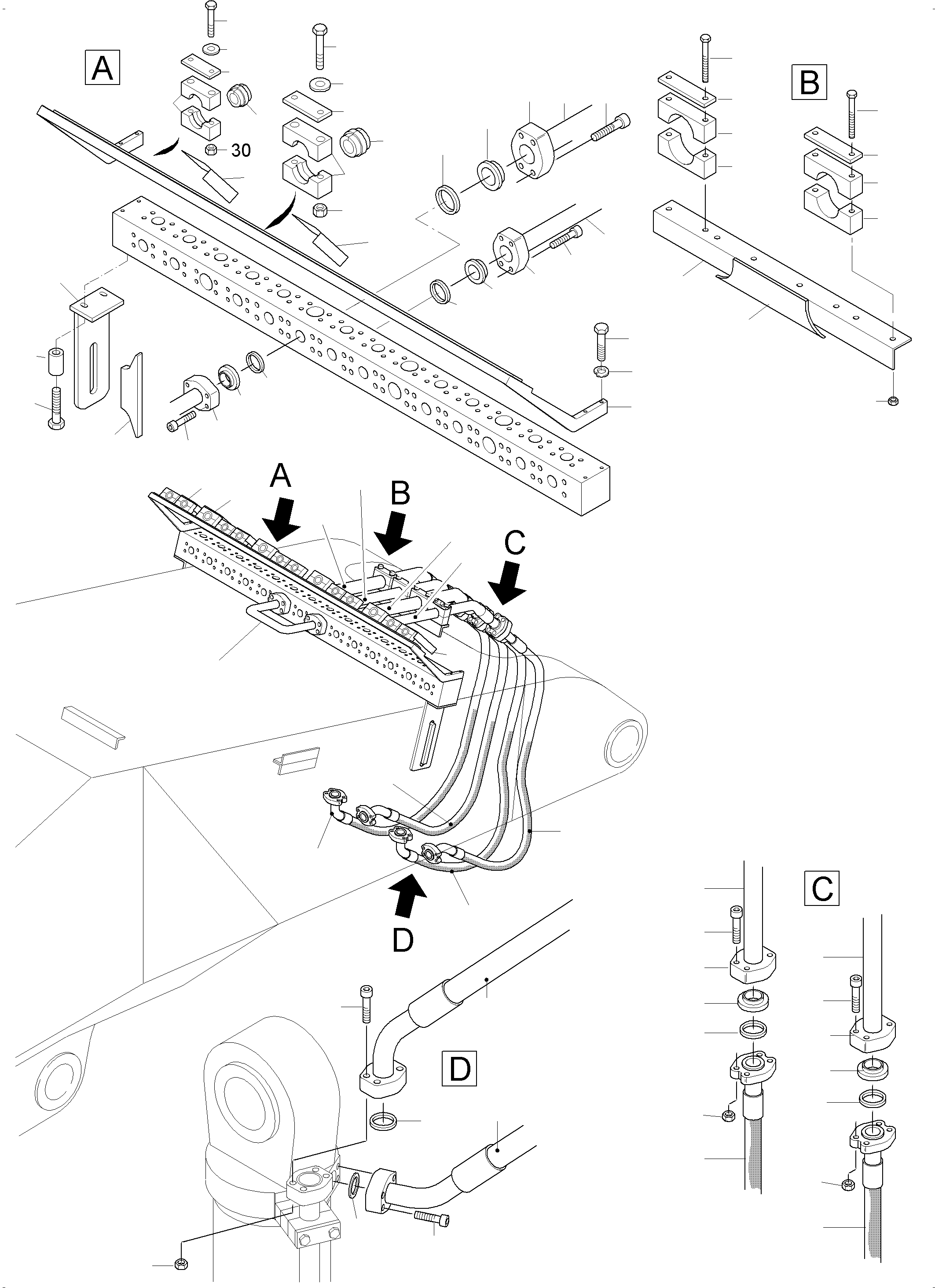

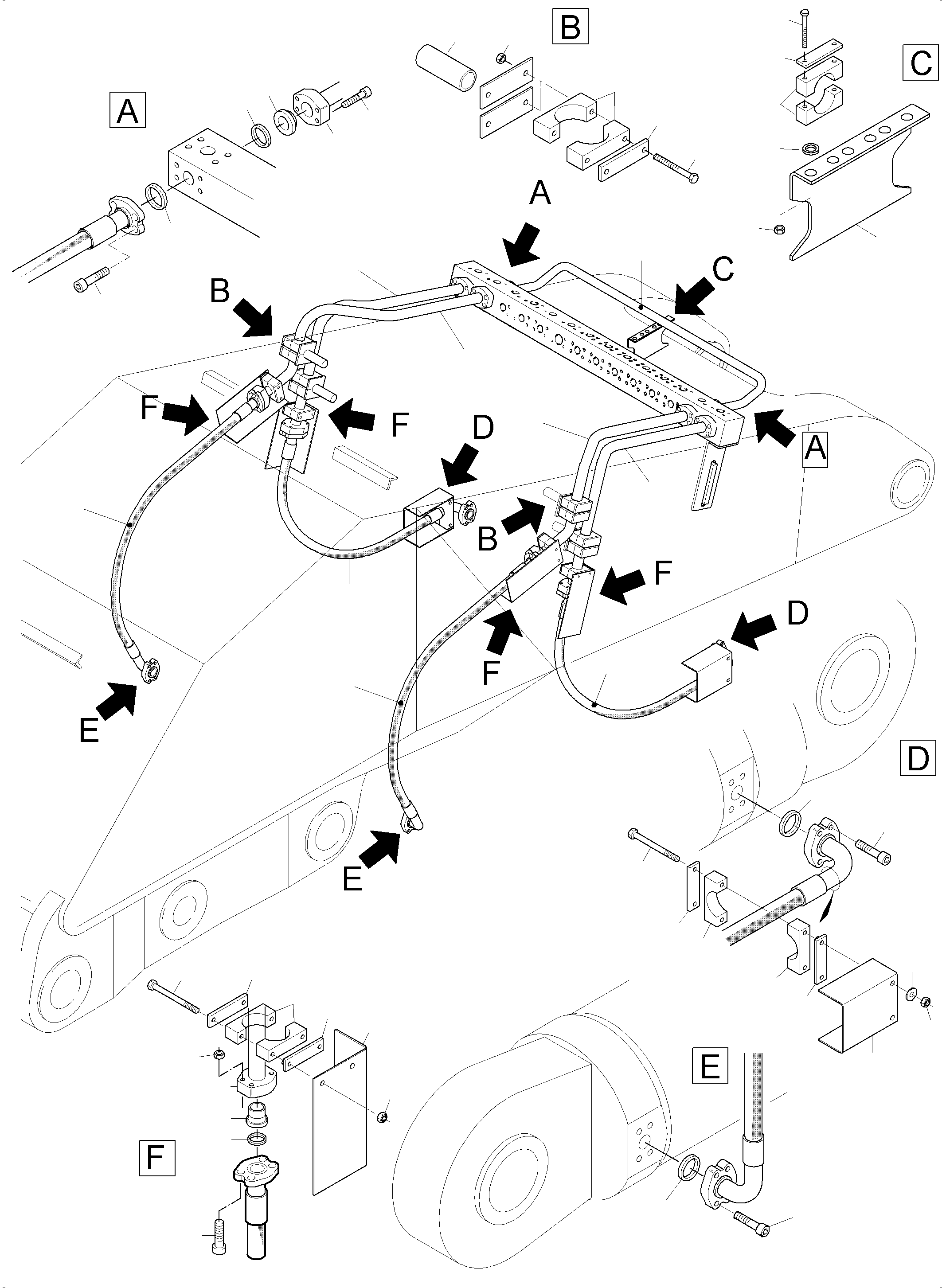

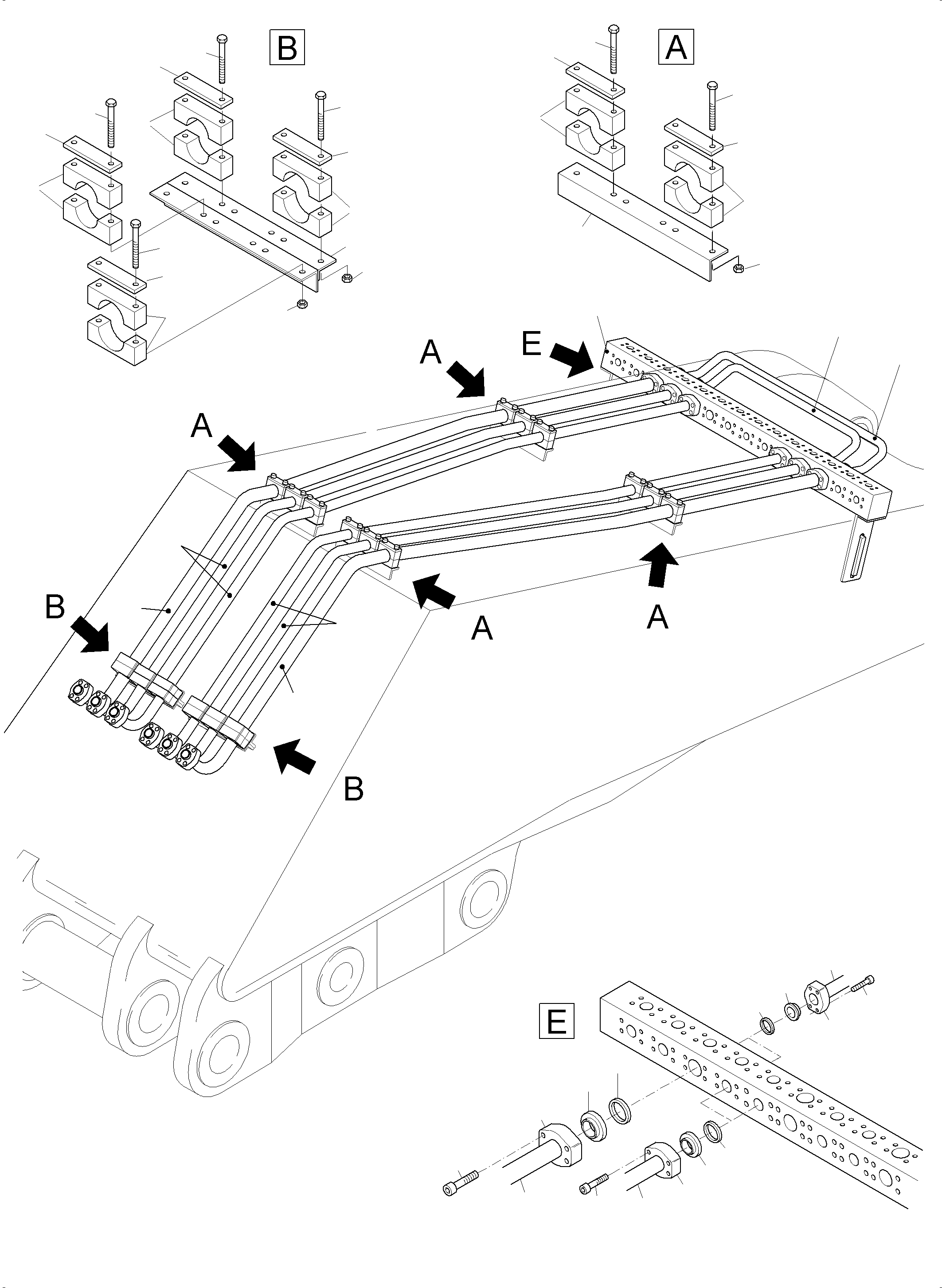

BULLCLAM BUCKET BOOM 6M (485-4000k) in PC3000-6 S/N 06278. Diagram image and parts list.
