WEAR PACKAGE BACK PANEL AND BULLCLAM 15/16M3 WP4 | PC3000-6 S/N 06278

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

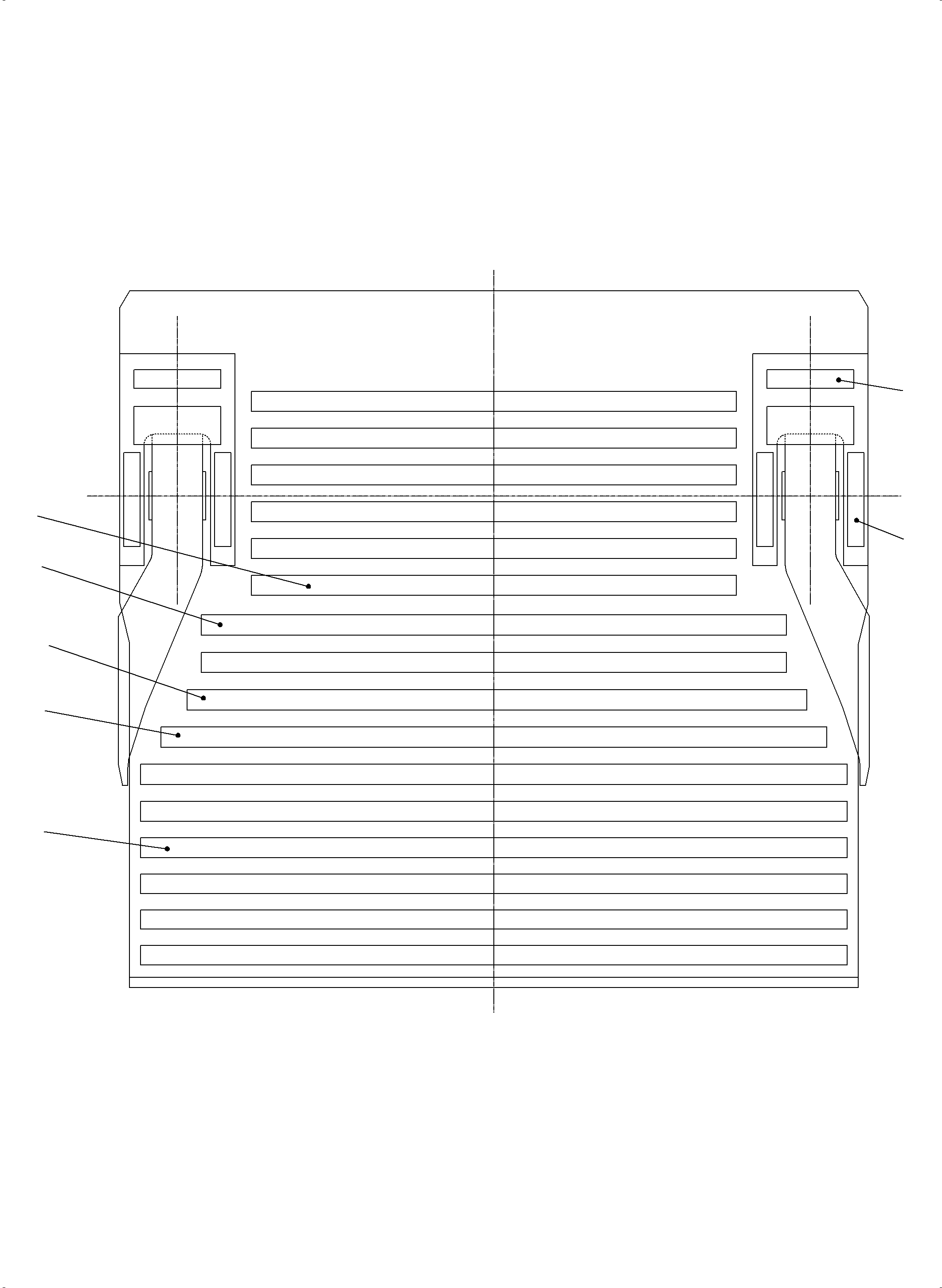

Diagram image 1 of 4

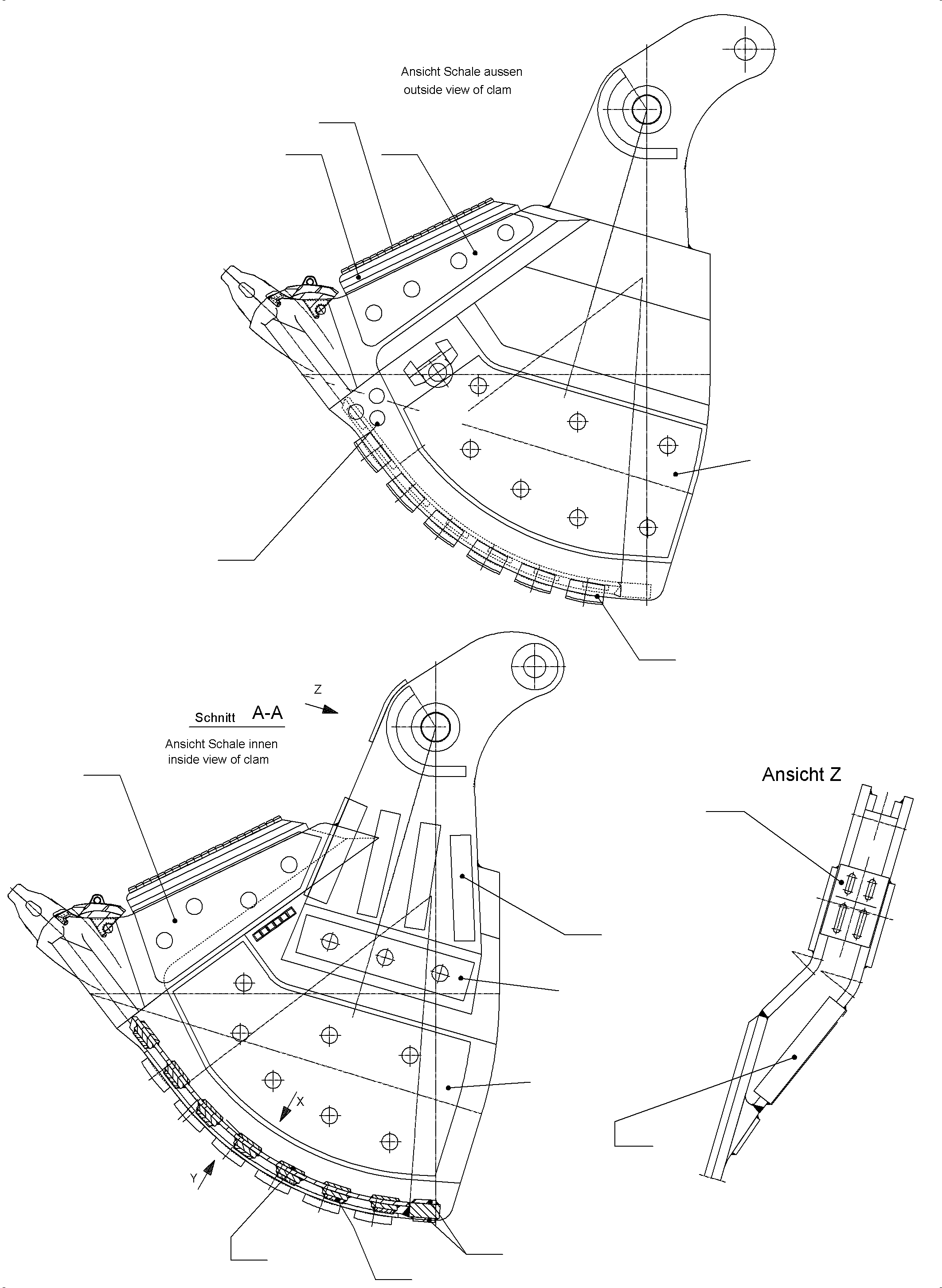

PC3000-6 S/N 06278

01 02 03 04 05 06 11 15 16 17 18 19 20 21 23

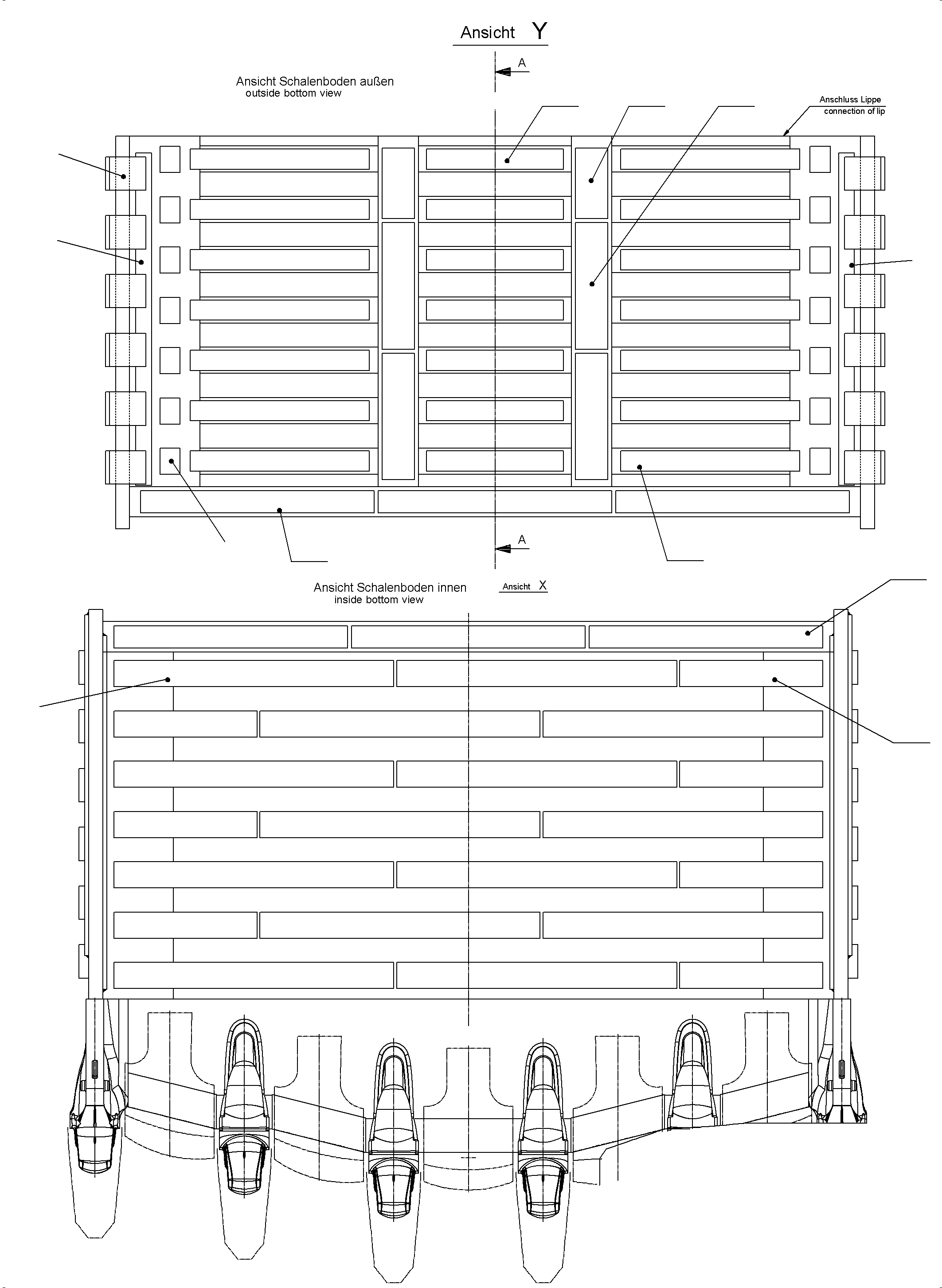

PC3000-6 S/N 06278

04 07 08 09 10 11 12 13 14 15 15 16

PC3000-6 S/N 06278

36 37 38 38 39 39 40 40 41 41 42 43 43 44

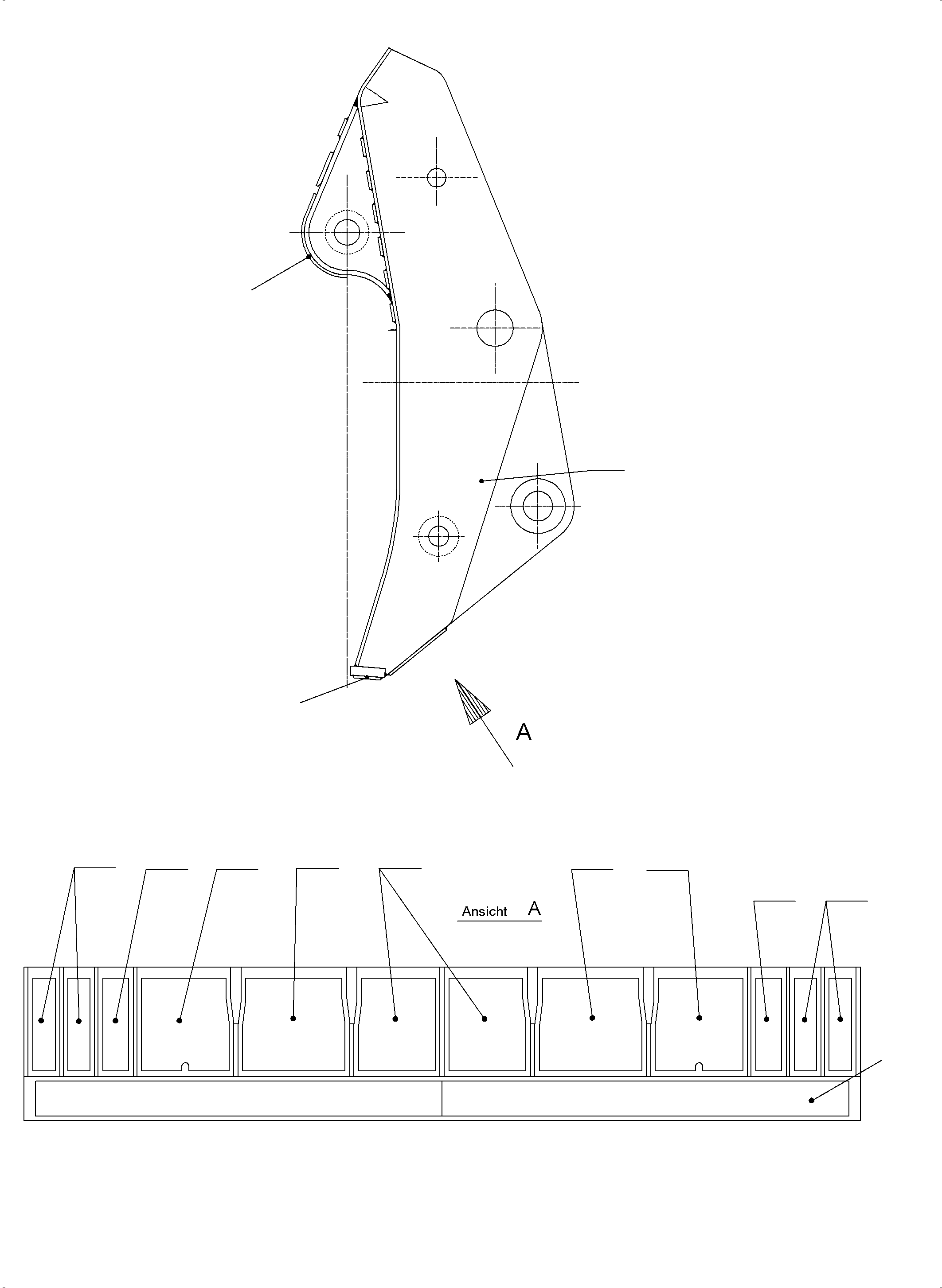

PC3000-6 S/N 06278

31 32 33 34 35 44 45

#	Part Number	Partname	Quantity
01	944 352 40	Bucket Heel Shroud	2
02	947 088 40	Wear plate	2
03	947 089 40	Wear plate	2
04	906 989 40	Bucket heel shroud	12
05	947 086 40	Wear plate	2
06	947 087 40	Wear plate	2
07	947 076 40	Wear plate	2
08	947 074 40	Wear plate	4
09	947 077 40	Wear plate	14
10	946 704 40	Plate	14
11	947 072 40	Wear plate	14
12	947 073 40	Wear plate	7
13	947 068 40	Wear plate	1
14	947 069 40	Wear plate	1
15	947 075 40	Wear plate	6
16	538 704 40	Wear plate	7
17	946 710 40	Wear plate	2
18	916 154 40	Plate	8
19	906 654 40	Chocky bars	18
20	906 657 40	Wear button	6
21	946 711 40	Wear plate	2
23	947 093 40	Plate	2
\|$$23	945 259 40	Wear plate set consist of fig nos 13 + 14	1
31	640 863 40	Plate	12
32	640 862 40	Plate	2
33	946 722 40	Plate	2
34	640 861 40	Plate	4
35	947 258 40	Plate	12
36	917 546 40	Wear plate ri.	1
37	917 547 40	Wear plate le.	1
38	917 548 40	Plate	4
39	917 549 40	Plate	2
40	917 552 40	Plate	2
41	917 553 40	Wear plate	2
42	917 554 40	Wear plate	2
43	947 094 40	Wear plate	2
44	946 725 40	Wear plate	4
45	946 719 40	Wear plate	2
