CABLES - OIL TANK AND SWITCH | PC3000-6 S/N 46188

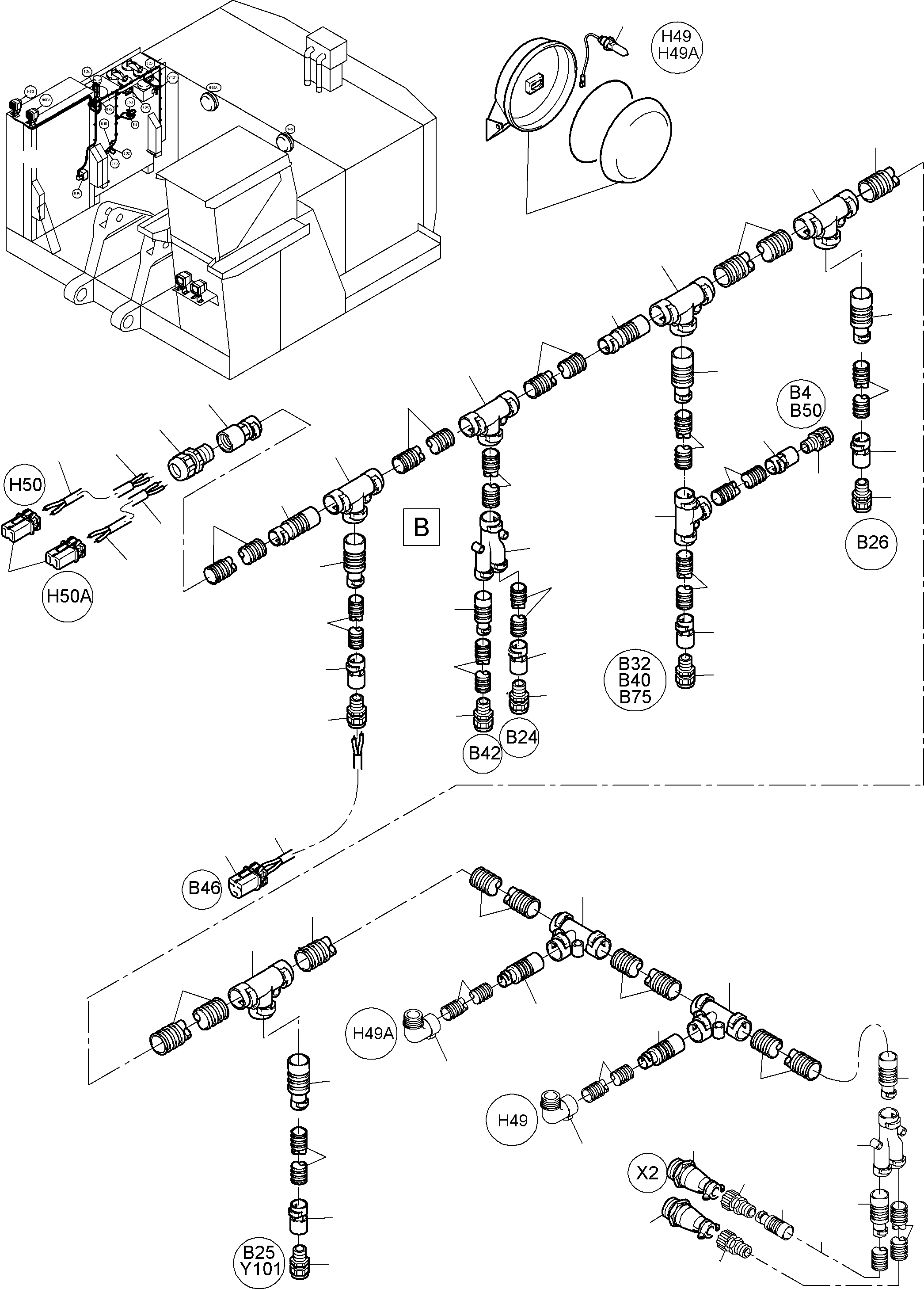

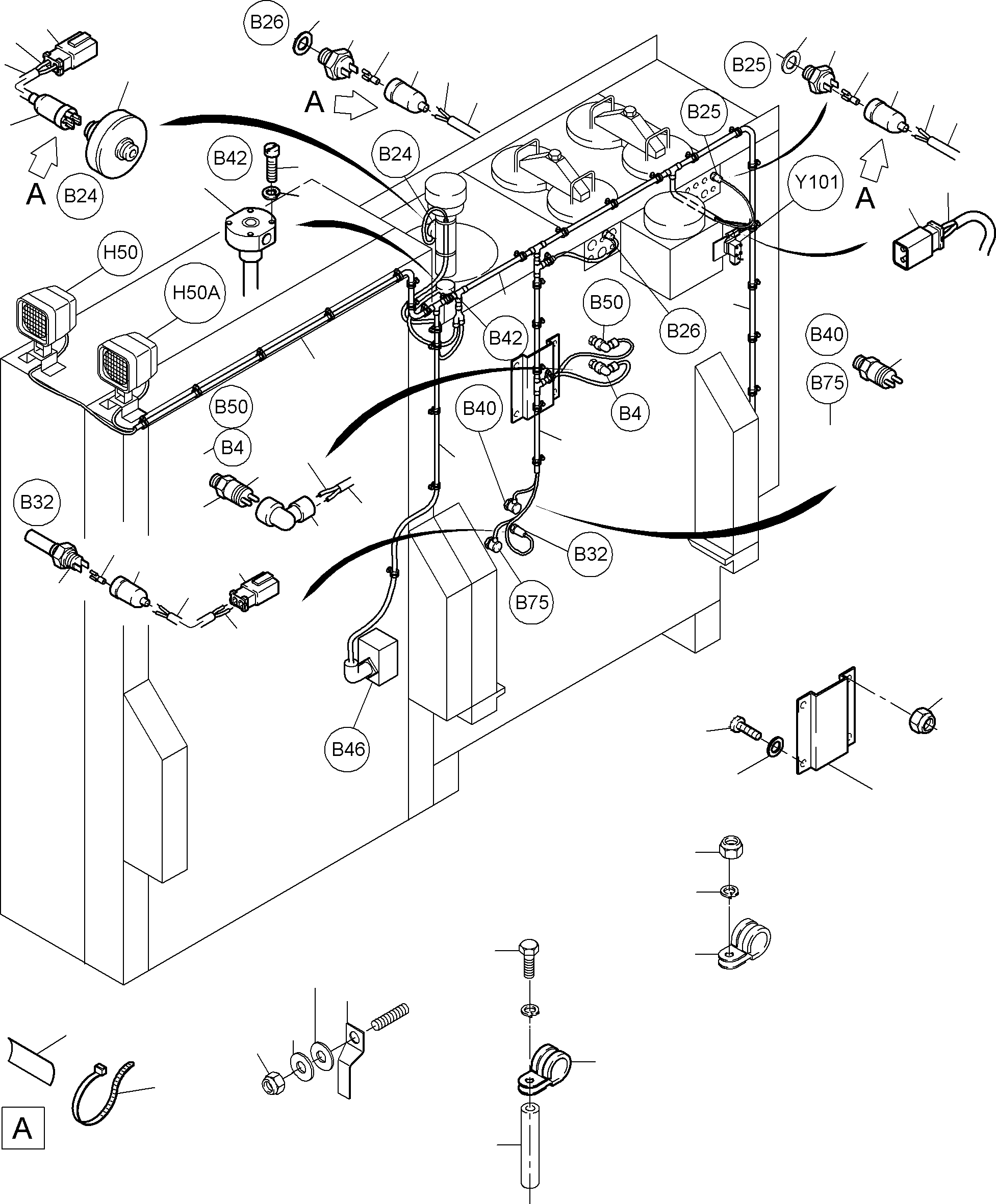

Diagram image 1 of 2

PC3000-6 S/N 46188

01 01 01 01 01 02 02 03 03 04 05 06 07 08 09 10 11 12 13 14 15 15 16 17 17 18 18 19 19 30 30 30 30 30 30 38 39 39 41 41 41 42 42 42 43 43 43 43 43 47 48 49 50 51 52 53 63 63 64 65 66 67 75 76 77

PC3000-6 S/N 46188

20 20 20 20 20 20 21 21 21 21 21 22 22 22 22 22 22 22 22 23 24 24 25 25 25 25 25 26 27 27 27 28 28 29 30 31 31 31 32 32 33 34 34 34 34 34 35 35 35 35 35 36 36 37 40 43 43 43 44 45 46 46 54 55 56 56 56 56 57 58 58 59 60 61 62 68 68 68 69 70 70 71 72 73 80 81 82

#	Part Number	Partname	Quantity
01	931 357 40	Harness - hydraulic tank	1
02	940 480 40	Sensor	2
03	938 318 40	Level probe assy.	2
04	604 732 40	Pressure switch 0,5 bar	1
05	907 536 40	Gasket	1
06	621 338 40	Pressure switch 2,0 bar	1
07	907 538 40	Gasket	1
08	654 652 40	Maintenance switch	1
09	431 168 40	Temperature transmitter	1
10	898 146 40	Floatswitch (Bull clam equipment)	1
11	898 147 40	Floatswitch (Backhoe equipment)	1
11	898 148 40	Floatswitch (Backhoe equipment) cold weather -50°	1
12	320 817 99	Bolt	4
13	343 852 99	Lock washer	4
14	0443452711	Clip	17
15	0443452110	Clip	2
16	0443451610	Clip	8
17	308 581 99	Bolt	7
18	517 122 98	Lock washer	15
19	507 037 98	Nut	15
20	655 650 40	Protecting hose DN 12	-2
21	655 651 40	Protecting hose DN 17	-2
22	655 652 40	Protecting hose DN 23	-2
23	655 634 40	Pipe adapter DN 23/17	1
24	655 633 40	Pipe adapter DN 17/12	2
25	655 630 40	T-Distributor DN 29/23	5
26	655 626 40	Connector distributor DN 17/12	1
27	655 629 40	T-Distributor DN 17	3
28	907 971 40	Pipe adapter DN 23/12	2
29	655 635 40	Pipe adapter DN 29/17	1
30	515 213 40	Cable 1 qmm	-2
31	515 214 40	Cable 2,5 qmm	-2
32	655 810 40	Pipe adapter DN 29/12	2
33	907 693 40	Fitting M20/DN 17	1
34	907 692 40	Fitting M16/DN 12	5
35	907 703 40	Cable union	5
36	655 809 40	Pipe adapter DN 29/10	2
37	910 029 40	Plug assy.	1
38	795 134 73	Plug assy.	2
39	795 132 73	Plug assy. 2-pole	5
40	903 422 40	Plug assy.	2
41	906 922 40	Protection cap	3
42	323 961 40	Sleeve 6,3x0,8	5
43	940 462 40	Insulating tube	-2
44	655 621 40	Cable union DN 10	1
45	907 708 40	Cable union	1
46	907 480 40	Cable union DN 10-90	2
47	256 514 40	Name plate	15
48	056 292 40	Cable strap	15
49	651 461 40	Housing assy.	1
50	655 547 40	Housing	1
51	655 548 40	Contact seal	2
52	655 549 40	Single seal	2
53	655 550 40	Rubber grommet	1
54	795 127 73	Plug	1
55	795 129 73	Plug	1
56	896 520 40	Plug pin	10
57	896 521 40	Plug pin	2
58	440 109 40	Sleeve	5
59	907 947 40	Connector distributor DN 29/23	1
60	896 558 40	Pipe adapter DN 29/23	1
61	634 009 40	Spotlight	2
62	507 383 99	Halogen lamp 24V70W	2
63	507 596 98	Washer	15
64	510 741 98	Resilent sleeve 13/25x50	7
65	0819320010	Clip	4
66	934 329 40	Cover	1
67	512 750 98	Nut	4
68	655 649 40	Protecting hose DN 10	-2
69	655 631 40	Pipe adapter DN 12/10	1
70	907 980 40	Fitting DN 23	2
71	795 122 73	Sealing plug	20
72	795 123 73	Pin	30
73	795 124 73	Pin	2
75	896 669 40	Level probe	1
76	795 461 73	Receptacle assy.	1
77	517 122 98	Washer	4
80	907 709 40	Cable union PG 16	1
81	940 717 40	Fitting M17/M25	1
82	056 070 40	Cable sleeve 1,0-1,5	4
