Diagram image 1 of 3

PC3000-6 S/N 46165

01 02 03 03 04 04 05 05 06 06 07 08 08 09 09 10 11 12 13 14 15 16 02 03 04 05 06 07 08 09 10 11 11 12 12 14 15 16 17 17 17 17 18 18 18 18 19 20 22 23 24 26 27 28 28 29 30 31 32 33 34 35 36 36 36 37 37 37 38 38 41 42 43 45 46 47 47 47 47 48 48 49 50 51 52 53 54 80 85 85

PC3000-6 S/N 46165

60 61 62 63 64 65 66 67 68 68 69 69 70 70 71 71 72 72 72 73 81

#	Part Number	Partname	Quantity
01	900 200 40	Platform	1
02	901 897 40	Pin	2
03	901 894 40	Freeze-in bushing	4
04	637 549 40	Axle stirrup	4
05	511 811 98	Bolt (Standard)	8
06	513 968 98	Bolt (cold weather design)	8
07	901 899 40	Freeze-in bushing	2
08	901 895 40	Freeze-in bushing	4
09	255 056 40	Washer	8
10	901 896 40	Pin	2
11	500 333 98	Bolt	8
12	900 300 40	Plate	2
13	515 904 98	Boltt (Standard)	16
14	516 588 98	Bolt (cold weather design)	16
15	501 716 98	Washer	16
16	890 555 40	Counterweight	1
02	927 227 40	Post 1	1
03	927 229 40	Post 2	1
04	930 571 40	Post 3	1
05	930 501 40	Post 4	1
06	929 114 40	Post 5	1
07	930 555 40	Post 6	1
08	891 714 40	Post 7	1
09	930 554 40	Wall	1
10	930 503 40	Door	1
11	906 709 40	Fastener with out lock pin	2
12	340 510 99	Washer	2
14	930 550 40	Wall	1
15	927 204 40	Door, radiator	1
16	927 264 40	Wall	1
17	390 199 40	Hinge	5
18	621 983 40	Hinge	4
19	930 540 40	Door	1
20	927 212 40	Door	1
22	934 342 40	Angle	1
23	934 343 40	Angle	1
24	167 693 40	Flex. Header	-2
26	510 741 98	Resilient sleeve	9
27	308 608 99	Bolt	9
28	510 732 98	Resilient sleeve	28
29	308 885 99	Bolt to fig-nos. 02, 06-08	16
30	308 414 99	Bolt to fig-nos. 03, 04 + 05	12
31	927 230 40	Pipe	2
32	307 805 99	Bolt	8
33	081 282 40	Round buffer	1
34	319 135 99	Screw	1
35	507 025 98	Nut	1
36	308 610 99	Bolt	28
37	334 600 99	Nut	36
38	340 467 99	Washer	28
41	308 617 99	Bolt	4
42	307 802 99	Bolt	4
43	346 498 99	Lock washer	4
45	332 334 99	Nut	4
46	887 961 40	Door catch	1
47	539 761 40	Pipe	6
48	512 545 98	Washer	2
49	897 656 40	Door catch	1
50	927 224 40	Plate	1
51	511 263 98	Thread pin	6
52	507 037 98	Nut	6
53	507 596 98	Washer	6
54	440 821 40	Rubber	-2
60	919 943 40	Roof section 1	1
61	925 753 40	Roof section 2	1
62	925 754 40	Roof section 3	1
63	925 755 40	Roof section 4	1
64	510 741 98	Resilient sleeve	45
65	308 608 99	Bolt	45
66	307 949 99	Bolt	7
67	517 118 98	Lock washer	7
68	598 248 40	Threaded rail	2
69	598 250 40	Threaded rail	2
70	598 249 40	Threaded rail	2
71	598 240 40	Threaded rail	2
72	598 239 40	Threaded rail	4
73	180 894 40	Plug	10
80	919 949 40	Roof frame	1
81	180 889 40	Plug	4
85	308 356 99	Bolt	14

Komatsu PC3000-6 S/N 46165 parts catalog PDF

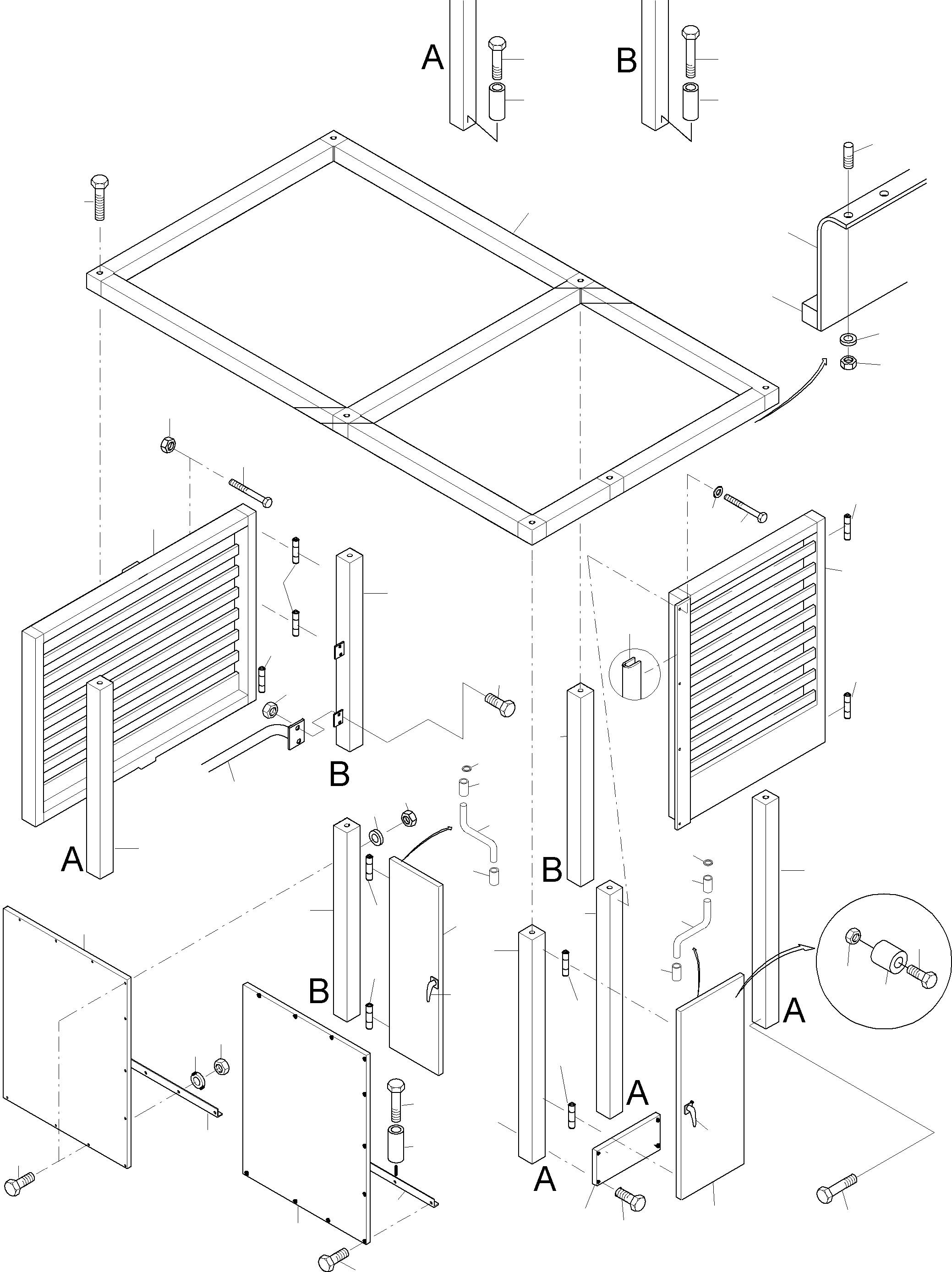

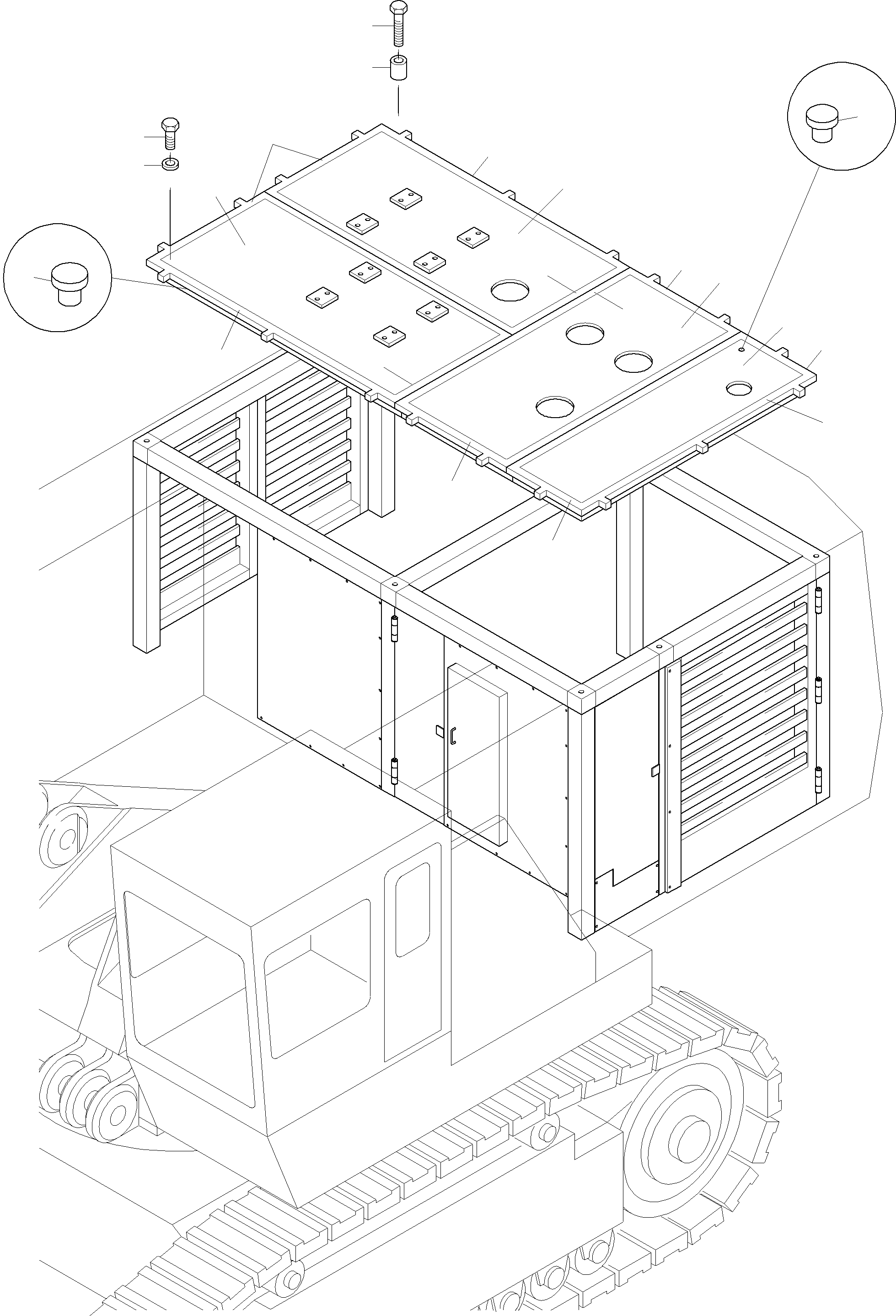

COVERING - ENGINE HOUSING (485-1032b) in PC3000-6 S/N 46165. Diagram image and parts list.
