Diagram image 1 of 6

PC3000-6 S/N 46165

01 02 03 07 07 07 103 104 105 106 107 107 107 108 109 11 11 110 111 112 113 114 114 117 117 119 12 12 12 12 12 121 122 124 125 14 14 15 15 150 151 152 153 19 19 19 33 34 34 35 36 37 37 43 45 46 47 48 49 49 50 51 52 53 54 55 56 57 89 01 02 03 03 04 05 06 07 08 09 10 11 12 13

PC3000-6 S/N 46165

07 07 07 07 12 12 14 14 14 14 14 14 15 15 15 15 15 15 16 16 17 18 23 27 27 28 29 30 38 38 39 39 40 41 41 42 44

PC3000-6 S/N 46165

06 129 129 13 130 130 131 131 132 132 14 140 140 141 141 142 142 143 143 144 145 145 146 146 150 151 152 153 153 58 59 65 66 69 69 70 71 72 73 74 75 76 94 95 95 96 97 97

PC3000-6 S/N 46165

04 05 07 07 07 12 12 60 61 61 62 63 64 67 68 74 75 76 77 78 79 80 81 82 82 83 84 84

PC3000-6 S/N 46165

115 123 126 126 127 127 128 128 20 21 22 74 75 76 85 86 86 87 88 90 91 92 93

PC3000-6 S/N 46165

#	Part Number	Partname	Quantity
01	237 129 40	Thread plate	1
02	307 802 99	Bolt	2
03	343 054 99	Washer	8
04	308 605 99	Bolt	28
05	510 744 98	Resilient sleeve	28
06	945 968 40	Battery body assy.	1
07	334 600 99	Nut	142
12	340 467 99	Washer	170
13	945 966 40	Safety plate	1
14	504 004 98	Clamp set	104
15	534 008 99	Cover plate	104
16	308 615 99	Bolt	98
17	308 434 99	Bolt	88
18	509 310 98	Locking plate	56
19	308 616 99	Bolt	26
20	943 468 40	Grating	1
21	943 476 40	Cover	1
22	943 477 40	Cover	1
23	946 181 40	Emergency jack	1
27	946 189 40	Retainer	2
28	308 284 99	Bolt	4
29	507 036 98	Nut	4
30	340 461 99	Disc	4
33	922 840 40	Rail	2
34	930 245 40	Rail	2
35	948 039 40	Angle	1
36	930 247 40	Angle	1
37	948 035 40	Angle	1
38	504 004 98	Clamp set	36
39	534 005 99	Weld-on plate	36
40	308 615 99	Bolt	68
41	512 545 98	Washer	72
42	334 600 99	Nut	72
43	930 246 40	Plate	1
44	308 616 99	Bolt	4
45	922 837 40	Rail	1
46	922 849 40	Rail	1
47	937 594 40	Rail	1
48	922 802 40	Rail	1
49	931 176 40	Rail	1
50	904 372 40	Rail	1
51	931 179 40	Rail	1
52	942 264 40	Rail	1
53	942 273 40	Rail	1
54	922 821 40	Rail	1
55	931 067 40	Rail	1
56	943 475 40	Rail	1
57	916 497 40	Emergency Ladder	1
58	931 186 40	Platform left	1
59	931 185 40	Platform right	1
60	901 007 40	Console	1
61	901 004 40	Console	1
62	904 313 40	Console	2
63	904 309 40	Sheet metal	1
64	904 308 40	Angle	1
65	906 866 40	Grating	1
66	461 755 40	Grating	1
67	904 307 40	Grating	1
68	904 310 40	Grating	1
69	915 146 40	Grating	2
70	308 404 99	Bolt	6
71	510 728 98	Resilient sleeve	6
72	308 637 99	Bolt	16
73	510 733 98	Resilient sleeve	16
74	317 319 40	Threaded block	105
75	317 318 40	Wing nut, plastic	105
76	502 354 98	Bolt	105
77	334 599 99	Nut	8
78	307 754 99	Bolt	8
79	905 087 40	Grating	1
80	939 450 40	Plate	1
81	307 804 99	Bolt	2
82	937 598 40	Console	2
83	912 731 40	Grating	1
84	507 121 98	Thread pin	6
85	324 395 40	Grating	1
86	324 379 40	Grating	2
87	943 467 40	Grating	1
88	906 815 40	Grating	1
89	561 723 40	Angle	3
90	324 394 40	Grating	1
91	323 073 40	Grating	1
92	937 546 40	Grating	1
93	346 522 40	Grating	1
94	270 192 40	Grating	1
95	930 236 40	Grating	2
96	323 315 40	Grating	1
97	930 237 40	Grating	1
103	931 002 40	Sheet metal	1
104	931 198 40	Sheet metal	1
105	943 473 40	Plate	1
106	931 199 40	Sheet metal	1
107	931 187 40	Angle	4
108	930 258 40	Angle	1
109	942 272 40	Angle	1
110	942 278 40	Angle	1
111	942 269 40	Angle	1
112	942 271 40	Angle	1
113	930 253 40	Angle	1
114	931 454 40	Plate	2
115	324 853 40	Grating	1
117	307 805 99	Bolt	10
119	081 282 40	Silent block	2
121	319 135 99	Bolt	2
122	507 025 98	Nut	2
123	937 548 40	Grating	1
124	942 281 40	Plate	1
125	942 279 40	Plate	1
126	907 854 40	Thread pin	8
127	507 037 98	Nut	8
128	340 508 99	Washer	8
129	081 320 40	Hinge	4
130	943 807 40	Hinge pin	4
131	518 151 98	Lubricating nipple	4
132	334 599 99	Nut	4
140	945 754 40	Battery cover	1
141	945 756 40	Battery cover	1
142	943 809 40	Hinge assy.	2
143	943 808 40	Hinge assy.	2
144	511 744 98	Yoke handle	2
145	308 608 99	Bolt	4
146	510 741 98	Resilient sleeve	4
150	938 567 40	Plate	1
151	472 511 99	Chain	-2
152	341 271 99	Trigger snap	4
153	191 538 40	Shackle	6
01	929 106 40	Wall	1
02	930 561 40	Wall	1
03	510 744 98	Resilient sleeve	18
04	308 459 99	Bolt	10
05	308 611 99	Bolt	8
06	332 334 99	Nut	8
07	506 589 40	Gasket	1
08	930 562 40	Wall	1
09	332 334 99	Nut	2
10	930 515 40	Angle	1
11	307 805 99	Bolt	2
12	517 118 98	Washer	2
13	930 589 40	Flat steel	1

Komatsu PC3000-6 S/N 46165 parts catalog PDF

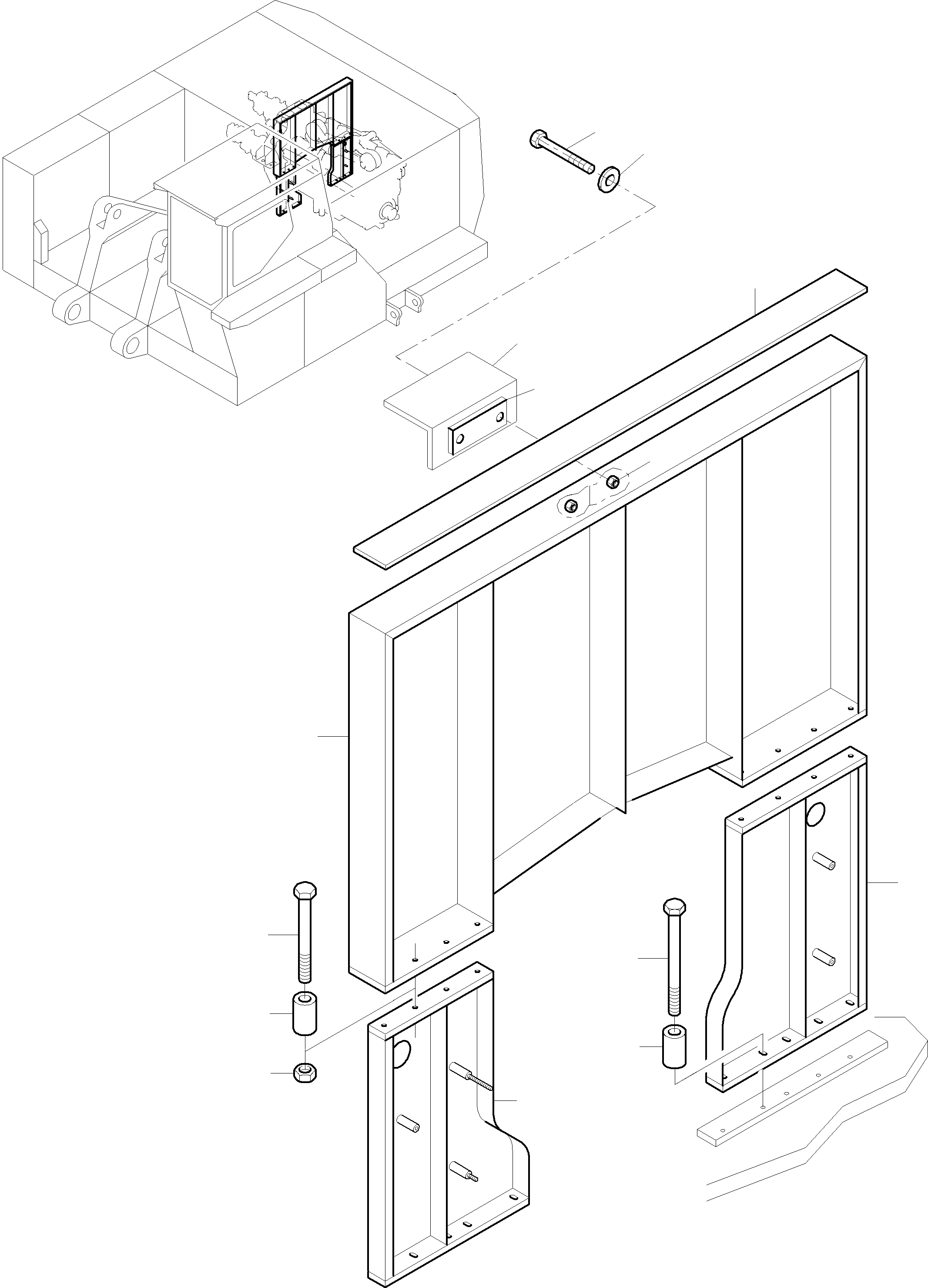

FIRE WALL (485-1036a) in PC3000-6 S/N 46165. Diagram image and parts list.
