01 |
934 650 40
|

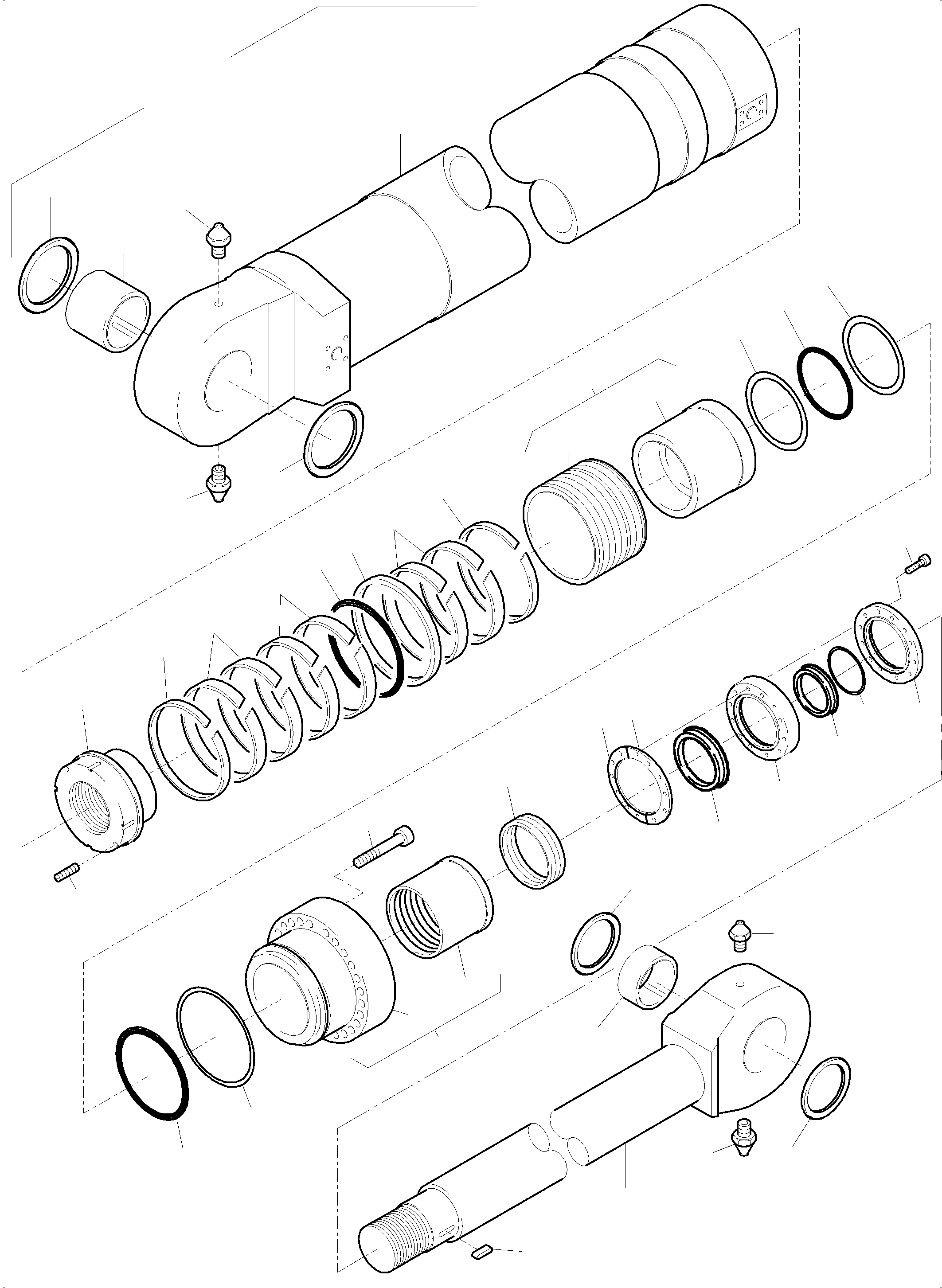

Hydraulic cylinder assy. fig-nos: 02-37 |
1 |
|
|
|
|
03 |
|
Cylinder |
1 |
|
|
|
|
04 |
932 407 40
|
Freeze-in bush |
1 |
|
|
|
|
05 |
004 860 98
|
Nipple |
4 |
|
|
|
|
06 |
947 188 40
|
Thread pin |
1 |
|
|
|
|
07 |
947 197 40
|
Groove nut |
1 |
|
|
|
|
08 |
515 484 40
|
Piston guide |
2 |
|
|
|
|
09 |
324 464 40
|
Piston guide |
6 |
|
|
|
|
10 |
324 465 40
|
O-ring |
1 |
|
|
|
|
11 |
324 468 40
|
Seal |
1 |
|
|
|
|
12 |
929 277 40
|
Piston assy. fig-nos. 13 and 14 (finish work after bush is (installed) |
1 |
|
|
|
|
13 |
395 620 40
|
Piston bush (no field repair item) |
1 |
|
|
|
|
14 |
|
Piston |
1 |
|
|
|
|
15 |
517 812 98
|
O-ring |
1 |
|
|
|
|
16 |
907 993 40
|
Support ring |
2 |
|
|
|
|
17 |
504 779 98
|
O-ring |
1 |
|
|
|
|
18 |
324 467 40
|
Support ring |
1 |
|
|
|
|
19 |
953 861 40
|
Sealing flange fig-nos: 20 and 21 (finishing after bush is installed) |
1 |
|
|
|
|
20 |
|
Bush |
1 |
|
|
|
|
21 |
953 859 40
|
Bush (Only for work shop repair) |
1 |
|
|
|
|
22 |
514 759 98
|
Screw cold weather design |
28 |
|
|
|
|
23 |
324 463 40
|
Seal kit |
1 |
|
|
|
|
24 |
906 593 40
|
Support ring |
1 |
|
|
|
|
25 |
909 524 40
|
Cover |
1 |
|
|
|
|
26 |
502 572 98
|
Screw cold weather design |
12 |
|
|
|
|
27 |
906 544 40
|
Stripper |
1 |
|
|
|
|
28 |
501 352 98
|
Feather key |
1 |
|
|
|
|
29 |
794 780 73
|
Piston rod assy. fig-nos: 04,05,30,37 |
1 |
|
|
|
|
30 |
|
Piston rod |
1 |
|
|
|
|
33 |
430 924 40
|
Half shim |
12 |
|
|
|
|
34 |
909 526 40
|
Cover ring |
1 |
|
|
|
|
35 |
906 732 40
|
Support ring fig. no. 27 |
1 |
|
|
|
|
36 |
899 077 40
|
Freeze in bushing |
1 |
|
|
|
|
37 |
907 026 40
|
Pin seal ring |
4 |
|
|
|
|
|$$35 |
793 621 73
|
Seal kit for piston fig-nos. 08-11,15 and 16 |
1 |
|
|
|
|
|$$36 |
793 622 73
|
Seal kit for sealing flange, with slited seals, fig-nos: 17,18,23,24,27 and 35 |
1 |
|
|
|
|
|$$37 |
797 326 73
|
Seal kit for sealing flange, with non slited seals, fig-nos: 17,18,23,24,27 and 35 |
1 |
|
|
