#	Part Number	Partname	Quantity
?		Inner harnesses	-1
?	952 931 40	Harness ambient temperature 11X_13-12B090	1
?	952 932 40	Harness horn 11X_10-10G007	1
?	953 080 40	Harness VHMS-Controller	1
?	958 922 40	Harness CAN-BUS	1
?	954 516 40	Harness plug load limitation valve	1
?	959 424 40	Harness 11X_12-NSP	1
?	955 666 40	Data connection CAN-BUS 12X306-11X305	1
?	959 400 40	Harness	1
?		Harnesses to connection point floor	-1
?	952 937 40	Supply line Controller / Hydraulictank 11X_40-10X040	1
?	952 940 40	Supply line Controller / Pump area 11X_56-10X056	1
?	952 942 40	Supply line Controller / Engine 11X_51-10X051	1
?	952 944 40	Supply line Controller / Cable drum 11X_93-10X093	1
?	952 945 40	Harness 11X_51-10X151	1
?	952 947 40	Harness 11X_56-10X156	1
?	952 988 40	Harness 11X_60-10X160	1
?	952 990 40	Harness Control plate 11X_61-10X161	1
?	952 991 40	Harness Control plate 11X_61-10X261	1
?	952 994 40	Harness Control plate 11X_61-10X361	1
?	953 028 40	Harness 11X_30-10X171	1
?	954 515 40	Harness 11X_30/40-10X140	1
?	957 099 40	Data connection CAN-BUS 12X308-10X309	1
?		Harnesses to connection point ceiling	-1
?	958 926 40	Data connection CAN-BUS 10X335B-10X335C	1
?	952 995 40	Harness 11X_10-10XB20	1
?	952 996 40	Harness 11X_20-10XC20	1
?	953 029 40	Harness 11X_20-10X720	1
?	953 030 40	Harness 11X_20-10X820	1
?	953 031 40	Harness 11X_20-10X920	1
?	953 032 40	Harness 11X_20-10X520	1
?	953 034 40	Harness 11X_20-10X620	1
?	953 045 40	Supply line Contoller / Cabin 11X_20-10X020	1
?	954 513 40	Harness 11X_20-10X120	1
?	960 601 40	Harness 11X_20-10X220	1
?	956 720 40	Harness 11X_20-10XF20	1
?	957 906 40	Harness 11X_20-10XG20	1
?	958 945 40	Data connection CAN-BUS 11X301-10X300	1
?	953 098 40	Harness 11X_20-10X320	1
?	954 501 40	Harness 11X_20-10X420	1
?		Single parts for harnesses	-1
?	056 070 40	Cable sleeve 1,0-1,5	281
?	941 766 40	Cable shoe 1,5-2,5	1
?	056 071 40	Cable sleeve 2,5	20
?	055 108 40	Cable lug, blue 2,5 M5	1
?	907 641 40	Wire end ferrule	20
?	500 090 98	Wire end ferrule 0,75-6	90
?	269 078 40	Wire end ferrule 16/28,7	5
?	906 668 40	Cable sleeve	4
?	941 599 40	Cable 20x0,5	-2
?	907 877 40	Cable 2x0,75	-2
?	515 213 40	Cable 1,0	-2
?	940 169 40	Cable 4x1	-2
?	655 873 40	Cable 1,5	-2
?	515 214 40	Cable 2,5	-2
?	907 553 40	Cable 16,0	-2
?	932 876 40	Cable	10
?	950 435 40	Cable CAN-BUS	-2
?	950 419 40	Connection line	-2
?	907 653 40	Insulating tube	-2
?	940 460 40	Insulating tube B4x0,5	-2
?	940 461 40	Insulating tube B5x0,6	-2
?	940 462 40	Insulating tube B6x0,6	-2
?	940 467 40	Insulating tube B14x1	-2
?	635 896 40	Tube protection	-2
?	941 839 40	Protective hose DN 10	-2
?	941 840 40	Protective hose DN 12	-2
?	941 841 40	Protective hose DN 17	-2
?	655 651 40	Protective hose DN 17	-2
?	941 842 40	Protective hose DN 23	-2
?	941 843 40	Protective hose DN 29	-2
?	950 206 40	Protective hose DN 48	-2
?	907 477 40	Cable union DN 12	1
?	655 634 40	Pipe adapter DN 23/17	1
?	907 703 40	Cable union 4x3	1
?	907 704 40	Cable union 3x3,5	1
?	907 947 40	Connector distributor DN 29/23	1
?	907 975 40	Fitting DN17	11
?	907 976 40	Fitting DN 23	1
?	907 979 40	Fitting DN17	1
?	907 980 40	Fitting DN 23	10
?	940 471 40	Fitting M16/DN10	2
?	950 117 40	Socket	1
?	906 631 40	Plug	1
?	940 453 40	Plug	1
?	906 632 40	Plug	1
?	906 633 40	Plug	2
?	906 634 40	Plug	1
?	950 119 40	Socket	4
?	950 122 40	Socket	1
?	950 124 40	Socket	2
?	950 125 40	Socket	5
?	950 140 40	Socket	1
?	950 146 40	Socket	10
?	950 129 40	Protection cap	11
?	950 130 40	Protection cap	11
?	950 177 40	Protection cap	1
?	950 170 40	Socket	1
?	950 171 40	Socket	1
?	950 178 40	Body	1
?	950 173 40	O-ring	1
?	955 627 40	Plug assy.	1
?	907 865 40	Plug	1
?	958 955 40	Bushing assy., protective cover	10
?	958 956 40	Bushing assy., protective cover	8
?	906 647 40	T-Splitter	5
?	932 947 40	Plug assy.	1
?	932 517 40	Bushing contact	10
?	0819100770	Plug	13
?	940 852 40	Plug	121
?	896 520 40	End pin	1
?	896 521 40	End pin	1
?	0819105420	Bushing contact	285
?	621 699 40	Female contact 1-2 qmm	9
?	941 426 40	Bushing contact	5
?	950 175 40	Bushing contact	3
?	906 635 40	Contact	67
?	950 174 40	Pin contact	3
?	950 179 40	Contact element	1
?	941 443 40	Plug	2
?	0819110808	Nut	11
?	0819110809	Lock washer	11
?	941 329 40	Seal ring	11
?	0819150808	Nut	11
?	950 318 40	Lock washer	13
?	941328 40	Seal ring	13
?	950 207 40	End grommet DN 10	5
?	950 208 40	End grommet DN 12	5
?	950 209 40	End grommet DN 17	13
?	655 693 40	End grommet DN 23	11
?	950 210 40	End grommet DN 29	1
?	950 212 40	End grommet DN 48	2
?	174 411 40	Cable strap	112
?	941 777 40	Plate	56
?	0819213200	Body	1
?	941 144 40	End resistor	1
?	0819105440	Bushing contact	13

Komatsu PC5500-6E S/N 15089 parts catalog PDF

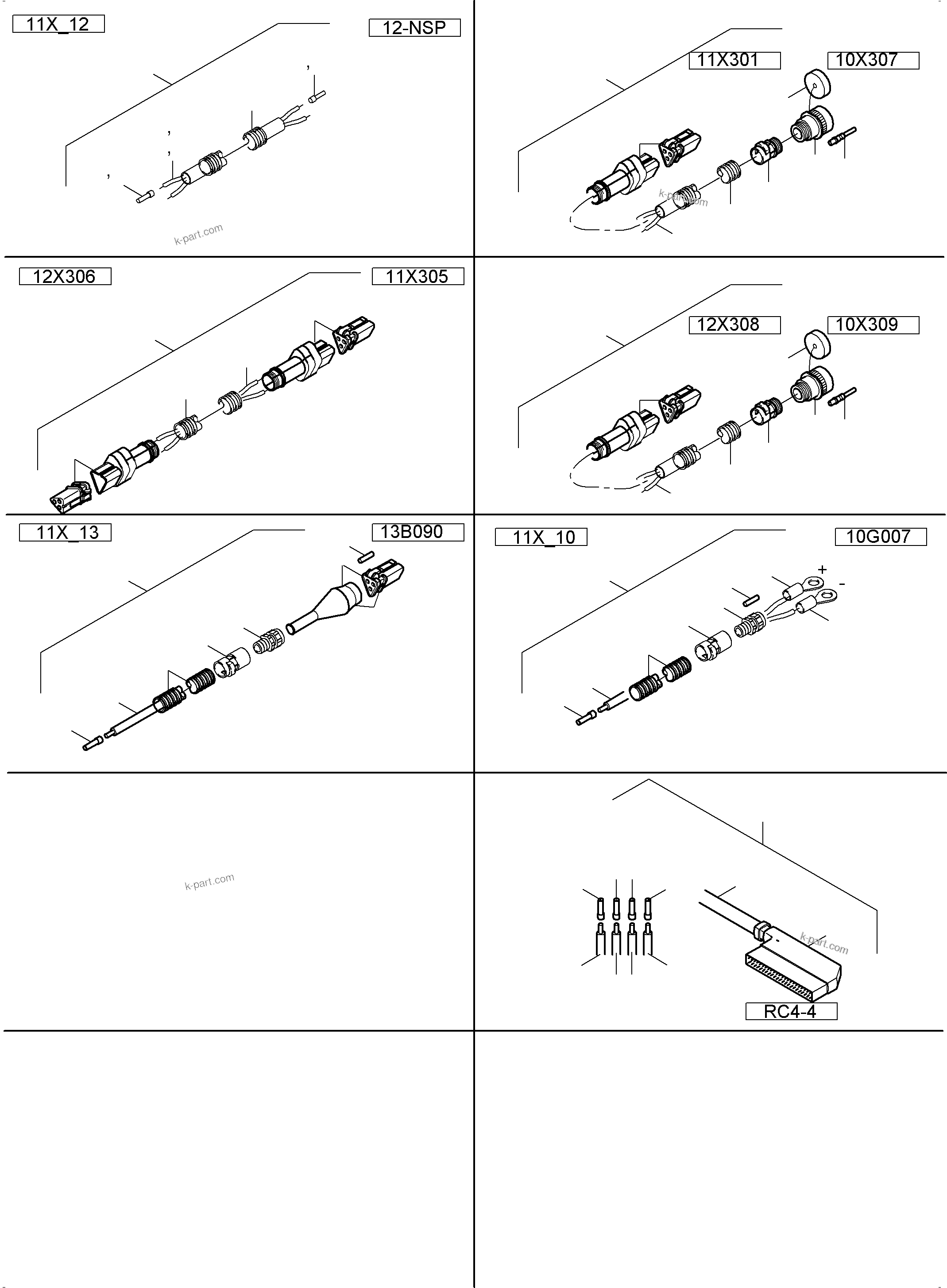

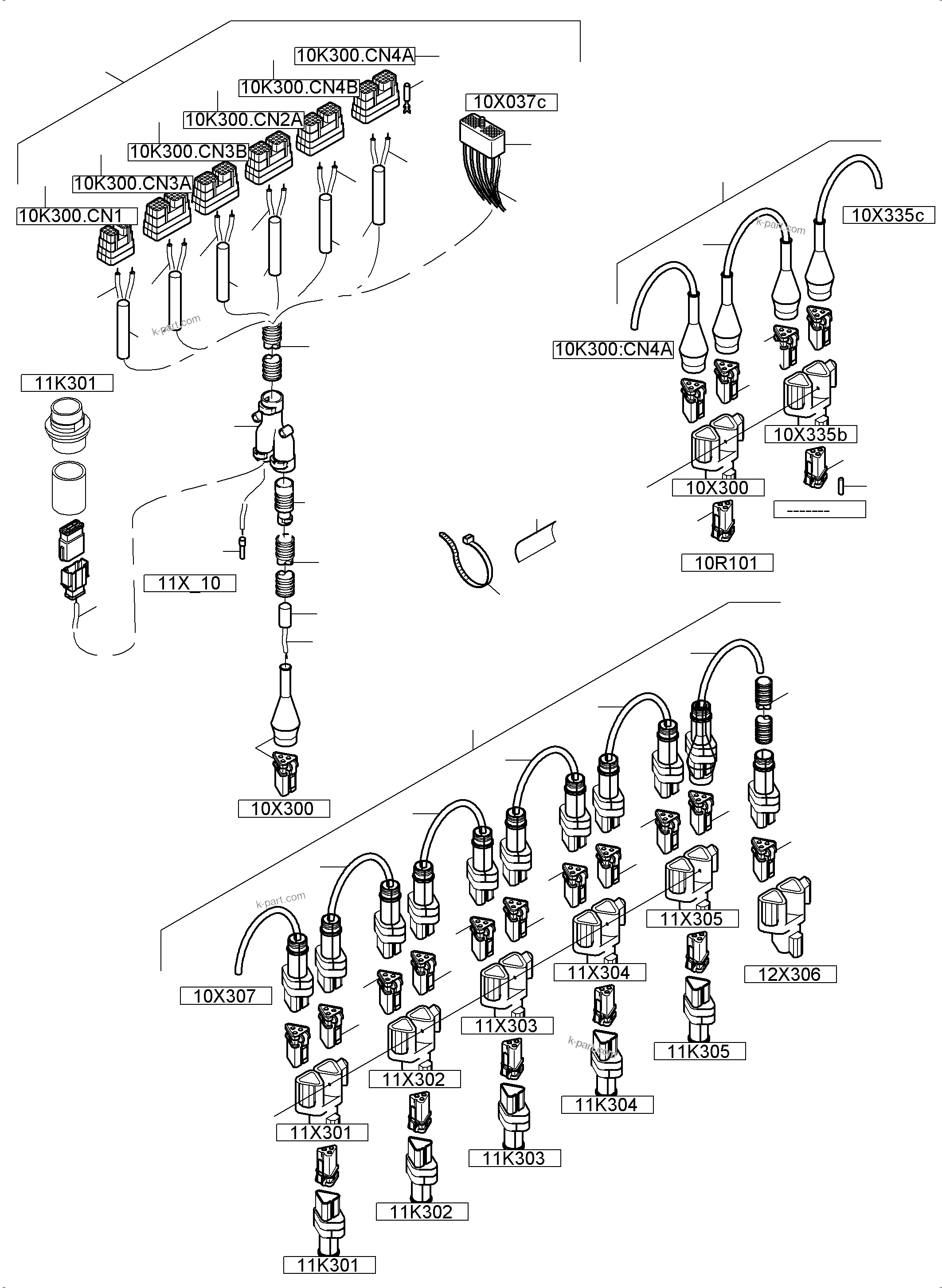

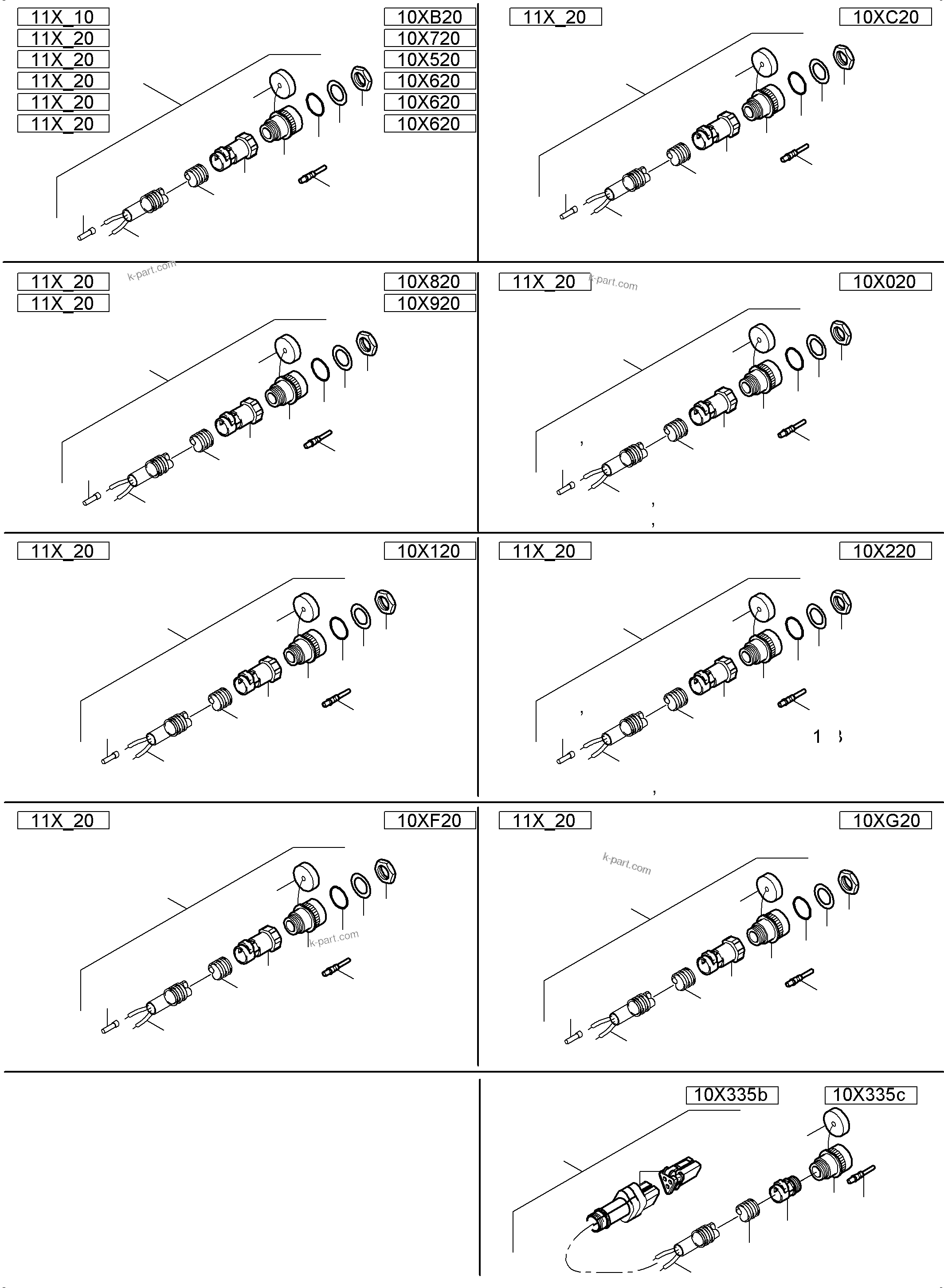

CABIN SUPPORT HARNESSES (715-2214a) in PC5500-6E S/N 15089. Diagram image and parts list.
