PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	931 310 40	Harness - pump regulation	1	InternKon: 931 347 40 / 1
?	795 132 73	Plug assy. 2-pole	9	InternKon: 931 310 40 / 16
?	907 703 40	Cable union	7	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 931 310 40 / 14
?	896 520 40	End pin	12	InternBDB: BO 3,0x25 \| InternKon: 931 310 40 / 15
?	907 692 40	Fitting PG 9	7	InternBDB: BVIR - M 162 \| InternKon: 931 310 40 / 13
?	655 650 40	Protecting hose DN 12	-2	InternBDB: VCST - 12 B \| InternKon: 931 310 40 / 3
?	655 810 40	Pipe adapter DN 29/12	2	InternBDB: BAVR-29 G 12 T \| InternKon: 931 310 40 / 2
?	655 633 40	Pipe adapter DN 17/12	4	InternBDB: BAVR-17 G 12 T \| InternKon: 931 310 40 / 10
?	655 651 40	Protecting hose DN 17	-2	InternBDB: VCSG - 17 B \| InternKon: 931 310 40 / 12
?	655 629 40	T-Distributor DN 17	3	InternBDB: BFTL - 17 17 17 GGG \| InternKon: 931 310 40 / 9
?	655 627 40	Distributor DN 23/17	1	InternBDB: BVYR - 23 17 17 GGG \| InternKon: 931 310 40 / 8
?	655 652 40	Protecting hose DN 23	-2	InternBDB: VCSG - 23 B \| InternKon: 931 310 40 / 6
?	907 877 40	Cable 2x0,75	-2	InternKon: 931 310 40 / 17
?	515 213 40	Cable 1,0	-2	InternKon: 931 310 40 / 18
?	256 614 40	Name plate	10	InternKon: 931 310 40 / 11
?	056 292 40	Cable strap	10	InternBDB: TY 23 M \| InternKon: 931 310 40 / 23
?	940 480 40	Sensor	2	InternBDB: WIDERSTANDSTHERMOMETER 420355 PT100 G1/2" \| InternKon: 931 347 40 / 23
?	906 079 40	T-Distributor DN 29	1	InternBDB: BFTL - 29 29 29 GGG \| InternKon: 931 310 40 / 1
?	655 696 40	Protecting hose DN 29	-2	InternBDB: VCSG - 29 B \| InternKon: 931 310 40 / 4
?	896 558 40	Pipe adapter DN 29/23	1	InternBDB: BAVR-29 G 23 G \| InternKon: 931 310 40 / 5
?	655 630 40	T-Distributor DN 29/23	1	InternBDB: BFTL - 29 23 23 GGG \| InternKon: 931 310 40 / 7
?	795 131 73	Plug assy.	2	InternBDB: KES 0819212820 \| InternKon: 931 347 40 / 24
?	931 325 40	Plate	1	InternKon: 931 347 40 / 2
?	931 330 40	Plate	1	InternKon: 931 347 40 / 3
?	931 326 40	Plate	5	InternKon: 931 347 40 / 4
?	931 327 40	Plate	1	InternKon: 931 347 40 / 5
?	931 329 40	Plate	2	InternKon: 931 347 40 / 6
?	931 352 40	Retainer	1	InternKon: 931 347 40 / 7
?	933 398 40	Plate	1	InternKon: 931 347 40 / 8
?	307 777 99	Bolt	29	InternBDB: M10x25/933 \| InternKon: 931 347 40 / 9
?	517 122 98	Lock washer	43	InternBDB: 10 WN 655 938 40 \| InternKon: 931 347 40 / 10
?	307 772 99	Bolt	1	InternBDB: M10x12/933 \| InternKon: 931 347 40 / 22
?	307 821 99	Bolt	2	InternBDB: M16x25/933 \| InternKon: 931 347 40 / 11
?	517 123 98	Lock washer	2	InternBDB: 16 WN 655 938 40 \| InternKon: 931 347 40 / 12
?	307 849 99	Bolt	6	InternBDB: M20x70/933 \| InternKon: 931 347 40 / 13
?	307 842 99	Bolt	8	InternBDB: M20x35/933 \| InternKon: 931 347 40 / 15
?	517 124 98	Lock washer	8	InternBDB: 20 WN 655 938 40 \| InternKon: 931 347 40 / 16
?	0443453211	Clip	19	InternKon: 931 347 40 / 17
?	0443451610	Clip	15	InternKon: 931 347 40 / 20
?	0443452711	Clip	2	InternKon: 931 347 40 / 18
?	0443452110	Clip	2	InternKon: 931 347 40 / 19
?	0819320010	Clip	8	InternKon: 931 347 40 / 21
?	907 981 40	Fitting DN 29	1	InternBDB: BVIVG-DN 29 \| InternKon: 931 310 40 / 19
?	795 129 73	Plug	1	InternBDB: Deutsch HD36-24-31PE-059 \| InternKon: 931 310 40 / 20
?	795 123 73	Pin	24	InternBDB: Deutsch 0460-202-16141 \| InternKon: 931 310 40 / 21
?	795 122 73	Sealing plug	7	InternBDB: 114 017 KES \| InternKon: 931 310 40 / 22
?	940 461 40	Insulating tube B5x0,6	-2	InternBDB: IS-SCHLAUCH B 5 X0,6 PUR 70 SHORE \| InternKon: 931 310 40 / 24
?	655 626 40	Distributor DN 17/12	1	InternBDB: VERTEILER NW 17/12 BVYR-171212GTT HOSEN- \| InternKon: 931 310 40 / 25

Komatsu PC3000-6 S/N 46174 parts catalog PDF

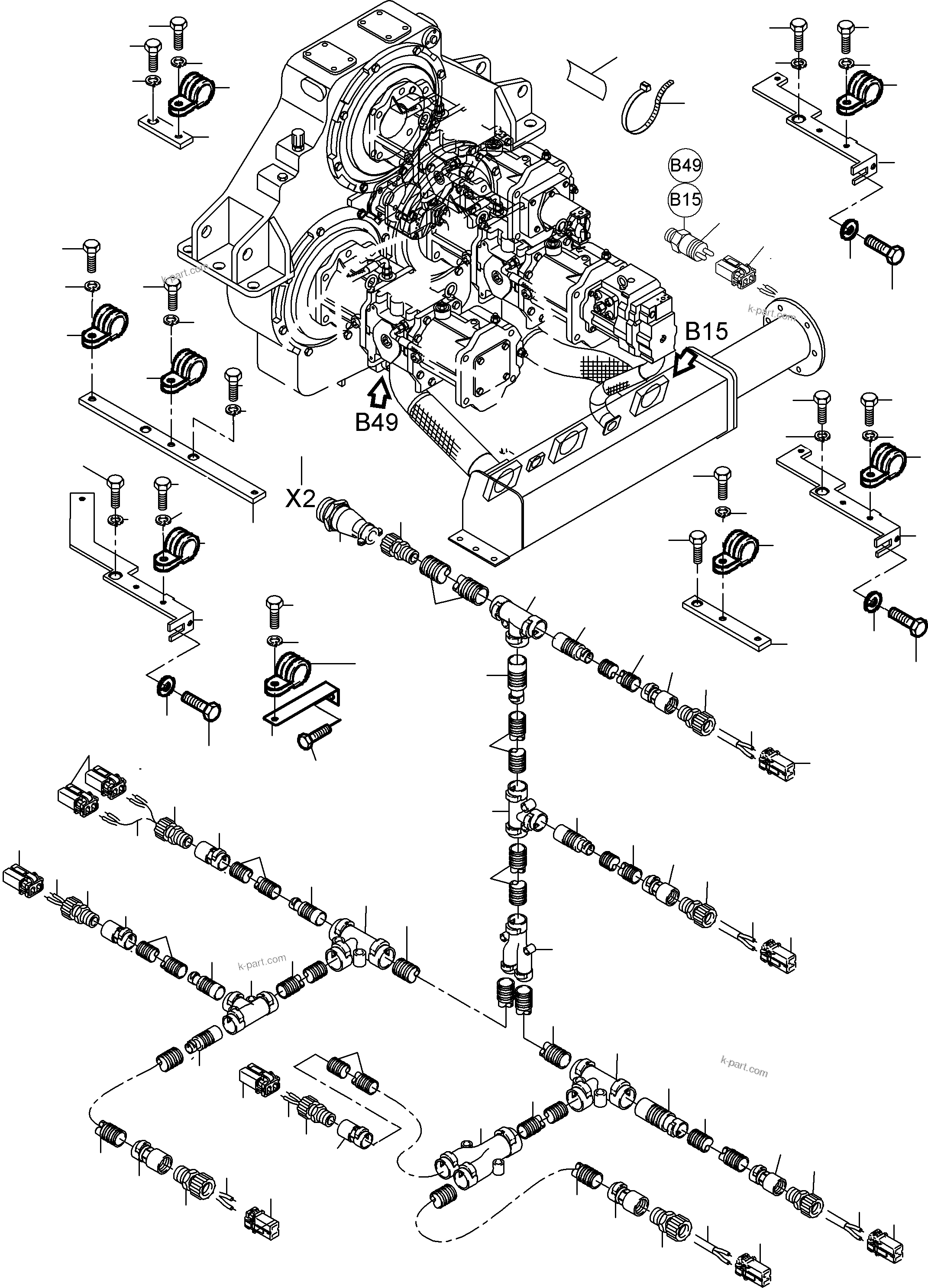

CABLES - PUMP DISTRIBUTOR GEAR (485-2148d) in PC3000-6 S/N 46174. Diagram image and parts list.
