Diagram image 1 of 2

PC3000-6 S/N 46174

02 02 03 03 04 05 06 07 08 09 10 11 12 12 13 14 14 15 15 17 18 19 20 20 20 23 26 30 30 43 44 45 55 55 56 56 56 57 57 58 58 59 60 60 61 61 62 62 63 63 63 64 65 65 66 66 66 67 68 68 68 69 69 70 70 71 72 73 73 74 75 76 76 77 77 78 79 79 80 81 82 83 83 84 84 85 85 86 86 87 87 87 88 89 89 90 91 92 93 94 94 95 95 96 96 97 97 98

PC3000-6 S/N 46174

01 100 101 102 103 104 104 105 106 20 20 20 21 22 23 23 23 23 23 23 23 24 24 24 24 24 24 24 25 25 26 26 26 26 26 27 27 27 27 27 28 28 29 30 32 32 33 33 35 36 37 38 39 39 40 41 41 41 41 41 42 42 42 43 43 43 43 43 43 43 43 43 43 43 43 43 43 44 44 44 45 45 45 45 45 46 47 48 48 49 50 50 51 52 52 52 53 54 55 55 55 55 57 60 60 60 61 61 64 64 99

#	Part Number	Partname	Quantity	Options
01	931 309 40	Harness - engine	1	InternKon: 931 311 40 / 1
02	931 387 40	Harness - Generator-Ground	1	InternKon: 931 311 40 / 30
03	931 387 40	Harness - Enginefeet-Ground	1	InternKon: 931 311 40 / 33
04	940 473 40	Sensor	1	InternBDB: WIDERSTANDSTHERMOMETER PT100 420366 G1/2" NPTF * \| InternKon: 931 311 40 / 23
05	906 753 40	Pressure switch - engine-oil pressure	1	InternBDB: Suco 0166 403 03 3011 0,9bar \| InternKon: 931 311 40 / 26
06	906 754 40	Pressure switch - engine-oil pressure	1	InternBDB: Suco 0166 407 03 3027 2,8bar \| InternKon: 931 311 40 / 27
07	431 169 40	Temperature transmitter	1	InternBDB: Moto-Meter 642.007.1009 \| InternKon: 931 311 40 / 24
08	515 562 40	Pressure transmitter 10 bar	1	InternBDB: Moto-Meter 675.002.1012 1/8 - 27 NPTF \| InternKon: 931 311 40 / 28
09	414 899 40	RPM-sensor	1	InternBDB: Cummi 303 9524 3/4-16 UNF \| InternKon: 931 311 40 / 29
10	793 258 73	Fuse with cable	1	InternBDB: 300A 24V 3633716
11	766 379 73	RPM-sensor	1	InternBDB: Cummi 307 9604
12	659 892 40	Starter relay assy.	2
13	792 585 73	Time lag relay	1	InternBDB: Cummi 363 37 15
14	635 965 40	Relay	1	InternBDB: Cummi 305 0692 \| InternKon: 659 892 40 / 1
15	655 642 40	Circular bearing	8	InternBDB: Typ A 5218 132 \| InternKon: 659 892 40 / 2
17	906 756 40	Pressure switch (cooling water HL)	1	InternBDB: Suco 0166 403 03 3011 1,0bar \| InternKon: 931 311 40 / 25
18	931 317 40	Plate	1	InternKon: 931 311 40 / 11
19	931 316 40	Plate	1	InternKon: 931 311 40 / 20
20	255 745 40	Rubber grommet	11	InternBDB: 313.0558.000 \| InternKon: 931 309 40 / 22
21	055 104 40	Cable lug 1,5	1	InternKon: 931 309 40 / 45
22	896 521 40	End pin	1	InternBDB: B0 4x25 Pflitsch \| InternKon: 931 309 40 / 25
23	907 692 40	Fitting PG 9	14	InternBDB: BVIR-M162 \| InternKon: 931 309 40 / 12
24	455 757 99	Insulating tube	-2	InternBDB: B7x0,7 /40621 \| InternKon: 931 309 40 / 46
25	907 704 40	Cable union PG 9	3	InternBDB: Pflitsch 21650 YNPM 3x3,5 \| InternKon: 931 309 40 / 14
26	907 703 40	Cable union PG 9	11	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 931 309 40 / 13
27	896 520 40	End pin	7	InternBDB: B0 3,0x25 Pflitsch \| InternKon: 931 309 40 / 24
28	055 100 40	Cable lig	2	InternKon: 931 309 40 / 23
29	515 213 40	Cable 1,0 qmm	-2	InternBDB: KIW PUR-SEIL-FLEX 1,0 \| InternKon: 931 309 40 / 42
30	515 214 40	Cable 2,5 qmm	-2	InternBDB: KIW PUR-SEIL-FLEX 2,5 \| InternKon: 931 309 40 / 43
32	795 130 73	Plug assy. 2-pole	2	InternKon: 931 309 40 / 26
33	906 420 40	T-Distributor DN 12	2	InternBDB: BFTL-12 12 12 TTT \| InternKon: 931 309 40 / 4
35	621 547 40	Socket	2	InternBDB: Deutsch HD14-9-96 P \| InternKon: 931 309 40 / 16
36	621 548 40	Plug	1	InternBDB: Deutsch HD16-9-96 S \| InternKon: 931 309 40 / 15
37	621 698 40	Contact plug 1-2 qmm	9	InternBDB: Deutsch 0460-215-16141 \| InternKon: 931 309 40 / 17
38	621 699 40	Female contact 1-2 qmm	9	InternBDB: Deutsch 0460-209-16141 \| InternKon: 931 309 40 / 18
39	634 404 40	Strain relief	2	InternBDB: Deutsch HD 18-009 \| InternKon: 931 309 40 / 19
40	655 626 40	Connector distributor DN 17/12	1	InternBDB: BVYR-17 12 12 GTT \| InternKon: 931 309 40 / 8
41	655 633 40	Pipe adapter DN 17/12	5	InternBDB: BAVR-17 G 12 T \| InternKon: 931 309 40 / 9
42	655 651 40	Protecting hose DN 17	-2	InternBDB: VCSG-17B \| InternKon: 931 309 40 / 2
43	655 650 40	Protecting hose DN 12	-2	InternBDB: VCST-12B \| InternKon: 931 309 40 / 1
44	256 514 40	Name plate	15	InternKon: 931 309 40 / 38
45	655 652 40	Protecting hose DN 23	-2	InternBDB: VCSG-23B \| InternKon: 931 309 40 / 3
46	907 877 40	Cable 2x0,75	-2	InternKon: 931 309 40 / 44
47	907 733 40	T-Distributor DN 23	1	InternBDB: BVTR-23 23 23 \| InternKon: 931 309 40 / 6
48	655 630 40	T-Distributor DN 29/23	2	InternBDB: BVTL-29 23 23 GGG \| InternKon: 931 309 40 / 7
49	907 947 40	Connector distributor DN 29/23	1	InternBDB: BVYR-29 23 23 GGG \| InternKon: 931 309 40 / 36
50	655 629 40	T-Distributor DN 17	2	InternBDB: BFTL-171717 GGG \| InternKon: 931 309 40 / 5
51	655 634 40	Pipe adapter DN 23/17	2	InternBDB: BAVR-23 G 17 G \| InternKon: 931 309 40 / 10
52	655 810 40	Pipe adapter DN 29/12	2	InternBDB: PMA BAVR-29 G 12 T \| InternKon: 931 309 40 / 11
53	896 558 40	Pipe adapter DN 29/23	1	InternBDB: PMA BAVR-29 G 23 G \| InternKon: 931 309 40 / 35
54	907 971 40	Pipe adapter DN 23/12	1	InternBDB: PMA BAVR-23 G 12 T \| InternKon: 931 309 40 / 37
55	323 961 40	Sleeve 6,3x0,8	7	InternBDB: 35180 \| InternKon: 931 309 40 / 21
56	455 756 99	Insulating tube B 6x0,6	-2	InternBDB: B 6x0,6 /40621 \| InternKon: 931 381 40 / 6
57	256 721 40	Protection cap	1	InternBDB: 3 340 522 025 \| InternKon: 931 309 40 / 34
58	055 108 40	Cable lug 2,5	8	InternKon: 931 381 40 / 8
59	907 132 40	Cable lug	4	InternKon: 933 389 40 / 5
60	906 922 40	Protection cap	3	InternBDB: 1166621003 \| InternKon: 931 309 40 / 20
61	056 292 40	Cable strap	21	InternBDB: TY 23 M \| InternKon: 931 309 40 / 39
62	931 381 40	Harness starter relay plate	1	InternKon: 933 395 40 / 16
63	055 112 40	Cable lug	2	InternKon: 931 381 40 / 9
64	933 388 40	Plug assy. 4-pole	3	InternKon: 931 309 40 / 27
65	933 389 40	Harness Engine relay	1	InternKon: 933 395 40 / 17
66	056 076 40	Protection cap	3	InternBDB: 2000 558 000 \| InternKon: 931 388 40 / 1
67	600 212 99	Cable lug 12-95	1	InternKon: 931 388 40 / 2
68	600 209 99	Cable lug 10-95	3	InternKon: 931 388 40 / 3
69	932 556 40	Insulating tube	-2	InternKon: 931 388 40 / 4
70	471 671 99	Cable 70	-2	InternKon: 931 388 40 / 5
71	933 397 40	Plate	1	InternKon: 933 395 40 / 2
72	933 387 40	Plug assy.	1	InternKon: 933 389 40 / 1
73	517 853 98	Resilent sleeve 10,5/25x80	3	InternBDB: 10,5/25x80 WN 341 948 40 \| InternKon: 931 311 40 / 7
74	504 281 98	Bolt	3	InternBDB: 3/8-16UNCX 4 1/2 WN 010 500 99 \| InternKon: 931 311 40 / 8
75	340 611 99	Washer	4	InternBDB: 14/1440 \| InternKon: 931 311 40 / 4
76	507 037 98	Nut	24	InternBDB: M10/985 \| InternKon: 931 311 40 / 5
77	340 465 99	Washer	15	InternBDB: 10,5/125 \| InternKon: 931 311 40 / 6
78	307 792 99	Bolt	1	InternBDB: M10x100/933 \| InternKon: 931 311 40 / 15
79	307 779 99	Bolt	15	InternBDB: M10x30/933 \| InternKon: 931 311 40 / 16
80	307 661 99	Bolt	2	InternBDB: M4x10 /933 \| InternKon: 931 311 40 / 12
81	340 459 99	Washer	2	InternBDB: 4,3/125 \| InternKon: 931 311 40 / 13
82	343 104 99	Lock washer	2	InternBDB: 4/127 \| InternKon: 931 311 40 / 14
83	507 025 98	Nut	4	InternBDB: M 6 /985 \| InternKon: 933 395 40 / 12
84	307 727 99	Bolt	4	InternBDB: M6x12 /933 \| InternKon: 933 395 40 / 14
85	350 762 99	Washer	4	InternBDB: R 6,6 /440 \| InternKon: 933 395 40 / 13
86	517 120 98	Lock washer	4	InternBDB: 6 WN 655 938 40 \| InternKon: 933 395 40 / 15
87	0443551610	Clip	26	InternKon: 933 395 40 / 3
88	0443452110	Clip	2	InternKon: 931 311 40 / 9
89	0443452711	Clip	45	InternKon: 931 311 40 / 10
90	510 741 98	Resilent sleeve 13/25x50	8	InternBDB: 13/25x50 WN 341 948 40 \| InternKon: 931 311 40 / 18
91	517 122 98	Lock washer	13	InternBDB: 10 WN 655 938 40 \| InternKon: 931 311 40 / 17
92	516 092 98	Resilent sleeve 13/25x55	1	InternBDB: 13/25x55 WN 341 948 40 \| InternKon: 931 311 40 / 34
93	0443451210	Clip	2	InternKon: 931 311 40 / 21
94	511 869 98	Resilent sleeve 8,4/15x25	2	InternBDB: 8,4/15x25 WN 341 948 40 \| InternKon: 933 395 40 / 8
95	0819320010	Clip	5	InternKon: 933 395 40 / 4
96	307 761 99	Bolt	2	InternBDB: M8x55/933 \| InternKon: 933 395 40 / 9
97	517 121 98	Lock washer	2	InternBDB: 8 WN 655 938 40 \| InternKon: 933 395 40 / 10
98	933 399 40	Relay plate	1	InternKon: 933 395 40 / 1
99	055 108 40	Cable lug	1	InternKon: 931 309 40 / 47
100	795 129 73	Plug	1	InternBDB: Deutsch HD36-24-31PE-059 \| InternKon: 931 309 40 / 50
101	795 125 73	Plug	1	InternBDB: Deutsch HD36-18-8PE-059 \| InternKon: 931 309 40 / 51
102	907 980 40	Fitting DN 23	1	InternBDB: BVIVG-U353 \| InternKon: 931 309 40 / 52
103	795 123 73	Pin	27	InternBDB: Deutsch 0460-202-16141 \| InternKon: 931 309 40 / 53
104	795 122 73	Sealing plug	9	InternBDB: 114 017 KES \| InternKon: 931 309 40 / 54
105	907 974 40	Fitting DN 12	1	InternBDB: BVIVG-U292 \| InternKon: 931 309 40 / 55
106	795 124 73	Pin	3	InternBDB: Deutsch 0462-204-12141 \| InternKon: 931 309 40 / 56

Komatsu PC3000-6 S/N 46174 parts catalog PDF

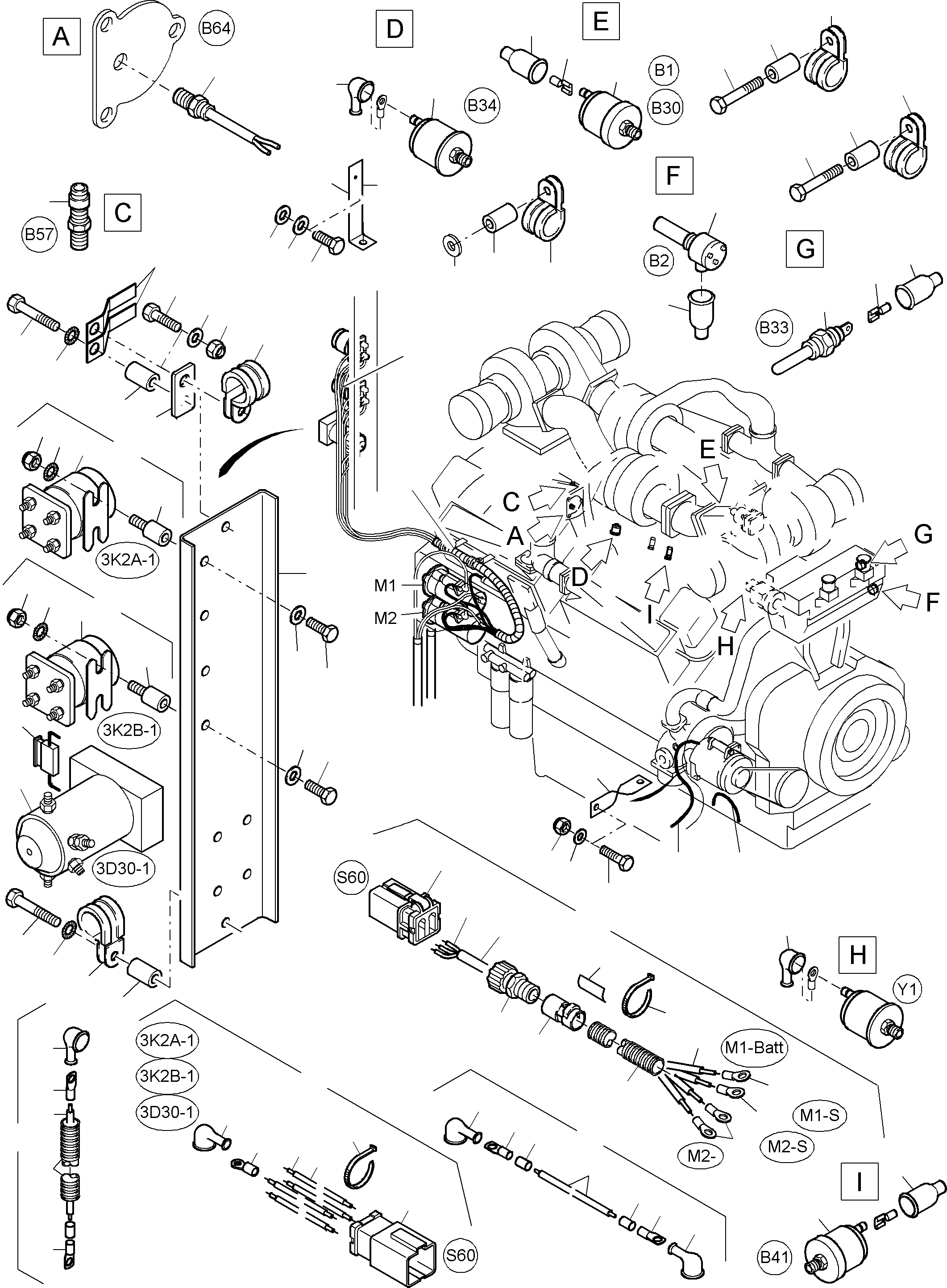

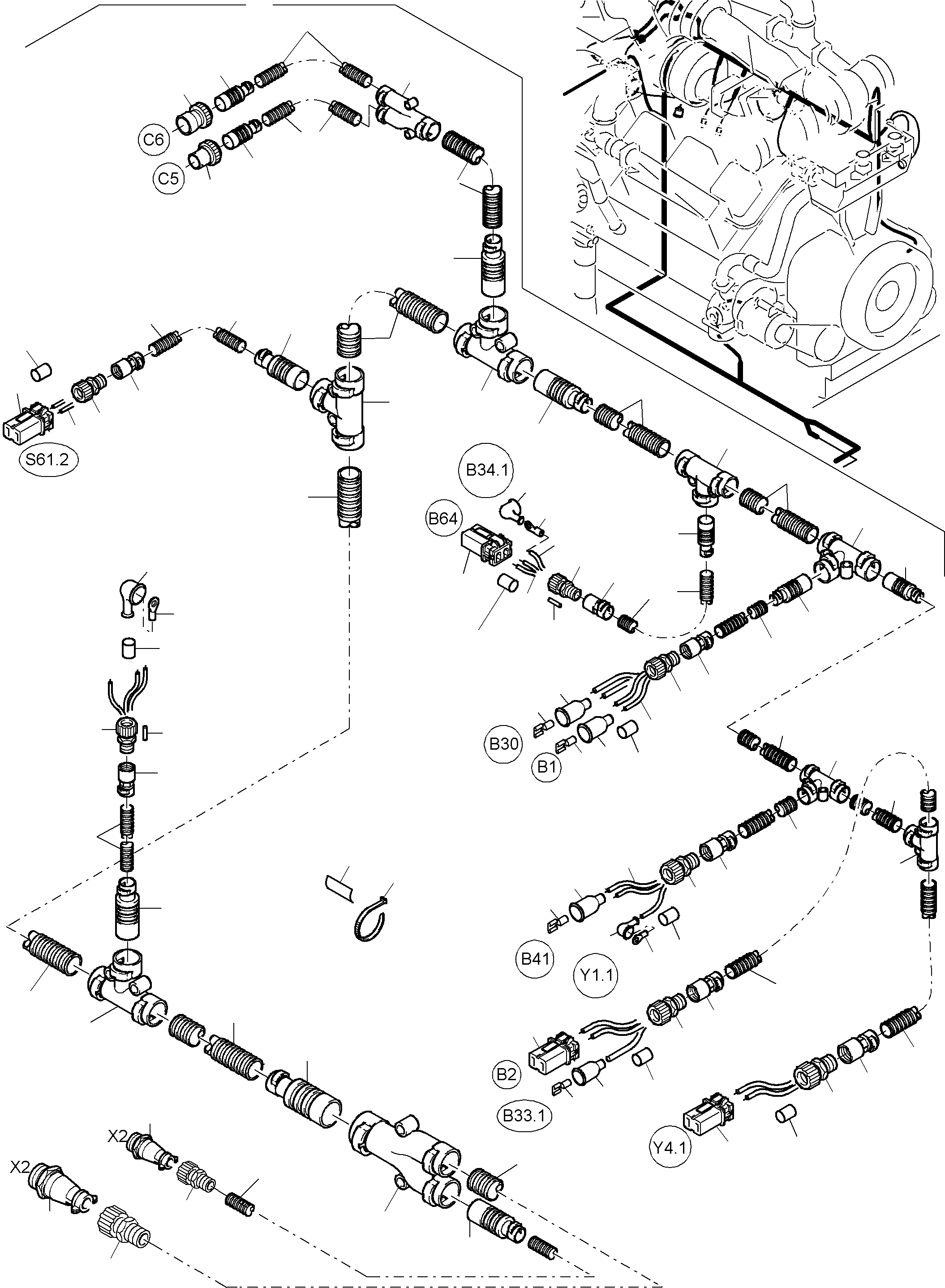

CABLES-ENGINE AND TRANSMITTER (485-2185c) in PC3000-6 S/N 46174. Diagram image and parts list.
