PC3000-6 S/N 46174

01 02 03 04 05 06 06 07 07 07 07 08 08 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 22 22 23 23 23 24 24 24 25 25 25 26 26 26 27 27 28 28 28 28 29 29 30 30 31 32 33 34 36 37 38 39 40 41 42 44 45 46 48 49 50 51 52 53 55 56 57 58 59 59 60 60

PC3000-6 S/N 46174

100 100 101 102 103 104 105 106 35 47 61 61 62 62 63 63 64 64 65 66 67 68 69 70 71 72 73 74 76 77 77 78 79 80 81 81 81 82 82 83 84 85 85 86 87 91 92 93 94 94 95 96 96 97 97 98 99

#	Part Number	Partname	Quantity	Options	Reference
01	942 006 40	Supporting beam	1	InternKon: 930 190 40 / 1
02	942 005 40	Lifting beam	1	InternKon: 930 190 40 / 2
03	903 237 40	Plate	1	InternKon: 930 190 40 / 3
04	903 221 40	Pin	1	InternKon: 930 190 40 / 5
05		Hydraulic cylinder	1	InternBDB: TL / Burnside 901 708 40 \| InternKon: 930 190 40 / 4	991-0471
06	515 827 98	Pin	2	InternBDB: 40F7x75x60 /1434 \| InternKon: 930 190 40 / 6
07	500 995 98	Washer	4	InternBDB: 41 /125 \| InternKon: 930 190 40 / 7
08	342 125 99	Cotter pin	4	InternBDB: 8x71 /94 \| InternKon: 930 190 40 / 8
09	374 409 99	Union	5	InternBDB: SDS-L22X M26x1,5 ISO 08434 \| InternKon: 930 190 40 / 9
10	374 415 99	Union	1	InternBDB: SDS-L42X M48x2 ISO 08434 \| InternKon: 930 190 40 / 10
11	896 748 40	Filler, Fuel	1	InternBDB: ZN 2 B \| InternKon: 930 190 40 / 11
12	341 711 40	Filler, grease	1	InternBDB: 6000 B 12 \| InternKon: 930 190 40 / 12
13	360 856 40	Protective cap	1	InternBDB: 6009 12 \| InternKon: 930 190 40 / 13
14	341 710 40	Filler, spray lubricant	1	InternBDB: OSP2 \| InternKon: 930 190 40 / 14
15	270 861 40	Filler, Hydraulic oil	1	InternBDB: 6005 A 12 \| InternKon: 930 190 40 / 15
16	270 862 40	Protective cap	1	InternBDB: 6008 12 \| InternKon: 930 190 40 / 16
17	324 436 40	Protective cap	1	InternBDB: ZC-20 EP \| InternKon: 930 190 40 / 17
18	323 905 40	Filler, engine oil	1	InternBDB: ON-2 \| InternKon: 930 190 40 / 18
19	324 437 40	Protective cap	1	InternBDB: C3B12P \| InternKon: 930 190 40 / 19
20	323 906 40	Filler, water	1	InternBDB: EC 285 A8 \| InternKon: 930 190 40 / 20
21	324 438 40	Protective cap	1	InternBDB: 1208-8 \| InternKon: 930 190 40 / 21
22	515 877 98	Graphic symbol (hydraulic oil)	2	InternKon: 930 190 40 / 22
23	515 872 98	Graphic symbol (fuel)	2	InternKon: 930 190 40 / 23
24	515 873 98	Graphic symbol (engine coolin water)	2	InternKon: 930 190 40 / 24
25	515 873 98	Graphic symbol (engine oil)	1	InternKon: 930 190 40 / 25
26	515 878 98	Graphic symbol (central greasing)	2	InternKon: 930 190 40 / 26
27	515 879 98	Graphic symbol (pinion greasing)	2	InternKon: 930 190 40 / 27
28	898 136 40	Hose D 20	4	InternBDB: TL / Dunlop \| InternKon: 930 190 40 / 28
29	898 139 40	Hose D 50	1	InternKon: 930 190 40 / 29
30	516 618 98	Socket	4	InternBDB: BH-L 22 / ISO 8434 \| InternKon: 930 190 40 / 30
31	517 820 98	Socket	1	InternBDB: BH-L 42 / ISO 8434 \| InternKon: 930 190 40 / 31
32	516 962 98	Socket	2	InternBDB: BH-L 12 / ISO 8434 \| InternKon: 930 190 40 / 32
33	340 465 99	Washer	4	InternBDB: B10,5 / DIN 125 \| InternKon: 930 190 40 / 33
34	512 476 98	Nut	4	InternBDB: M10 / DIN 982 \| InternKon: 930 190 40 / 34
35	517 290 98	Union	2	InternBDB: 12 LM/OMD \| InternKon: 930 190 40 / 35
36	534 008 99	Cover plate	4	InternBDB: S-DP-A-4 / DIN 3015 \| InternKon: 930 190 40 / 36
37	517 819 98	Half clamp	8	InternBDB: S-4-G-67 / DIN 3015 \| InternKon: 930 190 40 / 37
38	308 612 99	Bolt	8	InternBDB: M12x100 / DIN 931 \| InternKon: 930 190 40 / 38
39	343 054 99	Washer 13	8	InternBDB: DIN 463 \| InternKon: 930 190 40 / 39
40	308 631 99	Bolt	4	InternBDB: M16x55 / DIN 931 \| InternKon: 930 190 40 / 40
41	340 510 99	Washer A 17	4	InternBDB: DIN 125 \| InternKon: 930 190 40 / 41
42	334 601 99	Nut	4	InternBDB: M16 / 8 DIN 985 \| InternKon: 930 190 40 / 42
44	516 039 98	Hose assy. DN 10x600	2	InternBDB: DOL 12 90 \| InternKon: 930 190 40 / 44
45	170 427 40	Cable strap	9	InternBDB: TY 27 M / 300x7,8 \| InternKon: 930 190 40 / 45
46	928 885 40	Rubber plate	6	InternBDB: 140x 315 \| InternKon: 930 190 40 / 46
47	903 224 40	Hose	1	InternBDB: D 20 / TL Dunlop \| InternKon: 930 190 40 / 47
48	930 111 40	Plate	1	InternKon: 930 190 40 / 48
49	509 267 98	Nut	2	InternBDB: M18x1,5 / DIN 80705 \| InternKon: 930 190 40 / 49
50	506 954 98	Nut	4	InternBDB: M30x2 / DIN 80705 \| InternKon: 930 190 40 / 50
51	507 558 98	Nut	1	InternBDB: M50x 2 / DIN 80705 \| InternKon: 930 190 40 / 51
52	360 873 40	Plug	2	InternBDB: M26x1,5 \| InternKon: 930 190 40 / 52
53	359 987 99	Plug	1	InternBDB: M 18x1,5 \| InternKon: 930 190 40 / 53
55	516 163 98	Socket	1	InternBDB: SWE-L 42 / ISO 4834 \| InternKon: 930 190 40 / 55
56	308 426 99	Bolt	2	InternBDB: M16x80 / DIN 931 10.9 \| InternKon: 930 195 40 / 38
57	308 423 99	Bolt	2	InternBDB: M16x120 / DIN 931 10.9 \| InternKon: 930 195 40 / 37
58		See Electric Parts-Refueling	1
59	340 510 99	Washer	8	InternBDB: 17 / DIN 125 \| InternKon: 930 195 40 / 59
60	334 601 99	Nut	8	InternBDB: M16 / DIN 985 \| InternKon: 930 195 40 / 60
61	504 369 98	Union	2	InternBDB: S-L 12 / ISO 8434 \| InternKon: 913 394 40 / 4
62	517 269 99	Socket	2	InternBDB: L12-M / 3945 \| InternKon: 913 394 40 / 3
63	517 773 98	Hose assy. 10x5100	1	InternBDB: DOL 12 90 \| InternKon: 913 394 40 / 1
64	516 393 98	Hose assy. 10x5300	1	InternBDB: DOL 12 90 \| InternKon: 913 394 40 / 2
65	168 422 40	Hose DN 33	-2	InternBDB: 33x25 PVC Typ 0103 \| InternKon: 930 195 40 / 27
66	898 529 40	Pipe assy.	1	InternKon: 930 195 40 / 25
67	896 671 40	Hose DN 32	-2	InternBDB: 32x5 Gewehr \| InternKon: 930 195 40 / 26
68	374 921 99	Clamp	1	InternBDB: A 25-40x9 / 3017 \| InternKon: 930 195 40 / 28
69	551 704 40	Vent valve	1	InternBDB: ZV 10 A \| InternKon: 926 988 40 / 2
70	926 990 40	Cover	1	InternBDB: Red 22/18-PL /OMD \| InternKon: 926 988 40 / 1
71	2086238370	Clip	4	InternBDB: CLIP PC 1100- 6 \| InternKon: 930 195 40 / 50
72	507 037 98	Nut	5	InternBDB: 6KTMU M10 8 DIN 00985 \| InternKon: 930 195 40 / 33
73	906 930 40	Union	1	InternBDB: 28-LM / OMD WN \| InternKon: 930 195 40 / 17
74	551 345 40	Union	1	InternBDB: Red 28 / \| InternKon: 930 195 40 / 70
76	516 235 98	Socket SWDS-L22X	1	InternBDB: M26x1,5 / ISO 8434 \| InternKon: 930 195 40 / 8
77	515 912 98	Valve	2	InternBDB: RHD 22-PL WN 010 872 99 0,2 bar \| InternKon: 930 195 40 / 20
78	515 882 98	Union	1	InternBDB: GV 22-LR \| InternKon: 930 195 40 / 22
79	516 281 98	Union	1	InternBDB: SWRT-L22XG 3/4 / ISO 8434 \| InternKon: 930 195 40 / 21
80	516 160 98	Union	2	InternBDB: SWE-L22 / ISO 8434 \| InternKon: 930 195 40 / 19
81	514 129 98	Hose DN 20x3300	1	InternBDB: SHL120 20X 3300 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 930 195 40 / 24
82	517 836 98	Hose DN 20x3100	1	InternBDB: SHL120 20X 3100 DOL 22 DOL 22 WN 34195140 \| InternKon: 930 195 40 / 7
83	374 415 99	Socket	1	InternBDB: SDS-L42X M48x2 / ISO 8434 \| InternKon: 930 195 40 / 9
84	516 163 98	Union	1	InternBDB: SWE-L42 / ISO 8434 \| InternKon: 930 195 40 / 10
85	517 832 98	Hose DN 40x4300	1	InternBDB: DOL 42 \| InternKon: 930 195 40 / 3
86	517 835 98	Hose DN 20x6100	1	InternBDB: DOL 22 \| InternKon: 930 195 40 / 6
87	517 834 98	Hose DN 20x6000	1	InternBDB: DOL 22 \| InternKon: 930 195 40 / 5
91	502 641 98	Half clamp	8	InternBDB: S-4-G-67 / DIN 3015 \| InternKon: 930 195 40 / 43
92	534 008 99	Cover plate	4	InternBDB: S-DP-A-4 / DIN 3015 \| InternKon: 930 195 40 / 44
93	308 612 99	Bolt	8	InternBDB: M12x100 / DIN 912 \| InternKon: 930 195 40 / 36
94	654 892 40	Union	2	InternBDB: GE 18-L/1/2 NPT / OMD \| InternKon: 930 195 40 / 14
95	551 404 40	Union	2	InternBDB: Red 22/18-PL/OMD \| InternKon: 930 195 40 / 16
96	517 808 98	Hose DN 16x210	1	InternBDB: DOL 18 / DOL 18-90 \| InternKon: 930 195 40 / 31
97	374 438 99	Union	2	InternBDB: SDS-L22 / ISO 8434 \| InternKon: 930 195 40 / 15
98	551 404 40	Union	2	InternBDB: Red 22/18-PL / OMD \| InternKon: 930 195 40 / 16
99	517 056 98	Union	1	InternBDB: SWBT-L22 / ISO 8434 \| InternKon: 930 195 40 / 30
100	517 833 98	Hose 20x3500	1	InternBDB: DOL 22-90 / DOL 22-90 \| InternKon: 930 195 40 / 4
101	305 992 99	Ball cock	1	InternBDB: 3/4 \| InternKon: 930 195 40 / 29
102	324 572 40	Washer	1	InternBDB: Cummi 67946 \| InternKon: 930 195 40 / 13
103	324 571 40	Adapter	1	InternBDB: Cummi 196 155 \| InternKon: 930 195 40 / 12
104	655 294 40	Union	1	InternBDB: GE 22-L / 3/4 NPT OMD \| InternKon: 930 195 40 / 11
105	516 160 98	Union	2	InternBDB: SWE-L22 / ISO 8434 \| InternKon: 930 195 40 / 19
106	516 235 98	Socket	1	InternBDB: SWDS-L22X M26x1,5 / ISO 8434 \| InternKon: 930 195 40 / 8

Komatsu PC3000-6 S/N 46174 parts catalog PDF

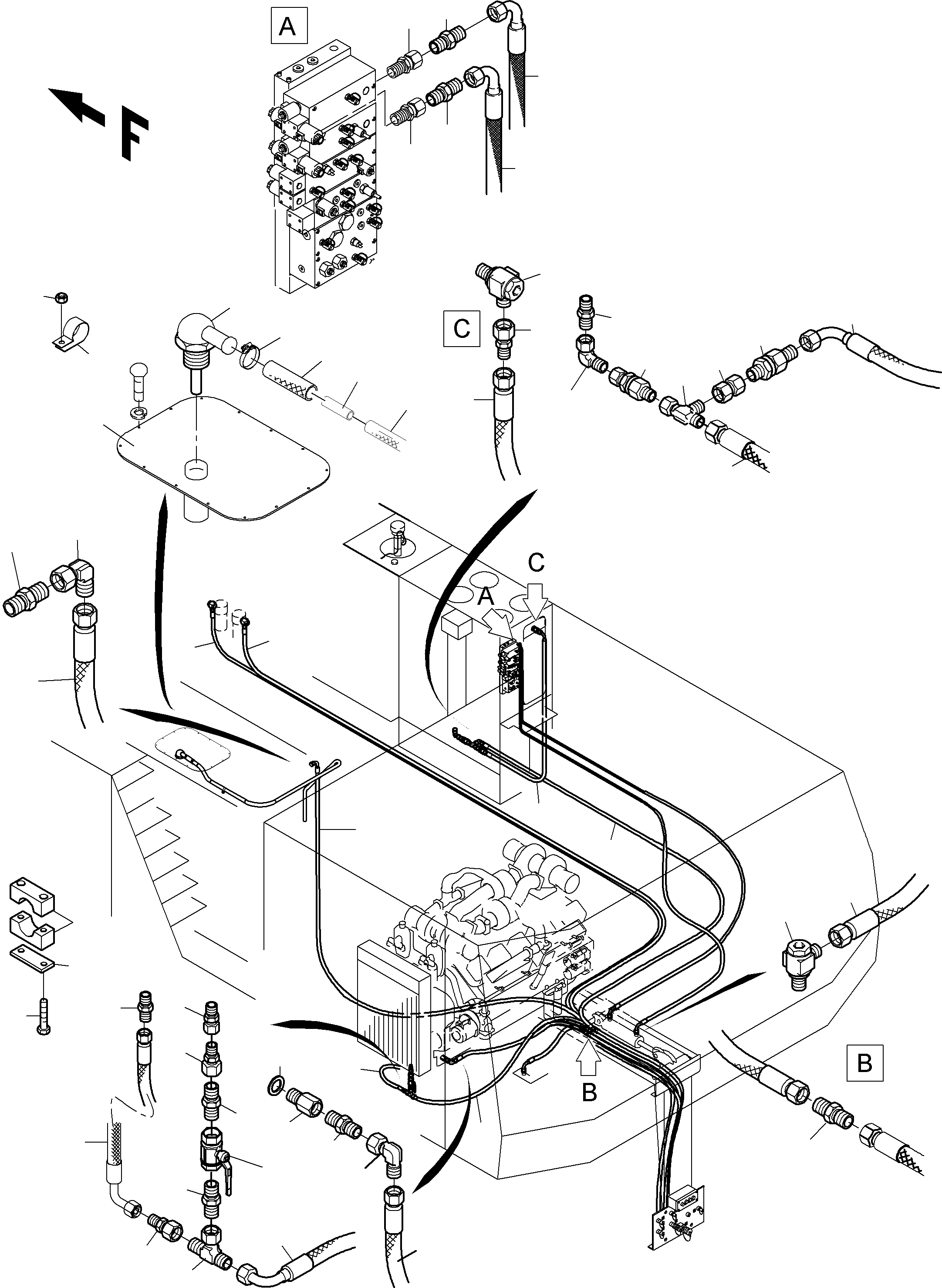

REFUELING EQUIPMENT (485-2306b) in PC3000-6 S/N 46174. Diagram image and parts list.
