#	Part Number	Partname	Quantity	Options	Reference
?	942 006 40	Supporting beam	1	InternKon: 930 190 40 / 1
?	942 005 40	Lifting beam	1	InternKon: 930 190 40 / 2
?	903 237 40	Plate	1	InternKon: 930 190 40 / 3
?	903 221 40	Pin	1	InternKon: 930 190 40 / 5
?		Hydraulic cylinder	1	InternBDB: TL / Burnside 901 708 40 \| InternKon: 930 190 40 / 4	991-0471
?	515 827 98	Pin	2	InternBDB: 40F7x75x60 /1434 \| InternKon: 930 190 40 / 6
?	500 995 98	Washer	4	InternBDB: 41 /125 \| InternKon: 930 190 40 / 7
?	342 125 99	Cotter pin	4	InternBDB: 8x71 /94 \| InternKon: 930 190 40 / 8
?	374 409 99	Union	5	InternBDB: SDS-L22X M26x1,5 ISO 08434 \| InternKon: 930 190 40 / 9
?	374 415 99	Union	1	InternBDB: SDS-L42X M48x2 ISO 08434 \| InternKon: 930 190 40 / 10
?	896 748 40	Filler, Fuel	1	InternBDB: ZN 2 B \| InternKon: 930 190 40 / 11
?	341 711 40	Filler, grease	1	InternBDB: 6000 B 12 \| InternKon: 930 190 40 / 12
?	360 856 40	Protective cap	1	InternBDB: 6009 12 \| InternKon: 930 190 40 / 13
?	341 710 40	Filler, spray lubricant	1	InternBDB: OSP2 \| InternKon: 930 190 40 / 14
?	270 861 40	Filler, Hydraulic oil	1	InternBDB: 6005 A 12 \| InternKon: 930 190 40 / 15
?	270 862 40	Protective cap	1	InternBDB: 6008 12 \| InternKon: 930 190 40 / 16
?	324 436 40	Protective cap	1	InternBDB: ZC-20 EP \| InternKon: 930 190 40 / 17
?	323 905 40	Filler, engine oil	1	InternBDB: ON-2 \| InternKon: 930 190 40 / 18
?	324 437 40	Protective cap	1	InternBDB: C3B12P \| InternKon: 930 190 40 / 19
?	323 906 40	Filler, water	1	InternBDB: EC 285 A8 \| InternKon: 930 190 40 / 20
?	324 438 40	Protective cap	1	InternBDB: 1208-8 \| InternKon: 930 190 40 / 21
?	515 877 98	Graphic symbol (hydraulic oil)	2	InternKon: 930 190 40 / 22
?	515 872 98	Graphic symbol (fuel)	2	InternKon: 930 190 40 / 23
?	515 873 98	Graphic symbol (engine coolin water)	2	InternKon: 930 190 40 / 24
?	515 873 98	Graphic symbol (engine oil)	1	InternKon: 930 190 40 / 25
?	515 878 98	Graphic symbol (central greasing)	2	InternKon: 930 190 40 / 26
?	515 879 98	Graphic symbol (pinion greasing)	2	InternKon: 930 190 40 / 27
?	898 136 40	Hose D 20	4	InternBDB: TL / Dunlop \| InternKon: 930 190 40 / 28
?	898 139 40	Hose D 50	1	InternKon: 930 190 40 / 29
?	516 618 98	Socket	4	InternBDB: BH-L 22 / ISO 8434 \| InternKon: 930 190 40 / 30
?	517 820 98	Socket	1	InternBDB: BH-L 42 / ISO 8434 \| InternKon: 930 190 40 / 31
?	516 962 98	Socket	2	InternBDB: BH-L 12 / ISO 8434 \| InternKon: 930 190 40 / 32
?	340 465 99	Washer	4	InternBDB: B10,5 / DIN 125 \| InternKon: 930 190 40 / 33
?	512 476 98	Nut	4	InternBDB: M10 / DIN 982 \| InternKon: 930 190 40 / 34
?	517 290 98	Union	2	InternBDB: 12 LM/OMD \| InternKon: 930 190 40 / 35
?	534 008 99	Cover plate	4	InternBDB: S-DP-A-4 / DIN 3015 \| InternKon: 930 190 40 / 36
?	517 819 98	Half clamp	8	InternBDB: S-4-G-67 / DIN 3015 \| InternKon: 930 190 40 / 37
?	308 612 99	Bolt	8	InternBDB: M12x100 / DIN 931 \| InternKon: 930 190 40 / 38
?	343 054 99	Washer 13	8	InternBDB: DIN 463 \| InternKon: 930 190 40 / 39
?	308 631 99	Bolt	4	InternBDB: M16x55 / DIN 931 \| InternKon: 930 190 40 / 40
?	340 510 99	Washer A 17	4	InternBDB: DIN 125 \| InternKon: 930 190 40 / 41
?	334 601 99	Nut	4	InternBDB: M16 / 8 DIN 985 \| InternKon: 930 190 40 / 42
?	516 039 98	Hose assy. DN 10x600	2	InternBDB: DOL 12 90 \| InternKon: 930 190 40 / 44
?	170 427 40	Cable strap	9	InternBDB: TY 27 M / 300x7,8 \| InternKon: 930 190 40 / 45
?	928 885 40	Rubber plate	6	InternBDB: 140x 315 \| InternKon: 930 190 40 / 46
?	903 224 40	Hose	1	InternBDB: D 20 / TL Dunlop \| InternKon: 930 190 40 / 47
?	930 111 40	Plate	1	InternKon: 930 190 40 / 48
?	509 267 98	Nut	2	InternBDB: M18x1,5 / DIN 80705 \| InternKon: 930 190 40 / 49
?	506 954 98	Nut	4	InternBDB: M30x2 / DIN 80705 \| InternKon: 930 190 40 / 50
?	507 558 98	Nut	1	InternBDB: M50x 2 / DIN 80705 \| InternKon: 930 190 40 / 51
?	360 873 40	Plug	2	InternBDB: M26x1,5 \| InternKon: 930 190 40 / 52
?	359 987 99	Plug	1	InternBDB: M 18x1,5 \| InternKon: 930 190 40 / 53
?	516 163 98	Socket	1	InternBDB: SWE-L 42 / ISO 4834 \| InternKon: 930 190 40 / 55
?	308 426 99	Bolt	2	InternBDB: M16x80 / DIN 931 10.9 \| InternKon: 930 195 40 / 38
?	308 423 99	Bolt	2	InternBDB: M16x120 / DIN 931 10.9 \| InternKon: 930 195 40 / 37
?		See Electric Parts-Refueling	1
?	340 510 99	Washer	8	InternBDB: 17 / DIN 125 \| InternKon: 930 195 40 / 59
?	334 601 99	Nut	8	InternBDB: M16 / DIN 985 \| InternKon: 930 195 40 / 60
?	504 369 98	Union	2	InternBDB: S-L 12 / ISO 8434 \| InternKon: 913 394 40 / 4
?	517 269 99	Socket	2	InternBDB: L12-M / 3945 \| InternKon: 913 394 40 / 3
?	517 773 98	Hose assy. 10x5100	1	InternBDB: DOL 12 90 \| InternKon: 913 394 40 / 1
?	516 393 98	Hose assy. 10x5300	1	InternBDB: DOL 12 90 \| InternKon: 913 394 40 / 2
?	168 422 40	Hose DN 33	-2	InternBDB: 33x25 PVC Typ 0103 \| InternKon: 930 195 40 / 27
?	898 529 40	Pipe assy.	1	InternKon: 930 195 40 / 25
?	896 671 40	Hose DN 32	-2	InternBDB: 32x5 Gewehr \| InternKon: 930 195 40 / 26
?	374 921 99	Clamp	1	InternBDB: A 25-40x9 / 3017 \| InternKon: 930 195 40 / 28
?	551 704 40	Vent valve	1	InternBDB: ZV 10 A \| InternKon: 926 988 40 / 2
?	926 990 40	Cover	1	InternBDB: Red 22/18-PL /OMD \| InternKon: 926 988 40 / 1
?	2086238370	Clip	4	InternBDB: CLIP PC 1100- 6 \| InternKon: 930 195 40 / 50
?	507 037 98	Nut	5	InternBDB: 6KTMU M10 8 DIN 00985 \| InternKon: 930 195 40 / 33
?	906 930 40	Union	1	InternBDB: 28-LM / OMD WN \| InternKon: 930 195 40 / 17
?	551 345 40	Union	1	InternBDB: Red 28 / \| InternKon: 930 195 40 / 70
?	516 235 98	Socket SWDS-L22X	1	InternBDB: M26x1,5 / ISO 8434 \| InternKon: 930 195 40 / 8
?	515 912 98	Valve	2	InternBDB: RHD 22-PL WN 010 872 99 0,2 bar \| InternKon: 930 195 40 / 20
?	515 882 98	Union	1	InternBDB: GV 22-LR \| InternKon: 930 195 40 / 22
?	516 281 98	Union	1	InternBDB: SWRT-L22XG 3/4 / ISO 8434 \| InternKon: 930 195 40 / 21
?	516 160 98	Union	2	InternBDB: SWE-L22 / ISO 8434 \| InternKon: 930 195 40 / 19
?	514 129 98	Hose DN 20x3300	1	InternBDB: SHL120 20X 3300 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 930 195 40 / 24
?	517 836 98	Hose DN 20x3100	1	InternBDB: SHL120 20X 3100 DOL 22 DOL 22 WN 34195140 \| InternKon: 930 195 40 / 7
?	374 415 99	Socket	1	InternBDB: SDS-L42X M48x2 / ISO 8434 \| InternKon: 930 195 40 / 9
?	516 163 98	Union	1	InternBDB: SWE-L42 / ISO 8434 \| InternKon: 930 195 40 / 10
?	517 832 98	Hose DN 40x4300	1	InternBDB: DOL 42 \| InternKon: 930 195 40 / 3
?	517 835 98	Hose DN 20x6100	1	InternBDB: DOL 22 \| InternKon: 930 195 40 / 6
?	517 834 98	Hose DN 20x6000	1	InternBDB: DOL 22 \| InternKon: 930 195 40 / 5
?	502 641 98	Half clamp	8	InternBDB: S-4-G-67 / DIN 3015 \| InternKon: 930 195 40 / 43
?	534 008 99	Cover plate	4	InternBDB: S-DP-A-4 / DIN 3015 \| InternKon: 930 195 40 / 44
?	308 612 99	Bolt	8	InternBDB: M12x100 / DIN 912 \| InternKon: 930 195 40 / 36
?	654 892 40	Union	2	InternBDB: GE 18-L/1/2 NPT / OMD \| InternKon: 930 195 40 / 14
?	551 404 40	Union	2	InternBDB: Red 22/18-PL/OMD \| InternKon: 930 195 40 / 16
?	517 808 98	Hose DN 16x210	1	InternBDB: DOL 18 / DOL 18-90 \| InternKon: 930 195 40 / 31
?	374 438 99	Union	2	InternBDB: SDS-L22 / ISO 8434 \| InternKon: 930 195 40 / 15
?	551 404 40	Union	2	InternBDB: Red 22/18-PL / OMD \| InternKon: 930 195 40 / 16
?	517 056 98	Union	1	InternBDB: SWBT-L22 / ISO 8434 \| InternKon: 930 195 40 / 30
?	517 833 98	Hose 20x3500	1	InternBDB: DOL 22-90 / DOL 22-90 \| InternKon: 930 195 40 / 4
?	305 992 99	Ball cock	1	InternBDB: 3/4 \| InternKon: 930 195 40 / 29
?	324 572 40	Washer	1	InternBDB: Cummi 67946 \| InternKon: 930 195 40 / 13
?	324 571 40	Adapter	1	InternBDB: Cummi 196 155 \| InternKon: 930 195 40 / 12
?	655 294 40	Union	1	InternBDB: GE 22-L / 3/4 NPT OMD \| InternKon: 930 195 40 / 11
?	516 160 98	Union	2	InternBDB: SWE-L22 / ISO 8434 \| InternKon: 930 195 40 / 19
?	516 235 98	Socket	1	InternBDB: SWDS-L22X M26x1,5 / ISO 8434 \| InternKon: 930 195 40 / 8

Komatsu PC3000-6 S/N 46174 parts catalog PDF

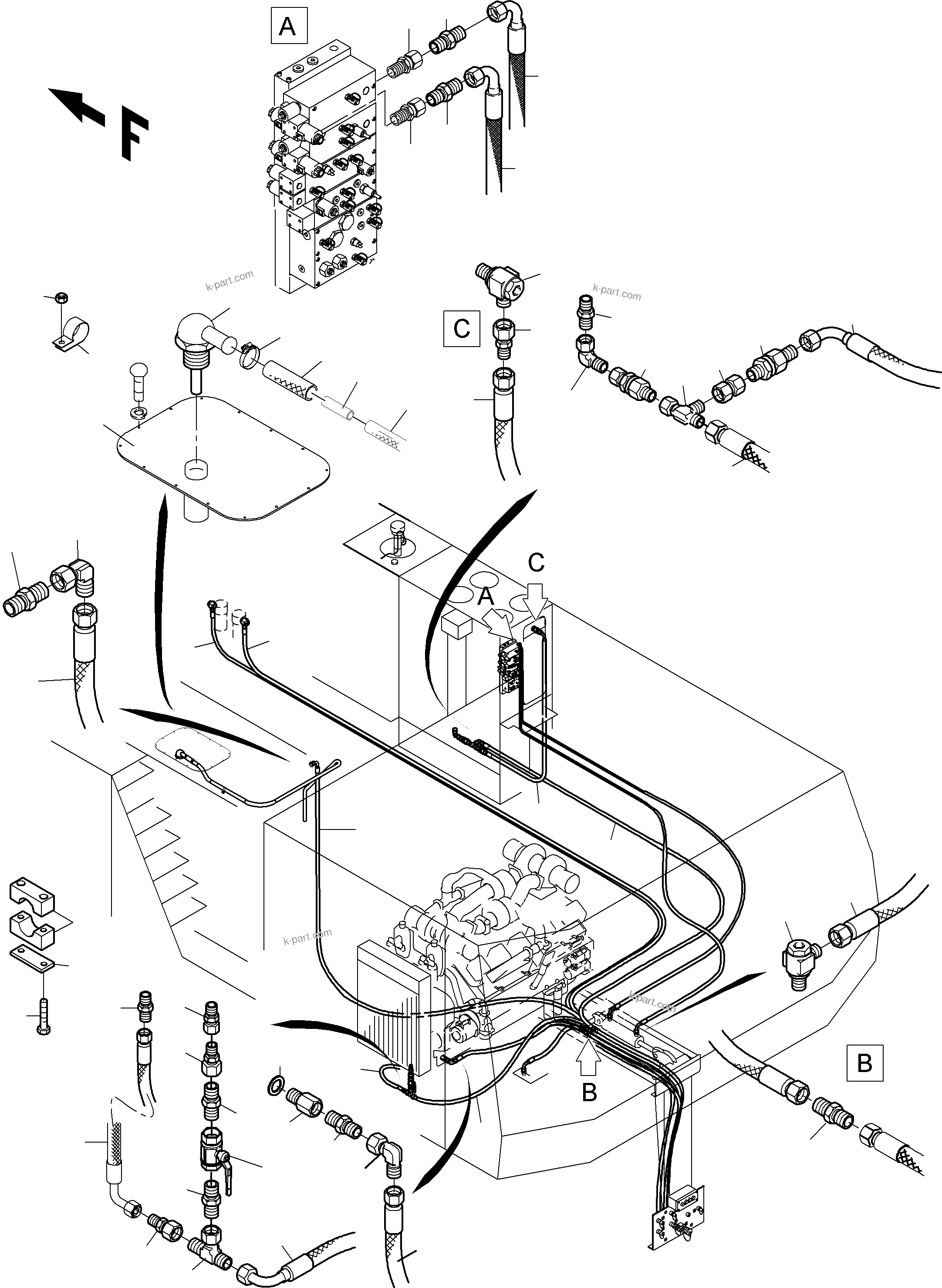

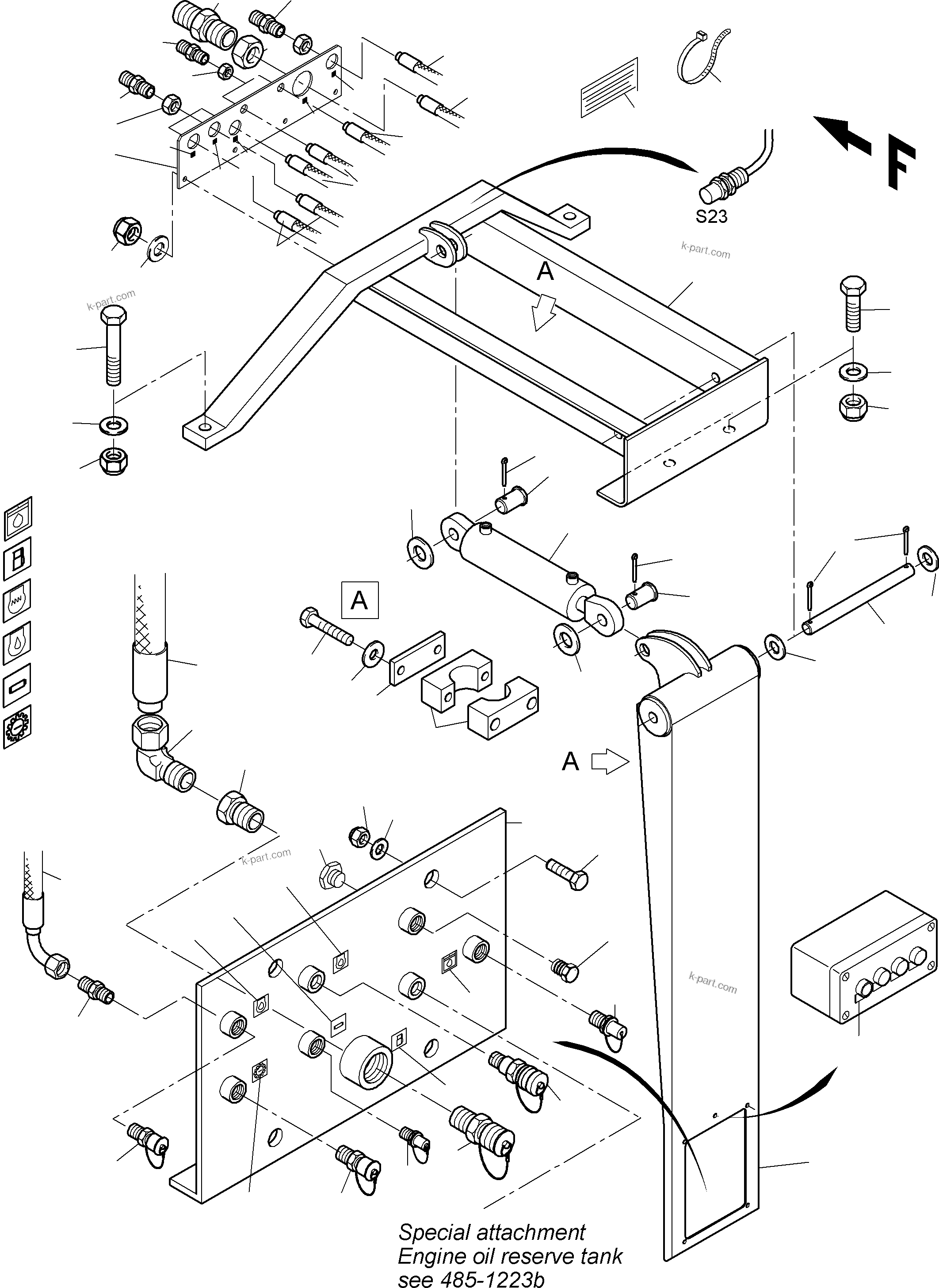

REFUELING EQUIPMENT (485-2306b) in PC3000-6 S/N 46174. Diagram image and parts list.
