Diagram image 1 of 3

PC3000-6 S/N 46174

01 02 03 04 05 06 07 08 08 09 09 10 14 58 58 60 61 62 62 63 63 64 65 65 66 67 68 68 69 70 70 72 88 89 90 93 94 95

PC3000-6 S/N 46174

11 11 11 11 13 13 17 17 17 18 18 19 19 19 20 20 20 20 20 21 22 23 23 23 24 24 25 26 29 30 30 30 31 31 31 32 33 34 34 35 35 35 36 36 36 36 36 37 38 40 42 44 44 46 47 48 50 50 51 52 53 54 54 54 54 54 54 54 54 55 55 56 56 56 56 56 56 57 71 71 71 71 73 74 74 76 76 77 77 78 79 81 82 84 85 88 89 91 92 92

PC3000-6 S/N 46174

100 100 101 102 11 20 23 31 96 96 97

#	Part Number	Partname	Quantity	Options	Reference
01	925 716 40	Control- filter plate	1	InternKon: 925 712 40 / 1
02		Valve block	1	InternBDB: 918 375 40 \| InternKon: 925 712 40 / 2	612-1837
03		Cartridge block	1	InternBDB: 925 717 40 \| InternKon: 925 712 40 / 3	991-0493a
04		Pressure filter	1	InternBDB: DRUCKFILTER DF W/HC 160 G 100 C 1.X/-B6-01205051 \| InternKon: 925 712 40 / 4	991-0499a
05		Inline filter	1	InternBDB: 906 852 40 \| InternKon: 925 712 40 / 5	991-0424
06		Inline filter	1	InternBDB: LEITUNGSFILTER LF W/HC160 IE 100 C 1.X/-B6-01205051 \| InternKon: 925 712 40 / 6	991-0498a
07	907 438 40	Diaphragm-type accumulator	1	InternBDB: Hydac SBO 100-2E1 \| InternKon: 925 712 40 / 7
08	907 605 40	4/2-Directional spool valve	2	InternBDB: Vickers DG 4V-3-0A-M-KU-H7-60 \| InternKon: 925 712 40 / 8
09	180 325 40	Base plate	2	InternBDB: Rexroth G 342/1 \| InternKon: 925 712 40 / 9
10	440 083 40	Pressure relief valve	1	InternBDB: Rexroth DB 20 G 2X /315XY \| InternKon: 925 712 40 / 10
11	517 698 98	Hose assy. DN 12x1260	2	InternBDB: 050 12 DOL12-45° \| InternKon: 925 712 40 / 11
13	517 631 98	Hose assy. DN 12x500	1	InternBDB: 050 12 DOL12 \| InternKon: 925 712 40 / 13
14	928 849 40	Cover	1	InternKon: 925 712 40 / 14
17	516 182 98	Socket	3	InternBDB: L10-M ST-NBR \| InternKon: 925 712 40 / 17
18	374 427 99	Socket	2	InternBDB: SDS-S10XG 3/8 A- Type E ST A3C \| InternKon: 925 712 40 / 18
19	374 430 99	Socket	4	InternBDB: SDS-L12XM16x1,5- Type E ST A3C \| InternKon: 925 712 40 / 19
20	371 459 99	Socket	5	InternBDB: SDS-L12XG 3/8 A- Type E ST A3C \| InternKon: 925 712 40 / 20
21	374 420 99	Socket	1	InternBDB: SDS-L10XM14x1,5-Type E ST A3C \| InternKon: 925 712 40 / 21
22	374 438 99	Socket	1	InternBDB: SDS-L22XG 3/4 A- Type E ST A3C \| InternKon: 925 712 40 / 22
23	374 431 99	Socket	3	InternBDB: SDS-L28XM33X2-Type E ST A3C \| InternKon: 925 712 40 / 23
24	374 439 99	Socket	2	InternBDB: SDS-L28XG1 A- Type E ST A3C \| InternKon: 925 712 40 / 24
25	374 419 99	Socket	1	InternBDB: SDS-S25XG1 A- Type E ST A3C \| InternKon: 925 712 40 / 25
26	517 225 98	Socket	1	InternBDB: L 08 \| InternKon: 925 712 40 / 26
29	517 226 98	Socket	1	InternBDB: L 08 \| InternKon: 925 712 40 / 29
30	516 157 98	Socket	3	InternBDB: L 12 \| InternKon: 925 712 40 / 30
31	516 174 98	Socket	3	InternBDB: L 12 \| InternKon: 925 712 40 / 31
32	516 742 98	Socket	1	InternBDB: SWRT-S 25 \| InternKon: 925 712 40 / 32
33	517 240 98	Union	1	InternBDB: 25-SR/OMD \| InternKon: 925 712 40 / 33
34	906 930 40	Union	2	InternBDB: VOSS 28-LM/OMD \| InternKon: 925 712 40 / 34
35	907 149 40	Union	3	InternBDB: VOSS 28-LR/OMD \| InternKon: 925 712 40 / 35
36	372 885 99	Reducing socket	5	InternBDB: 1 1/4 x 1 \| InternKon: 925 712 40 / 36
37	576 405 40	Reducing union	1	InternBDB: Ermeto 22/12-PL/OMD \| InternKon: 925 712 40 / 37
38	551 379 40	Reducing union	1	InternBDB: Ermeto 12/10-PL/OMD \| InternKon: 925 712 40 / 38
40	517 242 98	Socket	1	InternBDB: L 08 - M \| InternKon: 925 712 40 / 40
42	517 444 98	Union	1	InternBDB: GAI-08 LR/OMD \| InternKon: 925 712 40 / 42
44	592 069 40	Union	2	InternBDB: GR 15/10-L/OMD \| InternKon: 925 712 40 / 44
46	516 740 98	Socket	1	InternBDB: SWBT-S 25 \| InternKon: 925 712 40 / 46
47	512 371 98	Coupling	1	InternBDB: 8 - L \| InternKon: 925 712 40 / 47
48	004 684 98	Coupling	1	InternBDB: 25 -S \| InternKon: 925 712 40 / 48
50	255 694 40	Plug	3	InternBDB: VSTI R 3/8 ED \| InternKon: 925 712 40 / 50
51	180 113 40	Plug	1	InternBDB: VSTI R 1/4 ED \| InternKon: 925 712 40 / 51
52	255 171 40	Plug	1	InternBDB: VSTI M10x1,0 ED \| InternKon: 925 712 40 / 52
53	202 970 40	Plug	2	InternBDB: VSTI M10x1,0 ED \| InternKon: 925 712 40 / 53
54	906 346 40	Olive	8	InternBDB: ES-4 S10 WN 655 939 40 \| InternKon: 925 712 40 / 54
55	371 258 99	Union nut	2	InternBDB: N-S 10 ISO 08434 \| InternKon: 925 712 40 / 55
56	371 273 99	Union nut	6	InternBDB: N-L 10 ISO 08434 \| InternKon: 925 712 40 / 56
57	374 471 99	Union	1	InternBDB: T-S 10 ISO 08434 \| InternKon: 925 712 40 / 57
58	514 340 98	Screw	8	InternBDB: M5x30/912 10.9 \| InternKon: 925 712 40 / 58
60	308 560 99	Bolt	2	InternBDB: M8x70/931 8.8 \| InternKon: 925 712 40 / 60
61	304 322 99	Bolt	4	InternBDB: M12x160/931 10.9 \| InternKon: 925 712 40 / 61
62	307 734 99	Bolt	4	InternBDB: M6x30/933 8.8 \| InternKon: 925 712 40 / 62
63	308 579 99	Bolt	12	InternBDB: M10x60 / DIN 931 \| InternKon: 925 712 40 / 63
64	514 532 98	Nut	1	InternBDB: M45x1,5/936 \| InternKon: 925 712 40 / 64
65	507 025 98	Nut	4	InternBDB: M6/985 \| InternKon: 925 712 40 / 65
66	334 599 99	Nut	2	InternBDB: M8/985 \| InternKon: 925 712 40 / 66
67	334 682 99	Nut	4	InternBDB: M12/985 \| InternKon: 925 712 40 / 67
68	340 506 99	Washer	4	InternBDB: A 6,4 / DIN 125 \| InternKon: 925 712 40 / 68
69	340 510 99	Washer	4	InternBDB: A 17 / DIN 125 \| InternKon: 925 712 40 / 69
70	607 492 40	Resilient sleeve	12	InternBDB: 10,5/25x40 WN 34194840 \| InternKon: 925 712 40 / 70
71	214 768 99	Pipe Ш10	-2	InternKon: 925 712 40 / 71
72	308 657 99	Bolt	4	InternBDB: M16x85 / DIN 931 8.8 \| InternKon: 925 712 40 / 72
73	513 141 98	Hose assy. DN 25x450	1	InternBDB: 120 DOL28/DOL28-90° WN 341 951 40 \| InternKon: 925 712 40 / 73
74	513 692 98	Hose assy. DN 25x800	1	InternBDB: 120 DOL28/DOL28-90° WN 341 951 40 \| InternKon: 925 712 40 / 74
76	517 699 98	Hose assy. DN 20x610	1	InternBDB: 350 DOS25/DOS25-90° WN 341 951 40 \| InternKon: 925 712 40 / 76
77	517 073 98	Union	2	InternBDB: 10-LR/OMD WN 655 934 40 \| InternKon: 925 712 40 / 77
78	517 090 98	Union	1	InternBDB: 30-SR/OMD WN 655 934 40 \| InternKon: 925 712 40 / 78
79	604 762 40	Union	1	InternBDB: GR 12/10-L/OMD WN 655 932 40 \| InternKon: 925 712 40 / 79
81	655 426 40	Union	2	InternBDB: GV 12-LR WN 655 906 40 \| InternKon: 925 712 40 / 81
82	510 537 98	Union	2	InternBDB: E-L 12 / ISO 08434 \| InternKon: 925 712 40 / 82
84	374 409 99	Socket	1	InternBDB: SDS-L22 M26x1,5 \| InternKon: 925 712 40 / 84
85	514 311 98	Union	1	InternBDB: Red 22/15-PL \| InternKon: 925 712 40 / 85
88	507 037 98	Nut	5	InternBDB: M10 / DIN 985 \| InternKon: 925 712 40 / 88
89	340 465 99	Washer	5	InternBDB: B 10,5 / DIN 125 \| InternKon: 925 712 40 / 89
90	167 693 40	Header ca. 1400mm	-2	InternBDB: 461 0031 schwarz \| InternKon: 925 712 40 / 90
91	510 741 98	Resilient sleeve	2	InternBDB: 13/25x50 /341 948 40 \| InternKon: 925 712 40 / 91
92	0443451510	Clip	6	InternBDB: KES 04434 \| InternKon: 925 712 40 / 92
93	502 006 98	Bolt	10	InternBDB: M12x80 / DIN 931 10.9 \| InternKon: 935 260 40 / 91
94	510 741 98	Resilient sleeve	10	InternBDB: 13 / 25x50 / WN 341 948 40 \| InternKon: 935 260 40 / 101
95	332 353 99	Nut	10	InternBDB: M12 / DIN 985 \| InternKon: 935 260 40 / 100
96	517 736 98	Hose assy. DN 10x2800	1	InternBDB: 120 DOL12/DOL12-90° WN 341 951 40 \| InternKon: 935 260 40 / 45
97	517 035 98	Socket	1	InternBDB: SDS-L 12xG1/2" A / ISO 8434 \| InternKon: 935 260 40 / 76
100	636 374 40	Hose assy. DN 25x2800	1	InternBDB: 120 DOL28/DOL28-90° WN 341 951 40 \| InternKon: 935 260 40 / 27
101	516 161 98	Socket	1	InternBDB: SWE-L 28 / ISO 8434-4 \| InternKon: 935 260 40 / 110
102	374 431 99	Union	1	InternBDB: SDS-L 28x33x2 / ISO 8434 \| InternKon: 935 260 40 / 71

Komatsu PC3000-6 S/N 46174 parts catalog PDF

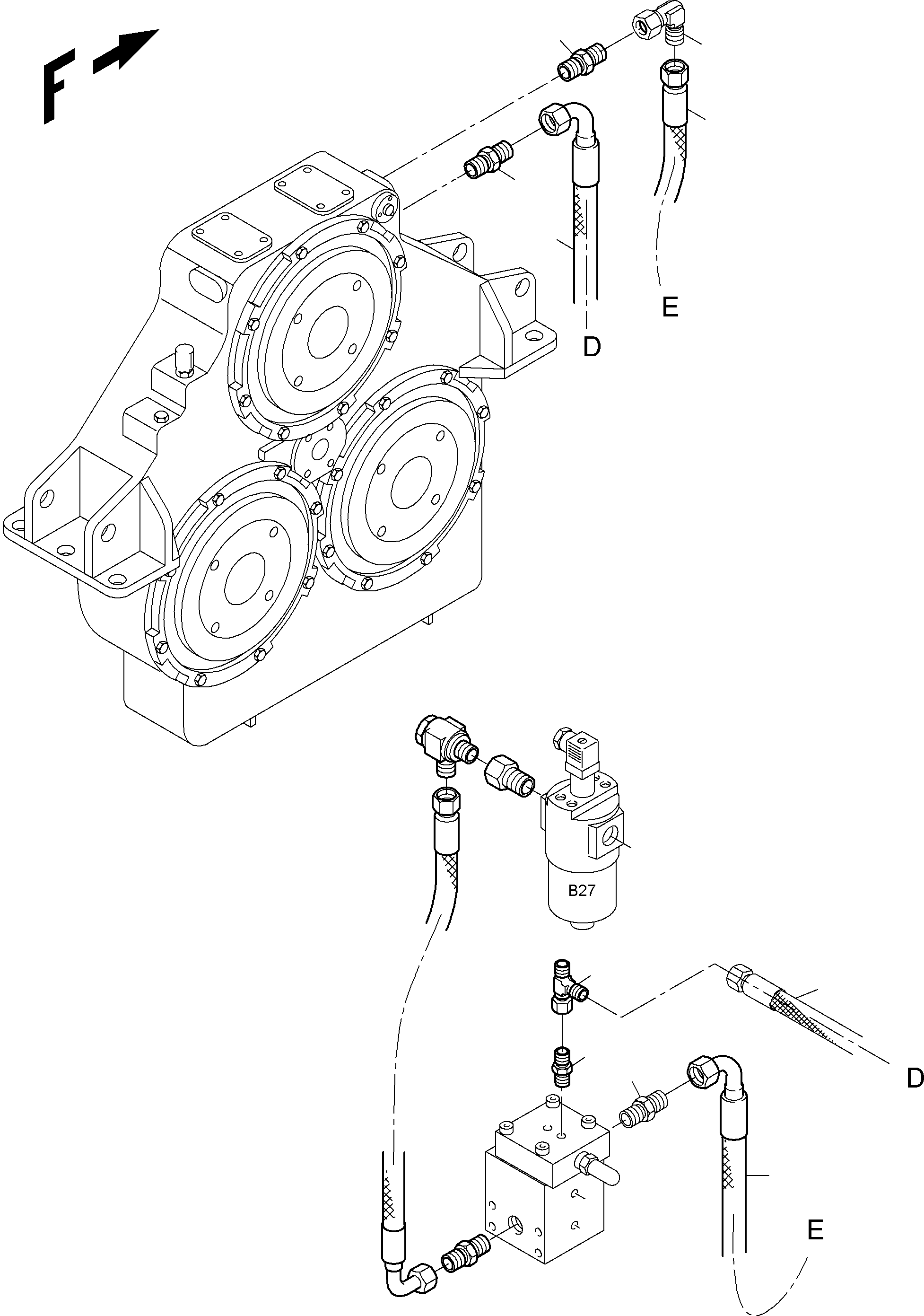

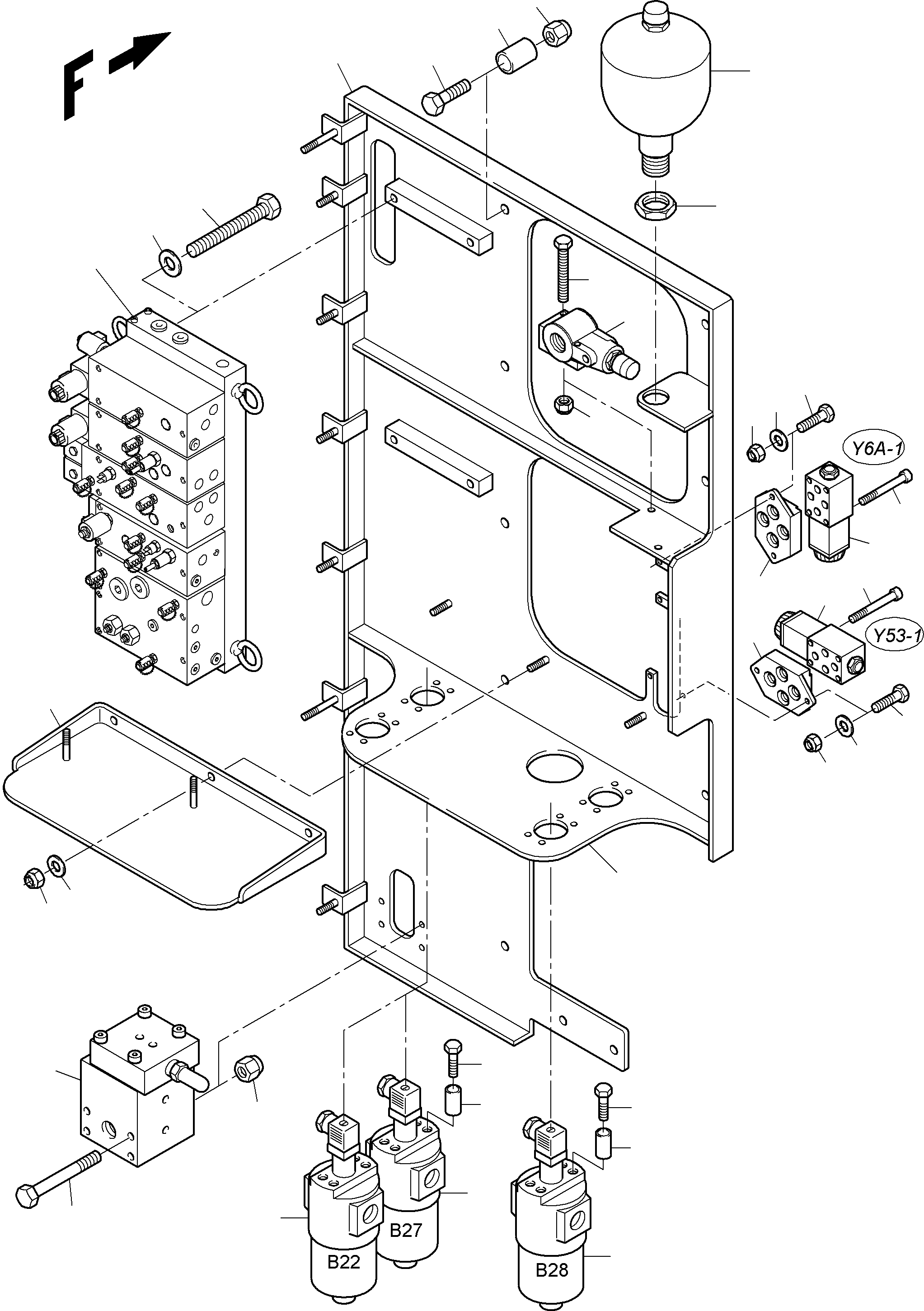

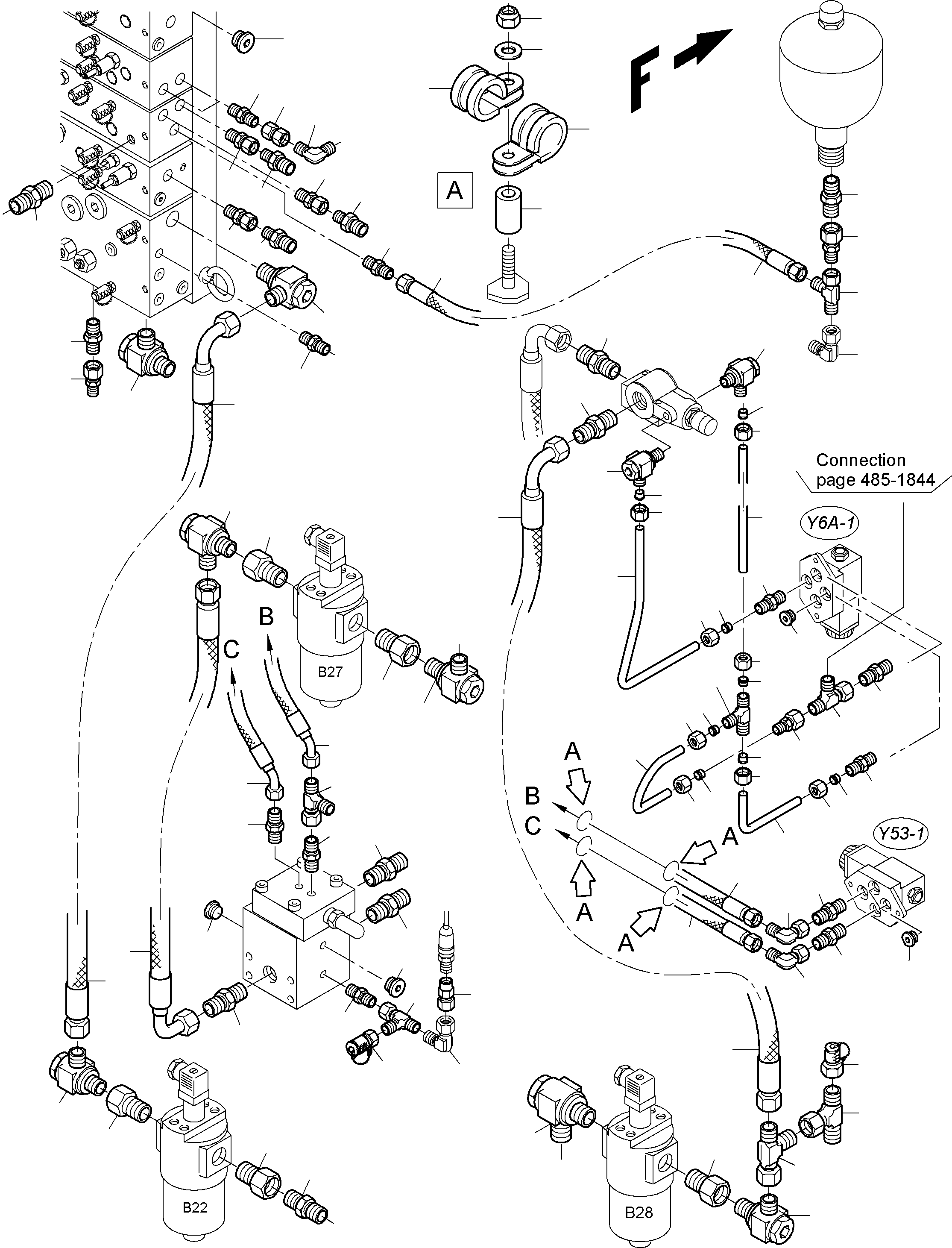

CONTROL- AND FILTER PLATE (485-1841b) in PC3000-6 S/N 46174. Diagram image and parts list.
