PC3000-6 S/N 46174

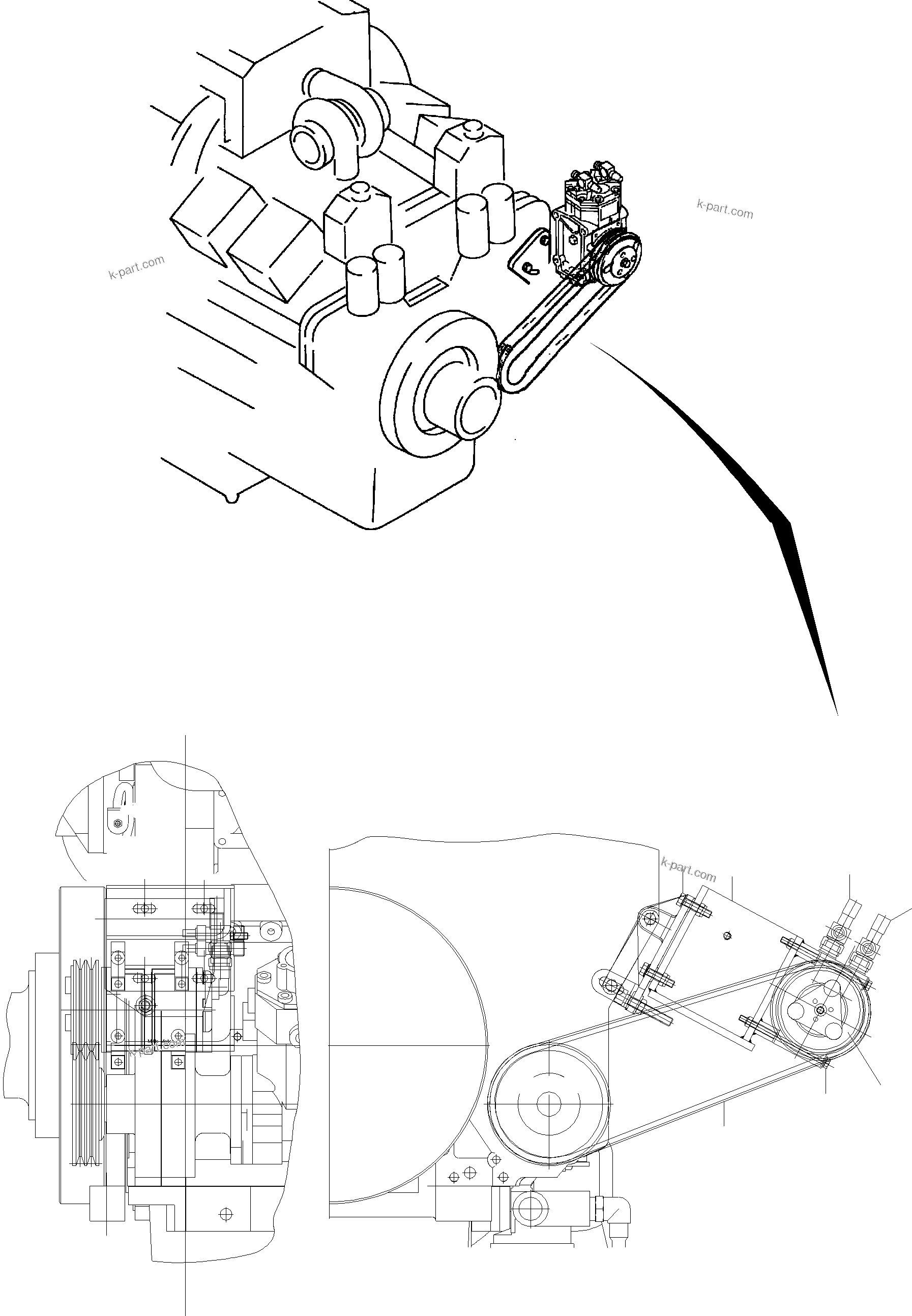

Komatsu parts book diagram for PC3000-6 S/N 46174: AIR CONDITION. COMPRESSOR DRIVE

? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	942 034 40	Console	1	InternKon: 942 033 40 / 2
	?	030 264 99	V-belt	2	InternBDB: SPA 1320LW DIN 07753 \| InternKon: 942 033 40 / 3
	?	340 465 99	Washer	4	InternBDB: B 10,5 140HV DIN 00125 \| InternKon: 942 033 40 / 4
	?	307 782 99	Bolt	4	InternBDB: M10X45 8.8 DIN 00933 \| InternKon: 942 033 40 / 5
	?	507 037 98	Nut	4	InternBDB: M10 8 DIN 00985 \| InternKon: 942 033 40 / 6
	?	308 568 99	Bolt	4	InternBDB: M8X140 8.8 DIN 00931 \| InternKon: 942 033 40 / 7
	?	334 599 99	Nut	4	InternBDB: M8 8 DIN 00985 \| InternKon: 942 033 40 / 8
	?	340 464 99	Washer	4	InternBDB: B 8,4 140HV DIN 00125 \| InternKon: 942 033 40 / 9
	?	940 505 40	Climacompressor	1	InternKon: 942 048 40 / 1
	?	795 131 73	Plug assy.	1	InternBDB: KES 08192 \| InternKon: 942 048 40 / 2
	?	796 018 73	Check Valve	1	InternBDB: 3/4"
	?	796 020 73	O-Ring	1	InternBDB: 3/4"
	?	796 019 73	Check Valve	1	InternBDB: 7/8"
	?	796 021 73	O-Ring	1	InternBDB: 7/8"

Komatsu PC3000-6 S/N 46174 parts catalog PDF

AIR CONDITION. COMPRESSOR DRIVE (485-2046a) in PC3000-6 S/N 46174. Diagram image and parts list.
