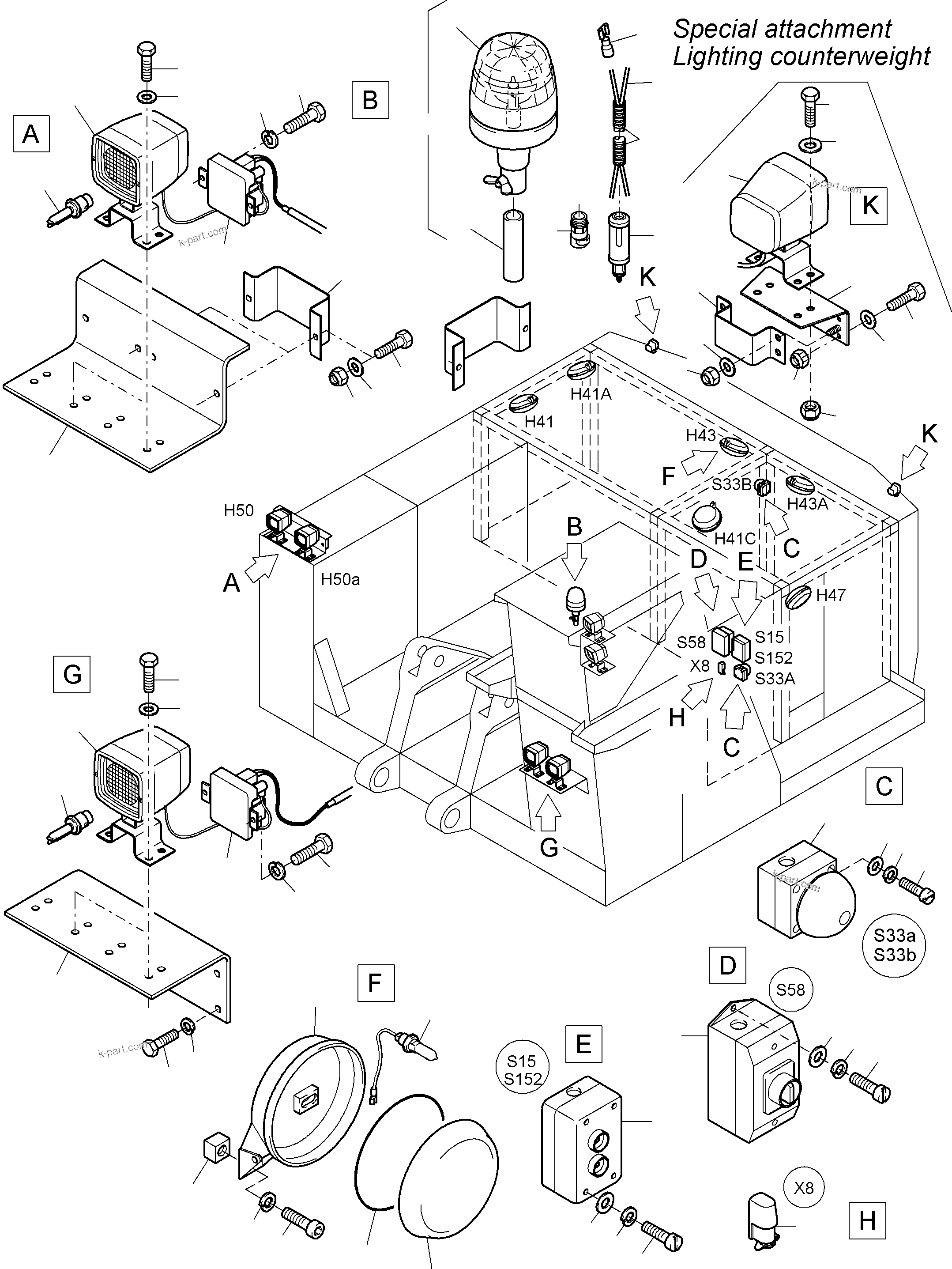

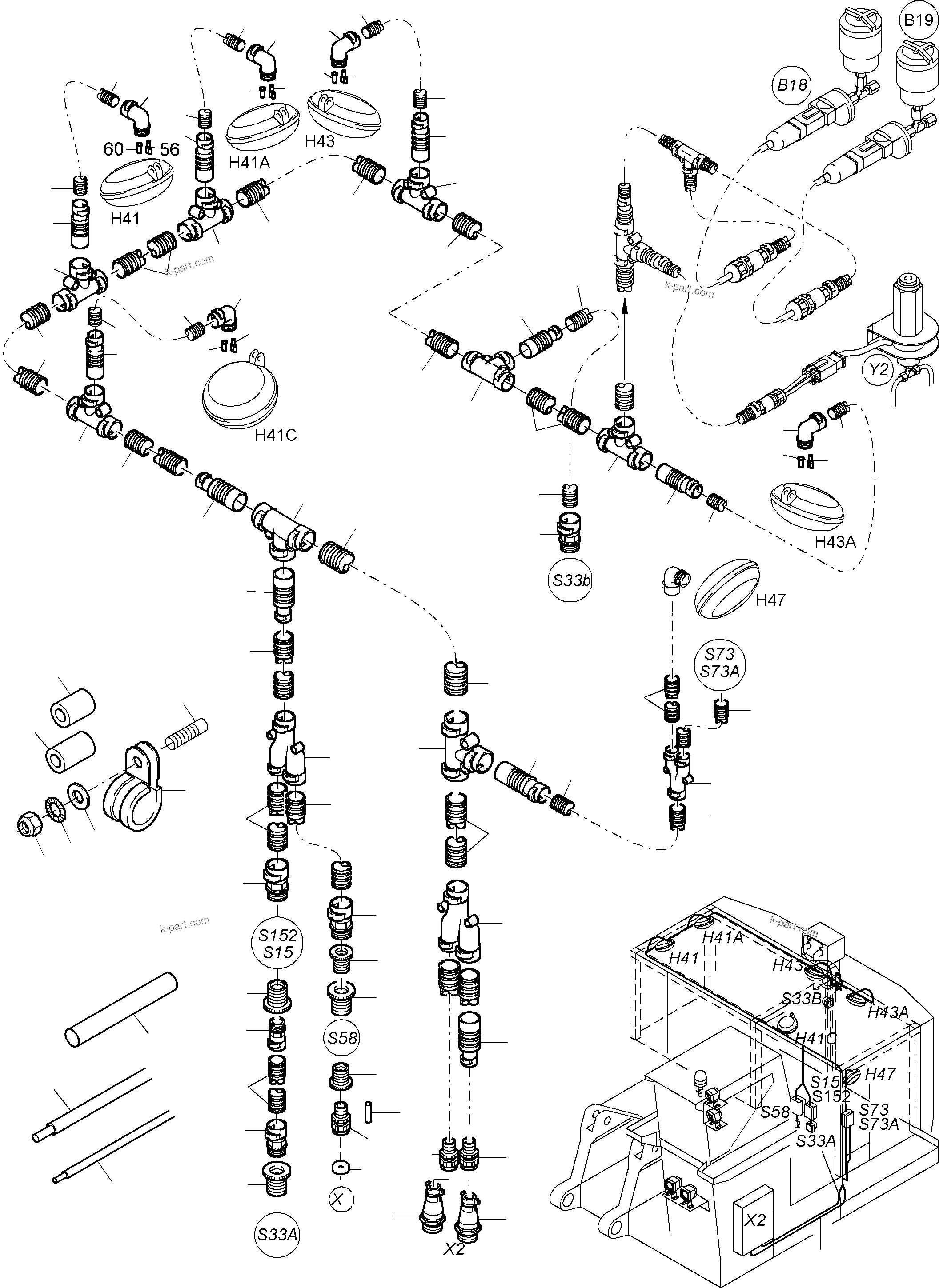

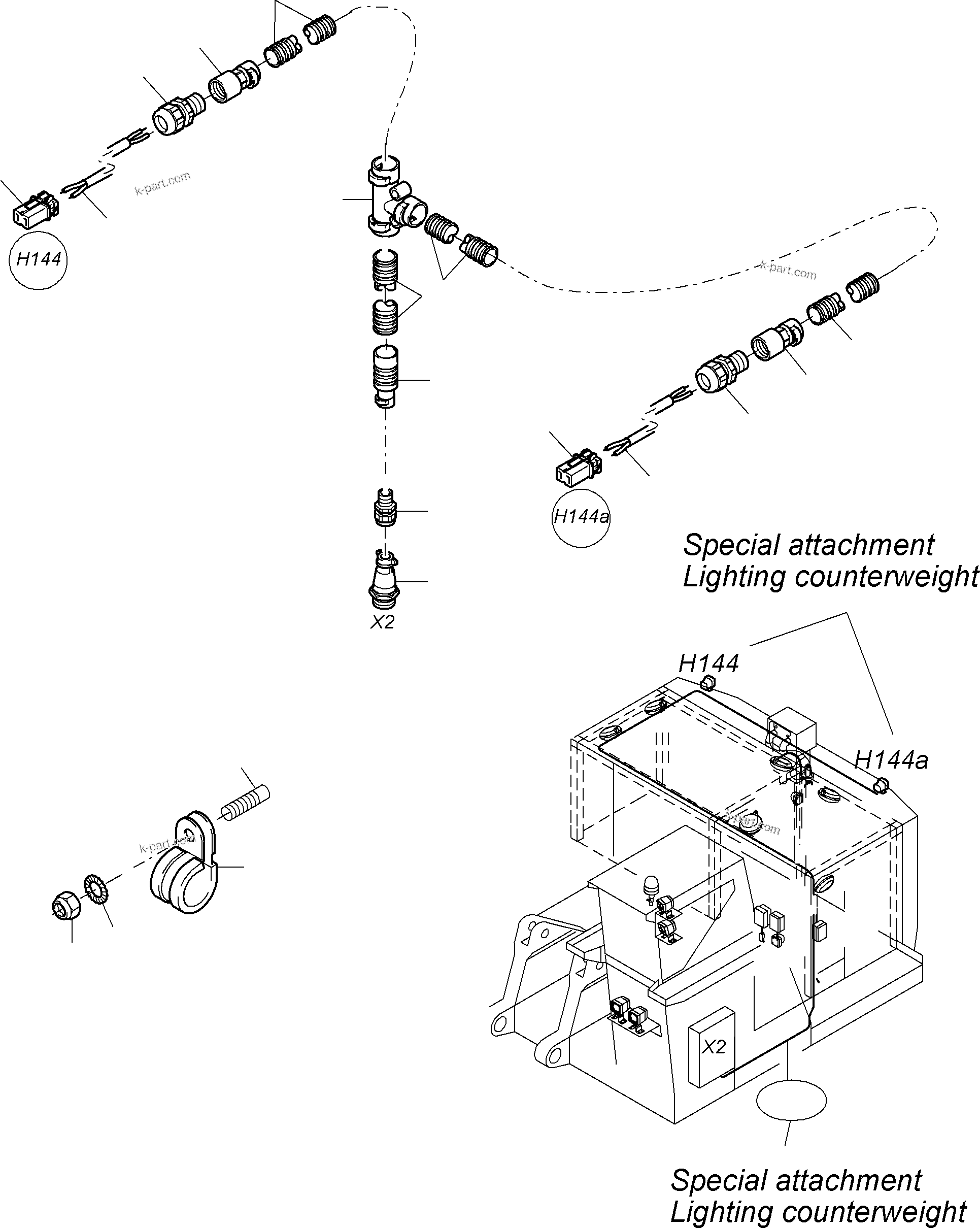

Diagram image 1 of 3

PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	634 009 40	Head light	6	InternBDB: ABL AB-05-03 \| InternKon: 926 550 40 / 1
?	507 383 99	Lamp	6	InternBDB: ABL 11-50320 /H1 24V 70W \| InternKon: 926 550 40 / 2
?	769 155 73	Seal	6	InternBDB: ABL 18-11401
?	769 156 73	Pane, white	6	InternBDB: ABL 18-10201
?	317 319 40	Threaded block	6
?	319 143 99	Screw	6	InternBDB: M8x40 /912 \| InternKon: 933 350 40 / 7
?	343 108 99	Lock washer	6	InternBDB: 8 /127 \| InternKon: 933 350 40 / 8
?	898 629 40	Rotaflare light yellow assy.	1
?	898 612 40	Retainer	1	InternKon: 898 629 40 / 1
?	896 497 40	Rotaflare light 24 yellow	1	InternBDB: Hella 2 RL 006 846-01 \| InternKon: 898 629 40 / 2
?	515 214 40	Cable 2.5 light blue	-2	InternKon: 898 629 40 / 7
?	180 322 40	Plug	1	InternBDB: Bosch 0986 352 000 \| InternKon: 898 629 40 / 5
?	323 960 40	Tab	2	InternBDB: 6,3x0,8 35135 \| InternKon: 898 629 40 / 6
?	621 314 40	Safety switch	1	InternBDB: Klц.-Mцl. P1-25/I-SI-SW+H/11-P1/P3Z \| InternKon: 933 350 40 / 17
?	907 849 40	Housing	1	InternBDB: Klц.-Mцl. M22-I2 \| InternKon: 931 367 40 / 12
?	932 687 40	Head light assy. with lamp	6	InternBDB: ABL 500 Xenon Art-Nr. 2A0704A538900 \| InternKon: 925 888 40 / 13
?	794 517 73	Lamp 24V /35W	6	InternBDB: Xenon D1S 35W Philps
?	925 889 40	Retainer	1	InternKon: 925 888 40 / 1
?	925 890 40	Retainer	1	InternKon: 925 888 40 / 11
?	915 310 40	Guard plate	2	InternKon: 925 888 40 / 12
?	307 752 99	Bolt	16	InternBDB: M8x20 /933 \| InternKon: 925 888 40 / 2
?	307 777 99	Bolt	11	InternBDB: M10x25 /933 \| InternKon: 925 888 40 / 6
?	340 465 99	Washer	11	InternBDB: 10,5 /125 \| InternKon: 925 888 40 / 7
?	507 037 98	Nut	4	InternBDB: M 10 /985 \| InternKon: 925 888 40 / 8
?	517 623 98	Bolt	12	InternBDB: M4x8 /933 \| InternKon: 925 888 40 / 10
?	343 104 99	Lock washer	12	InternBDB: 4 /127 \| InternKon: 925 888 40 / 9
?	340 507 99	Washer	16	InternBDB: 8,4 /125 \| InternKon: 925 888 40 / 2
?	907 727 40	Socket	1	InternBDB: Bьrklin KFZ 120 F081-430 \| InternKon: 931 367 40 / 39
?	635 143 40	Emergency switch-off	2	InternBDB: FAK-R/V/KC11A/I \| InternKon: 931 367 40 / 7
?	931 367 40	Harness - engine housing	1	InternKon: 933 350 40 / 1
?	655 630 40	T-Distributor DN 29/23	2	InternBDB: BFTL-29 23 23 GGG \| InternKon: 931 367 40 / 1
?	896 558 40	Pipe adapter DN 29/23	1	InternBDB: BAVR-29 G 23 G \| InternKon: 931 367 40 / 2
?	907 994 40	Cable union DN 12-90	5	InternBDB: PMA BVWV-P092 \| InternKon: 931 367 40 / 34
?	934 341 40	Retainer assy.	1	InternKon: 934 340 40 / 1
?	307 753 99	Bolt	8	InternBDB: 6KTSHR M 8 X 22 8.8 DIN 00933 \| InternKon: 934 340 40 / 3
?	340 611 99	Washer	22	InternBDB: 14/1440 \| InternKon: 933 350 40 / 5
?	510 741 98	Resilent sleeve 13/25x50	11	InternBDB: 13/25x50 WN 341 948 40 \| InternKon: 933 350 40 / 19
?	907 478 40	Cable union DN 17	2	InternBDB: PMA BVNV-M207 \| InternKon: 931 367 40 / 33
?	655 625 40	Connector distributor DN 12/10	1	InternBDB: PMA BVYR-12 10 10 TTT \| InternKon: 931 367 40 / 9
?	655 650 40	Cable protection hose DN 12	-2	InternBDB: VCST - 12 B \| InternKon: 931 367 40 / 27
?	907 477 40	Cable union DN 12	6	InternBDB: PMA BVNV-M162 \| InternKon: 931 367 40 / 32
?	515 213 40	Cable 1,0	-2	InternKon: 931 367 40 / 24
?	340 464 99	Washer	16	InternBDB: SHB B 8,4 140HV DIN 00125 \| InternKon: 934 340 40 / 4
?	655 810 40	Pipe adapter DN 29/12	1	InternBDB: BAVR-29 G 10 T \| InternKon: 931 367 40 / 4
?	655 629 40	T-Distributor DN 17	5	InternBDB: BFTL-17 17 17 GGG \| InternKon: 931 367 40 / 5
?	655 632 40	Pipe adapter DN 17/10	6	InternBDB: BAVR-17 G 10 T \| InternKon: 931 367 40 / 30
?	334 599 99	Nut	8	InternBDB: 6KTMU M 8 8 DIN 00985 \| InternKon: 931 367 40 / 5
?	655 627 40	Connector distributor DN 23/17	2	InternBDB: BVYR-23 17 17 GGG \| InternKon: 931 367 40 / 8
?	907 704 40	Cable union	3	InternBDB: Pflitsch 21650 YNPM 3x3,5 \| InternKon: 931 367 40 / 16
?	896 521 40	End pin	3	InternBDB: BO 4,0x25 \| InternKon: 931 367 40 / 17
?	655 634 40	Pipe adapter DN 23/17	2	InternBDB: BAVR-23 G 17 G \| InternKon: 931 367 40 / 3
?	655 649 40	Cable protection hose DN 10	-2	InternBDB: VCST-10 B \| InternKon: 931 367 40 / 26
?	655 651 40	Cable protection hose DN 17	-2	InternBDB: VCSG-17 B \| InternKon: 931 367 40 / 28
?	655 652 40	Cable protection hose DN 23	-2	InternBDB: VCSG-23 B \| InternKon: 931 367 40 / 29
?	515 214 40	Cable 2,5	-2	InternKon: 931 367 40 / 25
?	440 109 40	Sleeve 1-2,5	10	InternKon: 931 367 40 / 40
?	655 550 40	Rubber grommet	1	InternBDB: 880 810-1 \| InternKon: 931 367 40 / 22
?	307 780 99	Bolt	8	InternBDB: 6KTSHR M10 X 35 8.8 DIN 00933 \| InternKon: 934 340 40 / 6
?	455 756 99	Insulating tube 6x0,6	-2	InternBDB: B6x0,6 /40621 \| InternKon: 931 367 40 / 23
?	056 070 40	Cable sleeve 1,0-1,5	16
?	056 071 40	Cable sleeve 2,5	17	InternBDB: Pos. 13
?	307 775 99	Bolt	7	InternBDB: M10x20/933 \| InternKon: 933 350 40 / 20
?	343 610 99	Washer	58	InternBDB: A 10,5/6798 \| InternKon: 933 350 40 / 21
?	507 037 98	Nut	51	InternBDB: M10/985 \| InternKon: 933 350 40 / 22
?	0443452110	Clip	30	InternKon: 933 350 40 / 4
?	0443452711	Clip	6	InternKon: 933 350 40 / 3
?	0443451610	Clip	46	InternKon: 933 350 40 / 2
?	321 010 99	Screw	4	InternBDB: M5x25 /84 \| InternKon: 933 350 40 / 10
?	340 461 99	Washer	4	InternBDB: 5,3 /125 \| InternKon: 933 350 40 / 11
?	320 978 99	Screw	8	InternBDB: M4x30 /84 \| InternKon: 933 350 40 / 14
?	340 904 99	Washer	8	InternBDB: 4,3 /125 \| InternKon: 933 350 40 / 15
?	346 508 99	Lock washer	8	InternBDB: 4/128 \| InternKon: 933 350 40 / 16
?	346 509 99	Lock washer	4	InternBDB: 5/128 \| InternKon: 933 350 40 / 12
?	517 326 98	Reducing M16/M12	1	InternBDB: M16x1,5/M12x1,5 DIN 50262 \| InternKon: 931 367 40 / 36
?	517 327 98	Reducing M20/M16	6	InternBDB: M20x1,5/M16x1,5 DIN 50262 \| InternKon: 931 367 40 / 37
?	907 847 40	Button	2	InternBDB: Klц-Mц. M22-DR-X flach rastend \| InternKon: 931 367 40 / 10
?	907 848 40	Contact element	2	InternBDB: Klц-Mц. M22--CKC 10 \| InternKon: 931 367 40 / 11
?	907 856 40	Button plate	1	InternBDB: Klц-Mц. M22-XD-X241 \| InternKon: 931 367 40 / 13
?	510 744 98	Resilent sleeve 13/25x32	7	InternBDB: 13/25x32 WN 341 948 40 \| InternKon: 933 350 40 / 13
?	517 121 98	Lock washer	16	InternBDB: 8 WN 655 938 40 \| InternKon: 925 888 40 / 3
?	907 975 40	Fitting DN 17	2	InternBDB: BVIVG-U297 \| InternKon: 931 367 40 / 41
?	795 125 73	Plug	1	InternBDB: Deutsch HD36-18-8PE-059 \| InternKon: 931 367 40 / 42
?	795 124 73	Pin	8	InternBDB: Deutsch 0462-204-12141 \| InternKon: 931 367 40 / 43
?	907 980 40	Fitting DN 23	1	InternBDB: BVIVG-U353 \| InternKon: 931 367 40 / 44
?	795 128 73	Plug	1	InternBDB: HD36-24-23PE-059 \| InternKon: 931 367 40 / 45
?	795 123 73	Pin	19	InternBDB: Deutsch 0462-202-16141 \| InternKon: 931 367 40 / 46
?	795 122 73	Sealing plug	4	InternBDB: 114 017 KES \| InternKon: 931 367 40 / 47
?	340 465 99	Washer	16	InternBDB: SHB B 10,5 140HV DIN 00125 \| InternKon: 934 340 40 / 7
?	507 037 98	Nut	12	InternBDB: 6KTMU M 10 8 DIN 00985 \| InternKon: 934 340 40 / 8
?	938 348 40	Harness - lighting counterweight	1	InternKon: 942 765 40 / 1
?	795 126 73	Plug	1	InternBDB: Deutsch HD36-18-14PE-059 \| InternKon: 938 348 40 / 4
?	907 971 40	Pipe adapter DN 23/12	1	InternBDB: BAVR-23 G 12 T \| InternKon: 938 348 40 / 3
?	906 420 40	T-Distributor DN 12	1	InternBDB: BFTL-121212TTT \| InternKon: 938 348 40 / 2
?	903 422 40	Plug assy.	2	InternKon: 938 348 40 / 10
?	907 854 40	Threaded pin	11	InternBDB: M10x25 Typ MR \| InternKon: 938 348 40 / 4
?	934 339 40	Cover sheet	2	InternBDB: ABDECKBLECH RST37-2 \| InternKon: 934 340 40 / 2
?	340 467 99	Washer	4	InternBDB: SHB B 13,0 140HV DIN 00125 \| InternKon: 934 340 40 / 13

Komatsu PC3000-6 S/N 46174 parts catalog PDF

LIGHTING EQUIPMENT (485-2106c) in PC3000-6 S/N 46174. Diagram image and parts list.
