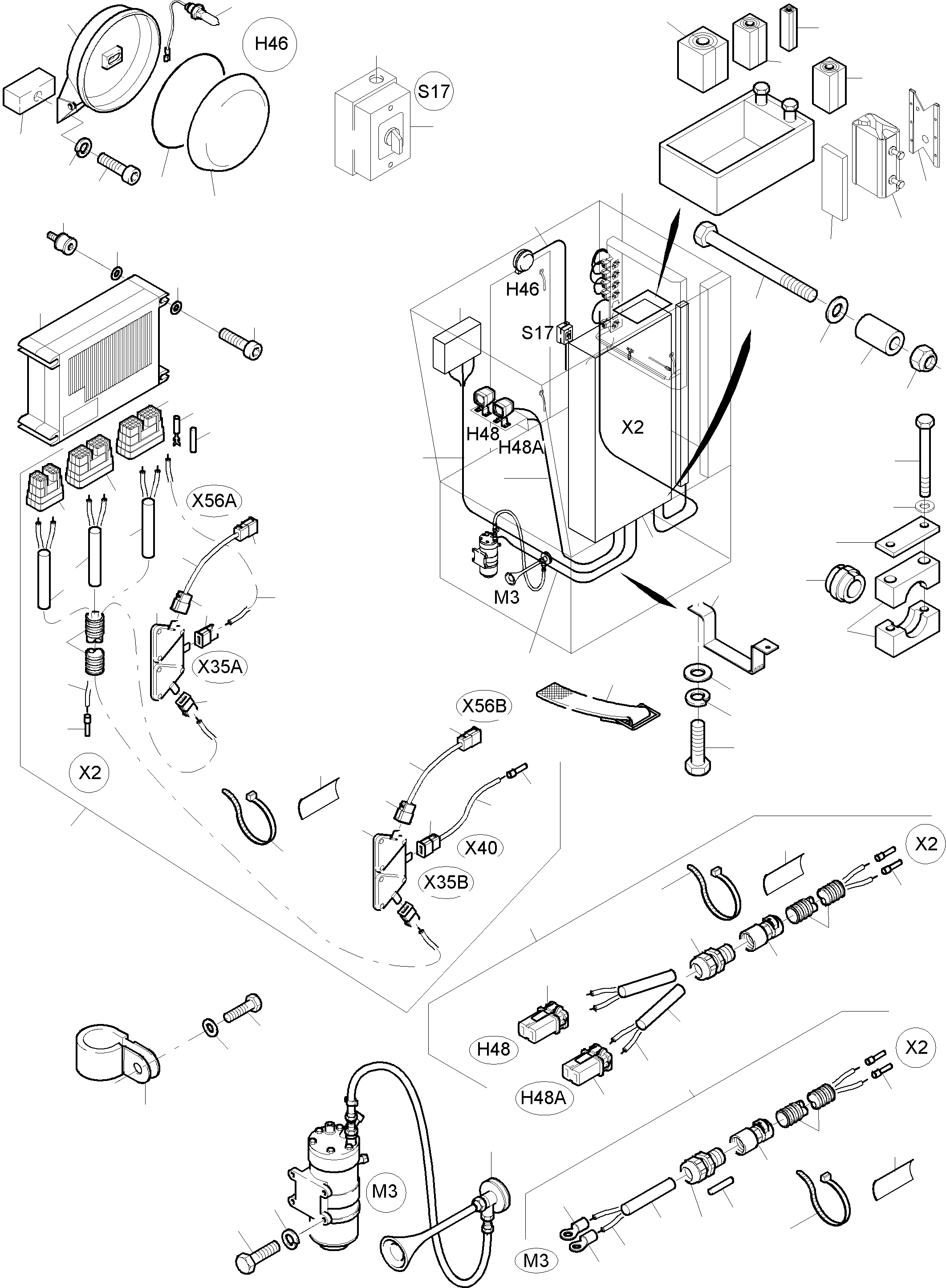

ELECTRIC - CAB SUPPORT | PC3000-6 S/N 46151 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
01		Switch box	1	485-2167a
02	634 009 40	Spotlight	1
03	551 362 40	Camswitch	1
04		Horn	1	113-2150
05	931 380 40	Harness-Lighting	1
06		Cables - pilot control frame	-2	485-2186a
08	343 108 99	Lock washer	1
09	319 143 99	Screw	1
10	512 181 98	Screw	2
11	340 459 99	Washer	2
12	343 104 99	Lock washer	2
13	506 729 98	Bolt	4
14	517 120 98	Lock washer	8
15	2080619170	Clip	2
16	0443452711	Clip	1
17	0443451610	Clip	10
18	317 319 40	Threaded block	1
19	308 544 99	Bolt	4
22	655 650 40	Cable protection hose DN 12 Bulk ware, state length required	-2
23	907 692 40	Fitting	2
24	907 703 40	Cable union	1
25	896 521 40	End pin	1
26	515 214 40	Cable 2,5 Bulk ware, state length required	-2
27	056 070 40	Cable sleeve 1,0 - 1,5	38
28	515 213 40	Cable 1,0 Bulk ware, state length required	-2
30	056 292 40	Cable strap	6
31	635 043 40	Name plate	6
32	769 155 73	Seal	1
33	769 156 73	Glass, white	1
34	931 362 40	Harness-Compressor	1
35	507 383 99	Halogen lamp 24V /70W	1
37	655 642 40	Circular bearing	4
38	350 762 99	Washer	4
39	7835231000	Controller	1
40	906 761 40	Rubber clamp	12
41	906 760 40	Rubber clamp	3
42	907 223 40	Rubber clamp	3
43	907 104 40	Rubber clamp	6
44	907 105 40	Rail	2
45	906 762 40	Compensating disc	1
46	906 758 40	Seal	1
47	931 363 40	Harness-Controller	1
48	455 756 99	Insulating tube Bulk ware, state length required	-2
49	903 422 40	Plug assy.	2
50	907 704 40	Cable union	1
51	055 108 40	Cable shoe 2,5	1
52	055 105 40	Cable shoe 4-6	1
53	056 071 40	Cable sleeve 2,5	7
54	907 864 40	Plug assy.	1
55	907 865 40	Plug assy.	1
56	907 866 40	Plug assy.	1
57	932 517 40	Contacte	54
58	932 561 40	Contacte	42
59	655 834 40	Cable protection hose DN 36 Bulk ware, state length required	-2
60	906 647 40	T-Splitter	2
61	913 246 40	Bushing assy.	8
62	906 577 40	Cable Bulk ware, state length required	-2
63	7821915010	Contact	3
64	906 605 40	Plug	2
65	907 877 40	Cable 2,5 Bulk ware, state length required	-2
66	635 677 40	Cable 4x1 Bulk ware, state length required	-2
67	906 577 40	Cable UIC Bulk ware, state length required	-2
68	455 770 40	Insulating tube Bulk ware, state length required	-2
69	509 064 98	Half clamp	6
70	500 398 98	Cover	3
71	516 024 98	Grommet	3
72	343 008 99	Washer	6
73	302 178 99	Bolt	6
75	308 611 99	Bolt	4
76	340 467 99	Washer	4
77	510 745 98	Resilent sleeve	4
78	334 600 99	Nut	4
79	931 321 40	Retainer	2
80	307 777 99	Bolt	16
81	517 122 98	Lock washer	25
82	346 500 99	Lock washer	25
83	655 530 40	Strab	2
84	0443452110	Clip	8
