LIGHTING EQUIPMENT | PC3000-6 S/N 46151 | Komatsu parts book catalogue

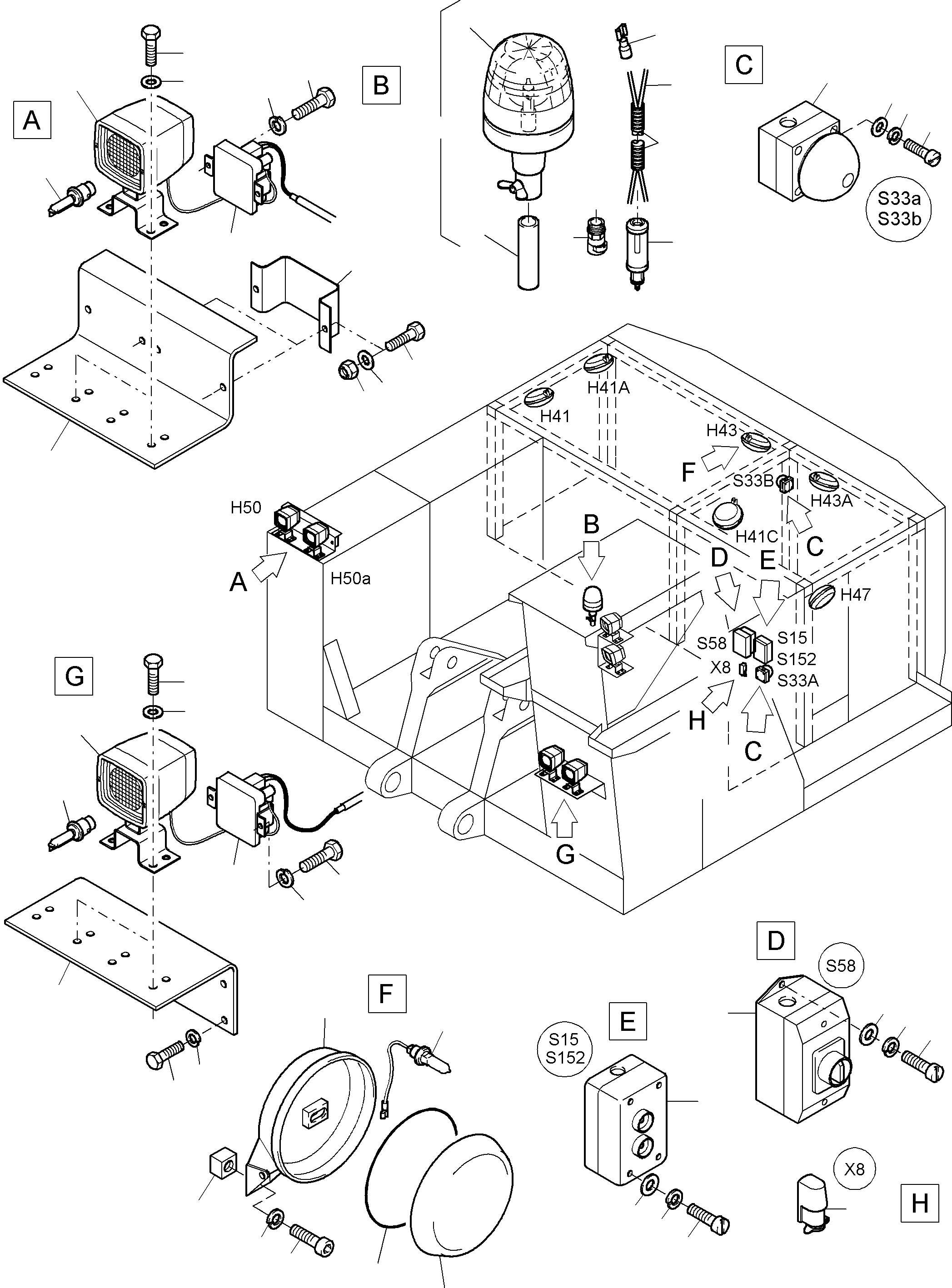

Diagram image 1 of 2

PC3000-6 S/N 46151

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 16 16 16 17 17 18 19 20 21 21 22 22 23 23 24 25 25 26 26 27 27 28 29 33 52 68 69 70 70 71 71 72 72 73 76 77 78 80 80

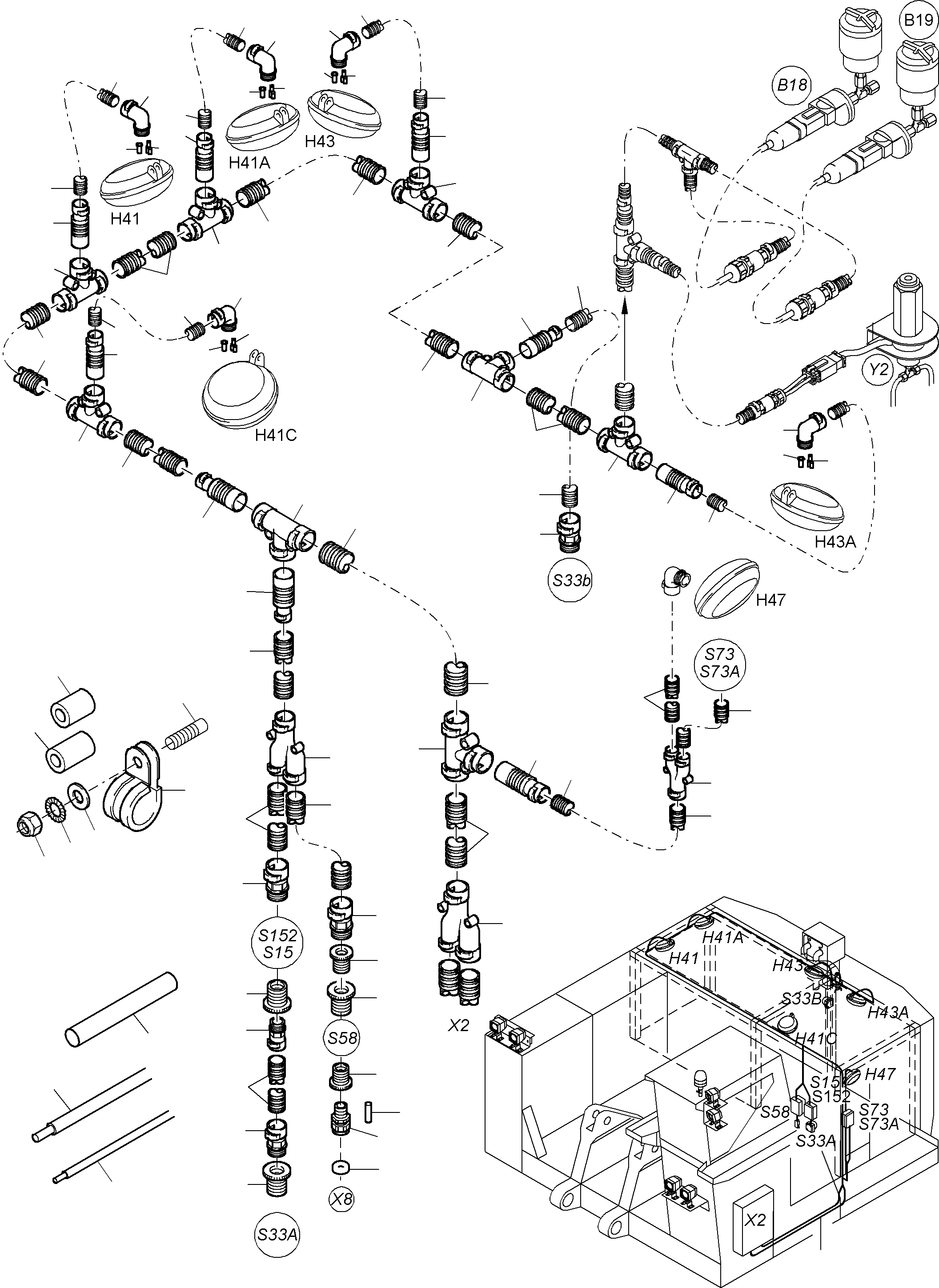

PC3000-6 S/N 46151

30 31 31 31 32 32 33 33 33 33 33 36 37 38 38 38 39 40 40 40 40 40 40 40 40 40 40 40 40 40 41 41 42 44 45 45 45 45 45 46 46 46 46 46 48 48 49 50 51 52 52 53 53 53 53 53 53 53 53 53 53 53 53 54 54 54 54 55 56 56 56 56 56 57 59 60 60 60 60 60 61 61 61 61 61 62 63 64 65 66 67 74 74 75 75 75 79

#	Part Number	Partname	Quantity
01	634 009 40	Head light	6
02	507 383 99	Lamp	6
03	769 155 73	Seal	6
04	769 156 73	Pane, white	6
05	317 319 40	Threaded block	6
06	319 143 99	Screw	6
07	343 108 99	Lock washer	6
08	898 629 40	Rotaflare light yellow assy.	1
09	898 612 40	Retainer	1
10	896 497 40	Rotaflare light 24 yellow	1
11	515 214 40	Cable 2.5 light blue	-2
12	180 322 40	Plug	1
13	323 960 40	Tab	2
14	621 314 40	Safety switch	1
15	907 849 40	Housing	1
16	932 687 40	Head light assy. with lamp	4
17	794 517 73	Lamp 24V /35W	4
18	925 889 40	Retainer	1
19	925 890 40	Retainer	1
20	915 310 40	Guard plate	2
21	307 752 99	Bolt	16
22	307 777 99	Bolt	11
23	340 465 99	Washer	11
24	507 037 98	Nut	4
25	517 623 98	Bolt	8
26	343 104 99	Lock washer	8
27	340 507 99	Washer	16
28	907 727 40	Socket	1
29	635 143 40	Emergency switch-off	2
30	931 367 40	Harness - engine housing	1
31	655 630 40	T-Distributor DN 29/23	2
32	896 558 40	Pipe adapter DN 29/23	1
33	907 994 40	Cable union DN 12-90	5
36	340 611 99	Washer	22
37	510 741 98	Resilent sleeve 13/25x50	11
38	907 478 40	Cable union DN 17	2
39	655 625 40	Connector distributor DN 12/10	1
40	655 650 40	Cable protection hose DN 12 Bulk ware, state length required	-2
41	907 477 40	Cable union DN 12	4
42	515 213 40	Cable 1,0 Bulk ware, state length required	-2
44	655 810 40	Pipe adapter DN 29/12	1
45	655 629 40	T-Distributor DN 17	5
46	655 632 40	Pipe adapter DN 17/10	6
48	655 627 40	Connector distributor DN 23/17	2
49	907 704 40	Cable union	1
50	896 521 40	End pin	1
51	655 634 40	Pipe adapter DN 23/17	1
52	655 649 40	Cable protection hose DN 10 Bulk ware, state length required	-2
53	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2
54	655 652 40	Cable protection hose DN 23 Bulk ware, state length required	-2
55	515 214 40	Cable 2,5 Bulk ware, state length required	-2
56	440 109 40	Sleeve 1-2,5	10
57	655 550 40	Rubber grommet	1
59	455 756 99	Insulating tube 6x0,6 Bulk ware, state length required	-2
60	056 070 40	Cable sleeve 1,0-1,5	16
61	056 071 40	Cable sleeve 2,5	17
62	307 775 99	Bolt	7
63	343 610 99	Washer	47
64	507 037 98	Nut	40
65	0443452110	Clip	30
66	0443452711	Clip	6
67	0443451610	Clip	4
68	321 010 99	Screw	4
69	340 461 99	Washer	4
70	320 978 99	Screw	8
71	340 904 99	Washer	8
72	346 508 99	Lock washer	8
73	346 509 99	Lock washer	4
74	517 326 98	Reducing M16/M12	1
75	517 327 98	Reducing M20/M16	6
76	907 847 40	Button	2
77	907 848 40	Contact element	2
78	907 856 40	Button plate	1
79	510 744 98	Resilent sleeve 13/25x32	7
80	517 121 98	Lock washer	16
