PC3000-6 S/N 46151

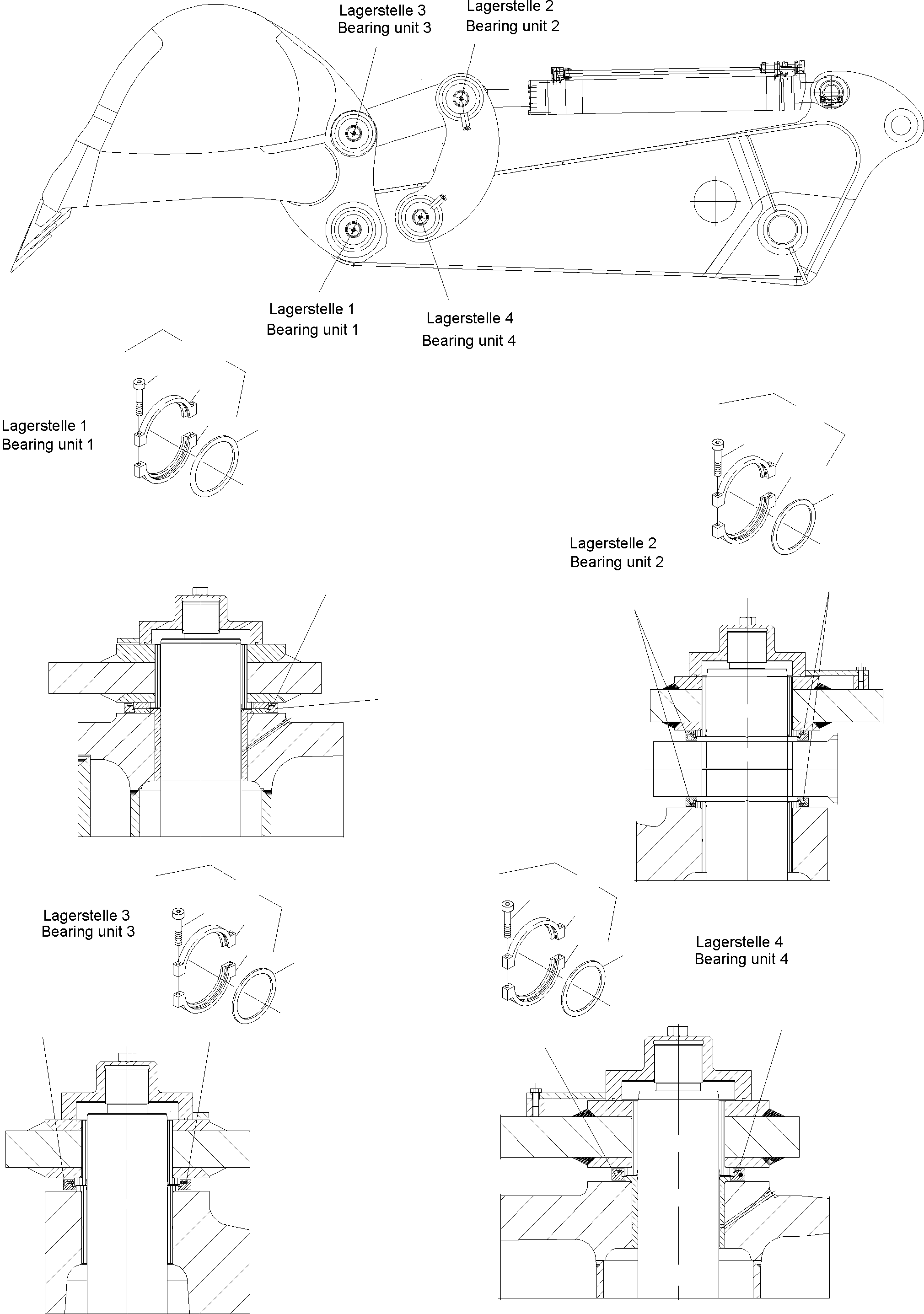

Komatsu parts book diagram for PC3000-6 S/N 46151: PIN SEALING STEERING AND ROD

01 01 02 02 03 04 05 05 06 06 07 08 10 10 11 11 12 13 14 14 15 15 16 17 20 21 22 22

	#	Part Number	Partname	Quantity	Options	Reference
	01	651 353 40	Seal fixing fig-nos.03, 04, 20	2
	02	651 351 40	Seal ring	2
	03		Upper ring half These parts are not sold separately	2
	04		Lower ring half These parts are not sold separately	2
	05	561 541 40	Seal fixing fig-nos. 07, 08, 21	4
	06	561 539 40	Seal ring	4
	07		Upper ring half These parts are not sold separately	2
	08		Lower ring half These parts are not sold separately	2
	10	900 758 40	Seal fixing fig-nos. 12, 13, 22	2
	11	652 174 40	Seal ring	2
	12		Upper ring half These parts are not sold separately	2
	13		Lower ring half These parts are not sold separately	2
	14	918 283 40	Seal fixing fig-nos. 16, 17, 22	2
	15	247 091 40	Seal ring	2
	16		Upper ring half These parts are not sold separately	2
	17		Lower ring half These parts are not sold separately	2
	20	319 293 99	Bolt	2
	21	319 292 99	Bolt	2
	22	509 170 98	Bolt	4

Komatsu PC3000-6 S/N 46151 parts catalog PDF

PIN SEALING STEERING AND ROD (485-4650) in PC3000-6 S/N 46151. Diagram image and parts list.
