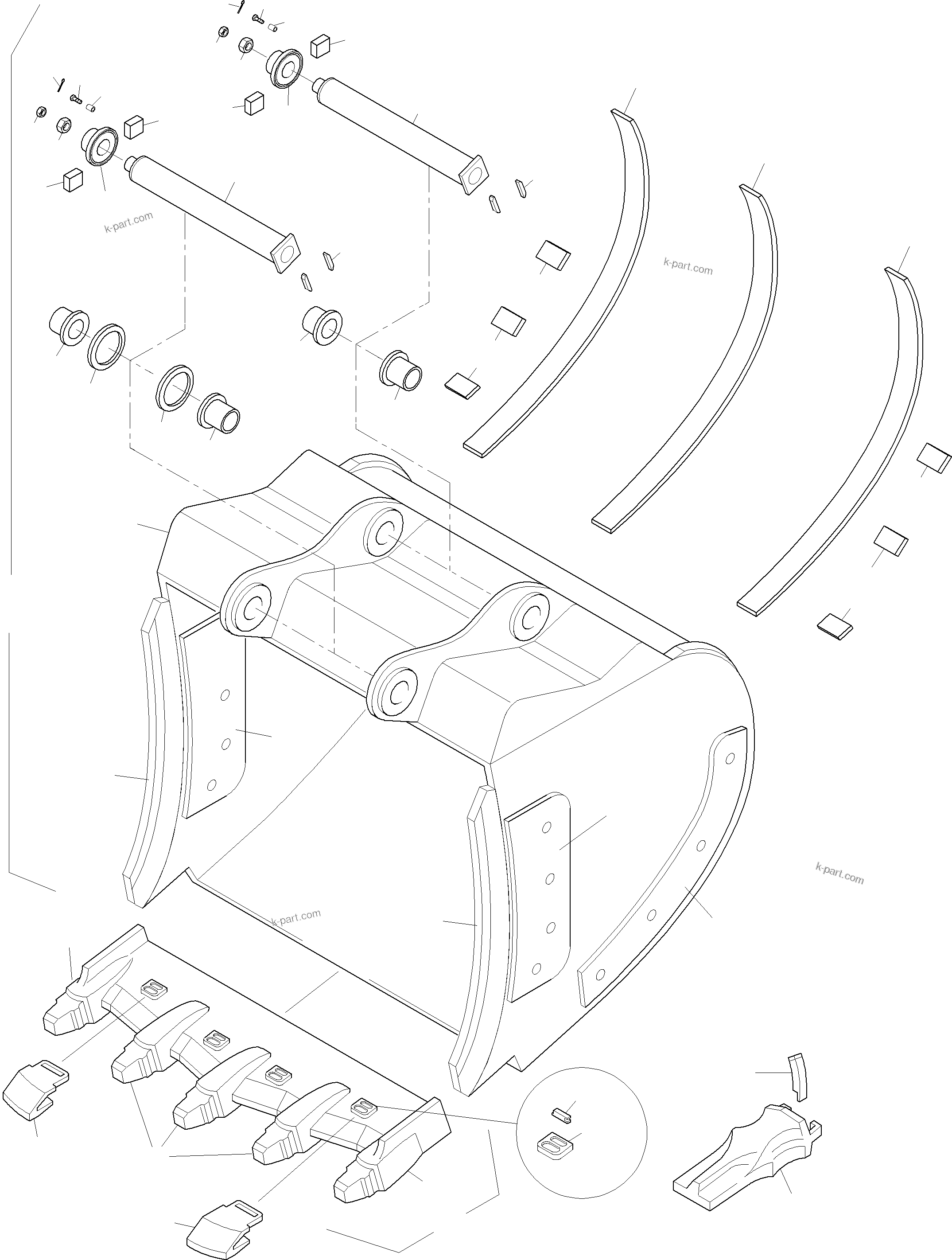

BACKHOE 15 CBM | PC3000-6 S/N 46151 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 46151

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		Backhoe w./o. lip and teeth, fig.-no.: 24-39	1
?	931 663 40	Lip with tooth adapters	1
?	660 329 40	Tooth adapter	3
?	660 328 40	Corner adapter	1
?	660 327 40	Corner adapter	1
?	660 332 40	Key	5
?	660 331 40	Tooth (SD)	5
?	654 544 40	Shroud	2
?	654 543 40	Shroud	2
?	660 485 40	Catch	4
?	660 486 40	Key	4
?	925 586 40	Shroud	2
?	925 587 40	Wear plate outside	2
?	925 588 40	Wear plate inside	2
?	925 589 40	Wear strip	1
?	925 590 40	Wear strip	2
?	925 591 40	Wear plate	2
?	925 585 40	Wear plate	6
?		Backhoe, weldment	1
?	904 493 40	Pin with plate	1
?	904 494 40	Pin with plate	1
?	904 495 40	Flanged bush	2
?	904 496 40	Flanged bush	2
?	913 032 40	Ring	2
?	926 850 40	Cap	1
?	926 855 40	Cap	1
?	925 982 40	Stop	8
?	904 498 40	Square	4
?	904 499 40	Catch	2
?	319 442 99	Bolt	2
?	342 085 99	Cotter pin	2
?	332 361 99	Nut	2
?	332 228 99	Nut	2
?	925 981 40	Safety sleeve	2
