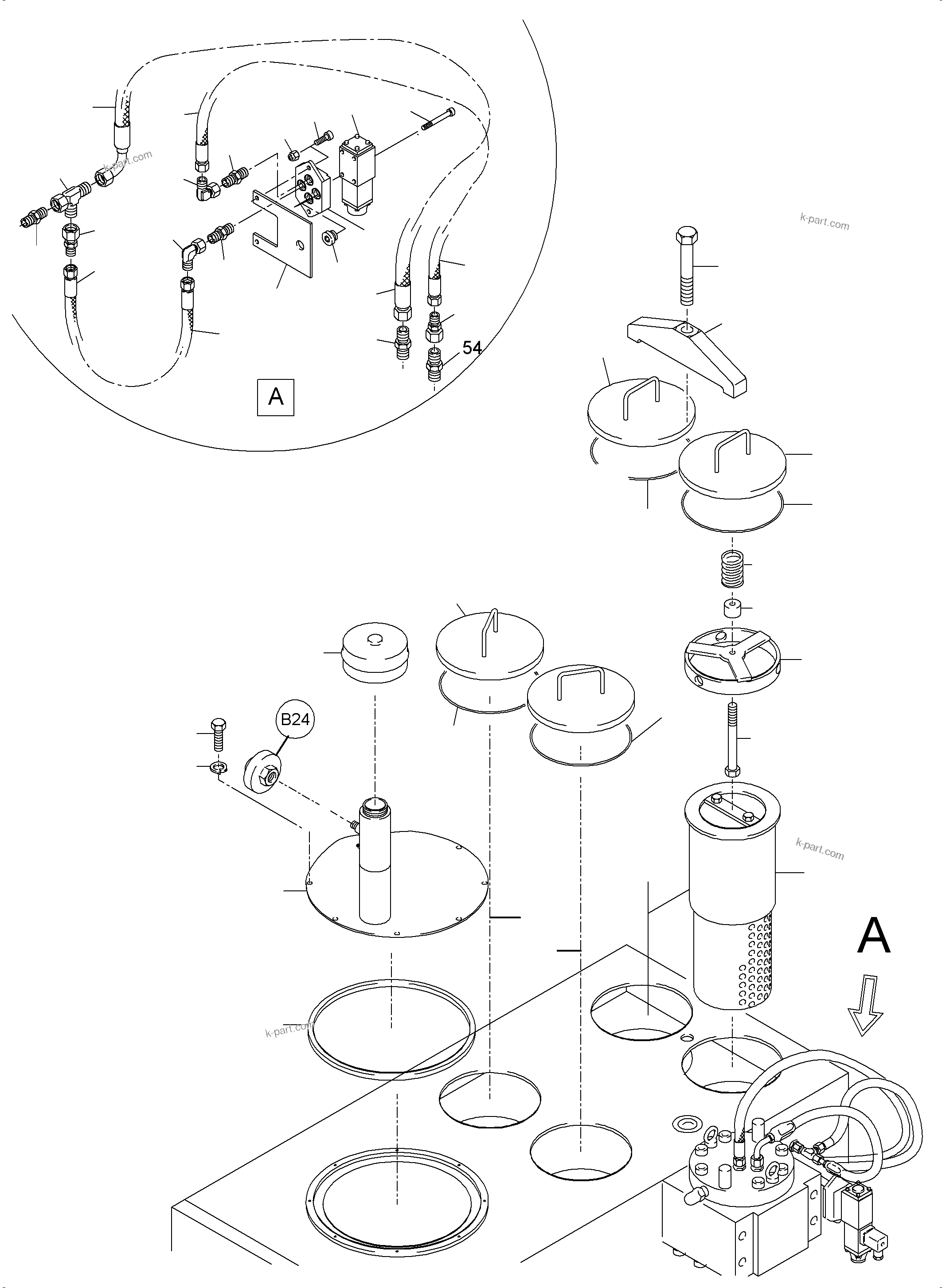

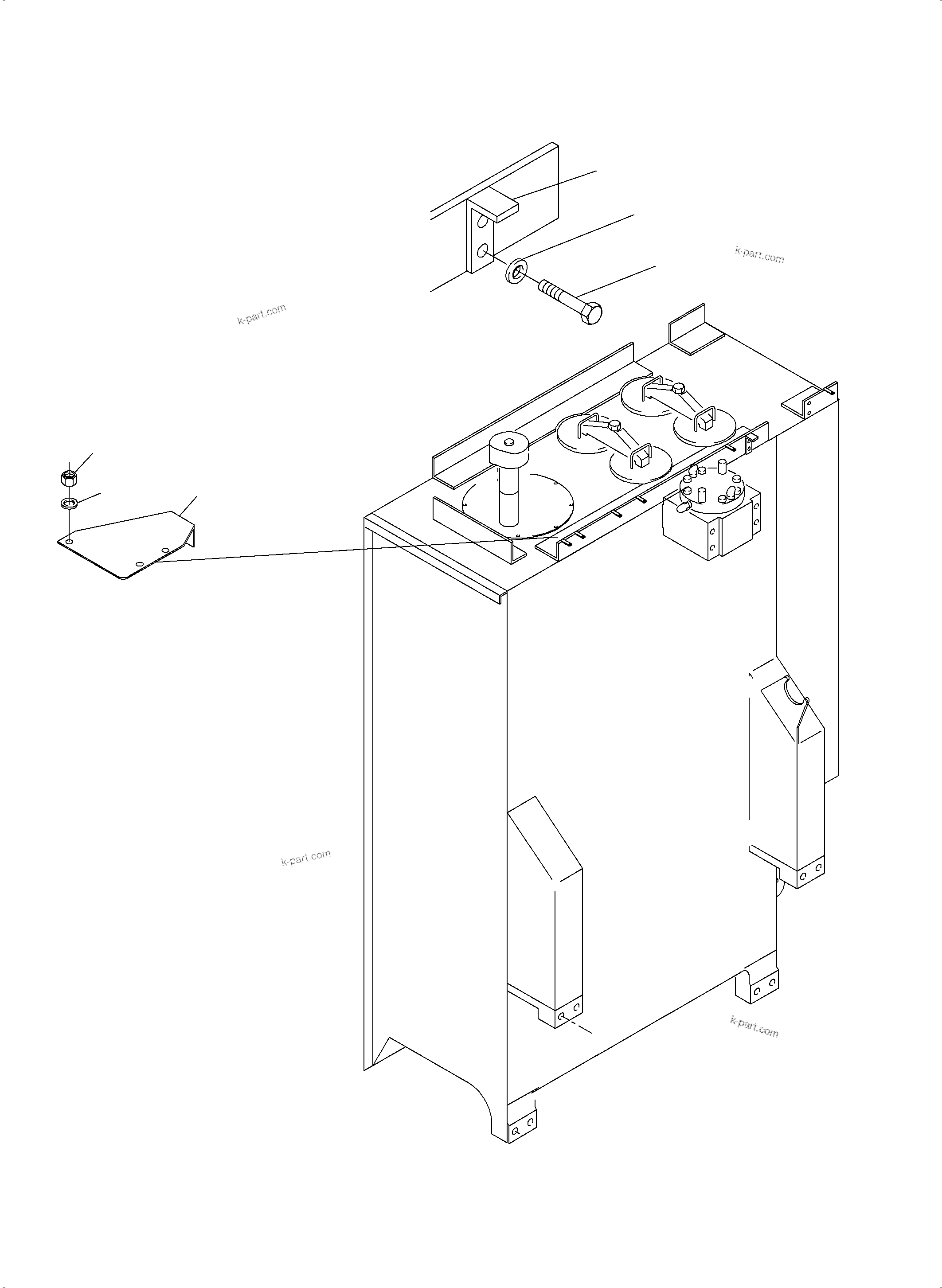

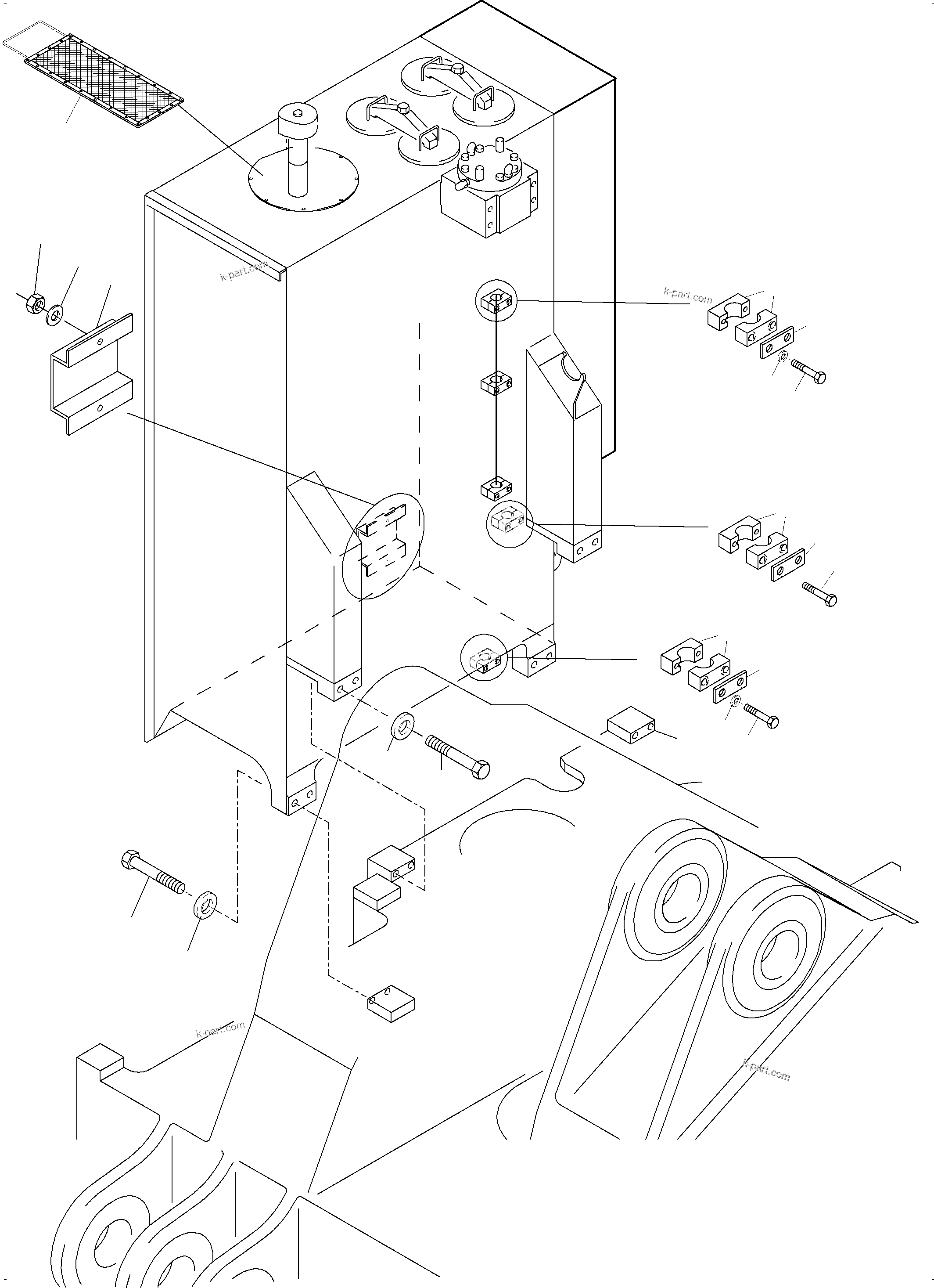

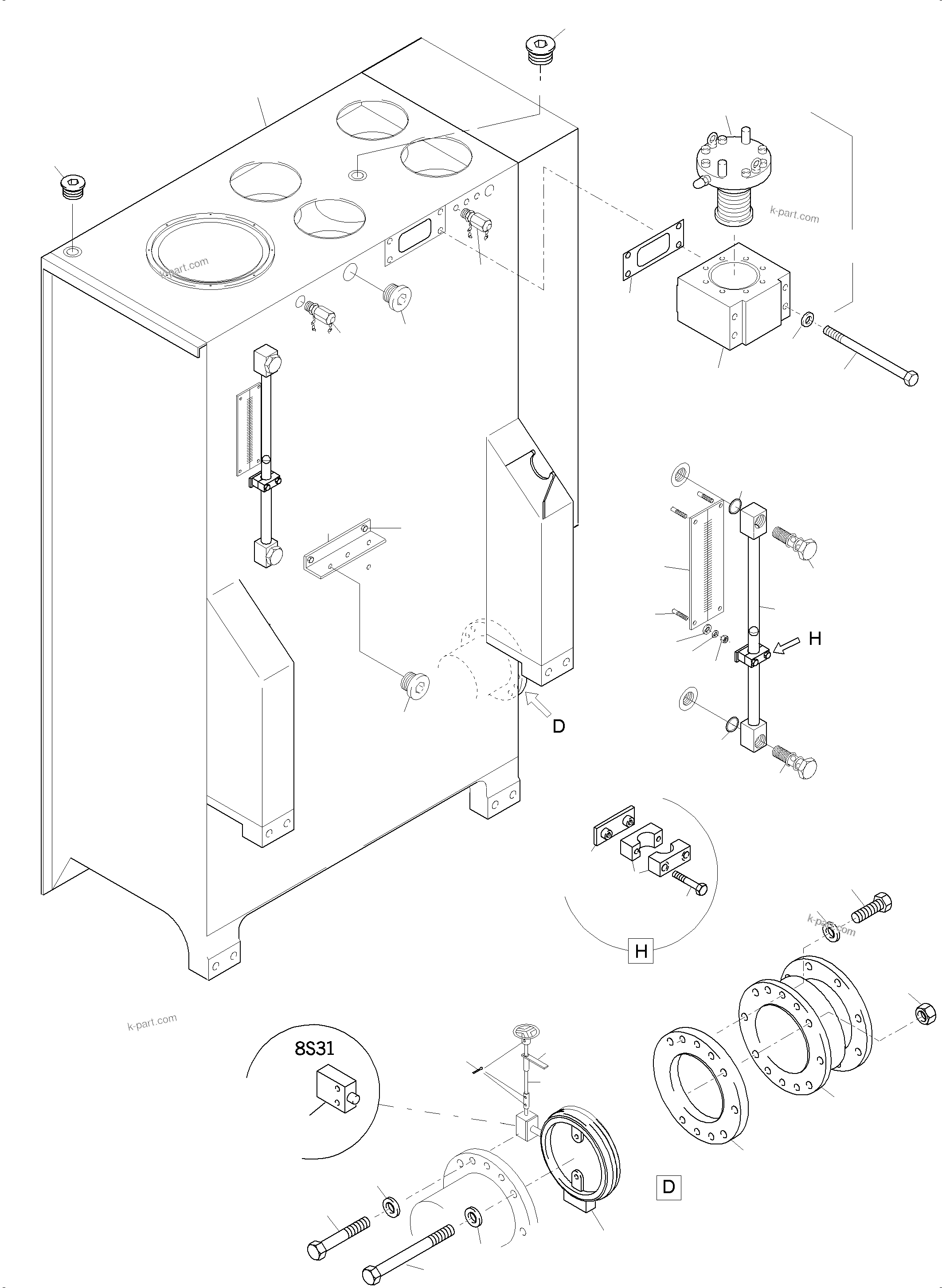

Diagram image 1 of 4

PC3000-6 S/N 46213

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46213

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46213

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46213

? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	923 720 40	Oil tank	1
?	923 710 40	Oil tank weldment	1
?	933 882 40	Valve block, incl. fig-nos: 04, 05	1
?	631 091 40	Valve block	1
?		Pressure relief valve	1	991-0413
?	910 951 40	Filter cover	4
?	930 078 40	Cover	4
?	923 744 40	Cover	1
?	436 040 40	U-bolt	2
?	366 504 40	Spring	4
?	910 954 40	Bushing	4
?	940 730 40	4/2 way directional spool valve	1
?	255 694 40	Plug	2
?		Return oil filter	3	991-0348
?		Filter	1	090-5586
?	904 748 40	Trap with plug	1
?	180 325 40	Base plate	1
?	514 340 98	Screw	4
?	916 746 40	Gasket	1
?	769 653 73	Limit switch	1
?	389 472 40	Gasket	1
?	440 723 40	Compensator	1
?	502 119 98	O-ring	4
?	942 484 40	Retainer	1
?	319 132 99	Bolt	2
?	304 309 99	Bolt	2
?	505 449 98	Bolt	4
?	307 845 99	Bolt	2
?	507 025 98	Nut	2
?	371 459 99	Socket	2
?	307 752 99	Bolt	8
?	516 157 98	Union	2
?	308 874 99	Bolt	4
?	334 686 99	Nut	6
?	515 553 98	Hose assy. DN 10x700	1
?	316 213 99	Washer	2
?	516 175 98	Union	1
?	551 987 40	Union	2
?	346 510 99	Lock washer	8
?	374 407 99	Union	1
?	515 820 98	Hose assy. DN 12x530	1
?	907 594 40	Fluid level sensor with swimming ball fig.-nos.: 50, 51	1
?	511 602 98	Banjo bolt	2
?	972 009	O-ring	2
?	940 022 40	Plug	1
?	374 436 99	Socket	2
?	515 812 98	Coupling	2
?	180 477 40	Union	1
?	308 670 99	Bolt	4
?	308 675 99	Bolt	6
?	500 716 40	Flange	1
?	340 470 99	Disc	12
?		Return oil filter	1	991-0350
?	324 741 40	Plug	4
?	255 694 40	Plug	2
?	533 989 99	Weld on plate	1
?	502 631 98	Clamp Set	5
?	319 132 99	Bolt	2
?	926 952 40	Strainer	1
?	534 008 99	Cover plate	3
?	308 599 99	Bolt	6
?	343 006 99	Washer	6
?	505 058 98	Clamp Set	3
?	504 923 98	Clamp Set	1
?	308 581 99	Bolt	2
?	343 005 99	Washer	2
?	534 004 99	Cover plate	1
?	511 718 98	Clamp Set	2
?	511 196 98	Cover plate	2
?	308 679 99	Bolt	4
?	925 178 40	Guide	1
?	925 177 40	Extension	1
?	345 052 99	Cotter pin	3
?	302 552 99	Bolt	2
?	502 082 98	Bolt	2
?	255 057 40	Washer	4
?	516 041 98	Hose assy. DN 10x400	1
?	930 923 40	Plate	1
?	507 037 98	Nut	7
?	340 465 99	Washer	3
?	942 441 40	Cap	1
?	340 467 99	Washer	4
?	943 689 40	Cable Cover	1
?	942 485 40	Angle	1
?	517 122 98	Washer	2
?	307 777 99	Bolt	2
?	933 852 40	Decal oil level	1
?	509 875 98	Thread pin	4
?	507 596 98	Washer	4
?	340 507 99	Washer	4
?	334 599 99	Nut	4

Komatsu PC3000-6 S/N 46213 parts catalog PDF

MAIN OIL TANK (485-1801c) in PC3000-6 S/N 46213. Diagram image and parts list.
