Diagram image 1 of 2

PC3000-6 S/N 46224

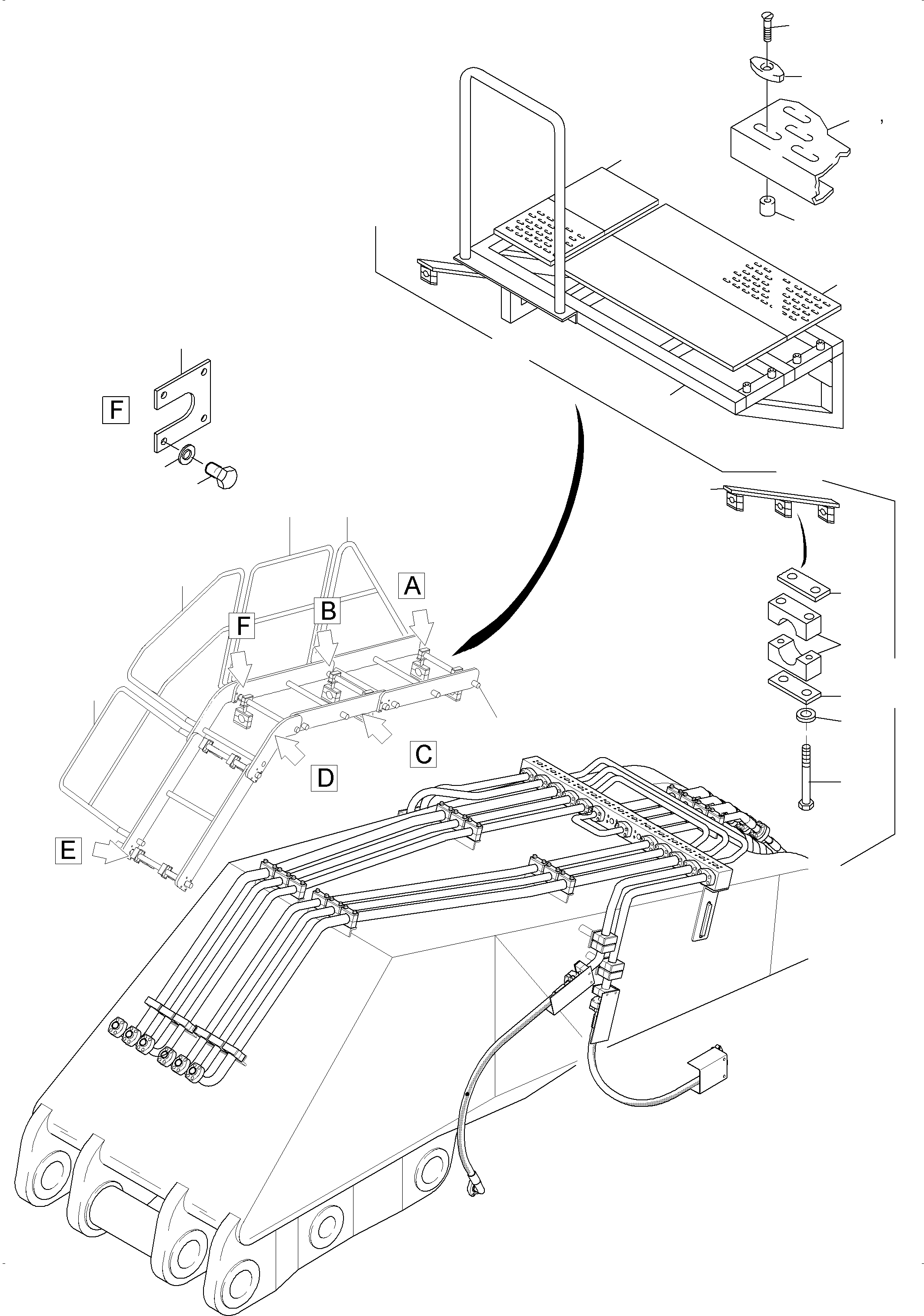

Komatsu parts book diagram for PC3000-6 S/N 46224: LADDER - BULLCLAM BUCKET BOOM 6M

01 02 03 04 10 11 12 13 22 23 24 25 26 27 28 29 29 30 30 32 33 34 35 36

PC3000-6 S/N 46224

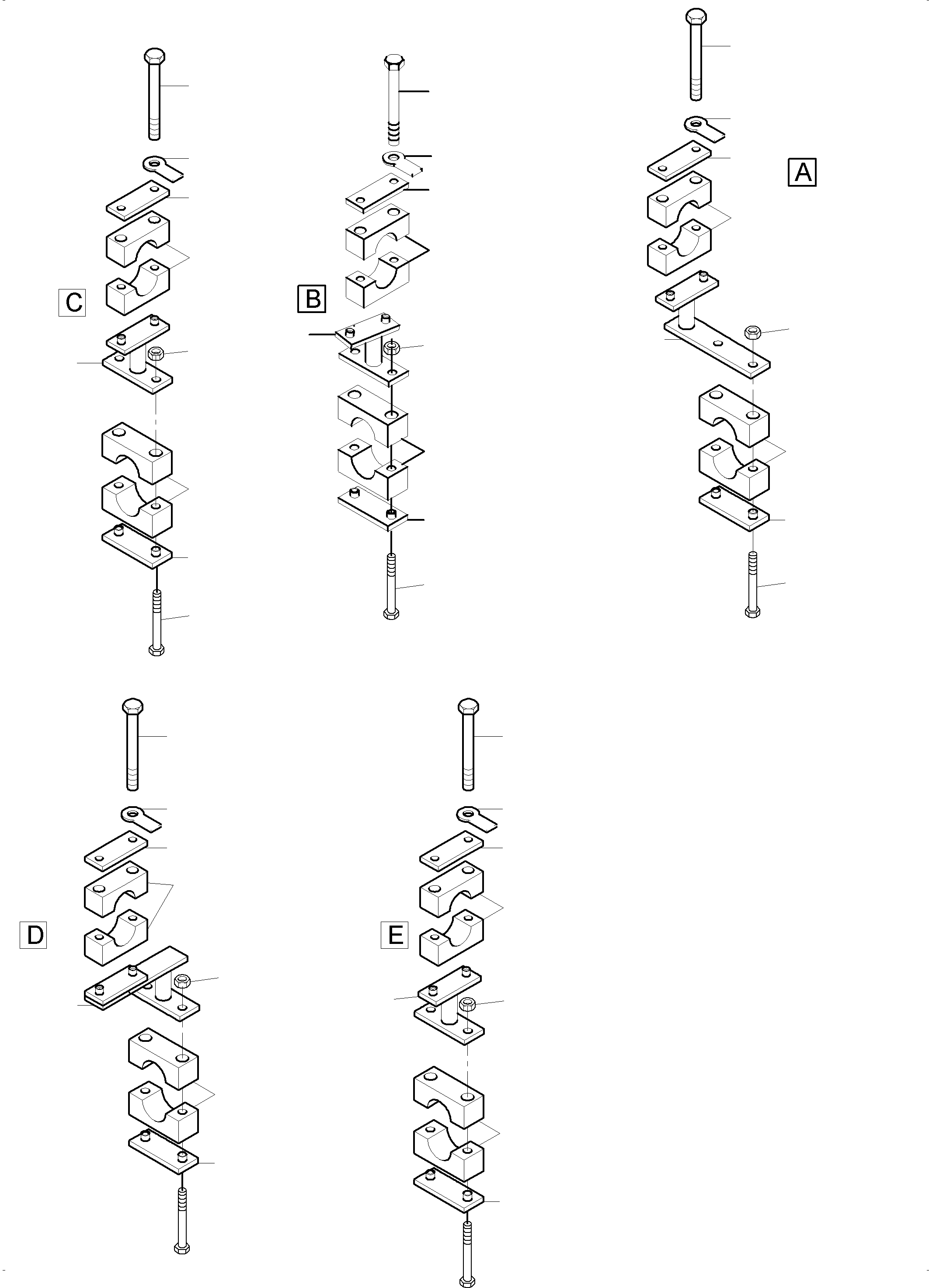

Komatsu parts book diagram for PC3000-6 S/N 46224: LADDER - BULLCLAM BUCKET BOOM 6M

05 06 07 08 09 13 13 13 13 13 14 14 14 14 14 15 15 15 16 16 16 16 16 17 17 17 17 17 18 18 18 18 18 19 19 19 19 19 20 20 20 20 20

	#	Part Number	Partname	Quantity	Options	Reference
	01	936 969 40	Stair rail section	1
	02	937 658 40	Stair rail section	1
	03	938 017 40	Stair rail section	1
	04	938 050 40	Stair rail section	1
	05	938 045 40	Retainer	2
	06	938 048 40	Retainer	1
	07	938 047 40	Retainer	1
	08	938 049 40	Retainer	2
	09	938 054 40	Retainer	4
	10	936 985 40	Cover plate	6
	11	307 775 99	Bolt	24
	12	343 065 99	Lock washer	24
	13	534 009 99	Weld on plate	8
	14	502 976 98	Clamp set	8
	15	510 151 98	Bolt	16
	16	332 334 99	Nut	16
	17	504 709 98	Clamp set	10
	18	534 004 99	Cover plate	10
	19	308 582 99	Bolt	20
	20	509 309 98	Locking plate	10
	22	896 570 40	Plug	8
	23	961 051 40	Work stage assy. incl. fig nos 25-30	1
	24	944 381 40	Terminal strip assy.	2
	25	961 050 40	Work stage	1
	26	317 319 40	Threaded block	20
	27	461 817 40	Handle	20
	28	502 354 98	Bolt	20
	29	324 540 40	Grating	2
	30	950 497 40	Grating	2
	32	944 380 40	Plate	1
	33	504 445 98	Clamp set	3
	34	534 008 99	Cover plate	3
	35	308 599 99	Bolt	6
	36	517 118 98	Lock washer	6
	\|$$35			-2
	\|$$36			-2
	\|$$37			-2
	\|$$38			-2
	\|$$39			-2
	\|$$40			-2
	\|$$41			-2
	\|$$42			-2
	\|$$43			-2
	\|$$44			-2
	\|$$45			-2
	\|$$46			-2
	\|$$47			-2
	\|$$48			-2
	\|$$49			-2
	\|$$50			-2
	\|$$51			-2
	\|$$52			-2
	\|$$53			-2
	\|$$54			-2
	\|$$55			-2
	\|$$56			-2
	\|$$57			-2
	\|$$58			-2
	\|$$59			-2

Komatsu PC3000-6 S/N 46224 parts catalog PDF

LADDER - BULLCLAM BUCKET BOOM 6M (485-4029a) in PC3000-6 S/N 46224. Diagram image and parts list.
