#	Part Number	Partname	Quantity
?	921 583 40	Switch framing	1
?	490 929 40	Assembly rail	2
?	490 708 40	Sectional plate	10
?	323 237 40	Wiring terminal	16
?	323 233 40	Wiring profile Bulk ware, state length required	-2
?	323 234 40	Cover 25 BN Bulk ware, state length required	-2
?	500 106 98	Bolt	44
?	334 599 99	Nut	44
?	270 288 40	Wiring channel 40x25 Bulk ware, state length required	-2
?	655 517 40	Cover 40 BN Bulk ware, state length required	-2
?	655 518 40	Wiring channel 40x60 Bulk ware, state length required	-2
?	907 988 40	Measuring booster	3
?	907 830 40	Breaker 25 A	5
?	907 827 40	Breaker 16 A	14
?	907 839 40	Breaker 50 A	6
?	910 027 40	Converter	1
?	907 829 40	Breaker 10 A	11
?	907 824 40	Breaker 16 A	2
?	399 773 40	Relay	39
?	592 338 40	Socket	39
?	414 369 40	Spring retainer	39
?	356 184 40	Relay	10
?	323 910 40	Socket	10
?	323 911 40	Spring retainer	10
?	896 581 40	Power breaker	4
?	907 750 40	Camswitch	1
?	906 482 40	Booster	1
?	910 743 40	Resistor array assy.	1
?	896 488 40	Camswitch	1
?	896 546 40	Time lag relay	1
?	907 481 40	Time lag relay	1
?	461 177 40	Relay 100 A	1
?	654 439 40	Time-lag relay	1
?	655 898 40	Cycle relay	1
?	896 716 40	Hour meter	1
?	323 590 40	Switch modul	1
?	896 754 40	Switch modul	1
?	894 587 40	Frequency voltage transformer 5KHZ	1
?	621 506 40	Sensor	1
?	621 735 40	Capacitor	4
?	634 575 40	Amplifier	14
?	461 039 40	Amplifier	1
?	322 378 40	Diode array	3
?	901 392 40	Resistor array assy.	5
?	604 733 40	Resistor 2 W	75
?	490 889 40	Series terminal with diode, red	4
?	490 890 40	Series terminal with diode, green	1
?	907 951 40	Rail collector Bulk ware, state length required	-2
?	926 505 40	Series terminal with diode, red	1
?	906 611 40	Mounting part	5
?	356 266 40	Cover plate	-2
?	461 322 40	Cover plate	-2
?	461 321 40	Terminal	80
?	356 265 40	Clamp	44
?	906 612 40	Through clamp	300
?	356 272 40	Cover plate	-2
?	356 274 40	Series terminal M 10/10	5
?	356 277 40	Series terminal M 16/12	18
?	906 613 40	Cover plate	60
?	906 630 40	Protective wire clip 2,5	90
?	655 748 40	Diode array	2
?	603 346 40	Voltage measuring clamp	1
?	461 703 40	Terminal M150/35EE	3
?	906 614 40	Bridge 2-fold	87
?	906 615 40	Bridge 3-fold	10
?	906 616 40	Bridge 4-fold	5
?	906 618 40	Bridge 10-fold	7
?	490 542 40	Cross connection QL 2	35
?	634 679 40	Sleeve with bolt	18
?	320 972 99	Screw	-2
?	906 623 40	Label strip	10
?	515 213 40	Cable 1.0 Bulk ware, state length required	-2
?	515 214 40	Cable 2.5 Bulk ware, state length required	-2
?	655 675 40	Cable 6.0 Bulk ware, state length required	-2
?	515 218 40	Cable 16.0 Bulk ware, state length required	-2
?	906 624 40	Marker	20
?	997 892 73	Marking strip set	1
?	906 625 40	Marker	20
?	906 671 40	Modul	8
?	440 307 40	Socket	1
?	906 626 40	Marker	10
?	906 627 40	Marker	10
?	906 628 40	Marker	5
?	906 629 40	Marker	5
?	906 687 40	Marker	1
?	906 688 40	Marker	1
?	894 577 40	Socket assy.	1
?	906 606 40	Plug 19-pol.	1
?		SPS-VHMS Watch deviations of machine record	1
?	906 231 40	Circular bearing	8
?	507 025 98	Nut	8
?	515 314 40	Protecting cup	1
?	906 769 40	Through clamp	20
?	906 773 40	Cover plate	1
?	906 776 40	Bridge	12

Komatsu PC4000-6 S/N 08164 parts catalog PDF

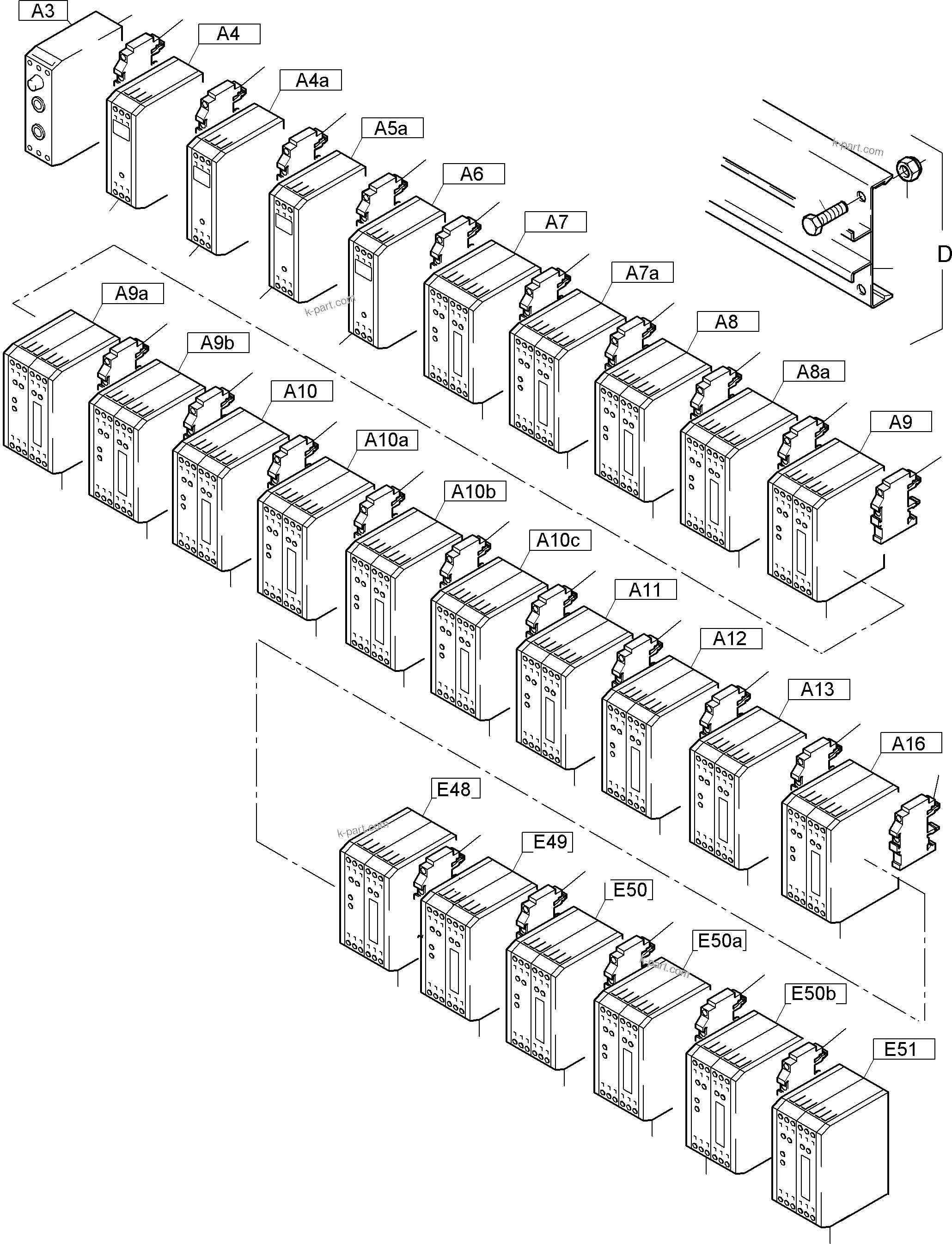

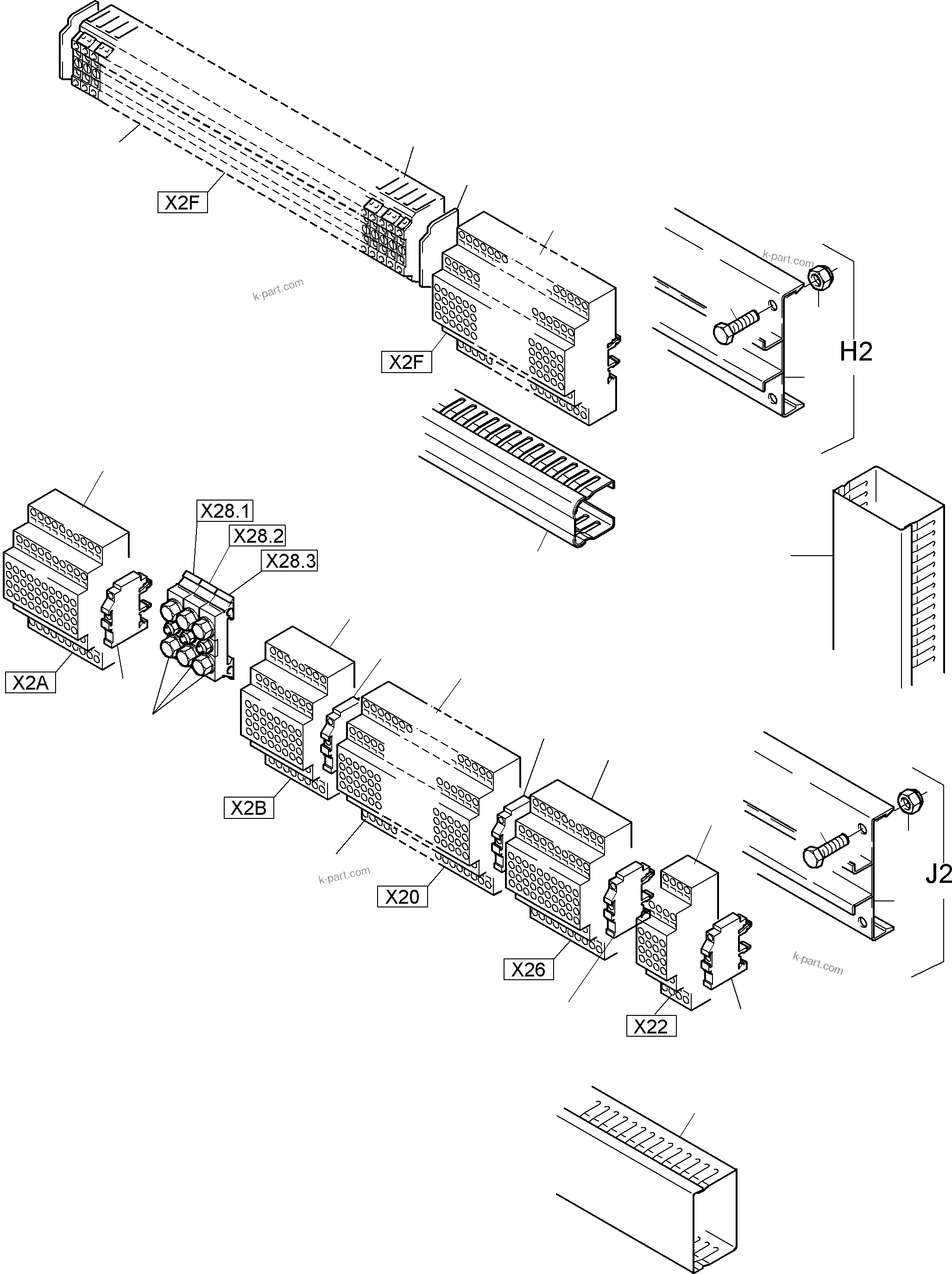

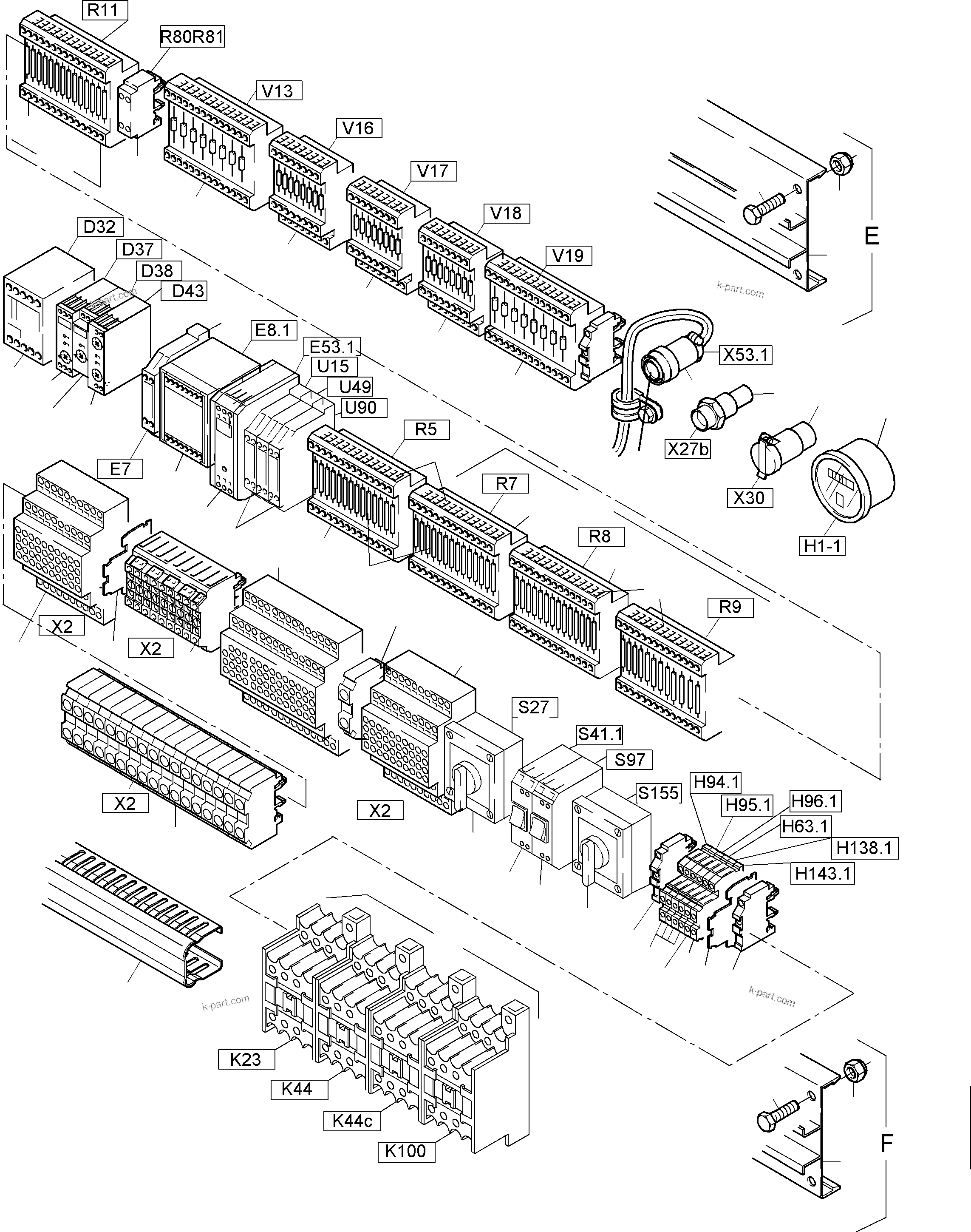

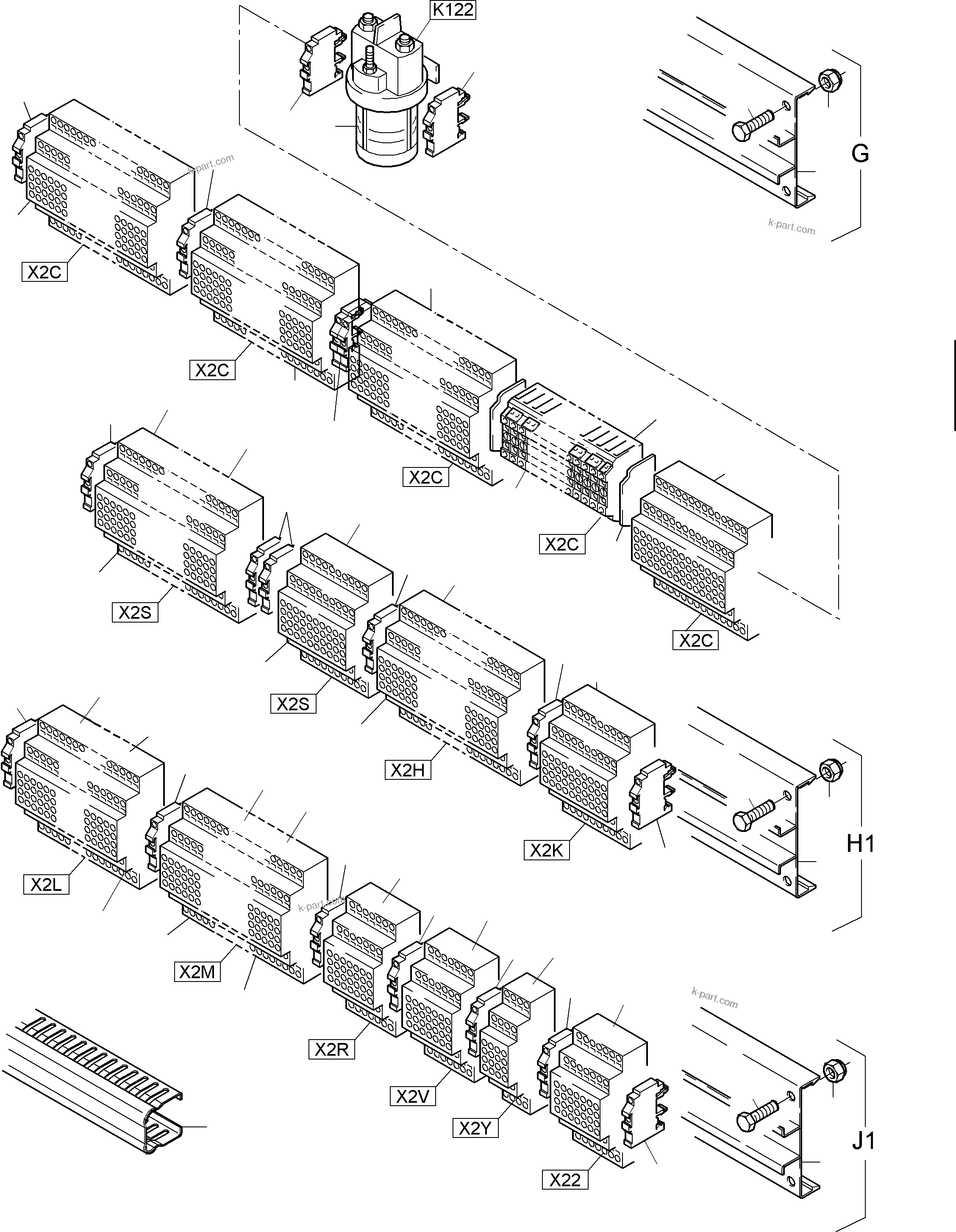

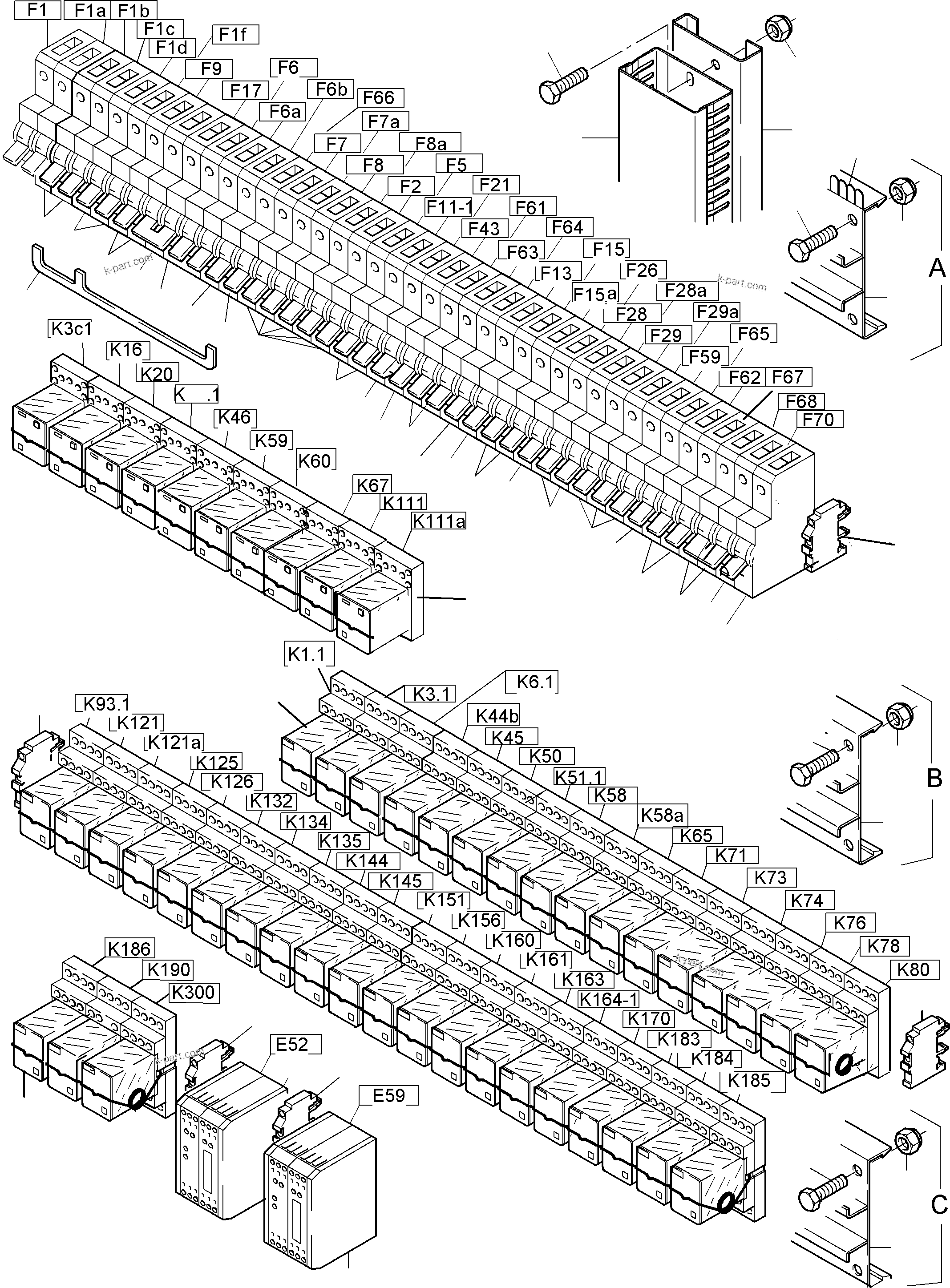

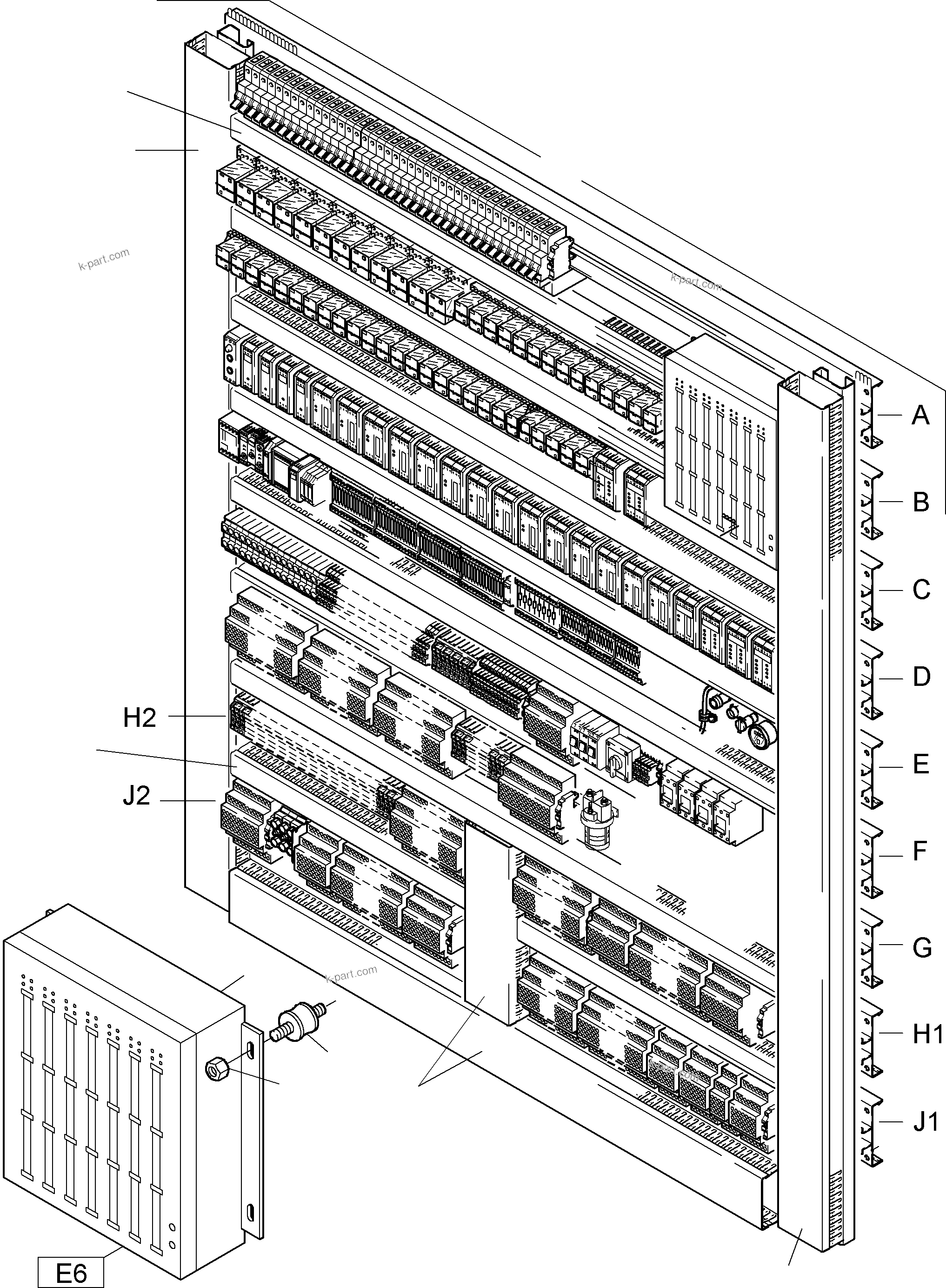

SWITCH FRAMING X2 (355-2165h) in PC4000-6 S/N 08164. Diagram image and parts list.
